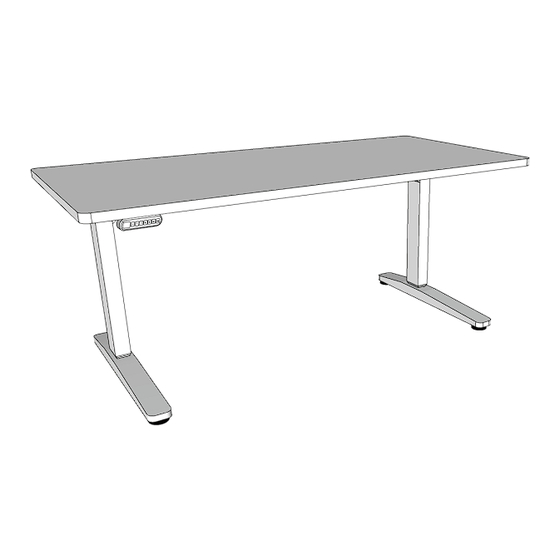

UPLIFT 2-Leg Height Adjustable Standing Desk
- For use with UPLIFT Eco and Eco Curve desktops -
DIRECTIONS FOR ASSEMBLY AND USE

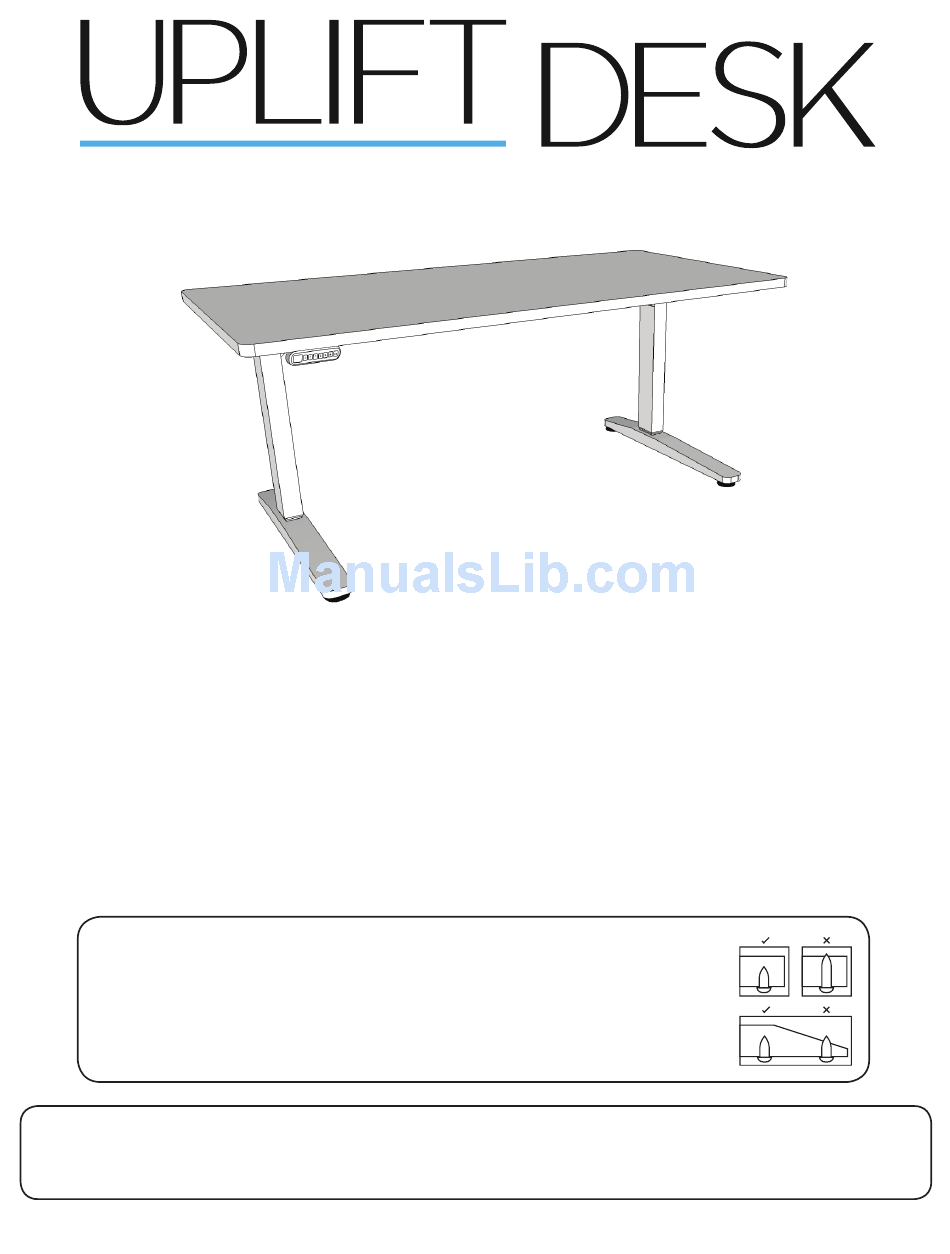

Your UPLIFT Eco desktop is thinner than most desktops. Before attaching accessories,
check the screw length against the thickness of the desktop to ensure that the screw is
not too long and won't break through to the top of your desktop.
If you have an UPLIFT Eco Curve desktop (where the edge tapers downat the center cut),
it is best to not attach anything underneath that portion of the desktop as the fasteners
used will assuredly be too long and will break through to the topside of your desktop.
Any user or installer of desk base must study this manual carefully. If this desk is sold,
please provide the manual to the buyer, installers, or support personnel operating the product.
© UPLIFT Desk • 1-800-349-3839 • info@upliftdesk.com • www.upliftdesk.com
90.014.01.0158v.B
