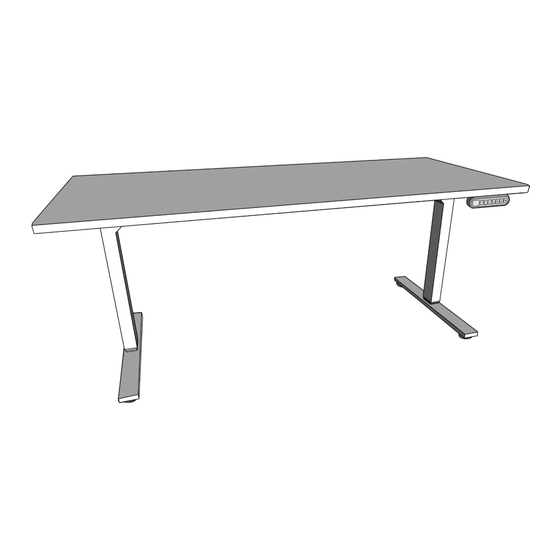

UPLIFT Height Adjustable Standing Desk (T-Frame)
DIRECTIONS FOR ASSEMBLY AND USE
- - ALSO - -
Watch our assembly video
http://bit.ly/19y2WWH
MAKE SURE NO OBSTACLES ARE IN THE DESK'S PATH AND
ALL CORDS ARE OF APPROPRIATE LENGTH FOR DESK
TRAVEL. FAILURE TO COMPLY WITH OR OBSERVE ALL
CAUTION
!
ASSEMBLY, SAFETY, AND OPERATION INSTRUCTIONS AND
WARNINGS REGARDING THE USE OF THIS PRODUCT MAY
RESULT IN SERIOUS PROPERTY DAMAGE OR BODILY INJURY.
IMPORTANT:
Any user or installer of desk base must study this manual carefully.
If this desk is sold, please provide the manual to the buyer.
UPLIFT Desk 1-800-349-3839
1
90.014.01.0077vD
Advertisement
Related Manuals for UPLIFT UPL921-T
Summary of Contents for UPLIFT UPL921-T
- Page 1 ® UPLIFT Height Adjustable Standing Desk (T-Frame) DIRECTIONS FOR ASSEMBLY AND USE - - ALSO - - Watch our assembly video http://bit.ly/19y2WWH MAKE SURE NO OBSTACLES ARE IN THE DESK’S PATH AND ALL CORDS ARE OF APPROPRIATE LENGTH FOR DESK TRAVEL.
- Page 2 After it has been assembled, when moving the desk, DO NOT lift the desk by the desktop. Lifting this way can stress the fasteners connecting the desk base to the desktop. Lower the desk completely and lift the desk by grabbing the top of the desk base or by removing the desktop first. UPLIFT Desk 1-800-349-3839...
-
Page 3: Tools Required
For ease and safety, we recommend two people for assembly. Part # Description Foot Crossbar End Crossbar Center Rail Side Bracket Adhesive Pads Control Box Keypad Leveling Studs (Pre-Installed) Wires (Power & Connector wires) M6x1.0x14 Machine Screw M6x1.0x10 Machine Screw M-5x16 Pan Head Screw Cable Clips UPLIFT Desk 1-800-349-3839... - Page 4 You’ll need to back out some screws in order to loosen the tolerance of the screw holes. Remove backing from adhesive pads and position along the bracket as shown. UPLIFT Desk 1-800-349-3839...
- Page 5 The desk feet are deeper than the side brackets. If your top is 25.5”-27.5” deep and you want the rear edge of the top in line with the rear edges of the feet, offset your desktop toward the back. UPLIFT Desk 1-800-349-3839...
- Page 6 Control box (part #7) and the Keypad (part #8) Wires as per the diagram below. Do this so you can place the Keypad and Control Box in such a way so that the cables can reach them. UPLIFT Desk 1-800-349-3839...
- Page 7 Release the DOWN button. Your desk is now ready to use. To program up to four presets: Use the up/down buttons to find a desired height, then press “M” followed by a number 1 – 4. UPLIFT Desk 1-800-349-3839...
- Page 8 There is a risk of injury and electric shock Do not open any of the components: lifting columns, control box, or handset. There is a danger of electric shock Keep all electrical components away from liquids UPLIFT Desk 1-800-349-3839...
