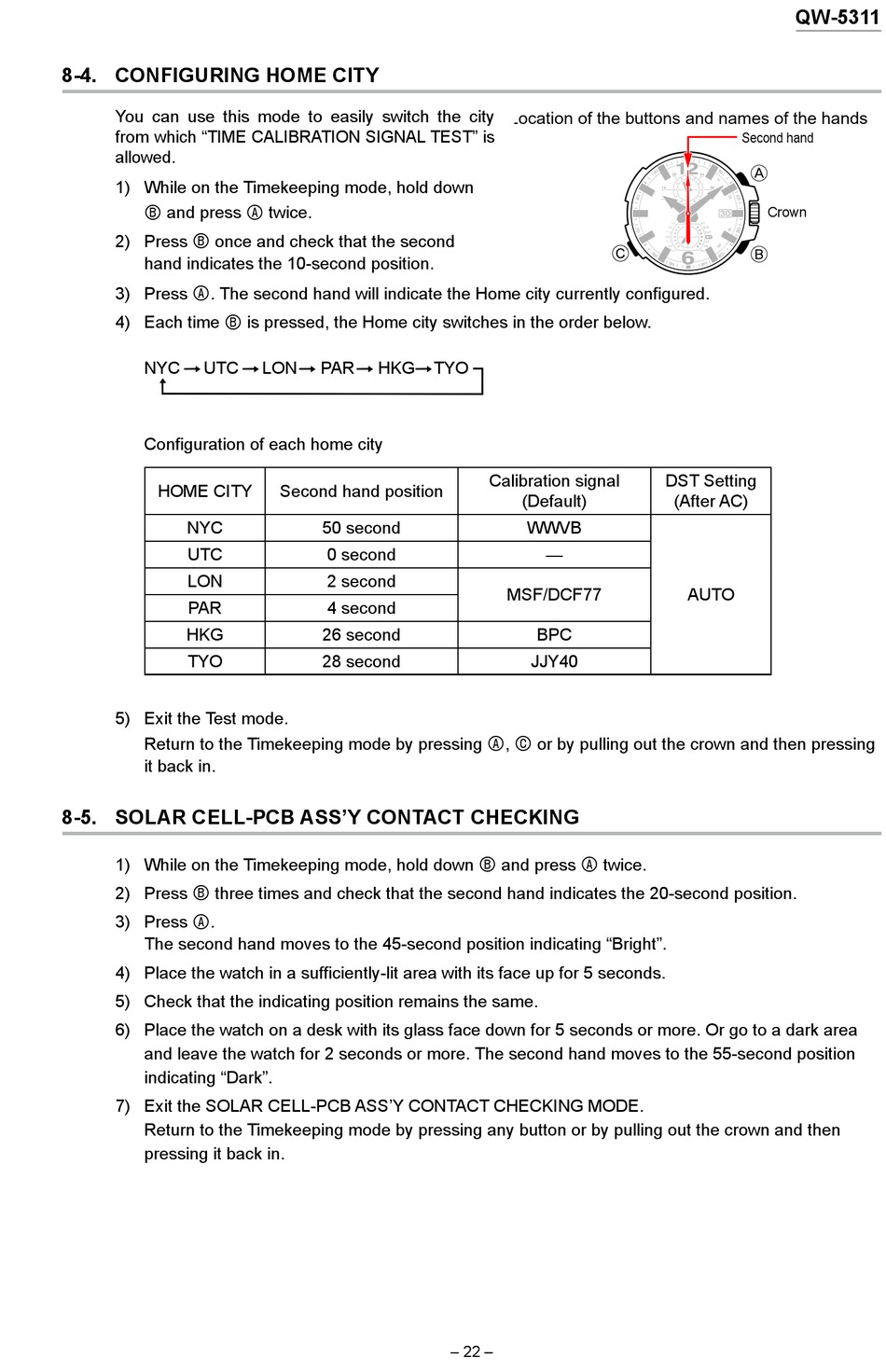

8-4. CONFIGURING HOME CITY

You can use this mode to easily switch the city
from which "TIME CALIBRATION SIGNAL TEST" is
allowed.
�) While on the Timekeeping mode, hold down
and press
B
2) Press once and check that the second
B
hand indicates the 10-second position.
3) Press . The second hand will indicate the Home city currently configured.
A
4) Each time
B
NYC UTC LON PAR HKG TYO
Configuration of each home city
HOME CITY
NYC
UTC
LON
PAR
HKG
TYO
�) Exit the Test mode.
Return to the Timekeeping mode by pressing
it back in.

8-5. SOLAR CELL-PCB ASS'Y CONTACT CHECKING

�) While on the Timekeeping mode, hold down
2) Press three times and check that the second hand indicates the 20-second position.
B
3) Press .
A
The second hand moves to the 45-second position indicating "Bright".
4) Place the watch in a sufficiently-lit area with its face up for 5 seconds.
�) Check that the indicating position remains the same.
�) Place the watch on a desk with its glass face down for 5 seconds or more. Or go to a dark area
and leave the watch for 2 seconds or more. The second hand moves to the 55-second position
indicating "Dark".
7) Exit the SOLAR CELL-PCB ASS'Y CONTACT CHECKING MODE.
Return to the Timekeeping mode by pressing any button or by pulling out the crown and then
pressing it back in.
twice.
A
is pressed, the Home city switches in the order below.
Second hand position
50 second
0 second
2 second
4 second
26 second
28 second
Location of the buttons and names of the hands
Calibration signal
(Default)
WWVB
—
MSF/DCF77
BPC
JJY40
, or by pulling out the crown and then pressing
A C
and press twice.
B A
– 22 – 22 – –
QW-5311
Second hand
Crown
DST Setting
(After AC)
AUTO
