Summary of Contents for EHC SLIMJIM

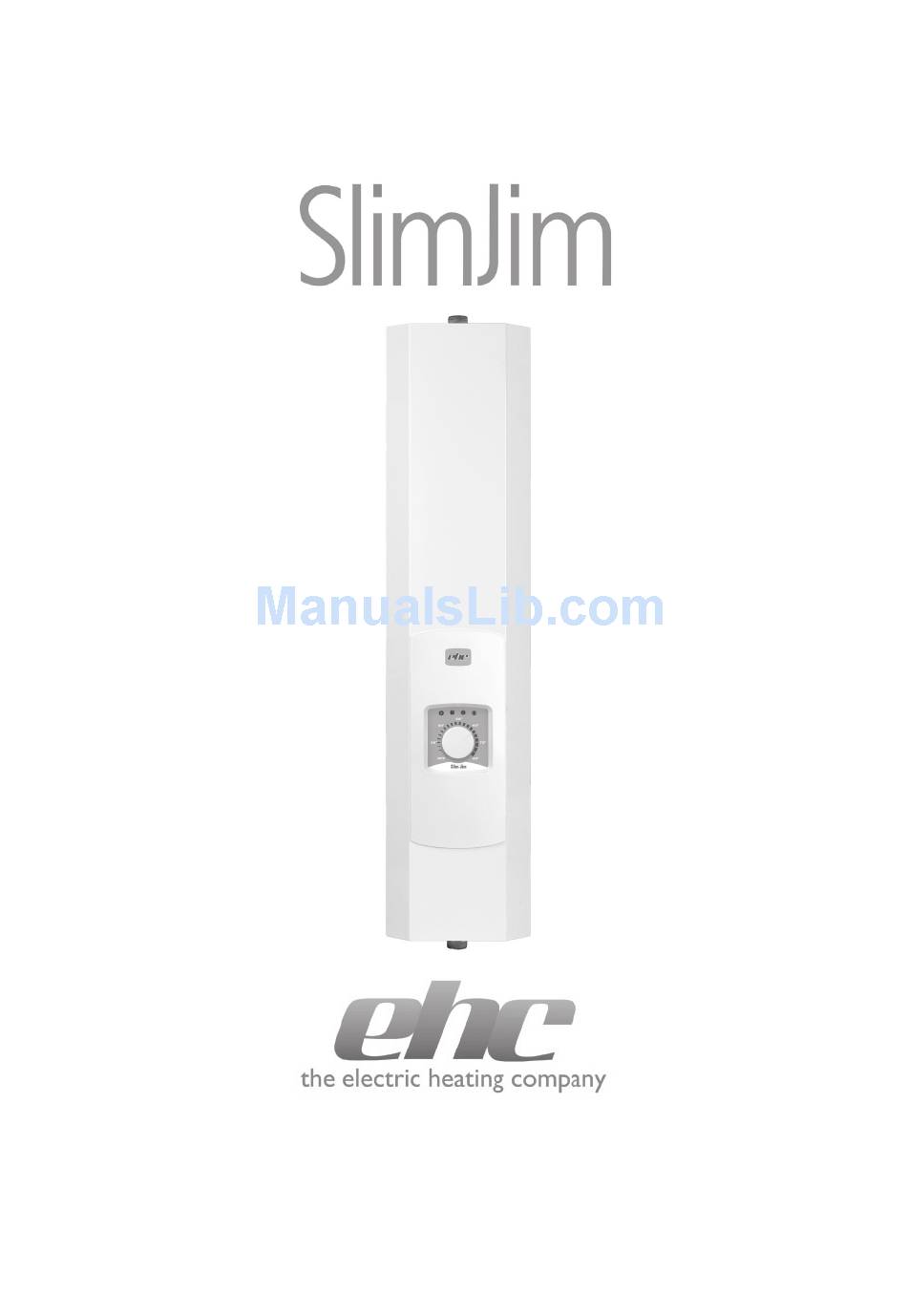

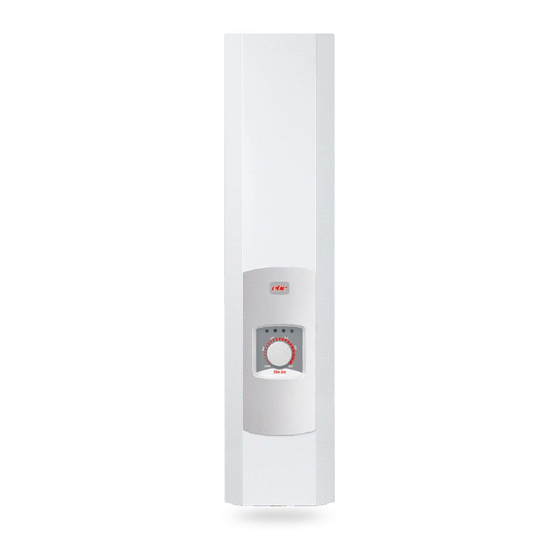

- Page 1 Electric Flow Boiler InstallatIon & technIcal Manual If you require any further assistance: telephone: 01698 820533 Fax: 01698 825697 E-mail: info@electric-heatingcompany.co.uk or visit our website www.electric-heatingcompany.co.uk...
-
Page 3: Page Contents
Page Contents I NT RO D U C T ION PR EPE R AT IO N L O C AT IO N G EN E R A L BO I L E R IN TE R N A L L AY OU T I NS TA LL AT IO N SYS T EM PR O TE C T IO N - C O MM I S S I ON I N G EL E CT R IC A L C ON N E C TI ON S... - Page 4 Boiler Features. • Option of Volt Free OR 240 volt Control Signalling • Water Level Sensor • High Current Safety device • Low Maintenance • Boiler Power Output Selector • Easy to use Controller The central heating system, in which the Slim Jim boiler is being installed into, must be fitted with the following: Vented Systems: Sealed Systems: • Circulation Pump • Circulation Pump • Pump Valves • Pump Valves • Magnetic Filter • F&E Tank • Automatic Bypass if Req • Magnetic Filter • Sealed System Kit • Automatic Bypass if Req • Automatic Air Vent Instructions and Building Regulations: This appliance must be fitted in accordance with the following instructions.
-
Page 5: Load Check
PR EPERAT IO N 1. Load Check A load check must be taken into consideration when installing high power boilers. This can be carried out by a qualified electrician. There may be a requirement to upgrade the main incoming fuse supplying the property; this will depend on the boiler output being installed and existing electrical load requirements of the property. 2. Boiler location The boiler must be installed onto a wall that will provide an adequate fixing. Precautions must be taken if the boiler is to be installed in areas subject to damp or frost conditions. 3. Central heating (design & installation) Detailed recommendations are given in BS EN 12828, BS 6700: +A1 and CP 342-2. Pipes forming part of the useful heating surface should be insulated to prevent any potential heat loss or frost damage. (BS 6700). Drain valves should be fitted at the lowest point of the system pipe work in an accessible position. Drain valves should be in accordance with BS 2879 and copper tube to BS EN 1057 is recommended. LO CAT I ON The boiler can be installed in almost any location within a domestic or commercial property; however con- sideration should be made for future maintenance. Never leave the boiler switched off if there is a danger of having temperatures below 0°C in the room where it is located, (An additional frost stat must be used if there is a likelihood of the temperature falling below 0°C). We recommend that a minimum clearance of 400 mm should be allocated for the removal of the front cover to allow adequate access to the boilers plumbing and the internal electrical connections. A 50mm allowance should be made at either side of the boiler to allow free flow air into the boiler. The boiler must be installed in the upright position; failure to do so will invalidate the Warranty! GB-063C_f.615... - Page 6 An auto air vent must be fitted to the external pipe work when installed in an unvented system. Do not install AAV’s directly above the SlimJim boilers. AAV’s should be installed to either the top left or right hand side of the boilers. (This is to prevent any water entering the boiler in the event of an AAV leaking).
-
Page 7: Water Connections
We recommend the use of an automatic bypass within this circuit. If a bypass radiator is used an allowance should be made for a minimum radiator size of 600mm x 600mm single convector or equal to 2500 Btu to be installed within the heating circuit and locked open. (This will be located in the room where the thermostat is installed). To comply with building regulations, Part L and Part J (in Scotland), room and cylinder thermostats must be fitted. Water Connections Provisions must be made for the replacement of water lost from the heating system (sealed systems). Reference should be made to BS EN 14336 for the method of filling and make up of water. There must be no direct connection between the boilers central heating system and the main water supply. When mains water is required to fill the system directly, all local water bylaws must be observed, and any connection made must be disconnected after use. 10. Flushing The system must be flushed to within 10% of mains water PPM to ensure that no debris is trapped in the flow sensor as this may result in boiler failure. Where existing radiators and pipe-work are utilised a power flush must be carried out to remove debris. 11. System Pressures All boilers are pressure tested in the factory. The normal working pressure of the boiler should be set to approx 1.0/1.5 bar. All sealed systems should comply with the relevant building regulations and standards, including BS EN 13831 - Specification for Expansion Vessels. It is imperative that a pre-installed magnetic filter is removed and cleaned annually. Failure to carry out this action will increase contamination of the boiler by the system residue. - Page 8 B OILER INT ERNAL LAYO UT Figure 1 1 - Flow Outlet Connection 2 - Run Dry Sensor 3 - Outlet Temperature Sensor 4 - Heat Exchanger 5 - Power Board 6 - Contactor 7 - WT3 Safety Thermal Cut-Out 8 - Inlet Temperature Sensor 9 - Control board 10 - Return Inlet Connection...
-
Page 9: Installation
IN STAL L AT IO N 12. System types The “Slim Jim” boiler range can be used in various system designs including under floor systems. There are two heating schematics on page 10 Figure 1 & 2 that illustrate an Indirect System (S Plan) & Direct System (Heating Only). We recommend the use of Thermostatic Radiator valves on all radiators excluding the bypass radiator; this radiator should be fitted with lockshield valves and left in the fully open position. In addition we recommend that an automatic bypass is used in zoned systems and set to the relevant flow rates required for the system design. (The bypass radiator should be a minimum size of 600mm x 600mm single convector or equal to 2500 Btu to be installed within the heating circuit and locked open. This will be located in the same area as the room thermostat). The system design should meet all current building regulations in force at the time of installation. 13. Hanging the Boiler 1 Take care when removing the boiler from its packaging. Do not open with sharp objects as this may damage the unit. - Page 10 Figure 1 Cylinder Zone Zone valve valve Flow Auto Bypass Pressure Gauge Filling Loop Return Pump Magnetic Filter Expansion Vessel Figure 2 Flow Auto Bypass Pressure Gauge Filling Loop Return Pump Magnetic Filter Expansion Vessel The boilers may also be configured to run multi zone heating systems or under floor heating circuits if required.
- Page 11 SYSTE M PR OTECT ION - CO MMIS SIO NI NG 14. System protection the button for 10 seconds the pump will remember Failure to protect the system will invalidate the manufac- button for 10 seconds the pump will remember this set- turer’s warranty. After the system has been installed the ting and will exit from setting mode back to performance cleansing and inhibiting procedure must be carried out as view. follows: Note: holding button for more than 10 seconds will enter the pump into key lock mode. This pre- Procedure: vents the user from altering the pump settings.
-
Page 12: Electrical Connections
ELEC TR IC AL CO NNECT I ONS All wiring must be carried out in accordance with current IEE wiring regulations BS:7671 (all electrical connections must be made by a qualified tradesperson). LOAD CHECK A load check must be taken into consideration when installing high power boilers. This will be carried out by a qualified electrician. There may be an additional requirement to upgrade the incoming main fuse supplying the property if other high power devices are used within the property. E.g Electric Showers. If an electric shower is present we recommend that a Shower Sensor is installed within the system. This will cause an interrupt to the boilers control signal when the shower is in use. It will disable the boiler protecting the electrical system from overload. - Page 13 General Electrical Network Connection Figure 1 Slim Jim Boiler Main Power Electrical Connection L N E Figure 2 GB-063C_f.615...
- Page 14 ELEC TR IC AL CO NNECT I ONS Figure 3 MSK.72 Control Board [1] - Pre-wired Control board supply [2] - Front panel control ribbon connection [3] - Flow temperature sensor [4] - Power Stage Selector + 240 volt control enable selector. [5] - Return Temperature Sensor [6] - Power Board Control Connection [7] - Water Level Sensor.
- Page 15 External Control Options: The Slimjim boilers can be used with Volt Free or 240 volt control signals. Volt Free control operation. Remove the link from the RP Connection (10) and connect your external volt free control cables here. When this connection is “Closed” the boiler will fire, and when “Open” the boiler will be in standby. (The control enable dip switch 4 must be in the OFF position as shown in the table below). 240 volt control operation. The link must be left in the RP Connections (10) and a live SW and Neutral connected to the control terminals (11) To enable the feature you must select Dip 4 to ON. This is located at the top LHS of the control Board. (The control enable dip switch 4 must be in the ON position as shown in the table below). Boiler Output Control. You can control all SlimJim boilers power outputs in 3 stages by selecting dip switches settings as shown in the table below. e.g. If a 6kW is used and dip switch 1 on = 2kW Output – 6kW boiler dip switch 1&2 on = 4kW Output – 6kW boiler dip switch 1,2&3 on = 6kW Output. Dip Switch Settings 1 POWER STAGE 2 POWER STAGE...
- Page 16 C ONT ROL WI RI NG Heating & Hot Water Wiring: S Plan (Volt Free Output) Used for Indirect Plumbing Systems Figure 1 CYL STAT ROOM STAT PROGRAMMER Junction 6 Amp 240V HW zone valve CH zone valve SUPPLY 3A Switched Fuse Isolator Volt Free Boiler Control Connections ...
-
Page 17: B Oiler Cont Ro L Panel
B OILER CONT RO L PANEL Figure 3 Front Control Panel LED introduction; [1] - Power Indicator [2] - Boiler Operation Indicator [3] - Heat Call Indicator [4] - Low Water Indicator [5] - On/Off & Temperature Dial User instructions, The Control panel is located on the outside boiler cover. It consists of a dual purpose dial that allows you to select the boiler Output Temperature or Switch the Boiler On or Off. To switch the boiler “Off” You simply turn the dial Anti clockwise to the “Off position.” Indicator (1) will flash and the boiler will shut down and stop heat-... -
Page 18: Technical Specification
TEC H N IC A L SPECIF ICAT I ON EHCSJIM EHCSJIM EHCSJIM EHCSJIM EHCSJIM EHC Part Number: 10KW 12KW 14.4KW Boiler range 10kW 12kW 14.4kW Pipe entry boilers - flow Pipe entry boilers - return bottom Central heating flow & return pipes Max pressure Min. pressure Out flow water temperature °C 30 ÷ 80 Max. water temperature °C Overall dimensions (height x 912 x 203 x 172 width x depth) Weight Water connection... - Page 19 PA RT S L I ST TAB L E Service Amount Pos. Picture number Name Notice code (pcs) 01629 EKCO.A1-01.00.00/01 Heating box EKCO.A1 4kW/230V 01630 EKCO.A1-01.00.00/02 Heating box EKCO.A1 7kW/230V 01631 EKCO.A1-01.00.00/03 Heating box EKCO.A1 10kW/230V 01632 EKCO.A1-01.00.00/04 Heating box EKCO.A1 12kW/230V 01633 EKCO.A1-01.00.00/05 Heating box EKCO.A1 14,4kW/230V 01635 EKCO.A1-03.02.00 Front cover EKCO.A1 01636 EKCO.A1-03.01.00 Base housing EKCO.A1 01641 EKCO.A1-02.00.00 Control panel EKCO.A1 01640...
- Page 20 Unit 40, Block 5 Third Road Blantyre Industrial Estate Blantyre Glasgow G72 0UP Tel: 01698 820533 Fax: 01698 825697 www.electric-heatingcompany.co.uk www.ehc-renewables.co.uk...
