SMART SWITCH TECHNOLOGIES
FC-006
Engine Room Fan Controller
Installation Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC-006 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartswitch FC-006

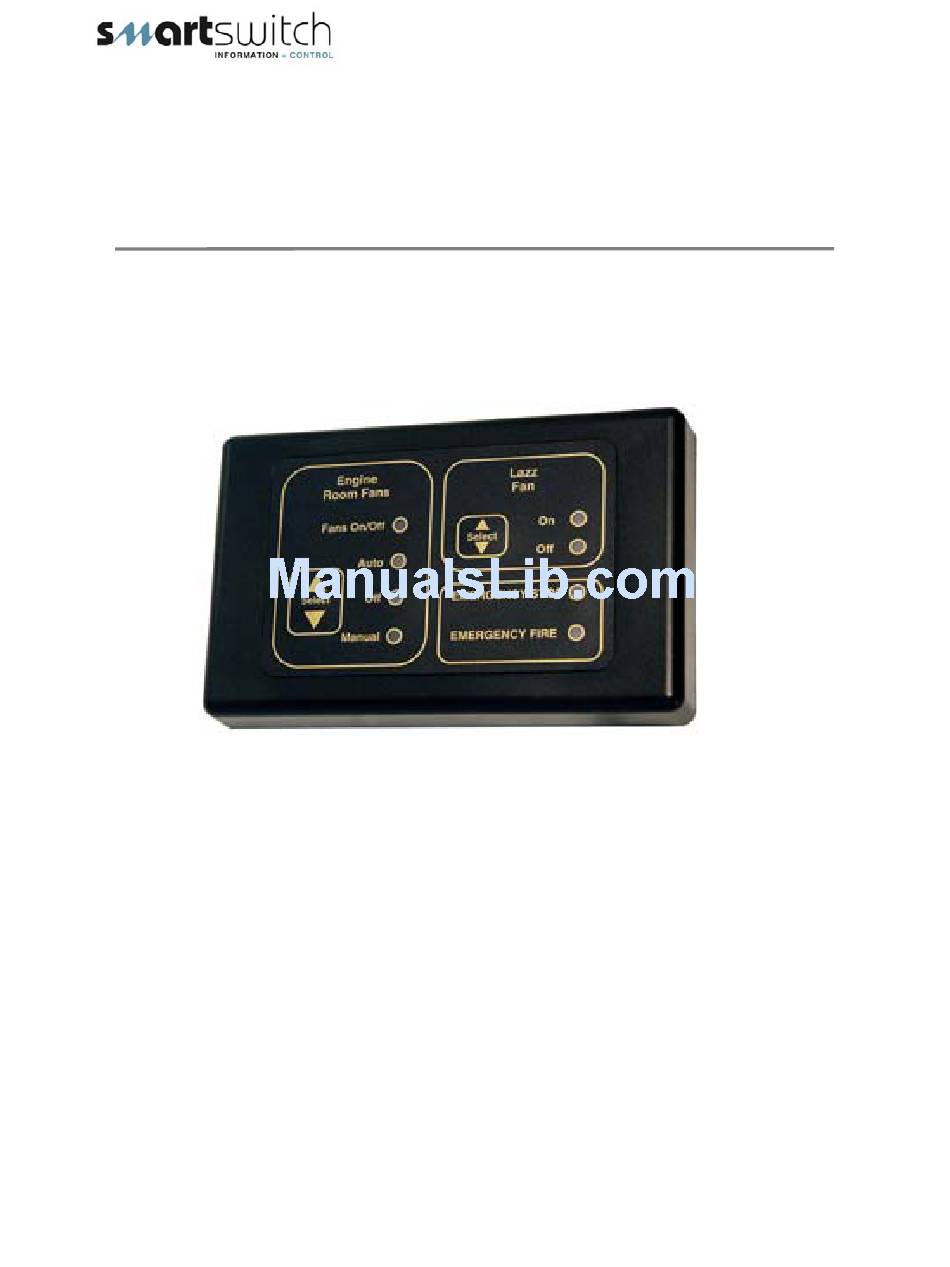

  • Page 1 SMART SWITCH TECHNOLOGIES FC-006 Engine Room Fan Controller Installation Manual...
  • Page 2 FC-006 Fan Controller Connections: Figure 1 Program Switch Batt + Emergency Stop Logic power supply Switch Input Batt - Emergency Fire Rotary switch Select Jumper Batt + Rotary switch Emergency Fire Batt - Stop Input. To Keyboard Comms + Program Switch...
  • Page 3: Input Setup

    Emergency Fire Input Setup: NOTE: Where indicated the Link wire MUST be installed Jumper: Emergency Fire Select Jumper This jumper sets the Emergency Input for either a normally open or normally closed input switch. If the input switch is normally open install the jumper, if normally closed removed the jumper. Input Setup: Switch Setup for clean relay contacts.
  • Page 4 Oil Pressure Switch Input Setup: NOTE: Where indicated the Link wire MUST be installed Switch Setup for clean contacts. Oil Pressure Switch Note: The Link could also be a relay contact from Link an engine running signal. In which case the oil pressure input will only be looked at if the engine is running.
  • Page 5: Auto Switch

    Keyboard: Lazzarette On / Off Switch: Push to activate Fan 3, repeat to deactivate. On Led = Green Off Led = Red Auto Switch: Pushing this button allows to scroll between Auto / Off / Manual. Fans On / Off LED: This LED will be on (green) only when the engine room fans are actually ON and off (red) when the fans are OFF.
  • Page 6: Emergency Stop

    Operation For Normal Mode: (Rotary switch in position 0) Manual: When switched to Manual Mode the engine room fans will turn On and stay On until turn Off or placed in Auto Mode. Off: All fans Off Auto: When placed in Auto Mode and the engine starts the Fans will start after the programmed “Fan Start Time”...
  • Page 7 Programming For Normal Mode: (See Figure 1 for rotary switch and program switch details). Programming the Fan Start Time: (Rotary switch to position D) Explanation: After the engine is started the Fans will turn on, when the “Fan Start Time” is reached. e.g.
  • Page 8 Programming Normal Mode Continued The Lazz Fan On and Off times can be programmed. Lazz On Time: (Rotary switch to position 4) Turn the rotary switch to position 4. Push the program switch (the LED will flash for every key push). Each push will increase the ON time in increments of 1 minute. Max time = 1 hour.
  • Page 9: Special Mode

    Special Mode: (Rotary switch in position F) If the rotary switch is in position F the system will operate as follows. Auto Mode: When the engine is started both fan one and fan two will start, when the engine is stopped fan two will turn off while fan will run on for the “Engine Run On Time”...
  • Page 10 Max time = 1 hour. System default = 5 minutes. Switch the rotary switch back to position 0.  All technologies, design and Intellectual property is owned by Smart Switch Technologies L Po Box 272, Waikanae. NZ Phone 0064-4-293-4201 Fax 0064-4-293-4201 Email: info@smartswitch.co.nz Web: www.smartswitch.co.nz...
