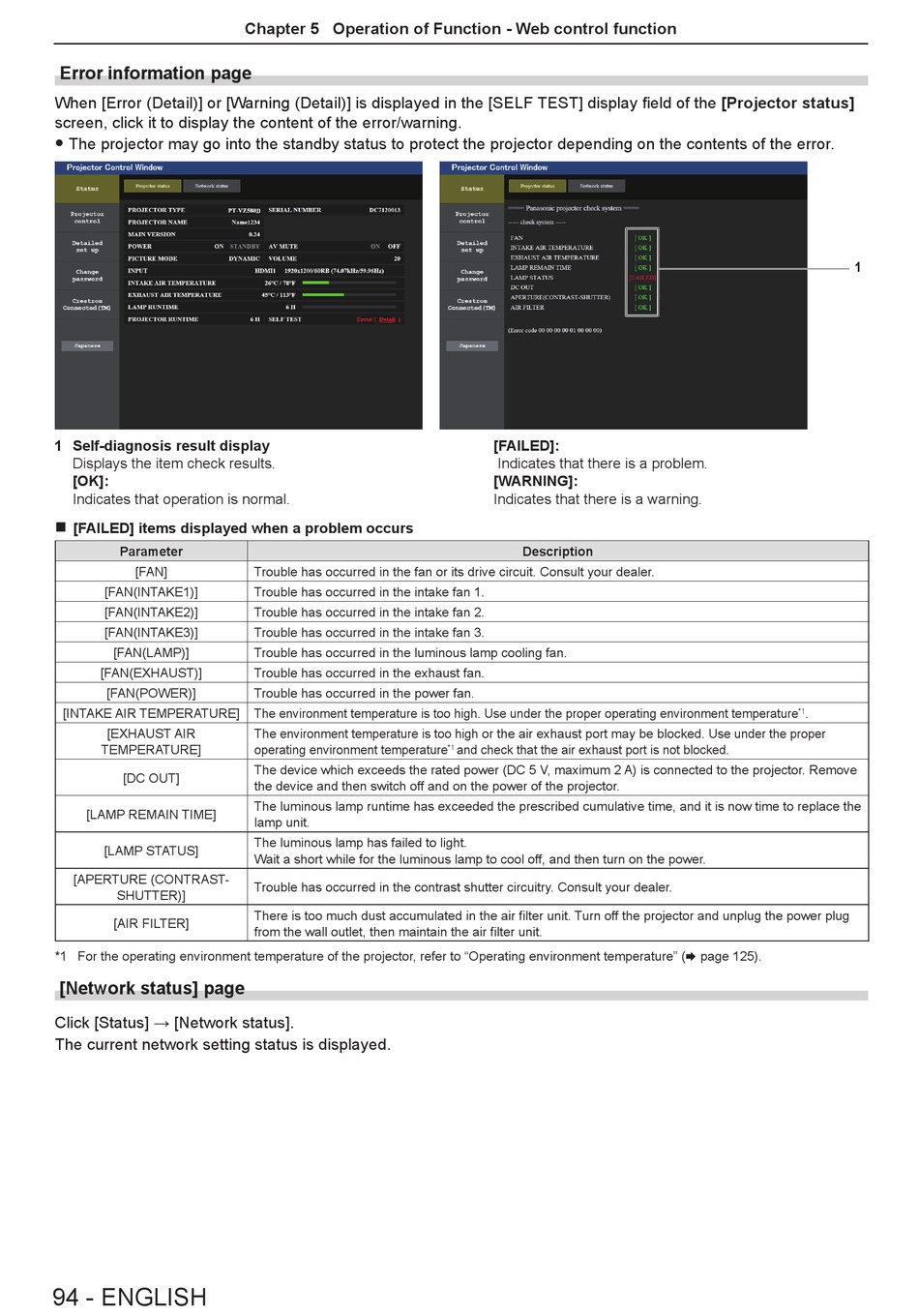

Error information page

When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status]
screen, click it to display the content of the error/warning.
f The projector may go into the standby status to protect the projector depending on the contents of the error.
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
r [FAILED] items displayed when a problem occurs
Parameter
[FAN]
[FAN(INTAKE1)]
[FAN(INTAKE2)]
[FAN(INTAKE3)]
[FAN(LAMP)]
[FAN(EXHAUST)]
[FAN(POWER)]
[INTAKE AIR TEMPERATURE]
[EXHAUST AIR
TEMPERATURE]
[DC OUT]
[LAMP REMAIN TIME]
[LAMP STATUS]
[APERTURE (CONTRAST-
SHUTTER)]
[AIR FILTER]
*1 For the operating environment temperature of the projector, refer to "Operating environment temperature" (x page 125).
[Network status] page
Click [Status] → [Network status].
The current network setting status is displayed.
94 - ENGLISH
Chapter 5 Operation of Function - Web control function
Trouble has occurred in the fan or its drive circuit. Consult your dealer.
Trouble has occurred in the intake fan 1.
Trouble has occurred in the intake fan 2.
Trouble has occurred in the intake fan 3.
Trouble has occurred in the luminous lamp cooling fan.
Trouble has occurred in the exhaust fan.
Trouble has occurred in the power fan.
The environment temperature is too high. Use under the proper operating environment temperature
The environment temperature is too high or the air exhaust port may be blocked. Use under the proper
operating environment temperature
The device which exceeds the rated power (DC 5 V, maximum 2 A) is connected to the projector. Remove
the device and then switch off and on the power of the projector.
The luminous lamp runtime has exceeded the prescribed cumulative time, and it is now time to replace the
lamp unit.
The luminous lamp has failed to light.
Wait a short while for the luminous lamp to cool off, and then turn on the power.
Trouble has occurred in the contrast shutter circuitry. Consult your dealer.
There is too much dust accumulated in the air filter unit. Turn off the projector and unplug the power plug
from the wall outlet, then maintain the air filter unit.
[FAILED]:
Indicates that there is a problem.
[WARNING]:
Indicates that there is a warning.
Description
and check that the air exhaust port is not blocked.
