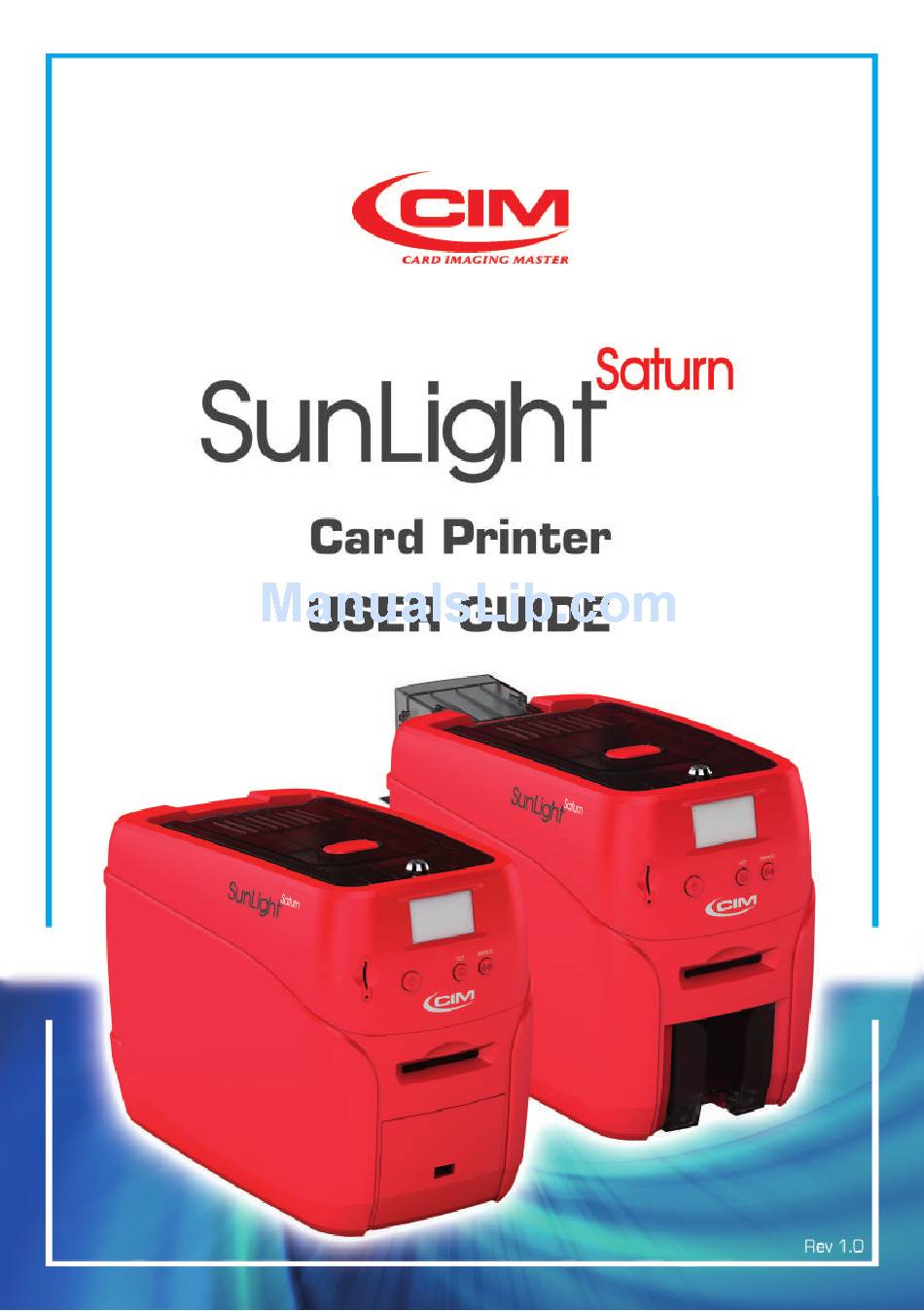

CIM SUNLIGHT SATURN User Manual
  1. Manuals
  2. Brands
  3. CIM Manuals
  4. Printer
  5. SUNLIGHT SATURN
  6. User manual

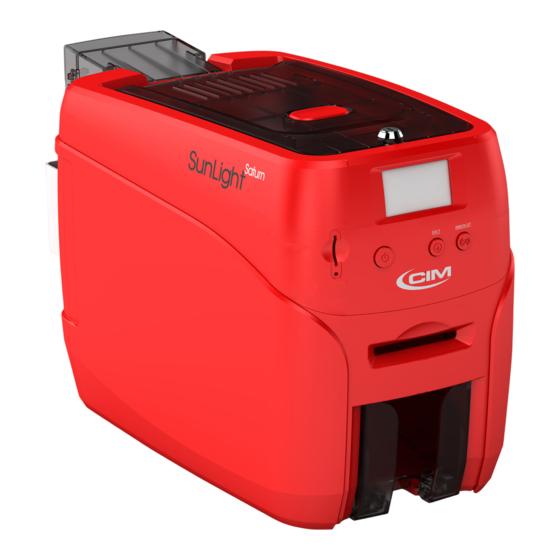

CIM SUNLIGHT SATURN User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNLIGHT SATURN and is the answer not in the manual?

Questions and answers

Related Manuals for CIM SUNLIGHT SATURN

Summary of Contents for CIM SUNLIGHT SATURN

  • Page 2: Table Of Contents

    Contents Safety Precautions Getting Started Product Overview In the Box Names of Parts Manual Feeding, Single-sided Printing Manual Feeding, Double-sided Printing Auto Feeding, Single-sided Printing, 1 Input hopper Auto Feeding, Single-sided Printing, 2 Input hoppers Auto Feeding, Double-sided Printing, 1 Input hopper Auto Feeding, Double-sided Printing, 2 Input hoppers Load Blue Cleaning Roller &...
  • Page 3 Use the Spring Load to Remove a Small Quantity of Cards Remove the Output Stacker and the Cards Connect Power & Communication Cables Install Program System Requirements ① Supported Operating System ② Recommended Specifications Install Software ① Install Software Using Local Port (USB) ②...
  • Page 4 ⑥ Control ⑦ About Check IP Address & Print Test Card Check IP Address Print Self-Test Card ① If Connected to a PC ② If Not Connected to a PC: User Mode Maintenance Instructions Supported Cards ① Size ② Thickness ③...
  • Page 5 ⑤ Miscellaneous Warning ① Card ② Ribbon ③ SAM ④ Miscellaneous Additional Errors Ribbon Specifications Color Ribbons Monochrome Ribbons Printer Specifications Product Features Standard Specifications ① Printing Type ② Printing Function ③ Resolution ④ Printing Speed 1) Color Printing 2) Monochrome Printing ⑤...

  • Page 6: Safety Precautions

    Safety Precautions Before using this product, please make sure that you have read the safety precautions described below. The safety precautions noted on this page are categorized as Warning, Caution, Attention,and Note. We are not responsible for any injuries or damage when the product is not used in compliance with these precautions.
  • Page 7 - If you observe strange smoke, odor, or noise from the printer, unplug it immediately and contact your dealer. - Use only the specified adapter. ※ Do not use adapters from other devices, e.g. laptop, monitor, game console. CIM User Guide Manual...
  • Page 8 -Caution Not following this caution can cause service interruption or product damage. Installation/ - Do not install the printer on an unstable surface. - Do not place the printer under direct sunlight as it may cause a Storage malfunction. - Do not remove any cover or protective device that is attached with Misc.

  • Page 9: Getting Started

    Quick Start Guide Installation CD Important Please make sure that all the components and accessories are included in the box. If there are missing or damaged items, then please contact your Auto feeding Card Printing dealer for assistance. CIM User Guide Manual...

  • Page 10: Names Of Parts

    Names of Parts Manual Feeding, Single-sided Printing Name Description LCD Display Displays the printer’s operation status on the LCD screen. OPTION Mobile Connector Used for inserting mobile chips. OPTION Mobile Connector LED Indicates the mobile chip status. Single Card Slot Used to insert or release a single card.
  • Page 11 OPTION Top Cover Lock Key Locks/unlocks the Top Cover. OPTION External RF Recognizes an RF card. Printer Lock Use this to mount a security lock. OPTION Side Cover Open Section Press to open the Side Cover. CIM User Guide Manual...

  • Page 12: Manual Feeding, Double-Sided Printing

    Manual Feeding, Double-sided Printing Name Description LCD Display Displays the printer’s operation status on the LCD screen. OPTION Mobile Connector Used for inserting mobile chips. OPTION Mobile Connector LED Indicates the mobile chip status. Single Card Slot Used to insert or release a single card. Left Side Cover Open to install optional accessories or fix errors.
  • Page 13 OPTION Top Cover Lock Key Locks/unlocks the Top Cover. OPTION External RF Recognizes an RF card. Printer Lock Use this to mount a security lock. OPTION Side Cover Open Section Press to open the Side Cover. CIM User Guide Manual...

  • Page 14: Auto Feeding, Single-Sided Printing, 1 Input Hopper

    Auto Feeding, Single-sided Printing, 1 Input hopper Name Description LCD Display Displays the printer’s operation status on the LCD screen. Mobile Connector Used for inserting mobile chips. OPTION OPTION Mobile Connector LED Indicates the mobile chip status. Single Card Slot Used to insert or release a single card.
  • Page 15 Recognizes an RF card. Input Hopper (Standard) Stores cards to print (max. 100 cards). Lock Connector Link Used to connect the Back Cover to the Input Hopper Lock. Side Cover Open Section Press to open the Side Cover. CIM User Guide Manual...

  • Page 16: Auto Feeding, Single-Sided Printing, 2 Input Hoppers

    Auto Feeding, Single-sided Printing, 2 Input hoppers Name Description LCD Display Displays the printer’s operation status on the LCD screen. Mobile Connector Used for inserting mobile chips. OPTION OPTION Mobile Connector LED Indicates the mobile chip status. Single Card Slot Used to insert or release a single card.
  • Page 17 Input Hopper (Standard) Stores cards to print (max. 100 cards). Input Hopper (Optional) Stores additional cards (Standard+Optional: max. 200 cards) OPTION Lock Connector Link Used to connect the back cover to the Input Hopper Lock. Side Cover Open Section Press to open the Side Cover. CIM User Guide Manual...

  • Page 18: Auto Feeding, Double-Sided Printing, 1 Input Hopper

    Auto Feeding, Double-sided Printing, 1 Input hopper Name Description LCD Display Displays the printer’s operation status on the LCD screen. Mobile Connector Used for inserting mobile chips. OPTION OPTION Mobile Connector LED Indicates the mobile chip status. Single Card Slot Used to insert or release a single card.
  • Page 19 Recognizes an RF card. Input Hopper (Standard) Stores cards to print (max. 100 cards). Lock Connector Link Used to connect the Back Cover to the Input Hopper Lock. Side Cover Open Section Press to open the Side Cover. CIM User Guide Manual...

  • Page 20: Auto Feeding, Double-Sided Printing, 2 Input Hoppers

    Auto Feeding, Double-sided Printing, 2 Input hoppers Name Description LCD Display Displays the printer’s operation status on the LCD screen. Mobile Connector Used for inserting mobile chips. OPTION OPTION Mobile Connector LED Indicates the mobile chip status. Single Card Slot Used to insert or release a single card.
  • Page 21 Input Hopper (Standard) Stores cards to print (max. 100 cards). Input Hopper (Optional) Stores additional cards (Standard+Optional: max. 200 cards) OPTION Lock Connector Link Used to connect the back cover to the Input Hopper Lock. Side Cover Open Section Press to open the Side Cover. CIM User Guide Manual...

  • Page 22: Load Blue Cleaning Roller & Ribbon

    Load Blue Cleaning Roller & Ribbon -Load Blue Cleaning Roller 1. Press the “Open” button and lift the Top Cover all the way as shown in the picture. 2. Place the Blue cleaning roller into the “U-shaped holder” and push it down.

  • Page 23: Load Ribbon

    - Make sure that the Ribbon RFID Tag is positioned correctly. 1. Make sure that the ribbon is positioned correctly for loading and roll- ing. 2. Close the cover and press the “Ribbon Set” button to complete the process. Ribbon RFID Tag CIM User Guide Manual...

  • Page 24: Load Cards

    Load Cards -Place Cards in the Input Hopper 1. Open the Input Hopper by pulling it sideway. 2. Place the cards inside the Input Hopper as shown in the picture. Caution - Make sure that the IC chip is facing the outside.

  • Page 25: Place Cards After Removing The Input Hopper

    Then, place the cards inside as shown in the picture. Caution - Make sure that the IC chip is facing the outside. - If IC Cards are not placed correctly, then an error will occur. CIM User Guide Manual...
  • Page 26 3. Close the cover, and place the Input Hopper in the tray. Note - The hinge is located where the card is loaded into the path to prevent displacement. - The hinge is lifted when the card is loaded into the printer. Before the card is loaded When the card is loading Install printer and ready...

  • Page 27: Print Single Card

    Input Hopper. - This feature is intended for printing both a large quantity of cards (e.g. standard cards) and a small quantity of cards (e.g. VIP membership cards) without removing the cards loaded in the input hopper. CIM User Guide Manual...

  • Page 28: Magnetic Cards

    Magnetic Cards If the printer has the MS module (Single/Triple Track Head), it can encode information on the Mag. Stripe card.. (ISO 7811 track 1,2,3, Hi-Co/Lo-Co) Magnetic Card Standard : ISO 7811 Track Track 1 Track 2 Track 3 Recording Density 210 BPI 75 BPI 210 BPI...

  • Page 29: Input Hopper & Ribbon Lock

    1. Place the Input Hopper Lock in the area highlighted by the circle and push it down to fix it in the position. Then, use the Lock Key to lock it. -Ribbon Lock OPTION 1. Use the Lock Key to lock the Top Cover. CIM User Guide Manual...

  • Page 30: Install/Remove Output Stacker

    Install/Remove Output Stacker The Output Stacker can be installed or removed as follows: Option 1: Open the Output Stacker cover and remove the cards. Option 2: Use the spring load to remove a small quantity of cards. Option 3: Remove the Output Stacker and the cards. -Open the Output Stacker Cover and Remove the Cards Lower the Output Stacker cover until it latches as shown in the picture.

  • Page 31: Use The Spring Load To Remove A Small Quantity Of Cards

    This method is recom- mended for printing more than 50 cards, and up to 60 cards can be loaded in this way. CIM User Guide Manual...

  • Page 32: Connect Power & Communication Cables

    Connect Power & Communication Cables USB Cable Power Adaptor Single, Double-sided Printing Power Cable USB Cable Power Adaptor Single, Double-sided Printing Power Cable Install printer and ready...

  • Page 33: Install Program

    ① Install Software Using Local Port(USB) 1. Insert the CD into the PC’s CD-ROM drive, and the setup program will start automatically. If the program does not start automatically, then go to the CD-ROM drive’s root directory and run “install.exe” manually. CIM User Guide Manual...
  • Page 34 2. The initial screen of the Card Printer Driver is displayed as shown in the picture. Click “Start” to install the program. 3. Select the software to install and click “Next” to proceed. (Card Designer Software, Card Printer Driver) 4. Read the Terms of Use and check “Agree”. Then, click “Next” to proceed. Install printer and ready...

  • Page 35: ② Install Software For Network Printer

    6. Click “Finish” to complete the installation process. 7. Make sure that the following programs are installed. For "Card Designer Software", check: "Start → All Programs → CIM → Card Designer" For "Card Printer Driver", check: "Start → All Programs → CIM → Printer"...
  • Page 36 2. The initial screen of Card Printer Driver is displayed as shown in the picture. Click “Start” to install the program. 3. Select the Printer Driver & Network Driver options to install and click “Next” to proceed.(Connect a LAN cable to the series-NX0 with Ethernet option and select “Network Software”.) 4.
  • Page 37 For example, if your PC's IP address is 192.168.0.xxx, then the printer's IP address must be 192.168.0.yyy. If they are not in the same IP range, check "Input by user" and enter the printer's IP address. Then, click "Next" to proceed. CIM User Guide Manual...
  • Page 38 (2) If they are in the same IP range, but the printer cannot be found Check “Input by user” and click “Setting”. When the Network Configuration window pops up, the available printers will be displayed. Check the IP Address, Subnet Mask and Gateway and click "Setting". Check DHCP to enable DHCP mode and click “Setting”.
  • Page 39 (2) Set Address via USB Check the values retrieved through "Retrieve Address via USB". Enter the IP Address, Subnet Mask, and Gateway, and click "Retrieve Address via USB" 6. Click “Finish” to complete the installation process. CIM User Guide Manual...

  • Page 40: ③ Configure Networking Settings

    After installing the printer driver, go to the following path to configure network settings. (This feature is only supported by some models.) "Start → All Programs → CIM → Network" "Start -> Apps (by name) -> CIM -> Network setting" 1) Network Configuration Window Item...

  • Page 41: Dhcp (Dynamic Host Configuration Protocol)

    DHCP Mode is enabled. 3) Network Setting - Automatic (DHCP supported) 1. Go to “Start → All Programs → CIM → Network” and click OK to open the settings window. 2. In the Network Configuration window, click “Search” to search the connected network board.
  • Page 42 4. The IP Address, Subnet Mask and Gateway are allocated automatically by the DHCP server, and there is no need to set the values. 5. Set the Local Port to 9200 (cannot be changed). 6. Check the DHCP Mode. Install printer and ready...
  • Page 43 7. Click "Setting". This takes about 30 seconds. When the settings complete, the printer reboots automatically and retrieves a new IP address from the server. 8. Click "Exit" to complete the network configuration process. CIM User Guide Manual...

  • Page 44: Network Settings - Manual

    Retrieve the IP Address, Subnet Mask and Gateway to be used by the printer from the network administrator. ‘1.Go to “Start → All Programs → CIM→ Network” and click “OK” to open the settings window. 2. Select the MAC address from the Board List.
  • Page 45 4. Set the Local Port to 9200 (cannot be changed). 5. Do not check the DHCP Mode. Make sure to leave the box unchecked. 6. Click "Setting". This takes about 30 seconds. When the settings complete, the printer reboots automatically. CIM User Guide Manual...
  • Page 46 7. Click "Search" to check the network configuration. 8. Click "Exit" to complete the network configuration process. Install printer and ready...

  • Page 47: ④ Install Software From The List Of Connected Devices (Optional)

    2. The initial screen of the Card Printer Driver is displayed as shown in the picture. Click “Start” to install the program. 3. Select the option to install and click “Next” to proceed. 4. Read the Terms of Use and check “Agree”. Then, click “Next” to proceed. CIM User Guide Manual...
  • Page 48 5. Select “Install the Selected port” and it displays the printers that can be connected to a PC. Printers on other networks are not included in the list. Click “Next” to proceed. 6. Click “Finish” to complete the installation process. 7.

  • Page 49: Uninstall Program

    1. Go to “Hardware and Sound → Devices and Printers” in the “Control Panel”. 2. Right-click “Card Printer” and select “Set as default printer”. Use this printer settings when there are no other printers Note connected to your PC. CIM User Guide Manual...

  • Page 50: Change Printer Port (Using The Printer Driver)

    -Change Printer Port (Using the Printer Driver) 1. Go to “Hardware and Sound → Devices and Printers” in the “Control Panel”. 2. Right-click “Card Printer” and select “Properties (or Printer Properties)”. 3. Select “Ports (or Advanced)” tab in the “Card Printer Properties”. Install printer and ready...
  • Page 51 Network Port: Refer to "Configure Network Settings" (P40) and select the port (IP Address) accordingly. When the driver is installed successfully, "Two-Way Communication" will be selected automatically. If there is any problem printing through the network port, make sure to disable "Two-Way Note Communication". CIM User Guide Manual...

  • Page 52: Select Input Hopper In The Printer Settings

    -Select Input Hopper in the Printer Settings 1. Go to “Hardware and Sound → Devices and Printers” in the “Control Panel”. 2. Right-click “Card Printer” and select “Printing Preferences”. 3. Go to “Printer Setting → General Setting” in the “Control” tab. Install printer and ready...
  • Page 53 Feed cards from the lower Input Hopper first. When it is Hopper 2→ 1 empty, the printer feeds cards from the upper Input Hopper. Save Save the General Settings of the printer. Close the General Settings window. CIM User Guide Manual...

  • Page 54: Select Input Hopper 1/2 From External Program

    - Select Input Hopper 1/2 from External Program (Windows Preview) 1. Right-click the image you want to print and select “Preview”. 2. Select “Print” on the Windows Photo Viewer to open the print window. Make sure that the card printer is selected and specify the Input Hopper using the paper size menu.

  • Page 55: Print Using Application Programs & Configure Driver Settings

    “Layout, Output, Image, Magnetic, Control, and About” tabs. (Click each tab to open the settings.) The card printer does not use the "Paper/Quality" tab in the Card Printer Caution Document Properties. Click "OK" to complete the process. CIM User Guide Manual...

  • Page 56: ① Layout

    ① Layout Item Description Orientation Sets the card orientation (Landscape, Portrait) Page Order Sets the page sequence. Page Format Not applicable. Install printer and ready...

  • Page 57: ② Output

    Sets the type of overlay panel for protecting the printed card. Overlay Panel -Full Overlay /No Overlay /Selected Area /Use Image File -Smart Card ISO /Smart Card AFNOR /Magnetic Card Using the printer command Check the box for more stability when using (TPCL) 2.0 CIM User Guide Manual...

  • Page 58: ③ Output-Option

    ③ Output-Option Item Description Printing Process Printing Process Display on LCD Display on LCD Printing Display the Displays residual count of ribbons. Options information of This information is only available for ribbons with an RFID ribbon tag, and the value is 40 or less. Color Level Sets the number colors used for printing.

  • Page 59: ④ Image

    Mixes the pixels of an image and makes it look blurry. This filter Diffusion mixes pixels in such a way to minimize the change of colors. Use Color Profile Supports more colors by using the color profile. CIM User Guide Manual...

  • Page 60: ⑤ Magnetic

    ⑤ Magnetic Item Description Format Sets the encoder format of the magnetic stripe. Coercivity Sets the coercivity type of magnetic stripe. Magnetic Sends data to the magnetic stripe. Encoder Enable macro Settings When enabled, it detects the start and end of the encoding processing data from text format and processes it with Magnetic Stripe Encoding data.

  • Page 61: ⑥ Control

    Synchronizes the ribbon. It performs the same function as the Ribbon Sync “RIBBON SET” button. Removes the error status of the printer. This does not solve any errors, Initialize Errors but only removes the status so it can process the next command. CIM User Guide Manual...

  • Page 62: ⑦ About

    ⑦ About This tab displays the version information. Check IP Address & Print Test Card -Check IP Address 1. Hold down both the “EJECT” and “RIBBON SET” buttons until “USER MODE” is indicated in the LCD display. STAND-BY MODE USER MODE Install printer and ready...
  • Page 63 3. When “SET MODE” is indicated in the LCD display, press the “RIBBON SET” button several times to go to “4. NETWORK CONFIG”. Then, hold down the “RIBBON SET” button until the IP address displays on the screen. NETWORK CONFIG IP/SUB/GATEWAY CIM User Guide Manual...

  • Page 64: Print Self-Test Card

    4. To go into STAND-BY mode, hold down both the “EJECT” button and “RIBBON SET” button together to go to the previous menu (“4. NETWORK CONFIG”). Then, hold down the “EJECT” button to enter STAND-BY mode. IP/SUB/GATEWAY NETWORK CONFIG STAND-BY MODE -Print Self-Test Card ①...

  • Page 65: ② If Not Connected To A Pc: User Mode

    2. Insert a single card into the slot or load it on the Input Hopper and load the ribbon. 3. Hold down both the “EJECT” and “RIBBON SET” buttons until “USER MODE” is indicated on the LCD display. STAND-BY MODE USER MODE CIM User Guide Manual...
  • Page 66 4. Hold down the “RIBBON SET” button in the USER MODE, and go into the “1. DIAGNOSIS” menu. DIAGNOSIS 5. Hold down the "RIBBON SET" button in the "DIAGNOSIS → 1. SELF PRINT" menu to start printing a test card. SELF PRINTING SELF PRINTING MODE 6.

  • Page 67: Maintenance Instructions

    - Make sure that the printer is dry before turning it on. Do not use any liquid / gel containing a high content of alcohol or solvent to clean Caution the printer as it may cause discoloration or fissure on its surface. CIM User Guide Manual...

  • Page 68: Clean Inside The Printer Using Cleaning Kit

    -Clean Inside the Printer Using Cleaning Kit Clean inside the printer using the cleaning kit every month or every 1000 cards Make sure to follow the instructions provided below on a regular basis as dusts or contaminants may affect the printing quality or damage the parts. ①...

  • Page 69: Not Connected To A Pc: User Mode

    3. Insert the cleaning card to the feeding slot (Single Card Slot, Input Hopper). 4. Hold down both the “EJECT” and “RIBBON SET” buttons together until the LCD display indicates that the printer is in “USER MODE”. STAND-BY MODE USER MODE CIM User Guide Manual...
  • Page 70 5. Hold down the “RIBBON SET” button in the “USER MODE” to go into “1. DIAGNOSIS”. USER MODE 6. When the LCD display indicates "1. DIAGNOSIS", press the "RIBBON SET" button to go into "2. CLEAN MODE". DIAGNOSIS 7. Hold down the “RIBBON SET” button until cleaning starts. The cleaning card will be ejected after it moves back and forth 10 times.
  • Page 71 “DIAGNOSIS” menu. USER MODE DIAGNOSIS Do not use the printer for 2-3 minutes Caution until the alcohol solution is fully dried. 9. Hold down the "EJECT" button to go into Stand-by Mode. STAND-BY MODE CIM User Guide Manual...

  • Page 72: Connected To A Pc

    3) Connected to a PC 1. Turn off the printer and open cover, remove ribbon and all cards and close the cover. And turn it on. 2. Go to "Control Panel → Hardware and Sound → Devices and Printers" and right-click the "Card Printer" driver icon. Then, select "Printing preferences".

  • Page 73: ③ Clean The Printer Using Alcohol Swab

    4. Squeeze the transparent part until liquid comes out. Then, clean places in the printer where you cannot reach with your hands. Do not use the printer for 2-3 minutes Caution until the alcohol solution is fully dried. CIM User Guide Manual...

  • Page 74: Clean The Printer's Tph Using Alcohol Swab

    4. Make sure that the TPH is fully dried before turning the printer on; otherwise, the TPH may get damaged. Important The Cleaning Pen is only included in the Advanced set sold by Cim. Install printer and ready...

  • Page 75: Clean The Blue Cleaning Roller

    TPH Up/Down Check the TPH up/down module. movement fails or is Failure interrupted. Check the temperature of the Abnormal TPH The TPH thermistor TPH thermistor (operating temp.: Thermistor Temperature is 0c°~70c°). Temperature abnormal. Replace the TPH. CIM User Guide Manual...

  • Page 76: Replace The Tph

    1) Replace the TPH 1. Detach the earth cable on TPH as shown in the below pictures. 2. While pressing down the black bar above printhead, push the TPH by its body upwards and forwards. Taking care not to touch the ceramic edge of the printhead.
  • Page 77 3. Remove the TPH’s connector by lifting it. 4. Pull it towards you to remove, and then replace it with a new one. (Install the TPH in reverse order of the removal steps.) CIM User Guide Manual...

  • Page 78: ② Card Feeding

    ② Card Feeding Code Code Name Description Solution The card is jammed in Check the path to see if the card Card Jammed the path. is jammed. 1) Remove Jammed Card (Single-sided Printing) 1. Open the side cover by holding the area highlighted by the circle and pushing it towards the front of the printer as shown in the picture.

  • Page 79: Remove Jammed Card (Double-Sided Printing)

    2) Remove Jammed Card (Double-sided Printing) 1. Turn off the printer and open the cover. Remove the ribbon inside. 2. Keep the cover open and remove the output card hopper(stacker). (For , remove the front cover deco) CIM User Guide Manual...
  • Page 80 3. Push the card to the front of the printer and then press the card to down. Tilt the card 70~90 degree down in order to eject the card easily. When the flipper is rotating, a card can be moved back and forth. Hold Caution a card tightly in order to prevent any movement of a card.

  • Page 81: ③ Ribbon

    Reboot Exist ⑤ Miscellaneous Code Code Name Description Solution Media Error The media error Check the card (media) and occurs. path sensor status. An EEPROM read/ EEPROM Error Reboot or replace the EEPROM. write error occurs. CIM User Guide Manual...

  • Page 82: Warning

    -Warning ①Card Code Code Name Description Solution IC fails to make [IC] Contact Error Check the IC contact module. contact. An MS encoding [MS] Encoder Check the MS module. error occurs. Error All 3 MS tracks fail to [MS] Read Error Check the MS module.

  • Page 83: ④ Miscellaneous

    167 Prints/Roll -Monochrome Ribbons Ribbon Type Specifications TP-9X00 Series nxo Series Blue 1000 Prints/Roll Black 1000 Prints/Roll 1000 Prints/Roll Green 1000 Prints/Roll White 1000 Prints/Roll Metallic gold 1000 Prints/Roll Metallic silver 1000 Prints/Roll KO(black overlay) 500 Prints/Roll CIM User Guide Manual...

  • Page 84: Printer Specifications

    Printer Specifications -Product Features 2 Input Hoppers - Load up to 200 cards with an optional Input Hopper. - Load 2 different types of cards at the same time. (The card type can be selected before printing.) Compact & Light - Only requires a small space.

  • Page 85: ⑤ Card Capacity

    - Model No.: KLP-060M-VI - Input: 100-240V ~ 50/60Hz 1.7A /Output: + 24V 2.5A 60W Only use power adapters provided by the manufacturer; Caution otherwise, it may affect the printing quality. ③ Font - MS Windows Type Fonts CIM User Guide Manual...

  • Page 86: ④ Memory

    ④ Memory - 128 MB RAM ⑤ Interface - USB 2.0 (High-Speed), RS-232 (Only Debugging), Built in 10/100 Ethernet ⑥ PC Specifications - Windows 2000, Windows XP (32/64bit), Windows Vista (32/64bit), Windows 7 (32/64bit), Windows 8 (32/64bit), Windows 10 (32/64bit), Windows 2012 R2 Server, Windows 2008 Server, Windows 2003 Server (32/64bit) ⑦...
  • Page 87 CIM User Guide Manual...
  • Page 88 MF GROUP srl - CIM Via O. Serra, 2 40012 Lippo di Calderara di Reno (BO) - Italy T. +39 051 6465 011 F. +39 051 6465 012 cimtech@cimitaly.it - www.cimitaly.it CIM TRADING (Shanghai) Co., Ltd Room 506-507, Building 7, No.
