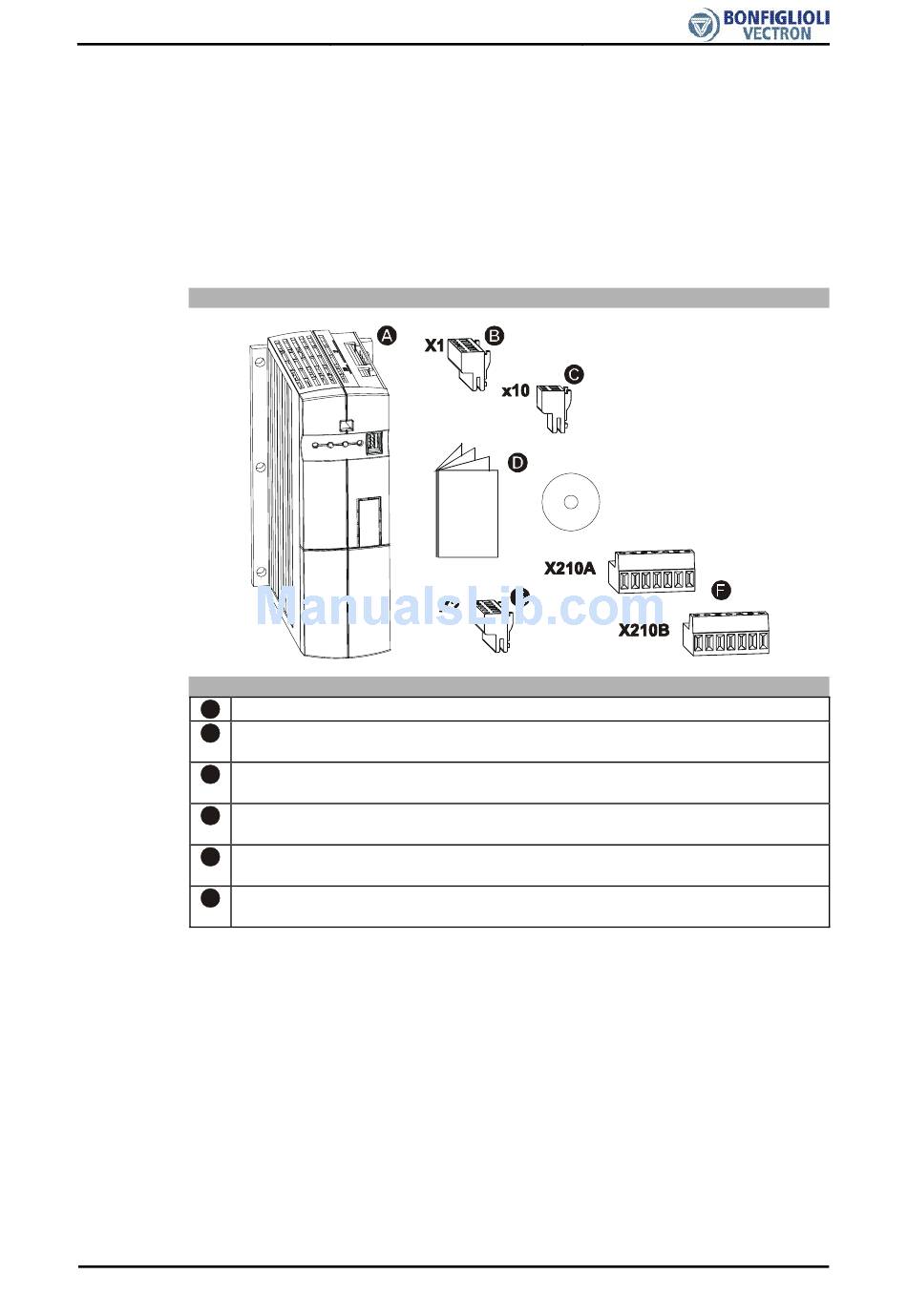

Scope of Supply for Devices in "Cold Plate" Variant

The scope of supply of the "Cold Plate" variant differs from the scope defined in the
operating instructions as regards the heat sink design and the standard fixtures which
are not required in this variant.
1.1
Frequency inverter
A
Terminal bar X1 (Phoenix ZEC 1,5/ST7,5)
B
Plug-in terminals for mains connection and DC networking
Terminal bar X10 (Phoenix ZEC 1,5/3ST5,0)
C
Plug-in terminals for relay output
Instructions and installation instructions for the device in "Cold Plate" variant,
D
CD ROM with manuals
Terminal bar X2 (Phoenix ZEC 1,5/ST7,5)
E
Plug-in terminal for braking resistor and motor connection
Control terminals X210A / X210B (Wieland DST85/RM3,5)
F
Plug-in terminal for connection of control signals
Note:
11/06
ACT/ACU 201 (up to 3.0 kW) and ACT/ACU 401 (up to
4.0 kW)
Immediately check the goods received for quality, quantity and type.
Obvious defects such as exterior damage of the packing and/or the unit
must be notified to the sender within seven days for insurance reasons.
Scope of Supply
Scope of supply
