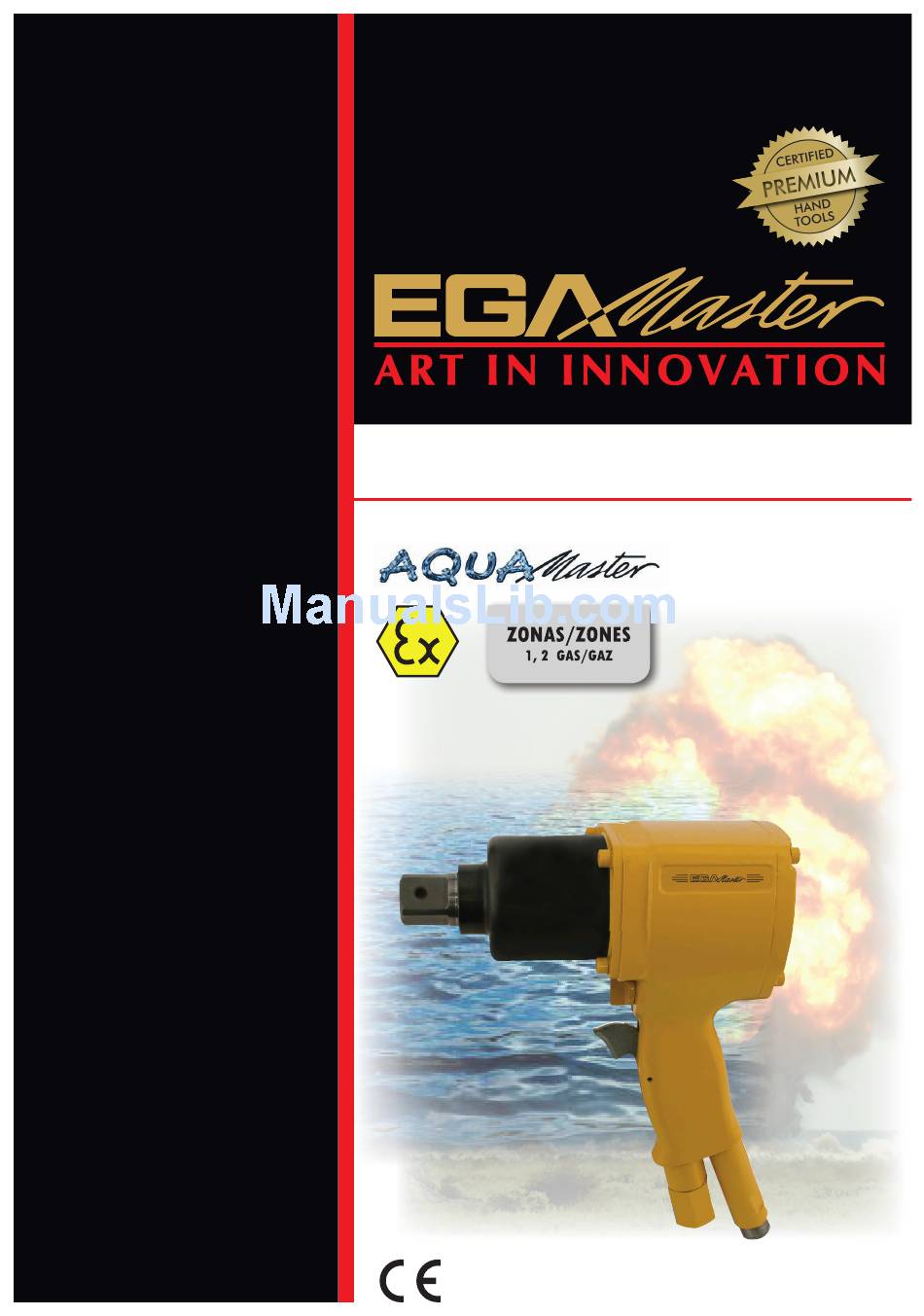

- Page 1 OPERATING INSTRUCTIONS IMPACT WRENCHES COD.79902 COD.79903 GUARANTEE ......21...
-
Page 2: Signal Word And Symbol Definition
ENGLISH SIGNAL WORD AND SYMBOL DEFINITION The signal words and symbols used in the technical documentation (safety instructions, operating booklet, etc.) have the following meaning: DANGER Indicates an immediate danger, which causes serious injuries to any person or even death, if not avoided. -
Page 3: Technical Specification
NOTICE – Gives recommendations and important hints for handling the product IMPORTANT – Indicates application advice and other particularly useful information. This symbol has the REMARK: following meaning: In each case the symbol used does not replace the safety text. The text must always be read fully. In some cases other symbols will be used with the signal words. -
Page 4: Product Description
PRODUCT DESCRIPTION Fig. 1 1 Valve trigger 2 Reverse slide 3 Air connection/ Exhaust 4 Motor housing with pistol grip 5 Impact mechanism housing 6 Drive square IDENTIFICATION INSTALLATION Requirements to the air supply The pneumatic impact wrench works optimally at an operating pressure of 6(4) bar, measured at the air inlet. The distance from the air supply to the pneumatic impact wrench should not be longer than 5 m. - Page 5 Use acid and resin-free lubricating oil, like SAE 5W - SAE 10W, for proper functioning of the pneumatic impact wrench. Attention! Do not use viscous oil. Use an antifreeze lubricant, e.g.: . “BP-Energol AX 10”, . “Kilfrost” , . or “Kompranol N74” in winter and if the compressed air is very moist. The supplied compressed air has to be free of: .
-
Page 6: Setting The Rotation Direction
Blow out the pneumatic hose bevor connecting the machine. Never connect a pneumatic hose being under pressure (see safety instructions for prevention of hazards caused by compressed air). First connect the machine and then connect the compressed air supply. Prior to starting the machine put the reverse slide for rotation direction left and right into the correct position. For example, if you want to loosen a screw and the rotation direction is adjusted to a position for screwing in, this can lead to violent uncontrolled movement of the pneumatic impact wrench. -
Page 7: Underwater Use
Pay attention that the socket is firmly seated. Only use sockets with suitable shank (see “Technical Specification“). Remove the socket Pull the socket from the square. Sockets being stuck can be loosened by slight beats with a rubber hammer. Change the sockets When inserting a socket, pay attention that it is properly seated on the square drive 6. -
Page 8: Safety-Conscious Working
• the safety symbols and safety notes on the machine/ device and the operating instruction booklet are considered, • the safety instructions and the operating instruction booklet are available completely and in legible condition on site with the machine. The employer is obliged to allow personnel to work on the machine only, who: •... - Page 9 Danger Zones Operational condition Normal function Malfunction Improper use Expected use ----------------------- Life phase Transport of Transport of the machine Drop of the Transport the machine in unknown in inoperable machine operable condition condition Equipment of Equip the machine Startup the machine with unknown unknown...
- Page 10 · If heat generation exceeds the specified surface temperature, the machine has to be stopped instantly. It only may be re-started after having eliminated the cause for the fault. · The work area and the next working areas should always be protected from sparks. ·...
- Page 11 • Do not hold or guide the machine at the turning power socket. • Consider enough space behind you when loosening screw connections, so that the operating hand cannot be jammed. • Use only extensions, adapters and joints, which are explicitly approved for the application with impact wrenches.
- Page 12 · Carry out risk assessment regarding dust and fume hazards and implement appropriate measures. · Keep the working place clean. · Keep in mind that working in certain materials may create dust and fumes causing a potentially explosive atmosphere. Remark: Some types of metal may have toxic coatings. Please pay particular attention to avoid skin contact and breathing in, when working with those materials.
-
Page 13: Service And Maintenance
SERVICE AND MAINTENANCE Basic Safety Instructions: WARNING – Maintenance and repair work on pneumatic equipment. Compressed air can cause severe injury. Observe legal regulations. Take precautions for persons and environment. Additionally, observe the following: • Secure the machine against unintentional starting and let the machine cool down to the ambient temperature •... -
Page 14: Maintenance And Repair
Furthermore we recommend giving the hidraulyc impact wrench a general overhaul by the supplier once a year. After completing maintenance and repair work and before restarting production make sure that... • All materials, tools and other equipment which are required for maintenance or repairs have been removed from the work area of the machine. -
Page 15: Environmental Regulations
ENVIRONMENTAL REGULATIONS When working on or with the equipment, it is imperative to observe all legal requirements in regards to waste- disposal and proper recycling. In particular during installation, repair and maintenance work, water damaging agents, such as: · lubricating grease and oil, ·... -
Page 16: Spare Parts List
REPAIR Disassembly Disassembly and re-assembly should only be performed with assistance of the sectional drawing. Loosen screws item 22 and remove motor housing cover item 20 with sealing item 19 for changing the vanes. Pull off the end plate item 17 and rotor item 14. Take the vanes item 16 out of the rotor slots. The slots have to be cleaned from oil and resin residues before installing new vanes. - Page 18 Item Qty. Description Remarks Motor housing, Assy. item 1-9 Motor housing with bushings Bushing Reverse bushing Air connection piece, Assy. Reverse valve, Assy. with item 6 O-Ring Cylinder pin Pressure spring End plate Grooved ball bearing Cylinder bushing Locking pin Rotor, Assy.
- Page 20 Impact Mechanism Item Qty. Description Remarks Sealing Impact mechanism housing, Assy. Guide bushing Cross bar Hammer Bolt Anvil 1“ Spring washer Socket head screw Quad-Ring * Wear parts to be stored in case of continuous use.
- Page 24 C/ ZORROLLETA 11, POL. IND. JUNDIZ 01015 VITORIA, SPAIN P.O.B. APTDO. 5005 FAX. 34 - 945 290 141 TEL. 34 - 945 290 001 info@egamaster.com www.egamaster.com...
