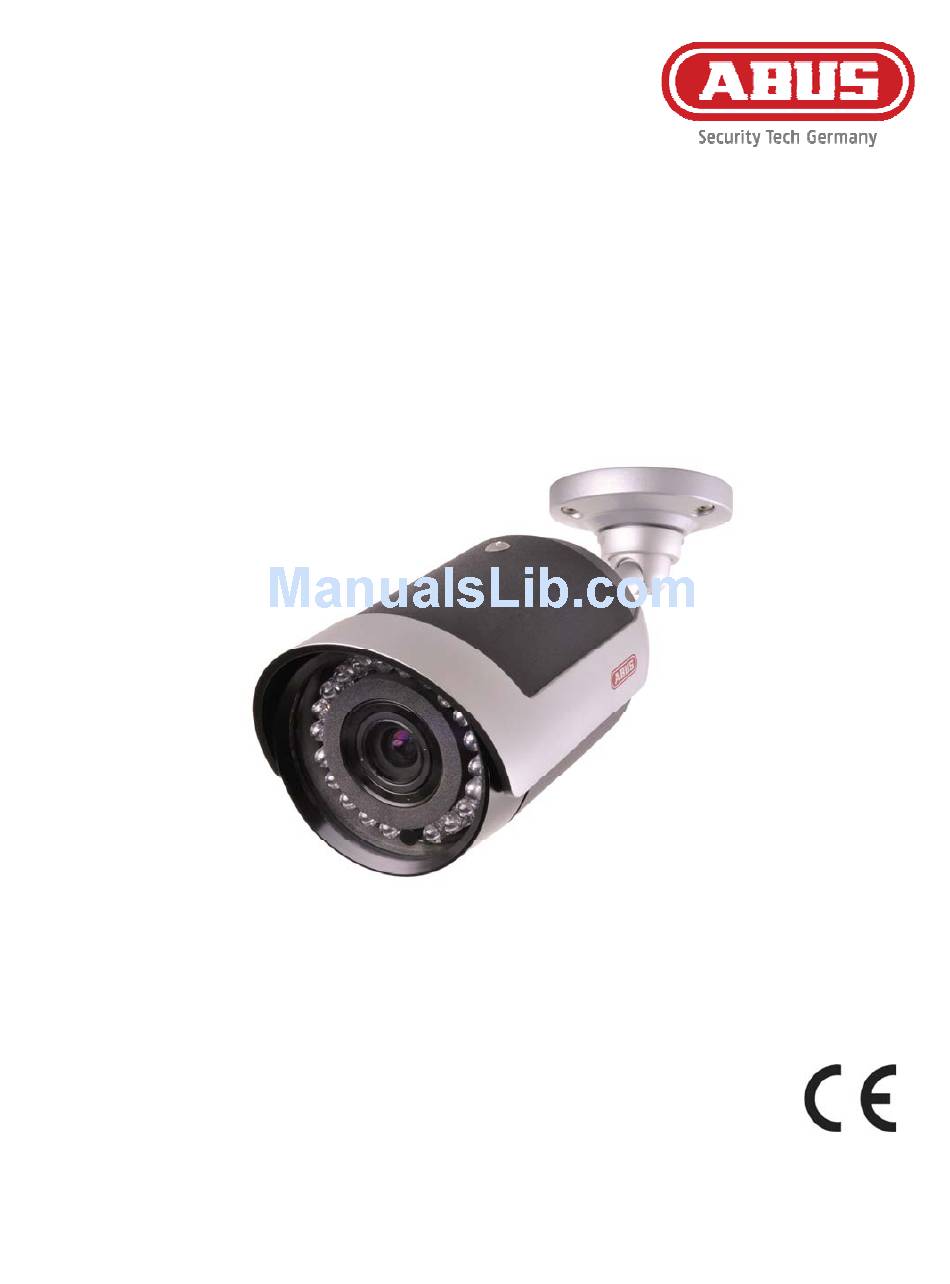

- Page 1 IR HD-SDI 1080p outdoor camera TVHD40000 Version 02/2012 Translation of the original German operating manual. Keep safe for future reference!
- Page 2 ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No forms of guarantee are...
- Page 3 Important safety information All guarantee claims become invalid if damage is caused by non-compliance with these operating instructions. We cannot be held liable for any resulting damage. We cannot be held liable in the event of material or personal damage caused by improper operation or non-compliance with the safety information.
-
Page 4: Table Of Contents
Contents Intended use .......................... 18 Explanation of symbols ....................... 19 Scope of delivery ........................19 Features and functions ......................19 Device description ........................ 20 5.1 Overview – Model number .................... 20 5.2 Unpacking the device ....................20 5.3 Camera description ....................... 20 Installation .......................... -
Page 5: Explanation Of Symbols
2. Explanation of symbols The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock). The triangular warning symbol indicates important notes in these operating instructions which must be observed. This symbol indicates special hints and notes on the operation of the unit. -
Page 6: Device Description

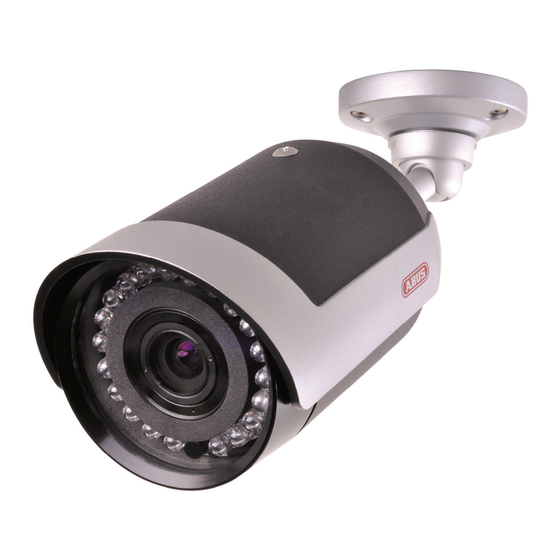

5. Device description 5.1 Overview – model number Item number TVHD40000 Resolution 1080p / 2.0 MPx Lens 4.0 mm — — IR swivel filter (ICR) Operating voltage 12 VDC 5.2 Unpacking the device Handle the device with extreme care when unpacking it. -
Page 7: Installation
6. Installation 6.1 Cable layout Two different cable layouts are possible: Concealed cabling If you wish to conceal the connection cable, drill a hole of appropriate size at the location where the camera will be mounted. Now pull the connection cable through the opening; the camera mount will conceal the cable opening. -
Page 8: Power Supply
(2) Power supply 12 VDC (5.5 x 2.1 mm) TVHD40000 The camera is equipped with a 12 VDC power supply. Please observe the polarity when connecting it. It should be connected by means of a mains adapter (circular connector, 5.5 mm x 2.1 mm). -
Page 9: Description Of The Function Buttons
6.6 Description of the function buttons The key lock is activated approx. 10 minutes after button 7/8 was last used To deactivate the key lock, press and hold a button for about 5 seconds. Once you have deactivated the key lock, the blue LED at the front of the camera will flash 5 times. -
Page 10: Maintenance And Cleaning
7. Maintenance and cleaning 7.1 Function test Regularly check the technical safety of the product, e.g. check the housing for damage. If safe operation is no longer possible, cease operating the product and safeguard it against accidental operation. Safe operation is no longer possible in the following circumstances: The device shows visible damage. -
Page 11: Technical Data
9. Technical data Model number TVHD40000 1/2.8" progressive scan Image sensor Sony Exmore CMOS Sony IT-N Camera type HD-SDI outdoor camera 1080p Resolution Pixels (total) 2000 x 1241 Pixels (effective) 1920 x 1080 Lens 4.0 mm, fixed lens Horizontal angle of view 80,4°...
