Page 1

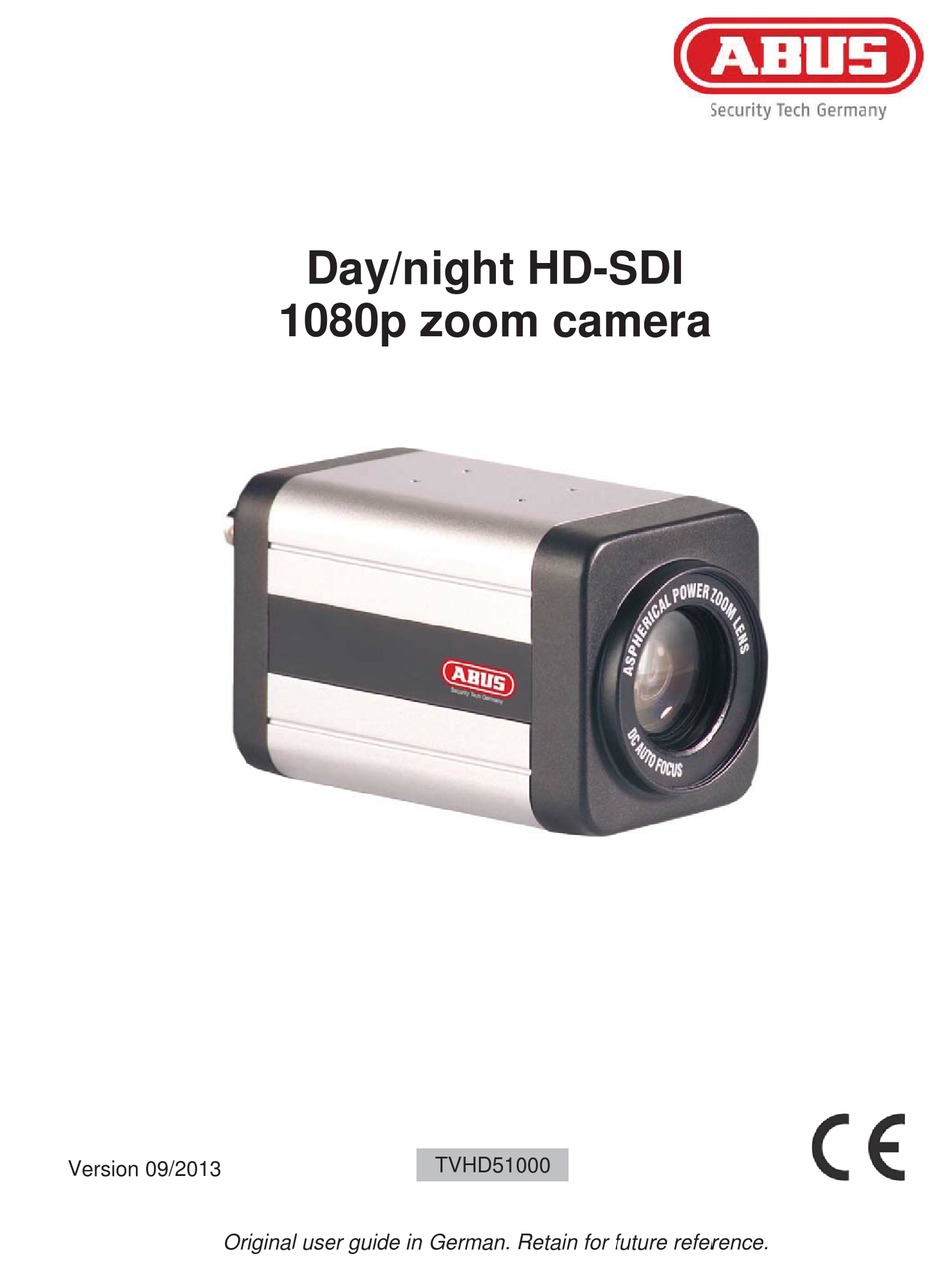

Day/n ight HD-S 80p z zoom m cam mera TVHD510 Version 09/2013 riginal use er guide in German. R Retain for f future refer r ence.
Page 2
Should you d discover an ny missing informa ation or inac ccuracies, p please let us s know abo ut them. ABUS S Security-Ce enter GmbH H & Co. KG does not ac ccept any li ability for te echnical and typogra...
Page 3
Importa nt safety informatio All gua rantee claim ms are invali id in the eve ent of dama ge caused b by non-com mpliance with this use er guide. We e cannot be e held liable for resulting g damage. In the e event of mat terial or pers...
Contents Intended use .......................... 24 Explanation of symbols ....................... 24 Scope of delivery ........................24 Features and functions ......................24 Device description ........................ 25 5.1 Overview – Model numbers ..................25 5.2 Unpacking the device ....................25 Installation ..........................25 6.1 Power supply .........................
1. Inten nded use The day & & night HD- -SDI 1080p zoom cam era is equip pped with a high-quality ty image se nsor. It is used for i indoor video o surveillan nce in conju nction with an HD-SDI recording d device or an n HD-SDI...
6.2 Insta alling the video cab In order t to transmit t the video si gnal from th he HD-SDI camera to a an HD-SDI converter, monitor or recorder, an RG6 co oaxial cable of type RG G59 with BN NC plug (ma ale) must be e connected...
7. Rea r view of f the cam mera (1) Vide eo output (H HD-SDI) (2) 12 V V DC power r supply con nnection (le ft +, right -) (3) RS-4 485 connec ction, switch hing input (4) Stat tus LED (ac ctive when v voltage pres...
8. OSD menu MAIN MENU FOCUS / ZOOM CAMERA SETUP PRIVACY MASK DISPLAY SETTING COMMUNICATION ALARM DETECT SYSTEM INFO DEFAULT EXIT Function Description FOCUS / ZOOM Settings for focus and zoom CAMERA SETUP Settings for exposure, day/night, white balance and image options PRIVACY MASK Setting for privacy masking DISPLAY SETTING...
Page 10
Setting for the start zoom factor ZOOM END 2~18 Setting for the end zoom factor ZOOM SPEED LOW: Slow zoom speed MIDDLE: Medium zoom speed HIGH: Fast zoom speed DEFAULT Restores all values in the sub-menu to the factory settings RETURN Back to main menu CAMERA SETUP...
Page 11
This value must be set at a higher level than the “NIGHT TO DAY” value (value is proportional to the amplifier control). NIGHT TO DAY 0~151 This value must be set at a lower level than the “DAY TO NIGHT” value (value is proportional to the amplifier control).
Page 12
EFFECT Function Description POSI/NEGA POSI: Positive display of image NEGA: Negative display of image MIRROR OFF: No mirroring of the video image HORIZONTAL: Horizontal mirroring of the video image VERTICAL: Vertical mirroring of the video image ROTATE: Horizontal and vertical mirroring of the video image DEFAULT Restores all values in the sub-menu to the factory settings RETURN...
Page 13
DISPLAY INFO DISPLAY INFO DISPLAY COLOR RESOLUTION 1080p25 RETURN DISPLAY Function Description TITLE SET Assignment of a camera title for the display in video image. Up to 16 characters can be entered. TITLE DISPLAY OFF: Title display is deactivated ON: Title display is activated TITLE POSITION Position of the camera title in live image LEFT UP:...
Page 14
COMMUNICATION COMMUNICATION CAMERA ID BAUD RATE 2400 RETURN Function Description CAMERA ID 1~255 Setting for the RS-485 camera ID (ID 0 is reserved for the control unit) BAUD RATE 2.400 / 4.800 / 9.600 / 115.200 Setting for the baud rate of the RS-485 communication interface. RETURN Back to main menu ALARM DETECT...
Page 15
SYSTEM INFO SYSTEM INFO PROTOCOL PELCO CAMERA ID BAUD RATE 2400 PARITY N, 8, 1 V1.02ITNAFP RETURN Function Description PROTOCOL Current log for RS-485 communication CAMERA ID Current camera ID BAUD RATE Current baud rate PARITY Current parity, data bits, stop bit Current firmware RETURN Back to main menu...
9. Main ntenance e and cle eaning 9.1 Func ction test Examine the technic cal safety of f the produc ct regularly, e.g. check the housing g for damag If it seem ms that it ma ay no longer r be possibl e to operate e the device e safely, sto...
Technical data TVHD51000 1/2.8" progressive scan Sony Exmore CMOS Image sensor Sony IT-N Camera type HD-SDI standard camera 1080p25, 1080i50, 720p60, 720p50, 720p30, 720p25, 1080p29.97, 1080i59.94, 720p59.94, 720p29.97, 1080p30, Resolution 1080i60 Pixels (total) 2.000 x 1.241 Pixels (effective) 1.920 x 1.080 Lens 4.7–84.6 mm...
