20402 & 29402
VATS / PASSLOCK / TRANSPONDER
Universal Alarm Bypass Module
English
Français
Español
p1
p17
p29

Advertisement

loading

Related Manuals for Directed Electronics 20402

Summary of Contents for Directed Electronics 20402

  • Page 1 20402 & 29402 VATS / PASSLOCK / TRANSPONDER Universal Alarm Bypass Module English Français Español...

  • Page 2: Front View

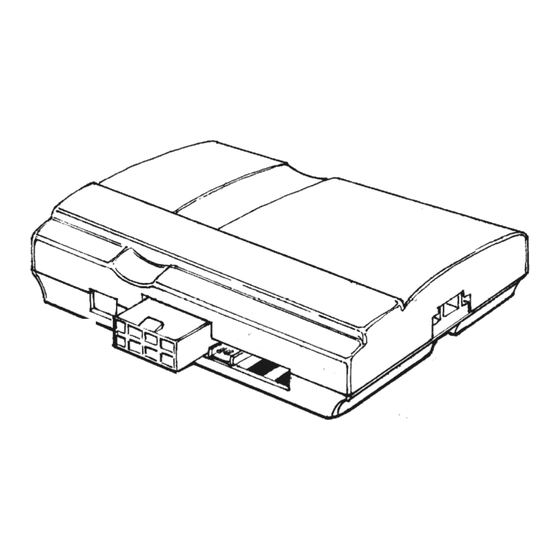

    Transponder loop w/connector Cable Ties Instruction booklet Double-stick foam tape FRONT VIEW 8 position harness connector Transponder Loop connector 2 Resistor Measuring Pads BACK VIEW 8 position dip-switch Up is OFF Down is ON Variable Resistor © 2006 Directed Electronics N20402 08-06...
  • Page 3 2003-06 Transponder Chevrolet 2003-06 Passlock II Cadillac De Ville 2000-05 Transponder Chevrolet Aveo 2004-06 Transponder Cadillac Escalade 1999-2006 Passlock II Chevrolet Impala 2006 Transponder Cadillac Escalade ESV 2003-06 Passlock II Chevrolet Uplander 2005-06 Transponder N20402 08-06 © 2006 Directed Electronics...
  • Page 4 Stratus Coupe 2001-05 Transponder Honda Ridgeline 2006 Transponder Ford Contour 1998-2000 Transponder Honda Accord Hybrid 2005 Transponder Ford Crown Victoria 1998-2006 Transponder Honda Insight 2000-05 Transponder Honda Odyssey 1998 Transponder Ford Escape 2001-06 Transponder © 2006 Directed Electronics N20402 08-06...
  • Page 5 Transponder Mazda Millenia 1998-2002 Transponder Optima 2005 Transponder Mazda 2000-05 Transponder Spectra (2.0L) 2004-05 Transponder Mercedes C 230 1998-2000 SWITCH- Sportage 2005 Transponder Benz BLADE KEYS ONLY Land Rover Discovery Series II 2000-04 Transponder N20402 08-06 © 2006 Directed Electronics...
  • Page 6 1998-2000 Transponder Plymouth Prowler 1999-2000 Transponder Mercury Sable 1996-2005 Transponder Pontiac Aztek 2001-05 Passlock II Mercury Cougar 1997 Transponder Pontiac Bonneville 1992-2005 VATS Mercury Grand Marquis 1998 Transponder Pontiac Grand Am 1996-98 Passlock I © 2006 Directed Electronics N20402 08-06...
  • Page 7 Volvo 1998-2004 Transponder Toyota RAV4 2001-03 Transponder Volvo 1998-99 Transponder Toyota Sequoia 2001-02 Transponder Volvo XC70 2003-04 Transponder Toyota Sienna 1999-2003 Transponder Volvo XC90 2003-04 Transponder Toyota Solara 1999-2003 Transponder Toyota 4Runner 2003-06 Transponder N20402 08-06 © 2006 Directed Electronics...
  • Page 8 Alarm Bypass Module as shown on page 13. If you have a 2000 model year or later Saturn vehicle, see page 14. TRANSPONDER / PASSKEY 3 / P.A.T.S. systems require a transponder (or extra key) to be used with our system. Follow the directions beginning on page © 2006 Directed Electronics N20402 08-06...
  • Page 9 All resistor values shown are in ‘K-ohms’ -- or 1,000 ohms. Thus the 1.650 value shown in the third row is 1,650 ohms or 1.65 K ohms. DipSwitch #1 Dip Switch #7 Dip Switch #8 VATS PASSLOCK 1 PASSLOCK 2 N20402 08-06 © 2006 Directed Electronics...
  • Page 10 White/Green to Status wire Dip Switch #1 Off Dip Switch #7 Off *See page 16 if you do not have a Status wire on your remote Dip Switch #8 Off starter © 2006 Directed Electronics N20402 08-06...
  • Page 11 This is a different wire than the Black wire mentioned in the above steps. 12. Connect the bypass module using the diagram below. Be sure to tape over any connections to not leave any exposed wires. N20402 08-06 © 2006 Directed Electronics...
  • Page 12 7. Turn the ignition key to the “START” position and release it. Denote the resistance reading as this will be the resistance that will need to be duplicated. Repeat this step several times to verify that you have a consistent reading. © 2006 Directed Electronics N20402 08-06...
  • Page 13 Status output from car starter (or to constant negative ground output when remote starter is Dip Switch #1 Off Dip Switch #7 Off Dip Switch #8 Off *See page 16 if you do not have a Status wire N20402 08-06 © 2006 Directed Electronics...
  • Page 14 Status output from car starter (or to constant negative ground output when remote starter is activated).* *See page 16 if you do not have a Status wire Dip Switch #1 Off Dip Switch #7 Off Dip Switch #8 Off © 2006 Directed Electronics N20402 08-06...
  • Page 15 Make sure the white wires inside the module do not crisscross each other. Place Key with Transponder inside case on pc board as shown. Use double stick tape to hold to the key in place. N20402 08-06 © 2006 Directed Electronics...
  • Page 16 Bypass Module or adjusting the position of the two loop wire around the transponder pick-up antenna mentioned above. White/Green to Status wire of Remote Starter Note: The key that the transponder was removed from will no longer start the vehicle. © 2006 Directed Electronics N20402 08-06...
  • Page 17 Status output. If you have a brand of remote car starter that does not have a Status output, follow the relay hook-up below using Bosch 30 Amp relays for creating the Status output. Status output to control alarm bypass module N20402 08-06 © 2006 Directed Electronics...
  • Page 18 Français...
  • Page 19 AVANT Raccord de faisceau à 8 positions Raccord de boucle de transpondeur 2 contacts de mesure de résistance ARRIÈRE Commutateur DIP à 8 positions La position relevée est La position abaissée est Résistance variable N20402 08-06 © 2006 Directed Electronics...
  • Page 20 Saturn date de 2000 ou plus tard, référez-vous à la page 26. Dans le cas des systèmes de type TRANSPONDEUR, PASSKEY 3 et P.A.T.S., un transpondeur ou une clé supplémentaire devra être utilisée avec notre système. Suivez les instructions des pages 26 et 27. © 2006 Directed Electronics N20402 08-06...
  • Page 21 Toutes les valeurs de résistance sont affichées en kilo-ohms (1 000 ohms). Par exemple, la valeur “1.650” de la troisième rangée correspond à 1 650 ohms ou 1,65 kilo-ohms. Commutateur Dip#1 Dip #7 Dip #8 PASSLOCK 1 PASSLOCK 2 N20402 08-06 © 2006 Directed Electronics...
  • Page 22 12 V CÔTÉ MOTEUR BLANC Commutateur Dip #1 Off Commutateur Dip #7 Off JAUNE/ROUGE Commutateur Dip #8 Off *Voir page 28 si votre démarreur à distance n’a pas de fil de configuration © 2006 Directed Electronics N20402 08-06...
  • Page 23 Ce n’est pas le même fil que le fil noir mentionné dans les étapes précédentes. 12. Raccordez le module de contournement selon le diagramme ci-dessous. Assurez-vous d’enrouler du ruban sur tous les raccords et de ne laisser aucun fil exposé. N20402 08-06 © 2006 Directed Electronics...
  • Page 24 (camions) à la borne négative du multimètre numérique. Tournez la clé de contact en position “DÉMARRER” et relâchez-la. Notez la valeur de la résistance: vous devrez la reproduire. Refaites l’opération plusieurs fois pour vous assurer que cette valeur est stable. © 2006 Directed Electronics N20402 08-06...
  • Page 25 Fil VERT/BLANC vers masse (négative) CÔTÉ MOTEUR borne positive 12 V BLANC JAUNE/ROUGE Commutateur Dip #1 Off Commutateur Dip #7 Off Commutateur Dip #8 Off *Voir page 28 si vous n’avez pas de fil de configuration N20402 08-06 © 2006 Directed Electronics...
  • Page 26 12 V RACCORD “D” JAUNE/NOIR TOUS LES COMMUTATEURS DIP EN POSITION OFF *Voir page 28 si vous n’avez pas de fil de configuration Commutateur Dip #1 Off Commutateur Dip #7 Off Commutateur Dip #8 Off © 2006 Directed Electronics N20402 08-06...
  • Page 27 Assurez-vous que les fils blancs à l’intérieur du module ne se croisent pas. Placez la clé contenant le transpondeur dans le boîtier, sur le circuit imprimé, tel qu’illustré. Utilisez le ruban à double face pour fixer la clé. N20402 08-06 © 2006 Directed Electronics...
  • Page 28 Fil blanc/vert vers fil de configuration du démarreur à distance 2 TOURS AUTOUR DE LA SERRURE D’ALLUMAGE CÔTÉ CLÉ TOUS LES COMMUTATEURS DIP EN POSITION OFF Note: La clé de laquelle le transpondeur a été pris ne peut plus faire démarrer le véhicule. © 2006 Directed Electronics N20402 08-06...
  • Page 29 Sortie de configuration au module de contournement d’alarme de contrôle Vers Allumage #1 du véhicule Sortie de configuration au module de contournement d’alarme de contrôle Masse Fil bleu d’allumage #1 du démarreur à Masse distance N20402 08-06 © 2006 Directed Electronics...
  • Page 30 Español...

  • Page 31: Vista Frontal

    Conector del Arnés de 8 posiciones Conector del cable de transponder 2 bases de medidores de resistencia VISTA TRACERA Switch de selección de 8 posiciones Arriba es APAGADO Abajo es ENCENDIDO Resistor de Variables N20402 08-06 © 2006 Directed Electronics...
  • Page 32 2000 o mayor, vea la hoja 38. TRANSPONDER / PASSKEY 3 / P.A.T.S. requieren un transponder (o llave extra) para ser usado con nuestro sistema vea las instrucciones en las paginas 38 y 39. © 2006 Directed Electronics N20402 08-06...
  • Page 33 1.650 en la tercera fila 1,650 ohms o 1.65 K ohms Switch de Movimiento Dip#1 Dip #7 Dip #8 VATS APAGADO APAGADO APAGADO PASSLOCK 1 ENCENDIDO ENCENDIDO APAGADO PASSLOCK 2 APAGADO APAGADO APAGADO N20402 08-06 © 2006 Directed Electronics...
  • Page 34 LADO DEL MOTOR BLANCO Switch de Movimiento #1 APAGADO Switch de Movimiento #7 APAGADO Switch de Movimiento #8 APAGADO AMARILLO/ROJO *vea la hoja 40 si no tiene un cable de Estado en su arrancador de motor © 2006 Directed Electronics N20402 08-06...
  • Page 35 Este es un cable distinto al Negro mencionado en los pasos anteriores. 12. Conecte el modulo bypass usando el diagrama abajo. Asegurese de encintar cualquier conector para no dejar cables expuestos. N20402 08-06 © 2006 Directed Electronics...
  • Page 36 8. Cuando haya identificado la resistencia correcta use la tabla en la pagina 32 para ajustar la resistencia el modulo bypass. Localice el valor más cercano el © 2006 Directed Electronics N20402 08-06...
  • Page 37 LADO DEL MOTOR A + 12 VOLTS BLANCO AMARILLO/ROJO Switch de Movimiento #1 APAGADO Switch de Movimiento #7 APAGADO Switch de Movimiento #8 APAGADO *Vea la página 40 si no tiene un cable de Estado N20402 08-06 © 2006 Directed Electronics...
  • Page 38 VERDE/BLANCO a ROSA +12 Volts CONECTOR “D” AMARILLO/NEGRO Switch de Movimiento #1 APAGADO Switch de Movimiento #7 APAGADO Switch de Movimiento #8 APAGADO *Vea la página 40 si no tiene un cable de Estado © 2006 Directed Electronics N20402 08-06...
  • Page 39 Coloque la Llave con el Transponder dentro del estuche en su tableta de circuitos como mostrado. Use el tape de doble cara para detener la llave. N20402 08-06 © 2006 Directed Electronics...
  • Page 40 2 VUELTAS ALREDEDOR DEL LOCK DE LA IGNICION EN EL LADO DE LA LLAVE TODOS LOS SWITCHES DE MOVIMIENTO APAGADOS Nota: La llave que fue removida del el tansponder ya no encenderá mas el vehiculo © 2006 Directed Electronics N20402 08-06...
  • Page 41 Salida de Estado para controlar el modulo bypass de la alarma A Ignición #1 del Vehiculo Sortie de configuration au module de contournement d’alarme de contrôle Tierra Cable Azul de Ignición #1 del Arrancador Tierra de Motor del Auto N20402 08-06 © 2006 Directed Electronics...
  • Page 42 LIMITED ONE YEAR CONSUMER WARRANTY: For a period of ONE YEAR from the date of purchase of a Directed Electronics remote start or security product, Directed Electronics. (“DIRECTED”) promises to the original purchaser, to repair or replace with a comparable reconditioned piece, the security or remote start accessory piece (hereinafter the “Part”), which proves to be defective in workmanship...
  • Page 43 La compagnie qui a conçu ce système est Directed Electronics. Depuis sa création, Directed Electronics a un seul objectif: offrir au consommateur les meilleurs systèmes de sécurité, systèmes audio et accessoires disponibles pour leurs véhicules. Récipiendaire de près de 100 brevets et prix relatifs à des innovations dans le domaine de l’électronique de pointe, DIRECTED se conforme à...
