Bluetooth QuickStart Kit Version 1.0 - User's Guide

5.2 Board Interfaces

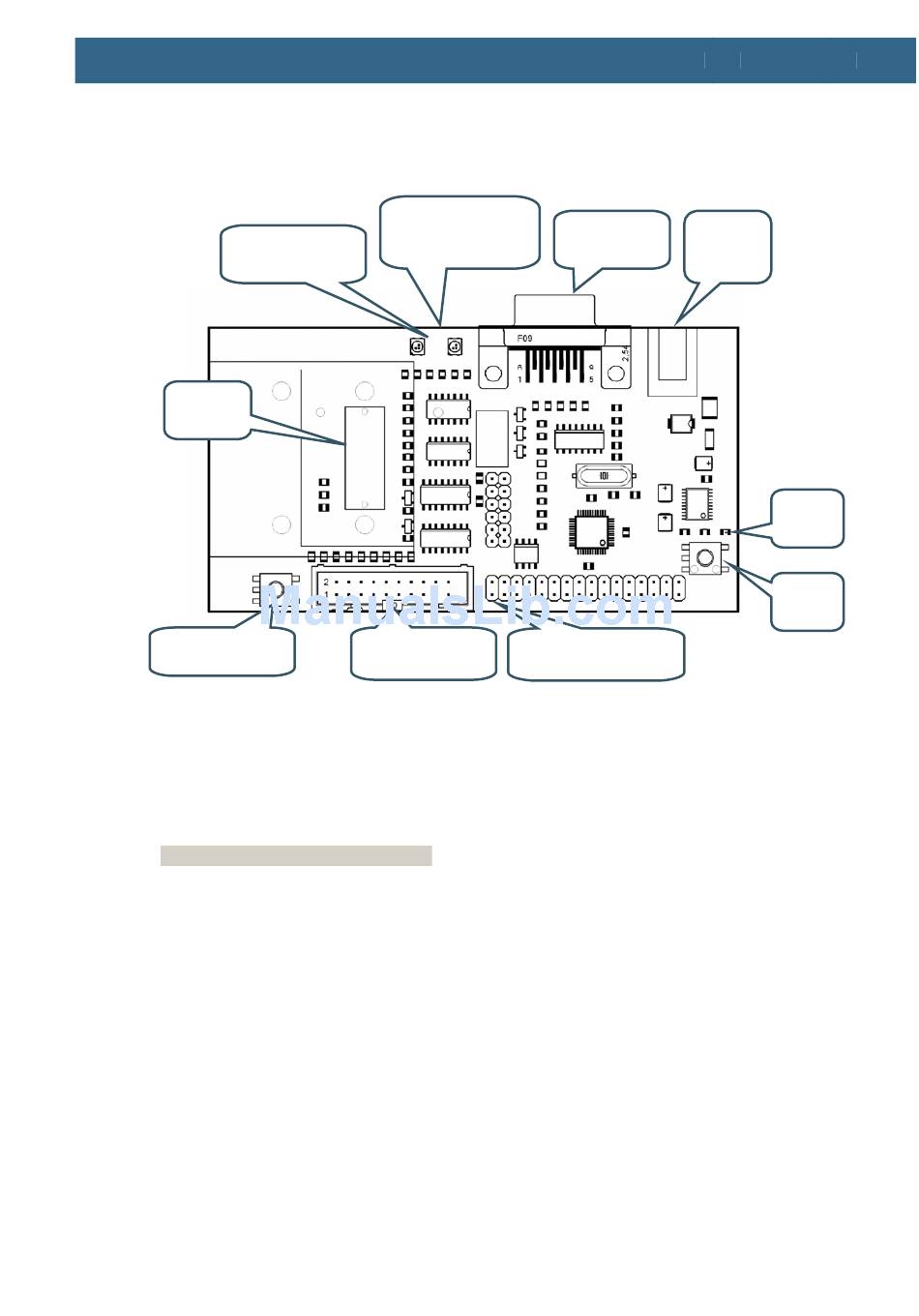

The Bluetooth QuickStart Kit board has a number of external interfaces as illustrated in
Figure 17 below.
Status indicating
Bluetooth
module
Bluetooth factory
reset switch
Figure 17 – Bluetooth QuickStart Board Interface Description
Table 1 below explains each board interface in more detail.
Female 9-pos DSUB
A standard RS232 channel with
ESD/EMI protection. Normally
connected to a PC or an embedded
system.
Connector is used for:
1. Program download
2. Terminal printouts for
application program
development debugging
3. Connection with ANY embedded
system, in order to transfer data
between the system and the
Bluetooth QuickStart Board.
Copyright 2004-2005 © Embedded Artists AB
MMC/SD memory
card connector
(bottom side)
RGB LEDs
JTAG connector
for LPC2106
Female
9-pos DSUB
Expansion connector
(pin #1)
Pin 2 = transmit data (output)
Pin 3 = receive data (input)
Pin 4 = DTR (input) for controlling automatic
program download
Pin 5 = ground
Pin 7 = RTS (input) for controlling automatic
program download
Pin 8 = CTS (output)
Page 22
Power
jack
2.1 mm
Reset
LED
Reset
button
