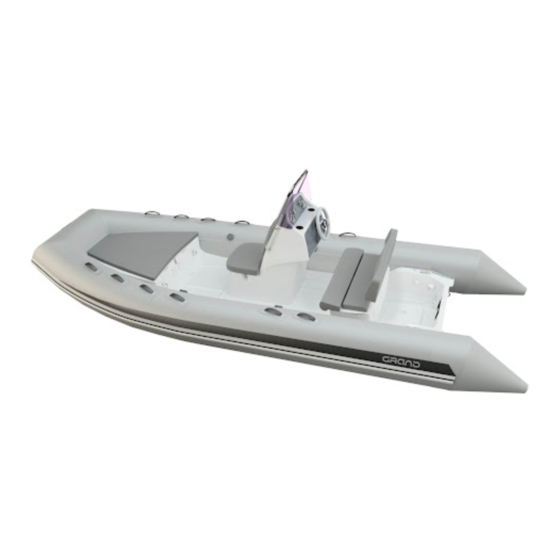

- Page 1 GRAND Silver Line S520, S520L,S520F,S520S UM14650 Rigid Inflatable Boat SILVER LINE Models: S520, S520L, S520LF, S520S User’s Manual...
- Page 2 GRAND Silver Line S520, S520L,S520F,S520S UM14650 INTRODUCTION. "GRAND" inflatable motor boat of the "SILVER LINE" series: S520, S520L,S520F and S520S has been designed under requirements of ISO 6185 "Plastomer and Elastomer Inflatable Boats" and DIN 7870 "Inflatable Boats with Reinforced Shells".
- Page 3 GRAND Silver Line S520, S520L,S520F,S520S UM14650 TECNICAL DATA SPECIFICATION Model Unit S520 / S520L/S520F/S520S Length overall ft-inches 17'1" Length inside 3.85 ft-inches 12'8" Width overall ft-inches 7'3" Width inside 1,15 ft-inches 3'9" Tube diameter max ft-inches 20" Number of chambers Passenger capacity pers.
- Page 4 GRAND Silver Line S520, S520L,S520F,S520S UM14650 COMPLETE SET Model S520 S520L/F S520S Description unit q-ty availability availability availability STANDART FEATURES Fiberglass hull pcs. Molded-in spacious bow locker with access door pcs. Towing bow eye, 2front and 2 rear lifting eyes set.
-
Page 5: Optional Equipment
Bow locker removable cushion pcs. Stainles steel navigation arch Removable sundeck Collapsible bimini top Electic package 90 lit. build-in fuel system with send and filler pcs. — Your "GRAND" boat "SILVER LINE" complete set included this items. √ √ √ √ √... - Page 6 GRAND Silver Line S520, S520L,S520F,S520S UM14650 S520 Item Fiberglass hull Buoyancy tube Inflation / deflation valve Bow towing eye Bow lifting eye Stern lifting eye Antiskid deck surface Raised rubbing strake Safety grab handles Molded-in bow stowage Hull drain plug...
- Page 7 GRAND Silver Line S520, S520L,S520F,S520S UM14650 S520L Item Fiberglass hull Buoyancy tube Inflation / deflation valve Bow towing eye Bow lifting eye Stern lifting eye Antiskid deck surface Raised rubbing strake Safety grab handles Molded-in bow stowage Hull drain plug...
- Page 8 GRAND Silver Line S520, S520L,S520F,S520S UM14650 S520F Item Fiberglass hull Buoyancy tube Inflation / deflation valve Bow towing eye Bow lifting eye Stern lifting eye Antiskid deck surface Raised rubbing strake Safety grab handles Molded-in bow stowage Hull drain plug...
- Page 9 GRAND Silver Line S520, S520L,S520F,S520S UM14650 S520S Item Fiberglass hull Buoyancy tube Inflation / deflation valve Bow towing eye Bow lifting eye Stern lifting eye Antiskid deck surface Raised rubbing strake Safety grab handles Molded-in bow stowage Hull drain plug...
-
Page 10: Preparation For Exploitation
GRAND Silver Line S520, S520L,S520F,S520S UM14650 PREPARATION FOR EXPLOITATION. In order to set the boat in the operation condition perform as follows: unfold the inflatable tube; mount the outboard engine on the transom in accodance with it`s own installation instruction. - Page 11 GRAND Silver Line S520, S520L,S520F,S520S UM14650 STEERING CONSOLE INSTALATION Mount the engine remote controle block on the right side of the steering console; In order to install the windscreen onto the console perform the next Fig. 2 operations ( Fig. 2 ): unfix and hinge out overhead part of steering console or seat for steering console CS-01 «Sport»;...
- Page 12 GRAND Silver Line S520, S520L,S520F,S520S UM14650 In order to install the steering console CL-03 on the deck perform the next operations ( Fig. 3 ): align holes in the bottom of steering console with holes on the deck; fix steering console to the deck by means of bolts M8*25 and washers (see Fig.3);...
- Page 13 GRAND Silver Line S520, S520L,S520F,S520S UM14650 For steering console CS-01: align holes in the bottom of steering console with holes on the deck; fix steering console to the deck by means of bolts M8*25 and washers (see Fig.3a); attach steering system cable in accodance with its own installation (manual);...
-
Page 14: Container Instalation
GRAND Silver Line S520, S520L,S520F,S520S UM14650 CONTAINER INSTALATION In order to install the container onto the deck perform the next operations ( Fig. 4): hinge out the seat; align holes on the bottom container with holes on the deck; fix container to the deck by means of bolts M8*25 and washers (see Fig.4). -
Page 15: Maintenance
GRAND Silver Line S520, S520L,S520F,S520S UM14650 MAINTENANCE kjkjkjkk IT IS STRICTLY FORBIDDEN : Main conditions of long service life is right and careful service. to handle the boat in the state of intoxication and without individual Avoid excessive increasing of pressure in the board, rescue means being used (life-saving belts, jackets, etc.) - Page 16 GRAND Silver Line S520, S520L,S520F,S520S UM14650 occupied seats should not be left throughout the entire sail ing Proper usage of boat equipment and accessories time. When sailing with an outboard engine the steersman Use the boat equipment and accessories only on their direct should shift his body forward in the course of acceleration purpose to ensure reliable service.
- Page 17 The "GRAND" Company employees would like to wish you a The steersman of the towed boat should be assisted by another pleasant and safe leisure time! crew member to monitor the process of towing.
- Page 18 GRAND Silver Line S520, S520L,S520F,S520S UM14650 NAVIGATION ARCH WIRING DIAGRAM Fuel meter +12v panel light Speedometer +12v on ignition switch Signal Masthead light (white) Horn Tachometer Port light (red) X1- Connector block +12v on ignition switch Wire legend Starboard light (green)
- Page 19 GRAND Silver Line S520, S520L,S520F,S520S UM14650 For notes...
