S2 10 Line Cylindrical Locks
Profile Series v.S2
The Profile Series v.S2 10 Line Cylindrical Lock is available with many lever designs including Coastal Series and 11 hardware finishes. Its unique design
provides uniformity when used with other SARGENT Cylindrical Locks at a facility. The Profile Series v.S2 products offer wireless access control solutions for
meeting rooms, country club locker rooms and assisted living facilities.
Mechanical Features
• Certified ANSI/BHMA A156.2 Series 4000 - Grade 1
• UL/ULC Listed for fire doors*
• FCC certified
• Windstorm & Florida Building Code information is listed on page 16
• Motor driven Cylindrical Lock
• Latch Stainless Steel, 1/2" (13mm) throw
• 2-3/4" (70mm) backset standard
• For 1-3/4" (44mm) thick door standard. Consult factory for other thicknesses
• Non-Handed lock body, levers may be handed (Specify RH, RHR, LH or LHR)
• Heavy duty lever spring return
• Steel mounting studs
• Not available with 10-UL-, 83-, 84- options
• Batteries included
* Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no represen-
tations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing
a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
v.S2 Cylindrical Locks
• Key outside always retracts latch
• Lever outside rigid except when in
"passage" mode or valid user code entered
• Lever inside always retracts latch
• Guardbolt deadlocks latch
• Key override standard
• "Request-to-Exit (REX)" signaling
standard
• Door Position Switch (DPS,
P/N 52-3893) supplied
Note: The DPS is installed right above the
lock and connects directly into the lock's
electronics
Escutcheons
• Zinc die cast
• Projection at bottom 11/16" (17mm) less lever
• Projection at top 1-5/8" (41mm)
• Tactile keypad
• Operating temperature
125 kHz proximity products: -40° F (-40°C) to 135° F (57°C)
13.56 MHz iCLASS products: -13°F (-25°C) to 151°F (66°C)
• LEDs indicate valid/invalid entries
• Keys/buttons with double shot mold construction
prevents wear
How to Order v.S2 Cylindrical Locks
Options
Select from page 13-15
**28-
**28- option supplies a 4-7/8" strike, opposed to the 2-3/4" T strike supplied standard
4
1-800-727-5477 • www.sargentlock.com

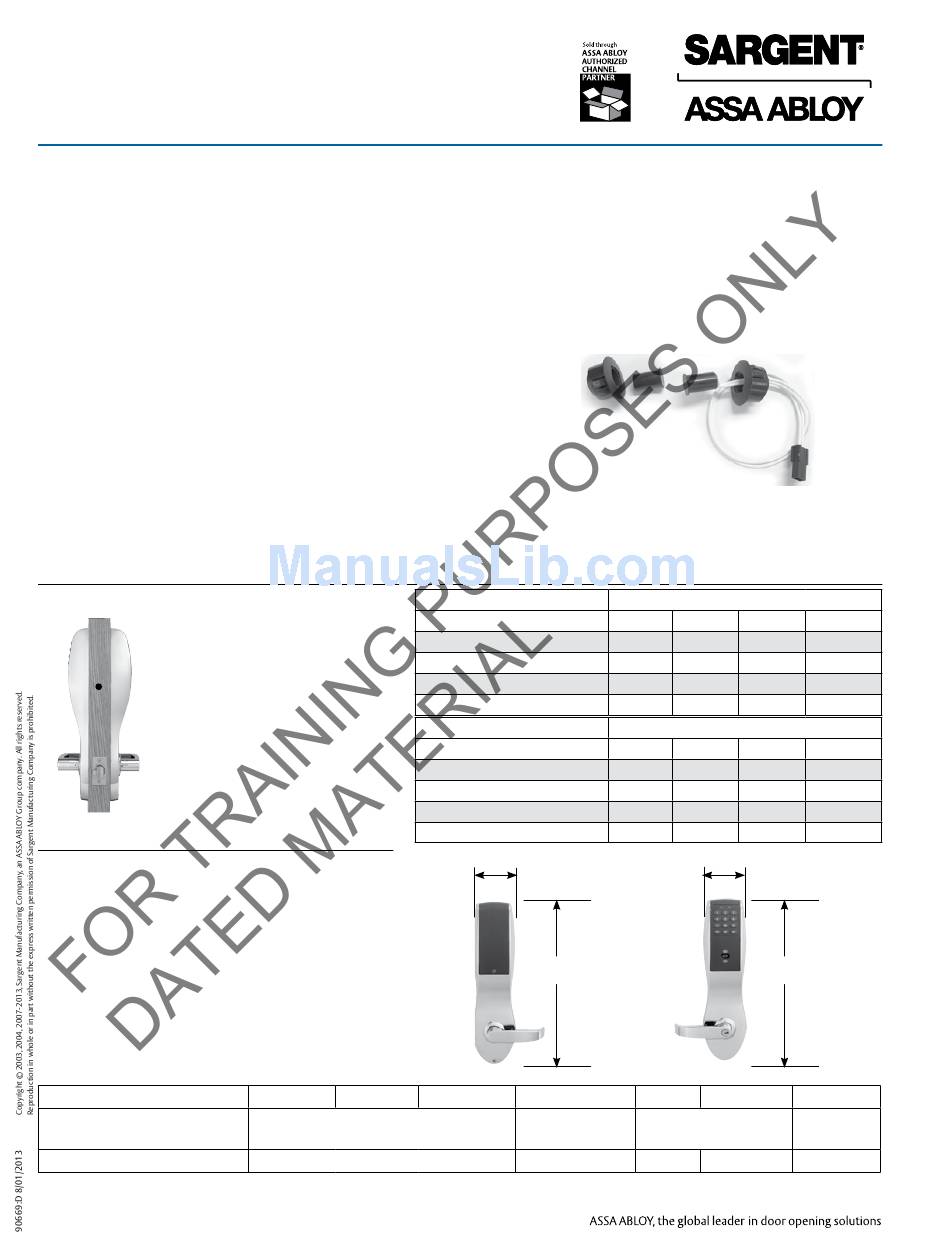

v.S2 Cylindrical Lock Functions
If the lock needs to have:
Prox and keypad
Prox only
If the lock needs to have:
iCLASS and keypad
iCLASS only
Series Type Function
Select from S2 Cylindrical Lock Function
chart above
S2-10G77
52-3893 Door Position Switch (DPS)
(included)
• SPDT concealed switch (2 wire)
• Metal Door adapter included
• 3/8" Diameter for wood door
• 3/4" Diameter for metal door
• Supplied with v.S2-10G77
Series
Key override S2
Key override S2
Series
Key override S2
Key override S2
3-3/4"
Inside
(95mm)
14-1/4"
(362mm)
Technology Levers
Select lever and finish
PK, PA, IK, or IA
PK
Then select:
Type Function Technology
10 G77 PK
10 G77 PA
Then select:
Type Function Technology
10 G77 IK
10 G77 IA
3-3/4"
Outside
(95mm)
14-1/4"
(362mm)
Finish Hand
RHR, LHR,
from page 6
RH or LH
G 03 RH
