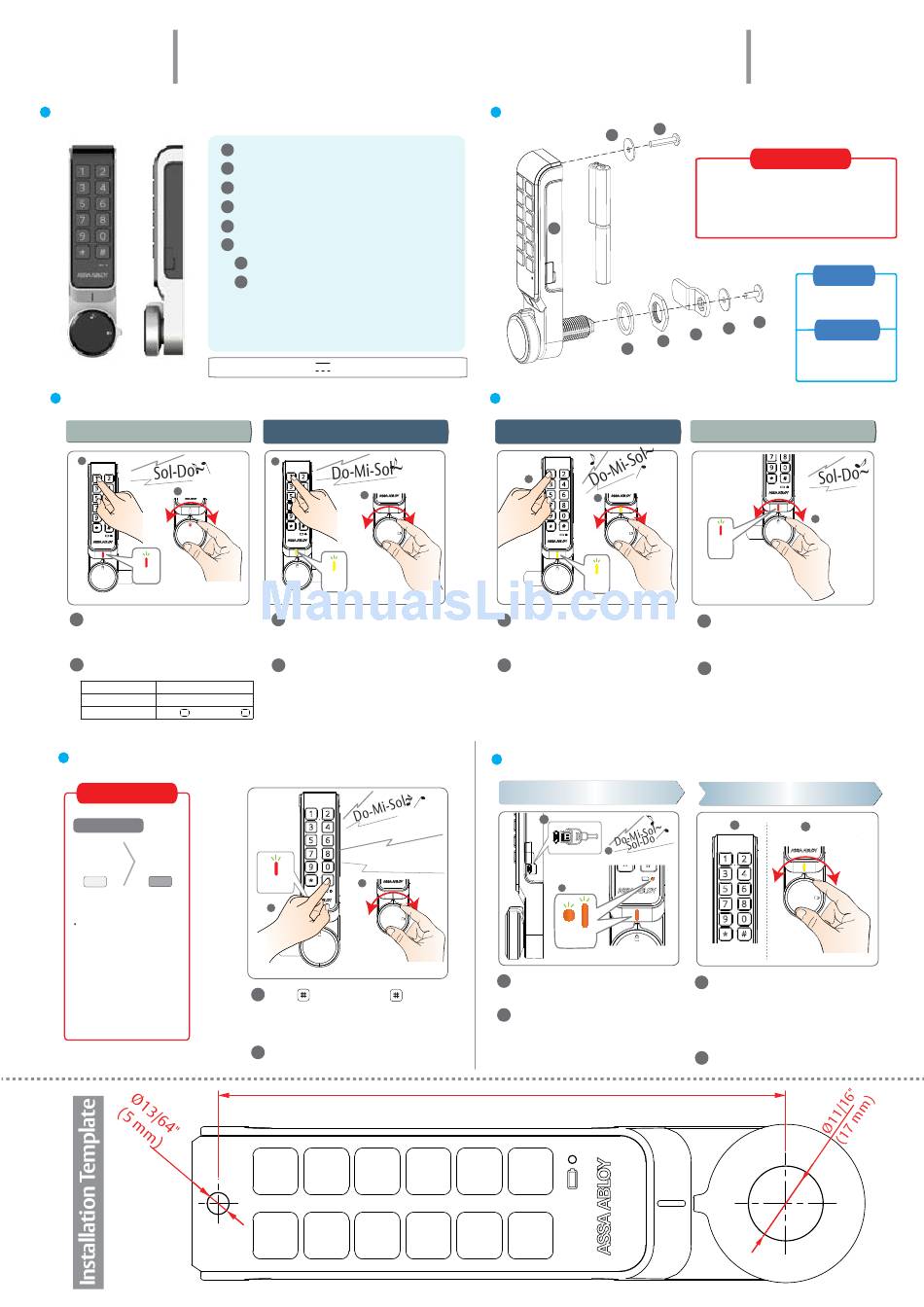

Assa Abloy HES KP20 Instruction Manual

Package contents
1
2
3
4
5
6
※
Public Mode (One -time Use)
Lock the door
a
b
Flashes
3 times
(ex : 1 2 3 4)
a Close the cabinet door and enter your passcode
- this is confirmed by three red flashes followed
by a standard beep ( Sol-Do~)
b
Rotate the knob to the locked position
Passcode length How to configure
4 Digit Press any four digits
Press + 5 to 12 Digits + *
5 to 12 Digits
Using the Master Code
Important Note
Two code levels
Master User
Code Code
Step 1 Step 2
Factory Master Code
" 3 5 2 6 "
An existing user code is deleted
when a valid Master Code is
entered.
The User Code will need to be set
again during programming of
private mode.
Instruction Manual
HES KP20 (12-button keypad) stand-alone cabinet lock
One (1) HES KP20 cabinet lock
One (1) Rubber washer
One (1) M6 nut
One (1) Flat and one (1) Offset Locking Cam
Two (2) M4 washers
Five (5) Pan Head Phillips Screws
M4 x10mm locking cam screw
6-1
M4 x10mm (1-5mm thick door)
6-2
M4 x 20 mm (10-15mm thick door)
M4 x 25 mm (15-20mm thick door)
M4 x 30 mm (20-25mm thick door)
Power : 4.5V (Alkaline AAA 1.5V x 3)
Unlock the door
a
b
Flashes
3 times
(ex : 1 2 3 4)
a
Enter the passcode you used to lock the door
-this is confirmed by three yellow flashes followed
by a long beep (Do-Mi-Sol~)
b
Rotate the knob to the unlocked position
and open the door
※ Public Mode (One-Time use)
- Previously used passcode will be erased
#
after unlock and stay open for next user.
Beep-Beep-Beep-Beep-Beep-
Flashes
b
5 times
a
(ex : # 3 5 2 6 #)
a
Press + "Master Code" +
- Listen for extended beep
- Unlock the lock with short beep 5x followed by 5x
flashing Red LED's
b
Rotate the knob to the unlocked position and
open the door.
Hardware installation
1
Private Mode (On-going Use)
문을 열때
Unlock the door
a
Flashes
3 times
a Enter the registered pass code
-this is confirmed by three yellow flashes followed
by a long beep (Do-Mi-Sol~)
b Rotate the knob to the locked position
and open the door
Emergency Power
Step 1
a
b
Flashes
5 times
a
Connect a standard 5 pin Micro USB cable to
the USB port on the right side of the lock
b When power is applied, both LED's flash
5x followed by an extended beep
5-5/64" (129 mm)
6-2
5
-Risk of explosion if battery is replaced
by an incorrect type.
-Please only use new alkaline batteries.
6-1
5
4
3
2
문을 잠글 때
Lock the door
b
Flashes
3 times
(ex : 1 2 3 4)
Close the door and turn the knob
a
to the locked position
-this is confirmed by three red flashes followed
by a standard beep (Sol-Do~)
b
The cabinet lock will automatically lock in 3 seconds
※ Private Mode (On-going Use)
- when the knob is rotated to the locked position
the cabinet lock will lock in 3 seconds.
c
b
c Enter a valid User Code or Master Code to unlock
the cabinet
-An existing user code is deleted when a valid
Master Code is entered.
-The User Code will need to be set again during
programming of private mode.
d
Open the door and change the batteries
Caution
LED Feedback
-Red
-Yellow
-Amber
Audio Feedback
Short Beep - "Beep-"
Std. Beep - "Sol-Do~"
Long Beep - "Do-Mi-Sol~"
a
Step 2
d
