S2 8200 Series Mortise Locks

Profile Series v.S2
The motorized 8200 Mortise Lock Profile Series v.S2 one-piece escutcheon has a clean, crisp design and can be aesthetically complemented by SARGENT
Studio Collection and Coastal Series levers in a full array of finishes. The Profile Series v.S2 Mortise Locks offer network access control solutions for
business and facility entrances, computer room areas, telephone rooms, health clubs, and child care facilities. The Mortise Lock with deadbolt (82276,
82277) is an excellent choice for rest room doors providing privacy when the deadbolt is thrown.
Mechanical Features
• Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and
Security Grade 1
• UL/ULC Listed for fire doors*
• FCC certified
• Windstorm & Florida Building Code information is listed on page 16
• Motor driven 8200 Series Mortise Lock
• 3/4" stainless steel, anti-friction reversible latch
* Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Sargent Manufacturing Company makes no represen-
tations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing
a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
Profile Series v.S2 Mortise Lock Functions
All v.S2 Mortise Functions feature:
• Trim outside rigid except when in "passage" mode or
valid user code entered
• Trim inside always retracts latch and deadbolt
• Guardbolt deadlocks latch
Cylinder Override Function Features:
• Key outside retracts latch and deadbolt when trim is
locked electronically
• Key override requires a size 43 cylinder standard or
removable core (1-3/8" [35mm] length of shell)
Deadbolt Function Features:
• Deadbolt monitoring
• When deadbolt thrown, outside lever operable only
with Emergency or Supervisor code
• 1" hardened stainless steel deadbolt
Inside/Outside Escutcheon
• Keys/buttons with double shot mold construction
prevents wear
• Zinc die cast
• Operating temperature
125 kHz proximity products:
-40° F (-40°C) to 135° F (57°C)
13.56 MHz iCLASS products:
-13°F (-25°C) to 151°F (66°C)
• LEDs indicate valid/invalid entries
• Projection at bottom 5/16"
(8mm) less lever
• Projection at top
1-5/8" (41mm)

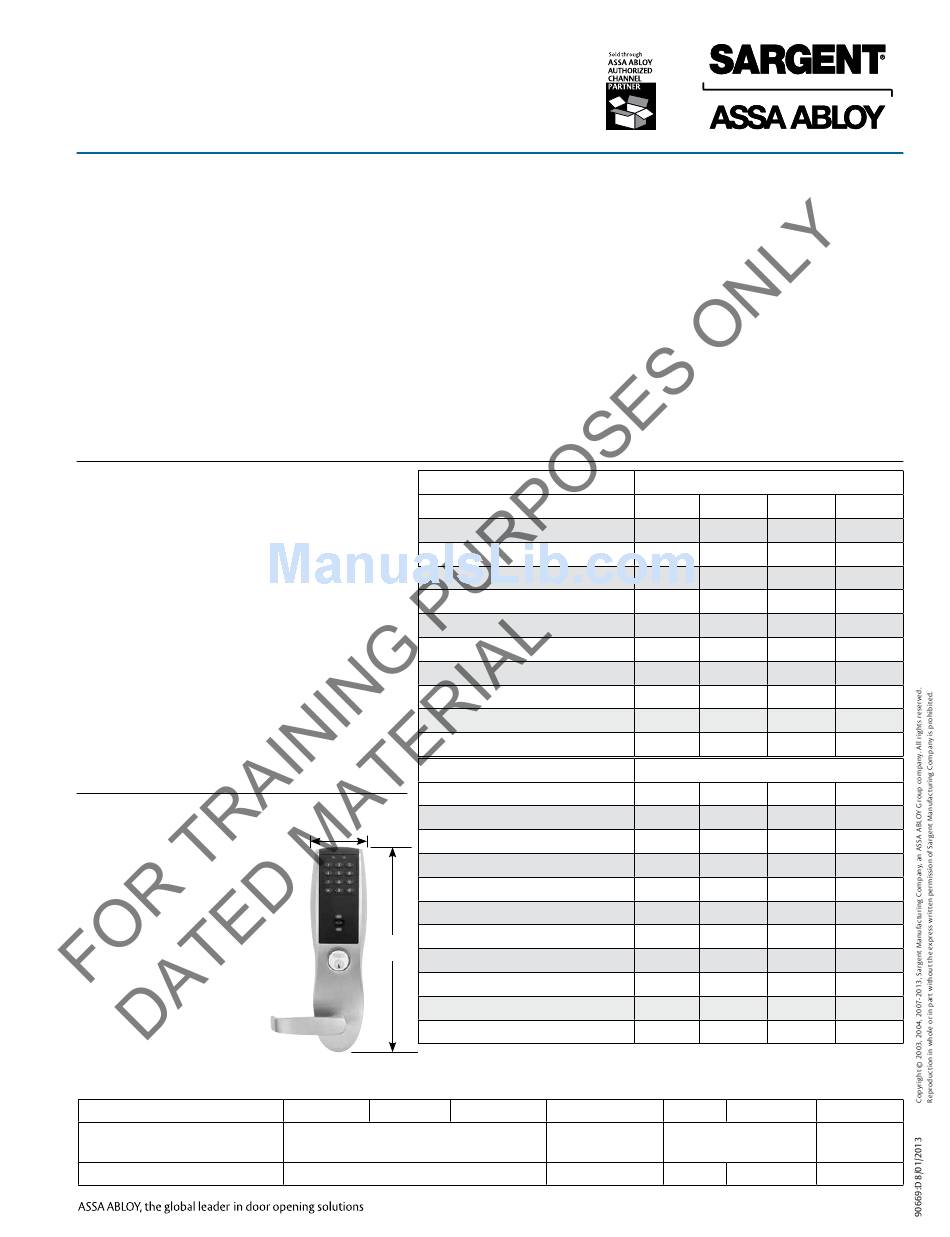

Outside Shown
Ordering Profile Series v.S2 Mortise Lock
Options
Select from page 13-15
Example:
v.S2 Mortise Lock Functions
If the lock needs to have:
Prox and keypad
Prox only
If the lock needs to have:
iCLASS and keypad
3-3/4"
(95mm)
iCLASS only
13-1/2"
(343mm)
Series Type
Select from S2 Mortise Lock Function
chart above
S2-82276
• For 1-3/4" (44mm) thick door standard. Consult factory for
additional thicknesses
• Stainless steel non-handed deadlocking latch
• Not available with SC- or SE- options
• Handed, easily field reversible without disassembling lockbody
• Lever trim through-bolted for increased security and durability
• Batteries included
Key override and deadbolt
Key override and no deadbolt
Deadbolt and no key override
No deadbolt and no key override
Key override and deadbolt
Key override and no deadbolt
Deadbolt and no key override
No deadbolt and no key override
Key override and deadbolt
Key override and no deadbolt
Deadbolt and no key override
No deadbolt and no key override
Key override and deadbolt
Key override and no deadbolt
Deadbolt and no key override
No deadbolt and no key override
Function Technology
PK, PA, IK, or IA
PK
1-800-727-5477 • www.sargentlock.com
Then select:
Series Type Function Technology
S2 82 276
S2 82 278
S2 82 277
S2 82 279
S2 82 276
S2 82 278
S2 82 277
S2 82 279
Then select:
Series Type Function Technology
S2 82 276
S2 82 278
S2 82 277
S2 82 279
S2 82 276
S2 82 278
S2 82 277
S2 82 279
Levers Finish
Select lever and finish
from pages 6-8
G 03
PK
PK
PK
PK
PA
PA
PA
PA
IK
IK
IK
IK
IA
IA
IA
IA
Hand
RHR, LHR,
RH or LH
RH
