INSTALLATION,
OPERATION &
MAINTENANCE
MANUAL

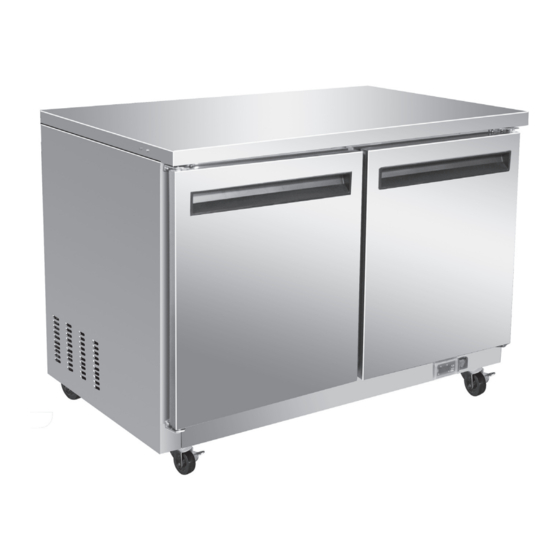

Under-counter Refrigerators
and Freezers
IMPORTANT
Please read this manual completely
before attempting to install or operate this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUC-27R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arctic Air AUC-27R

Summary of Contents for Arctic Air AUC-27R

  • Page 1 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 INSTALLATION, OPERATION & MAINTENANCE MANUAL Under-counter Refrigerators and Freezers IMPORTANT Please read this manual completely before attempting to install or operate this equipment.

  • Page 2: Table Of Contents

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Installation, Operation & Maintenance Manual TABLE OF CONTENTS SPECIFICATIONS....................................3 REGISTRATION....................................4 SAFETY.INSTRUCTIONS.................................. 5 INTRODUCTION....................................6 Site.Preparation..................................

  • Page 3: Specifications

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 UNDER-COUNTER REFRIGERATORS AND FREEZERS SPECIFICATIONS UNDERCOUNTER & WORKTOP REFRIGERATORS MODEL # V/Hz/Ph AMPS STORAGE SHELF CHARGE SHIP NEMA CAPACITY CAPACITY WEIGHT PLUG Cu-ft Sq-ft...

  • Page 4: Registration

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Installation, Operation & Maintenance Manual REGISTRATION The.installation.date.and.appliance.model.must.be.documented.by.the.end.purchaser... Also,.refer.to.the.Warranty.section.for.additional.details.on.registering.the.appliance. Dealer.Information: Installer.Information: Installation.Date:...

  • Page 5: Safety.instructions

    2940 Hwy 14 W, Rochester, MN 55901 UNDER-COUNTER REFRIGERATORS AND FREEZERS SAFETY INSTRUCTIONS General Safety Arctic Air accepts no responsibility for any situation resulting from work carried out in an WARNING unprofessional manner, or from the incorrect interpretation or application of regulations. General Installation...

  • Page 6: Introduction

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Installation, Operation & Maintenance Manual INTRODUCTION This.manual.covers.the.Under-counter.Refrigerators.and. Confirm that all flooring is structurally strong enough • Freezers..Please.read.this.manual.completely.before.at- to.support.the.weight.of.a.fully.loaded.unit;.a.fully. tempting.to.install.or.operate.this.equipment. loaded. unit. can. weigh. as. much. as. 1500. pounds.. . Consult with a structural engineer for confirmation if there is any reason to doubt the floor strength.

  • Page 7: Installation

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 UNDER-COUNTER REFRIGERATORS AND FREEZERS INSTALLATION Location Electrical connection All.units.are.intended.for.indoor.use.only..A.fully.loaded. Refer. to. the. amperage. data. provided. in. the. SPECIFI- unit.can.weigh.as.much.as.1500.pounds...Choose.a.loca- CATIONS,.the.serial.tag,.the.local.electrical.code.and/or. tion with a level floor strong enough to support the total the.National.Electrical.Code..Have.a.licensed.electrician.

  • Page 8: Operation

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Installation, Operation & Maintenance Manual OPERATION Refrigerated Cabinets Callout Control / Function Indicator The. internal. temperature. range. for. all. under-counter. Indicates.the.fans.are.running. refrigerators.is.33°F.to.40°F...The.internal.temperature.

  • Page 9: Functions

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 UNDER-COUNTER REFRIGERATORS AND FREEZERS Functions Alarm Codes Display the set point: CODE CAUSE OUTPUTS Room.probe. Compressor.output.according. 1.. Press. and. release. the. SET. button,. the. set. point. failure to.par.Con.and.COF value.is.displayed.

  • Page 10: Maintenance

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Installation, Operation & Maintenance Manual MAINTENANCE Stainless Steel Care and Cleaning DANGER Stainless. steel. contains. 70-80%. iron. which. will. rust.. It. TURN OFF THE POWER SWITCH AND also.

  • Page 11: Gasket.maintenance

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 UNDER-COUNTER REFRIGERATORS AND FREEZERS Gasket Maintenance Door Replacement and Adjustment Gaskets. require. regular. cleaning. to. prevent. mold. and. 1.. Open.the.door.until.it.remains.open,.about.100°.to. mildew. buildup. and. to. maintain. the. gasket. elasticity.. . 110°..

  • Page 12: Wiring.diagrams

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Installation, Operation & Maintenance Manual WIRING DIAGRAMS Models: AUC-27R, AUC-48R Models: AUC-27F, AUC-48F...

  • Page 13: Models:. Auc-7R,.Auc-48R

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 UNDER-COUNTER REFRIGERATORS AND FREEZERS Models: AUC-27R, AUC-48R...

  • Page 14: Models:. Auc-7F,.Auc-48F

    Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Installation, Operation & Maintenance Manual Models: AUC-27F, AUC-48F...

  • Page 15: Arctic.air.warranty

    3.. Arctic.Air.shall.bear.no.responsibility.for.parts.or.labor.coverage.for.component.failure.or.other.damages.resulting. from.improper.usage,.installation,.or.maintenance.as.described.in.the.owner’s.manual. 4.. Exceptions.to.one.(1).year.part.warranty.other.than.additional.four.(4).year.compressor.warranty:..Light.bulbs.and. door.gaskets.are.limited.to.90.day.warranty.period. 5.. Arctic.Air.equipment.is.intended.for.commercial.use.only.and.this.warranty.is.void.if.the.equipment.is.installed.in. other.than.commercial.applications. 6.. All.other.warranties,.either.express.or.implied,.arising.under.law.or.equity.or.custom.of.the.trade,.including.but.not. limited to, warranties or merchantability or fitness for a parcticular purpose are excluded. Arctic Air’s liability on any claim,.including.but.not.limited.to.negligence,.shall.not.exceed.the.price.of.the.equipment.that.gives.rise.to.the.claim..
  • Page 16 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Broich Enterprises, Inc. / Arctic Air 6440.City.West.Parkway Eden.Prairie,.MN.55344 Phone:.95-941-70 Fax:.95-941-3066 Website:.www.arcticairco.com...
