Summary of Contents for Arctic Air AWR25Z

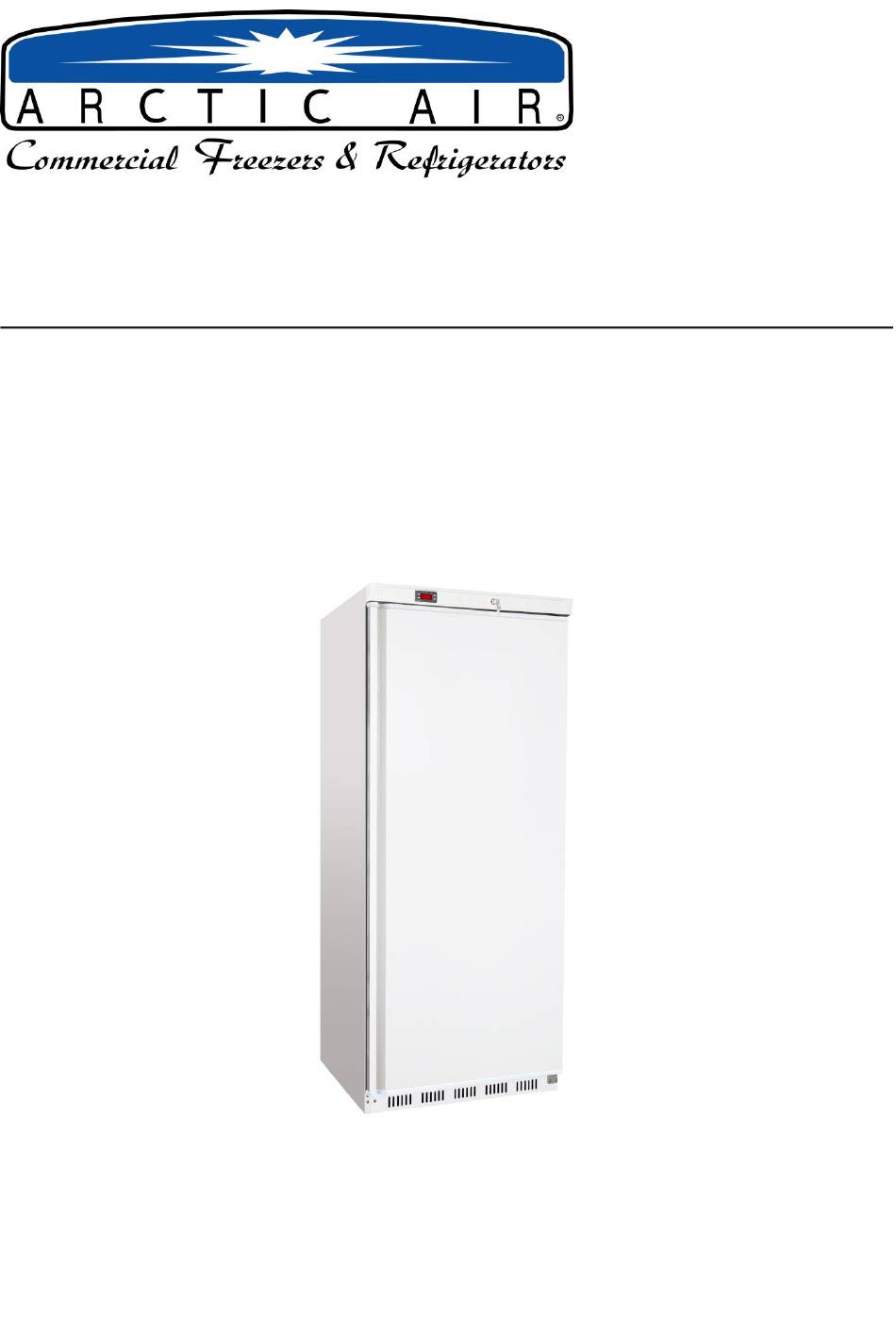

- Page 1 Upright Refrigerator & Freezer Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. See page 2.
-
Page 2: Table Of Contents
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENT………………………………………..…………………2 SPECIFICATIONS…………………………………………………….……………………….………3 INSTALLATION………………………………………………………………………….…………..….4 OPERATION………..……………………………………………………………………..……………5 MAINTENANCE……………………………………………………………………….……………….7 WIRING DIAGRAM………………………………………………………………………………….……..9 All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators and freezers is located inside the unit on the left hand side near the top on the wall. -
Page 3: Specifications
Service and Installation Manual SPECIFICATION STORAGE SHIP CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS BTU/H Cu-ft PLUG AWR25 115/60/1 11.99 5-15P AWF25 115/60/1 1966 10.58 5-15P... -
Page 4: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. -
Page 5: Operation
Service and Installation Manual OPERATION Refrigerated cycle Refrigerators: During the refrigeration cycle, the evaporator fans will run continuously unless door is open. Every 6 hours, the unit will turn off and to allow the evaporator coil to defrost. The controller now displays the defrost symbol. - Page 6 Service and Installation Manual 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 7: Maintenance
Service and Installation Manual Do not use an abrasive cleaner because it will scratch the paint and plastic and can damage the breaker strips and gaskets. Cleaning the Condenser Coil The condenser coil requires regular cleaning, and is recommended every 90 days. In some instances, you may find that there is a large amount of debris and dust or grease accumulated prior to the 90 day time frame. - Page 8 Service and Installation Manual sharp tools or knives to scrape or clean the gasket which could possibly tear the gasket and rip the bellows. Gaskets can easily be replaced and don’t require the use of tools or authorized service technicians. The gaskets are "Dart"...
-
Page 9: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL: AWR25 MODEL: AWF25... - Page 10 Service and Installation Manual WIRING DIAGRAM MODEL: AWR25...
- Page 11 Service and Installation Manual WIRING DIAGRAM MODEL: AWF25...
