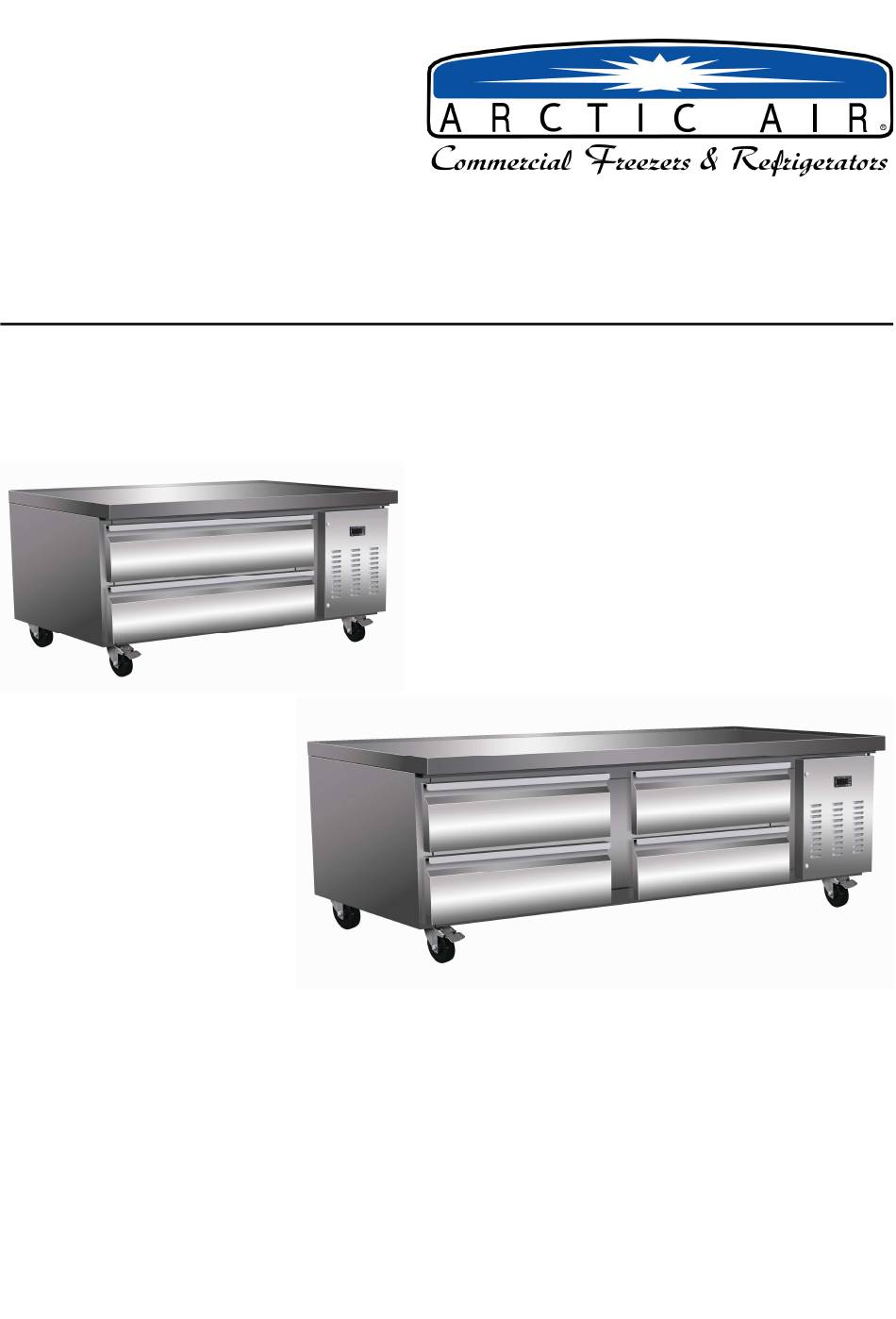

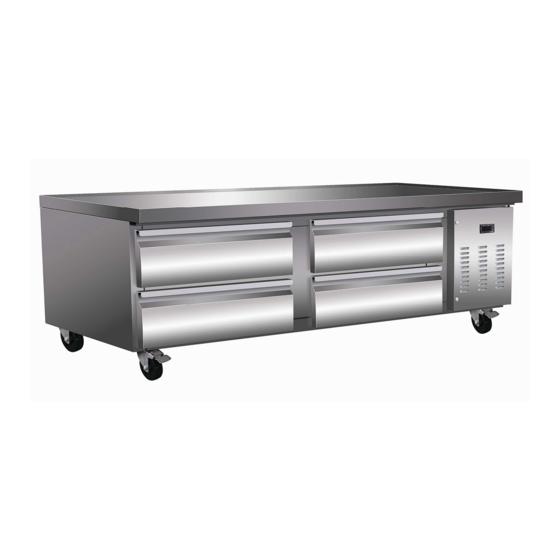

- Page 1 Chef Base Refrigerators Service, Installation and Care Manual Please read this manual completely before attempting to install or operate this equipment. Notify carrier of damage! Inspect all components immediately. IMPORTANT INFORMATION READ BEFORE USE PLEASE SAVE THESE INSTRUCTIONS!
- Page 2 Service and Installation Manual COMMECIAL REFRIGERATOR SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. Our product instructions will be uploaded on our company official website. This is the Safety Alert Symbol.
- Page 3 Service and Installation Manual The key for appliance electric box should be safe kept by qualified persons in order to avoid a hazard WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
-
Page 4: Table Of Contents
Service and Installation Manual CONTENTS RECEIVING & INSPECTING EQUIPMENT ..SPECIFICATIONS ..INSTALLATION ..6 OPERATION ..MAINTENANCE ..11 WIRING DIAGRAM ..All rights reserved. Reproduction without written permission is prohibited. SERIAL NUMBER INFORMATION The serial number of all self-contained refrigerators is located outside the unit on the left hand side near the top on the wall and also on the back of the unit. -
Page 5: Specifications
Service and Installation Manual SPECIFICATION STORAGE SHIP CAPACITY CHARGE WEIGHT NEMA MODEL# V/Hz/Ph AMPS Cu-ft PLUG 2.82 115/60/1 5-15P ARCB36Z 2.82 ARCB48Z 115/60/1 5-15P 2.82 ARCB60Z 115/60/1 5-15P 2.82 ARCB72Z 115/60/1 11.1 5-15P ***REQUIRED OPERATING CONDITIONS: • Minimum clearance of 4” required between bottom of cooking equipment heating element and ARCB top. -
Page 6: Installation
Service and Installation Manual INSTALLATION Location Units represented in this manual are intended for indoor use only. Be sure the location chosen has a floor strong enough to support the total weight of the cabinet and contents. A fully loaded unit can weigh as much as 1500 pounds. -
Page 7: Operation
Service and Installation Manual OPERATION Do not throw items into the storage area. Failure to heed these recommendations could result in damage to the interior of the cabinet. CAUTION Refrigerated cabinets Temperature range for the internal cabinets is 34°to 38°F for all food prep units, worktop refrigerators. The rail’s temperature range for all prep units is 33°... - Page 8 Service and Installation Manual 1.1 Function of LEDS 2. MAIN FUNCTIONS 2.1 HOW TO SEE THE SETPOINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 9: Maintenance
Service and Installation Manual MAINTENANCE The power switch must be turned OFF and the unit disconnected from the power source whenever performing service, maintenance functions or cleaning the refrigerated area. DANGER Cleaning the Condenser Coil The condenser coil requires regular cleaning. Cleaning is recommended every 90 days. In some instances, you may find that there is a large amount of debris and dust or grease accumulated prior to the 90 day time frame. - Page 10 Service and Installation Manual MAINTENANCE Cleaning solutions need to be alkaline based or non-chloride based. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are commonly found in hard water, salts, and household and industrial cleaners. If cleaners containing chlorides are used, be sure to rinse and dry thoroughly.
-
Page 11: Wiring Diagram
Service and Installation Manual WIRING DIAGRAM MODEL: ARCB36Z MODEL: ARCB48Z/ARCB60Z/ARCB72Z OVERLOAD PROTECTOR PLUG COMPRESSOR CONDENSEN FAN EVAP THERMOSTAT DISPLAY CURRENT RELAY STARTING CAPACITOR ROOM EVAP SENSOR... - Page 12 Service and Installation Manual WIRING DIAGRAM MODEL: ARCB36Z/ARCB48Z/ARCB60Z/ARCB72Z...
- Page 13 Additional three-year compressor warranty* In addition to the two (2) year warranty stated above, Arctic Air warrants its compressor units to be free from defects in both material and workmanship under normal and proper use and maintenance service for a period of three (3) additional years from the date of original installation but not to exceed five (5) years and three (3) months after shipment from Arctic Air.
- Page 16 Broich Enterprises, Inc. / Arctic Air 7550.Market Place Drive Eden Prairie, MN 55344 Phone: 952-941-2270 Fax: 952-941-3066 Website: www.arcticairco.com...
