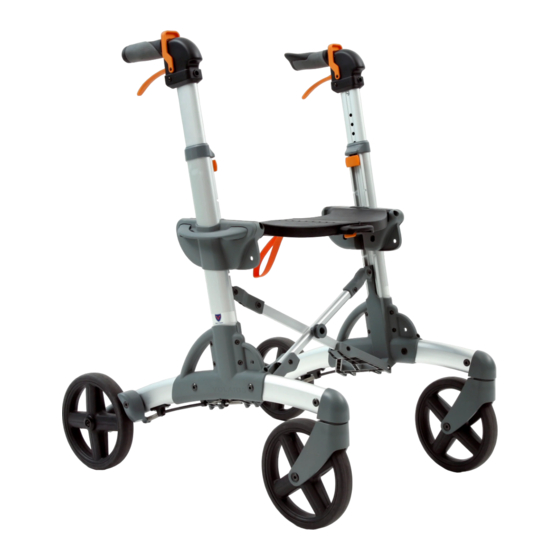

Volaris S7 SMART User Manual
Hide thumbs
Also See for S7 SMART:
- Service manual (27 pages) ,
- User manual (16 pages) ,
- Instructions for use manual (7 pages)
Related Manuals for Volaris S7 SMART
Summary of Contents for Volaris S7 SMART

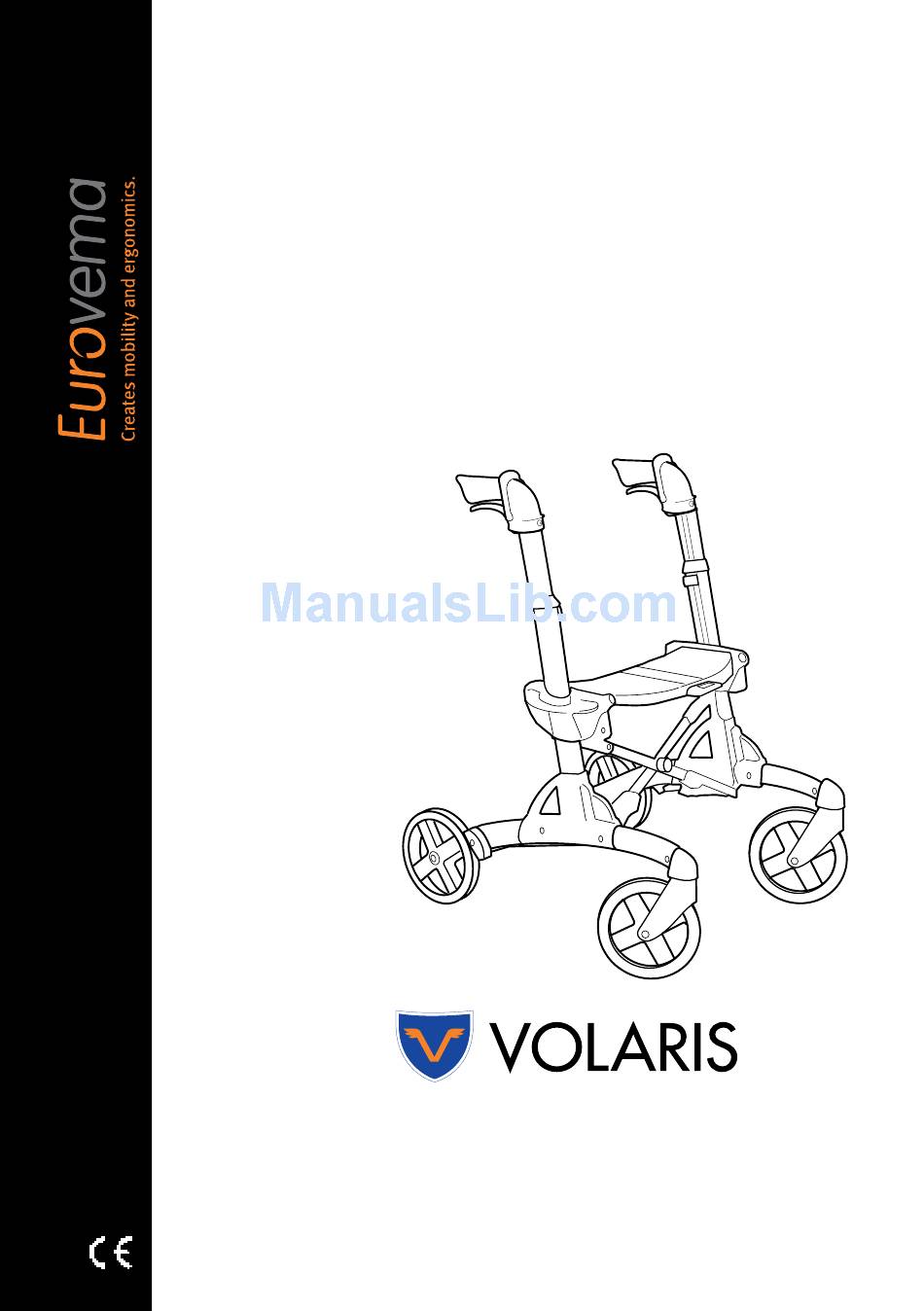

- Page 1 Important, read before use! User manual Volaris S7 SMART Shadow Line/Discovery/Patrol Low/Wide...
-
Page 2: Sizes And Dimensions - S7 Smart
Congratulations on your new rollator! The Volaris S7 SMART has many ways of helping to make your days easier. We ask you to read carefully through this user information in order to familiarise yourself with your new rollator. The correct use and care will increase the ben- efit gained from it, its safety in use and its service life. -
Page 3: Table Of Contents
Contents Sizes and dimensions - S7 SMART ......2 Contents ..............3 Seat adjustment ............4 Handle adjustment ............. 4 Unfolding S7 SMART ..........5 Folding S7 SMART ............5 Fixed transportation band ......... 5 Braking ................ 6 Brake adjustment ............7 Usage tips - "comfort frame"... -
Page 4: Seat Height Adjustment
Seat height adjustment Adjust one side at a time. Pull out the knob under the seat (a). At the same time, raise or lower the seat to the position required. Release the knob ensuring that it locks into place properly to secure the seat in place. -
Page 5: Unfolding S7 Smart
Unfolding S7 SMART 1. Hold one of the main handles and tilt the S7 SMART to that side slightly so that the wheels on the opposite side are just off the ground. 2. Unfold the rollator using the grey handle on the opposite side. -
Page 6: Braking
Safe braking with S7 SMART Parking brake The parking brake is applied by pushing the brake lever forwards until it locks into place with a click. The parking brake must be released when the brake or the handle height are being adjusted. -
Page 7: Brake Adjustment
Adjust the brakes on S7 SMART for correct functionality The braking effect can be set using the cable adjusters on the under- neath of the frame. 1. Release the parking brake by moving the lever upright. 2. Turn the threaded adjuster shown in the drawing. -
Page 8: Usage Tips - "Comfort Frame
Usage tips - "comfort frame" S7 SMART has a Comfort Frame™, which means that it passes smoothly over uneven surfaces. When you need to get over a larger obstruction or up onto a pavement, it may be beneficial to use the tilting peddle by the rear wheels. -
Page 9: Learn The "Scissors Technique
Tilt the rollator back to raise the front wheels and swing them over the obstruction. It is quickly done, once you learn how! For your safety! Apply the parking brake before sitting on your S7 SMART! Never walk with somebody sitting on the seat! -
Page 10: Maintenance
Maintenance Your S7 SMART will be more beneficial to you and last longer if you care for it well. Cleaning Wash it with a wet cloth and a mild cleaning liquid. Ensure that the gaps between the wheels and the brake shoes are free of dirt;... -
Page 11: Cable Lubrication
2. Lubricate the cables in the springs on the rear wheels also. Fault tracing If, when you are walking with S7 SMART, it pulls to one side, check that the wheels rotate equally easily and that the forks swing easily. Check that the wheels and the forks are properly secured. -
Page 12: Safety Accessories
Safety accessories Restriction brake A brake with adjustable, continuous effect. Can be fitted at any time. Lighting Attached to the upright using Velcro. Red is used for the rear, white is used for the front. Battery run. Easy to remove and to replace batteries. -
Page 13: Safety Accessories
Holder in plastic covered wire for a bottle/can. Holds a 0.5 litre bottle or 33 cl can. Hangs on the side handle. Umbrella/parasol Umbrella/parasol including universal holder for all Volaris models. Transportation band Place the band around the handles to prevent the rollator unfolding. Easily attached. -
Page 14: Comfort Accessories
Fabric basket Basket with plastic ends and nylon net; clean with warm water and washing-up liquid. Can be attached to all Volaris S7 models. Can be left in place when the rollator is folded. Easily removed. Maximum load: 5 kg. -
Page 15: Guarantee
- using carefully selected materials and component parts. S7 SMART is 95 % recyclable. S7 SMART complies with all the standards set by the market: SS-EN 1441, SS-EN 1985, SS-EN 12182 and ISO 11199-2:2005. -
Page 16: Contacts
Eurovema AB Baldersvägen 38, SE-332 35 Gislaved, Sweden Phone. +46 371 390 100 | Fax. +46 371 189 82 info@eurovema.se | www.eurovema.se...
