Summary of Contents for Volaris RA

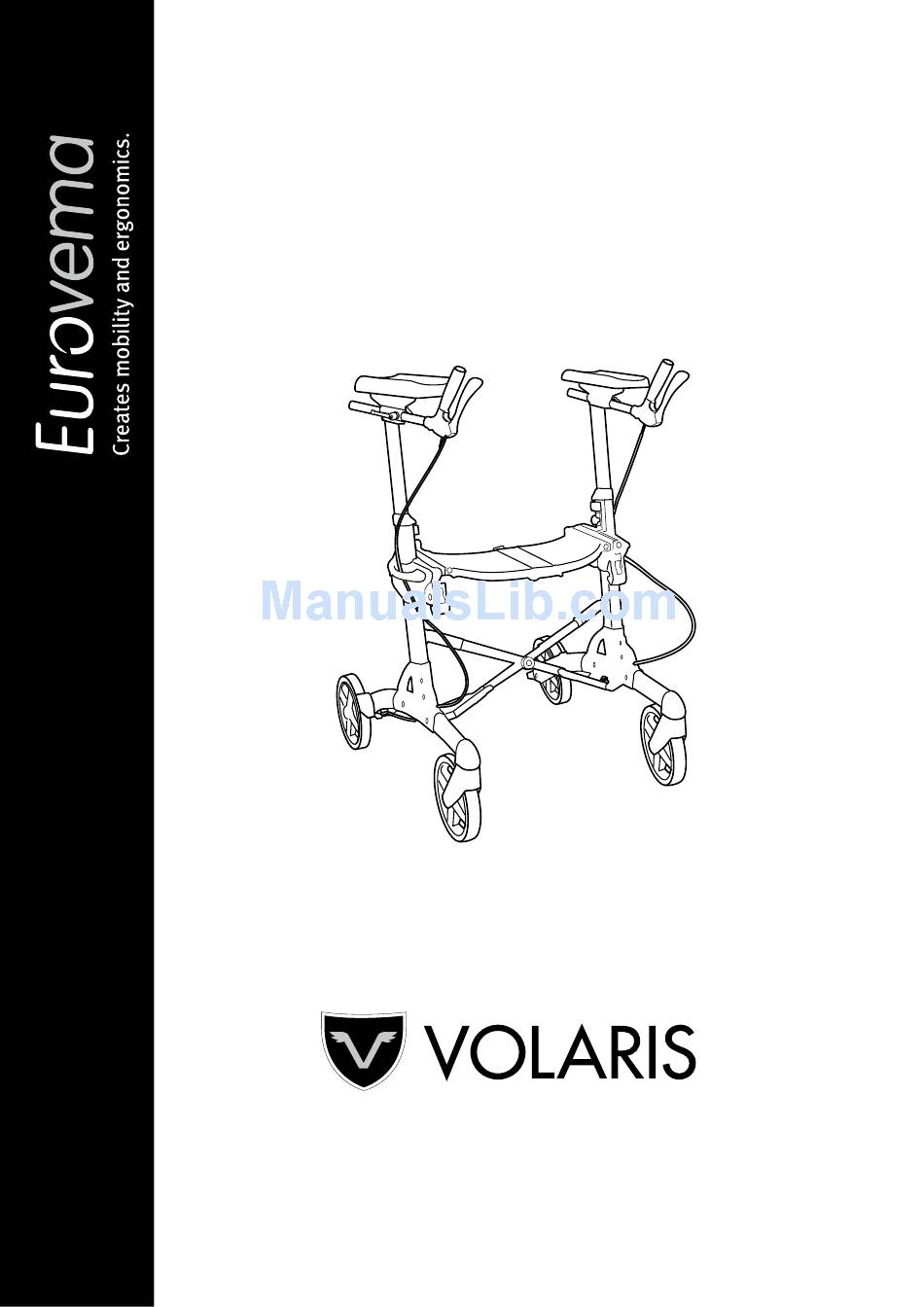

- Page 1 User Manual Important, read before use!
-
Page 2: Safety Instructions
We recommend our customers to use the product according to the user manual. Safety instructions The RA rollator must only be used for the purpose for which it is intended. It may not be equipped with any other accessories or components than those that are approved by Eurovema. -
Page 3: Table Of Contents
List of contents Cleaning p. 9 Safety instructions p. 2 Reconditioning p. 9 Guarantee p. 2 Profile clips p. 9 Made in Sweden p. 2 Cable lubrication p. 10 Contents p. 3 Troubleshooting p. 10 Contact p. 3 Safety accessories p. -
Page 4: Seat Height Adjustment
16. After this, adjust the height and then check that the knob "clicks back" and tighten the knob. Once you have used the RA for a while, you will feel if you want to make any further adjustments. -
Page 5: Position And Direction Of The Armrest
Justering Justera handtagen i djupled och vinkel Lossa vredet under armstödsdynan. Skjut och vinkla bromshandtaget till önskad position. Armstödets position Genom att lossa skruvarna under armstödsdyna kan den skjutas i djupled. För att underlätta justeringen kan handtaget avlägsas efter att vredet lossats. Fäst skruvarna och justera handtaget då... -
Page 6: Unfolding
Unfolding and folding Unfolding your rollator 1. Hold one of the push handles and tilt the RA to that side slightly so the wheels on the opposite side just come off the ground. 2. Unfold the rollator using the grey lifting handle on the opposite side. -
Page 7: Braking
Safe braking Service brake The brake is applied by pulling the brake lever in front of the grip inwards towards the grip. Parking brake The parking brake is applied by pressing the braking lever outwards until the parking brake locks automat- ically. -
Page 8: Brake Adjustment
Comfort Frame The RA is built with a Comfort Frame™, which means that it passes smoothly over uneven surfaces. When you need to pass over a larger obstruction or mount a pavement edge, you can get help from the tilting peddle by the rear wheels. -
Page 9: Maintenance
Maintenance Cleaning of rollators and acces- sories It is worth your while to look after your rollator be- cause it will last longer. Wipe dirt off with a wet cloth and a mild cleaning liquid. Ensure that the gaps between the wheels and the brake shoes are free of dirt;... -
Page 10: Cable Lubrication
Maintenance Cable lubrication After washing, lubricate the cable by applying a few drops of oil by the handle under the frame. Troubleshooting If the rollator pulls to one side when you are walking, check that the wheels rotate equally easily and that the wheel forks turn easily. -
Page 11: Safety Accessories
Safety accessories Restriction brake A brake with adjustable, continuous friction. To ad- just the restriction brake's effect, turn the knob. Lights These are fastened to the upright using Velcro. Red to the rear, white to the front. Battery powered. Easy to remove and to replace batteries. -
Page 12: Oxygen Bottle
Safety accessories Single-handed brake Locks both of the rear wheels and is applied by either the service brake or the parking brake. Oxygen bottle holder Strong steel basket that hooks onto the seat and an enclosed bracket. Drip stand Preferably, hang the drip bag towards the centre of the rollator. -
Page 13: Comfort Accessories
Comfort accessories Walking stick/crutch holder Two pieces that are firmly screwed in place where indicated. Holds a walking stick, crutch or umbrella firmly in place. Bottle holder Holder in plastic covered wire for a bottle/can. Holds a 0.5 litre bottle or 33 cl can. Hangs on the handle. Maximum load: 0.6 kg. -
Page 14: Transport Strap
Comfort accessories Transport strap Fasten the strap around the rollator's handle, the rol- lator will then stay in the folded position. Easy to assemble. Cloth bag A soft, woven nylon bag, which can be left in place when the rollator is folded. Easily removed. Washa- ble. -
Page 15: Tray
Tray, which fits over the seat. Fabric basket Basket with plastic ends and nylon mesh. The basket can be fitted to all Volaris models. The fabric basket can also be left in place when the rollator is folded. Easily removed. Maximum load: 5 kg. -
Page 16: Technical Facts
Technical data 125 kg 12 kg 64 cm 80 cm 100-125 cm 46-57 cm 47 cm 200x32 mm RA low 125 kg 11,9 kg 64 cm 80 cm 88-114 cm 46-57 cm 47 cm 200x32 mm 180 cm 29 cm...
