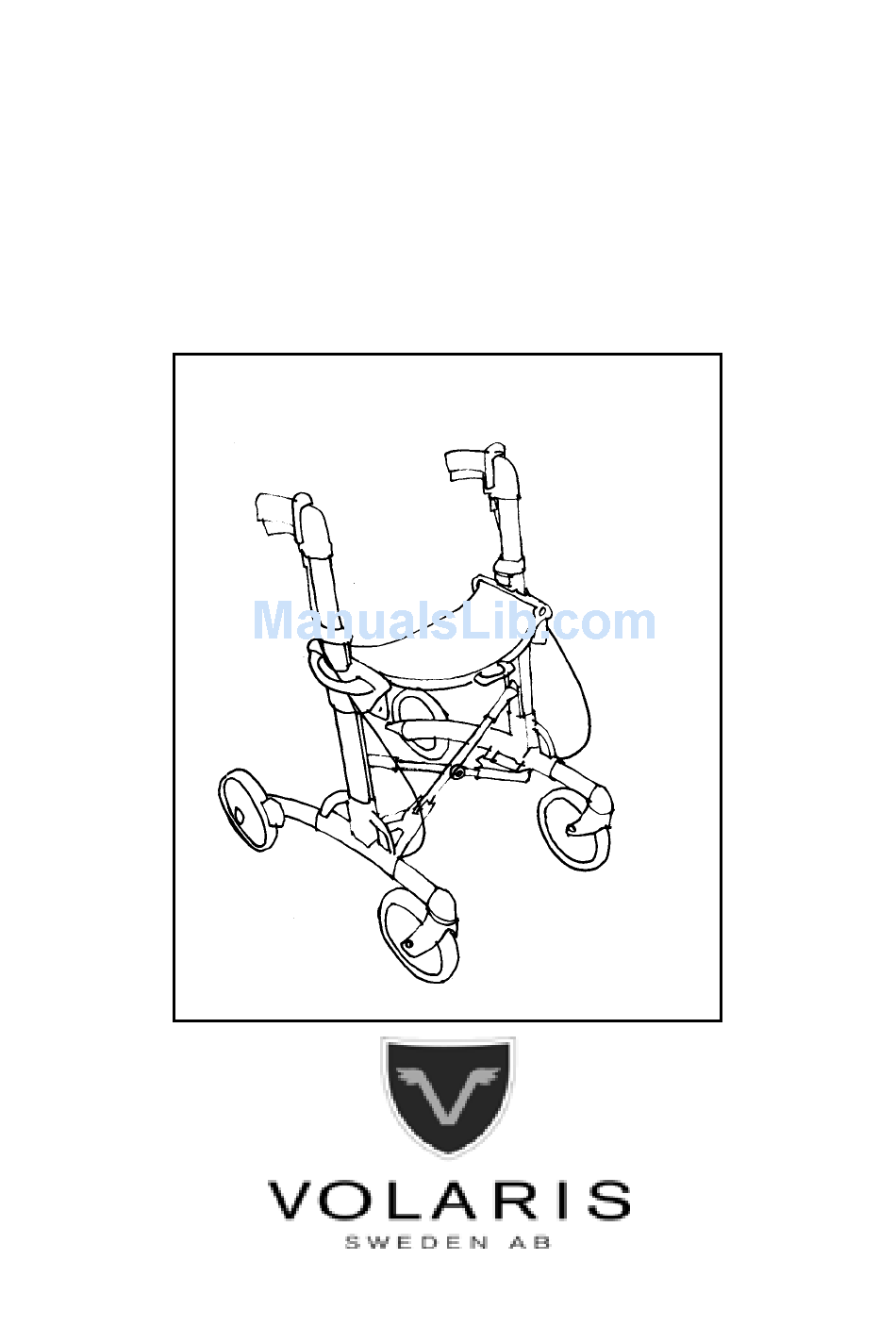

This is the way your new
rollator works
Volaris S7
User Manual Volaris S7
Art. no. 1 422 150
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Volaris S7

Summary of Contents for Volaris S7

  • Page 1 This is the way your new rollator works Volaris S7 User Manual Volaris S7 Art. no. 1 422 150...

  • Page 2: Table Of Contents

    The seat is guaranteed to be able to carry people weighing up to 140 kg. The size of the S7, folded and unfolded, you can see further down. You can equip your S7 with several accessories for your safety and comfort.

  • Page 3: Mounting The Handles

    When delivering directly to the customer we normally supply the S7 with loose handles in order to allow for a less spacious transport package. In case you have received the S7 from an aid agency the handles are already mounted.

  • Page 4: Adjusting The Handles

    By pulling the orange-coloured button you can adjust the height of the handles to between 100 and 76 cm. Stand close to the S7. The height is correct, when your hands are on level with the handles. After some time you will find out, if you want further adjustments.

  • Page 5: Unfolding The S7

    S7 slightly in the same direction causing the wheel lift a few centimetres. 2. Pull at the grey handle on the other side. A spring helps you to unfold the S7. 3. Push down the centre plate on the seat to lock the rollator.

  • Page 6: Braking

    Braking Parking Brake The parking brake is activated by turning the orange-coloured lever in forward direction and lock it by a click. The brake is released by turning the lever straight upward until you hear a clicking sound. See the sketches.

  • Page 7: Adjusting The Brake

    Adjusting the brake to obtain correct function The braking power can be adjusted by changing the length of the wire. 1. Turn up the parking brake. 2. Loosen the locking nut as shown by the sketch. 3. Slacken the adjusting screw, if you want to increase the braking power.

  • Page 8: Recommendations For Travel

    Recommendations for Travel The S7 is built with a ”Comfort Frame” which makes it pass gently across uneven parts of the way. If you have to pass a larger obstacle or to get onto a pavement, you can obtain help by the tilting aid sitting on the rear wheels.
  • Page 9 Learn the ”scissor technique”. Push diagonally towards the obstacle. Brake one side. Tilt the S7 slightly backwards making the front wheels lift. Lift the front wheels over the obstacle. It works fast once you have learnt the lesson. For your safety!

  • Page 10: Maintenance

    Maintenance It is for your benefit to maintain the S7 well. It will last longer. Cleaning Leniently remove the dirt using a moist cloth and detergent. Make sure that no dirt is gathered between the wheels and the brake shoes. Dirt might jeopardize the braking power.

  • Page 11: Fault Tracing

    Lubricating the Wire After the cleaning lubricate the braking wire up at the handle and down at the rear wheel. Lift the travelling brake handle and apply a few drops of oil on the wire showing above the adjusting screw. Lubricate also the wire inside the spring at the rear wheel.

  • Page 12: Accessories For Your Safety

    Accessories for your safety Slow Down Brake A brake with adjustable continuous friction, can be mounted afterwards. Lamp Will be attached around the handle tubes. Red rear light, white front light. Battery driven. Easy to take off, easy to change battery.

  • Page 13: Accessories For Your Comfort

    Easy to take off. Can be laundered. Net Basket A sturdy basket of metallic net. Easy to hook upon the S7. Carrying handles. Tray White-coloured tray, to be placed on the seat of the rollator.

  • Page 14: Guarantee

    Guarantee Volaris grants two years guarantee on the S7. The guarantee, however, does not cover wear parts like handles, wires and wheels. Further the guarantee is not valid, if the rollator has been exposed to abnormal handling or has been altered without our consent.
  • Page 15 Manufactured in Sweden S7 is developed and manufactured in Sweden to enable us to guarantee for function and quality. It is manufactured from carefully chosen material and components. S7 is recoverable to 95 %. S7 complies with all prevailing standards such as SS-EN 1441, SS-EN 1985, SS-EN 12182 as well as ISO 11199-2:2005 and is approved by Hjælpemiddelinstituttet, Denmark.
  • Page 16 Volaris Sweden AB Baldersvägen 38, SE-332 35 Gislaved, Sweden Telephone +46 371-189 80 Fax +46 371-189 82 E-mail: info@volaris.se Internet: www.volaris.se Art. No. # 81 104 02-02 091020...
