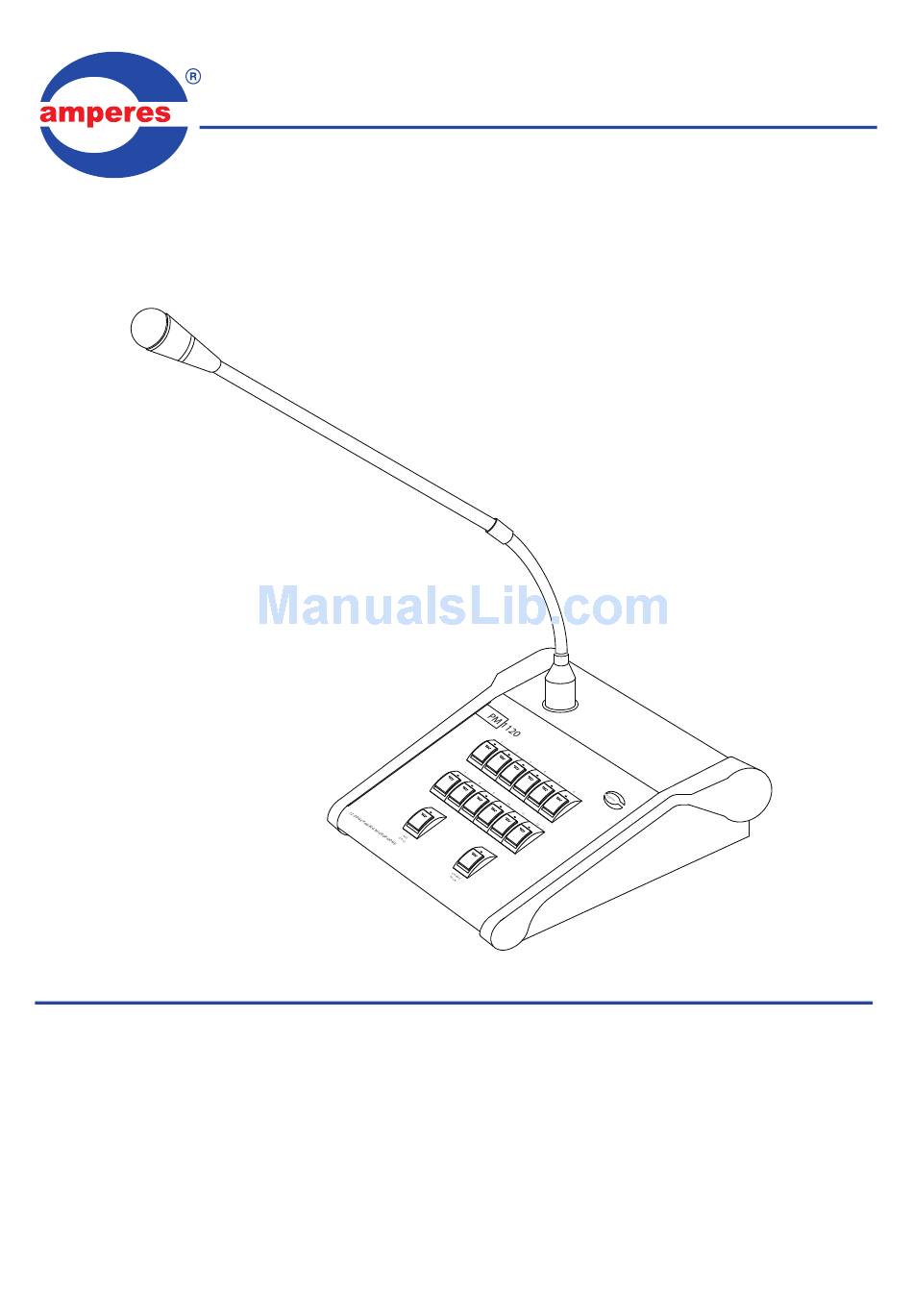

INSTRUCTION MANUAL

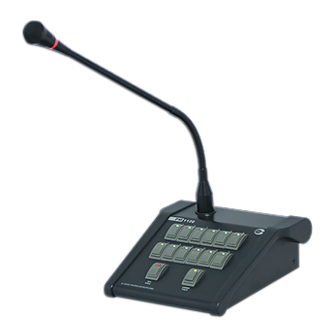

PM1060 / 1120
Dekstop Paging Microphone With Zone Selector
Thank you
for choosing another quality product from Amperes Electronics.
PM1060 / PM1120 has been upgraded with improved circuitry to deliver better speech clarity, which is important in
any voice announcement.
We recommend that a thorough reading of the manual is done prior to installation in order to avoid unnecessary
error.
VER 10 / 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM1060 and is the answer not in the manual?

Questions and answers

Related Manuals for Amperes PM1060

Summary of Contents for Amperes PM1060

  • Page 1 Thank you for choosing another quality product from Amperes Electronics. PM1060 / PM1120 has been upgraded with improved circuitry to deliver better speech clarity, which is important in any voice announcement. We recommend that a thorough reading of the manual is done prior to installation in order to avoid unnecessary error.

  • Page 2: Parts Identifications

    2. ZONE SELECT SWITCHES 12 individual zone selection switches are available for PM1120 and 6 for PM1060. LED indicator is provided for active zone. 3. ALL CALL SWITCH ALL CALL switch shall activate all zones with single press.

  • Page 3: Front View

    Parts Identifications FRONT VIEW REAR VIEW PAGE 3 PM1060 / 1120 DESKTOP PAGING MICROPHONE WITH ZONE SELECTOR...

  • Page 4: Application Schematic

    Application Schematic PAGE 4 PM1060 / 1120 DESKTOP PAGING MICROPHONE WITH ZONE SELECTOR...

  • Page 5: Operating Sequence

    BGM zone shall not be interrupted. Connecting The Unit We recommend that the paging microphone is used with Amperes Zone Selector in order to tap the full features available. Other brand of zone selectors can be employed provided that the remote zone selection uses negative signal triggering method.
  • Page 6 In this version, ALL CALL and Priority connection shall not be required when connecting to ZS5601 / 5121. Paging shall override the selected BGM zone when mic is activated. Likewise, ALL CALL from PM1060 / 1120 shall trigger all zone but would not trigger the E/M override relay at the zone selector.

  • Page 7: Summary Of Features

    BGM MUTING When using the paging mic with Amperes series of zone selectors, activation of the paging mic shall automatically mute the BGM zone at the zone panel. The BGM broadcast shall resume to the preselected zone upon mic deactivation. Using the paging mic with ZS5602 shall have the same features but shall not interrupt the BGM zones not selected for paging.

  • Page 8: Warranty Conditions

    Only Amperes Electronics Service Centres are allowed to make warranty repairs : a list of Amperes Electronics Service Centres may be asked for by the purchaser or send directly to Amperes Electronics Sdn Bhd at 70 Jalan Industri PBP 3, Tmn Perindustrian Pusat Bandar Puchong, 47100, Puchong, Selangor, Malaysia or its authorized master distributor, TNT Links Sdn Bhd / MyPA Systems Sdn Bhd.
