Summary of Contents for 4IPNET HSG1250

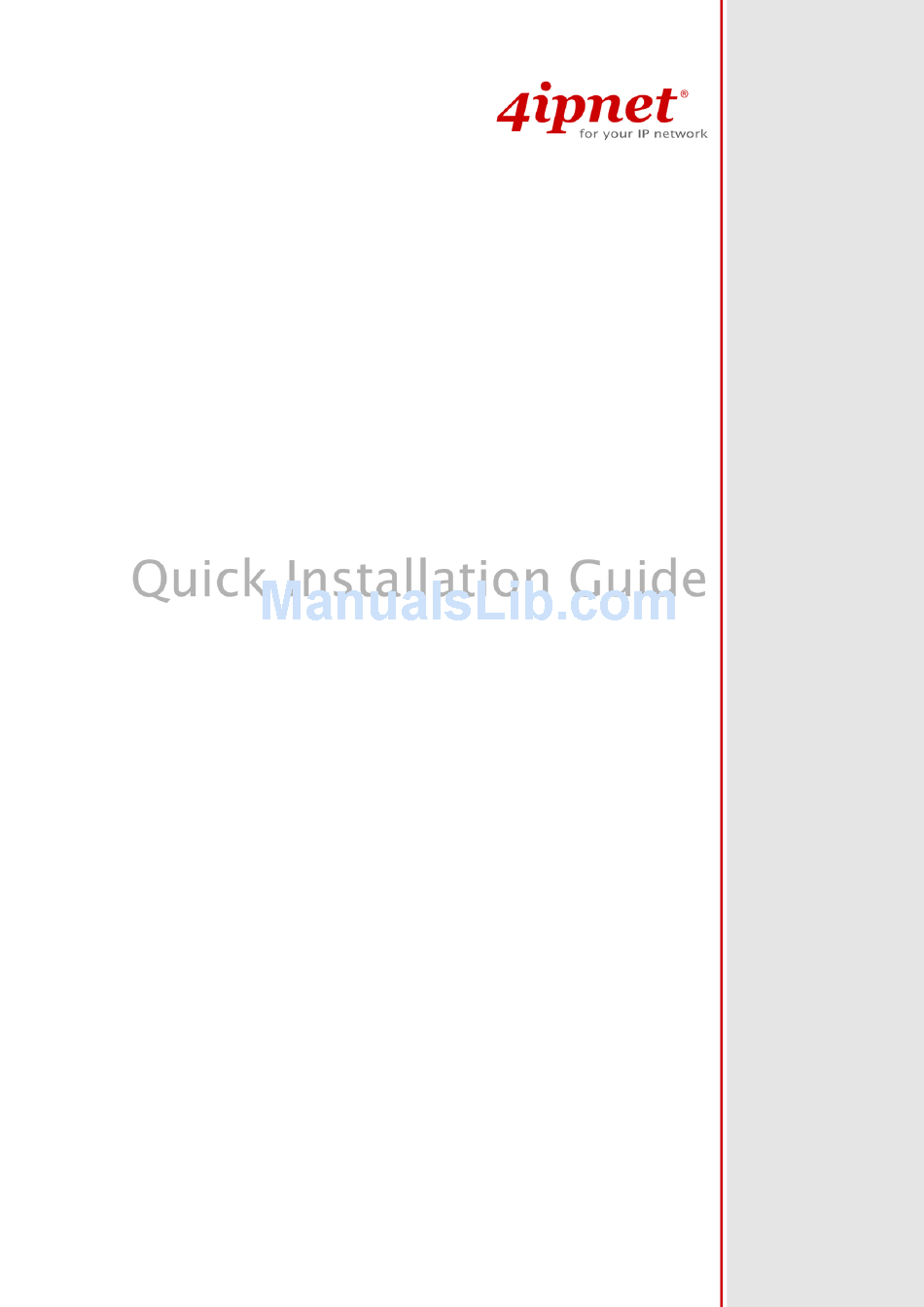

- Page 1 HSG1250 V1.03 Wireless Hotspot Gateway...
-
Page 2: Copyright Notice
4IPNET, INC. You may not alter or remove any copyright or other notice from copies of the content. All other brand and product names are claimed or registered marks of their respective companies or organizations. -
Page 3: Package Contents
4. RS-232 DB9 Console Cable x 1 Wireless Hotspot Gateway. This guide will 5. Ethernet Cable x 1 show you how to install HSG1250 and get 6. Power Adapter (12VDC, 2A) x 1 your network up and running with minimum configurations. -
Page 4: System Overview
Quick Installation Guide Quick Installation Guide Quick Installation Guide Quick Installation Guide HSG1250 HSG1250 Wireless Hotspot Gateway ENGLISH HSG1250 HSG1250 System Overview Front Panel LCD Display: Allows network administrator to check important system settings such as network interface, SZ configurations, etc. The navigations buttons from left to right respectively are “Sleep”, “Esc”, “Up”, “Down”, and “Enter”. -
Page 5: Rear Panel
WAN1/ WAN2: Two WAN port (10/100/1000 Base-T RJ-45) uplinks to the external network, such as the ADSL Router from your ISP (Internet Service Provider). LAN1 ~ LAN8: Client machines or switch connect to HSG1250 via LAN ports (10/100/1000 Base-T RJ-45). -
Page 6: Hardware Installation
Connect an Ethernet cable any LAN Port on the front panel. Connect the other end of the Ethernet cable to an administrator PC for configuring the HSG1250 system, an AP for extending wireless coverage, a switch for connecting more wired clients, or a client PC. The LED of this LAN port should be on to indicate a proper connection. -
Page 7: Getting Started
HSG1250 enables a hotspot provider to service multiple hot-spot franchises in a small area. Furthermore, HSG1250 introduces the concept of Service Zones - multiple virtual networks, each with its own definable access control profiles. This is very useful for hotspot owners seeking to provide different customers or staff with different levels of network services. -
Page 8: Web Management Interface
“Setup Wizard”, “Quick Links”, “System Overview”, and “Main Menu”. For the first time, if HSG1250 is not using a trusted SSL certificate, there will be a “Certificate Error”, because the browser treats HSG1250 as an illegal website. Please press “Continue to this website” to continue. - Page 9 Please use default IP address such as 192.168.1.xxx in your PC and then try it again. For the configuration on PC, please refer to HSG1250 User’s Manual, “Network Configuration on PC & User Login”.
-
Page 10: Common Settings
HSG1250 Common Settings < Setup Wizard > Step 2: WAN1 Interface HSG1250 provides a Setup Wizard for quick For setting up both wired WAN and wireless LAN configuration. To quickly configure HSG1250 by functions: using the Setup Wizard, click on the Setup Wizard Select a proper type of Internet connection for •... - Page 11 Quick Installation Guide Quick Installation Guide Quick Installation Guide Quick Installation Guide HSG1250 HSG1250 Wireless Hotspot Gateway ENGLISH HSG1250 HSG1250 Step 4: Confirm and Restart The system is trying to locate a DNS server at this stage. Therefore, a Click Finish to save current settings and restart Note: •...
-
Page 12: User Login
The appearance of Login Success Page means that 1. Connect a client device (e.g. laptop, PC) to any HSG1250 has been installed and configured LAN Port of HSG1250. The device will obtain an properly. IP address automatically via DHCP. 2. Open a web browser on a client device, access any URL, and then the default User Login Page will appear.
