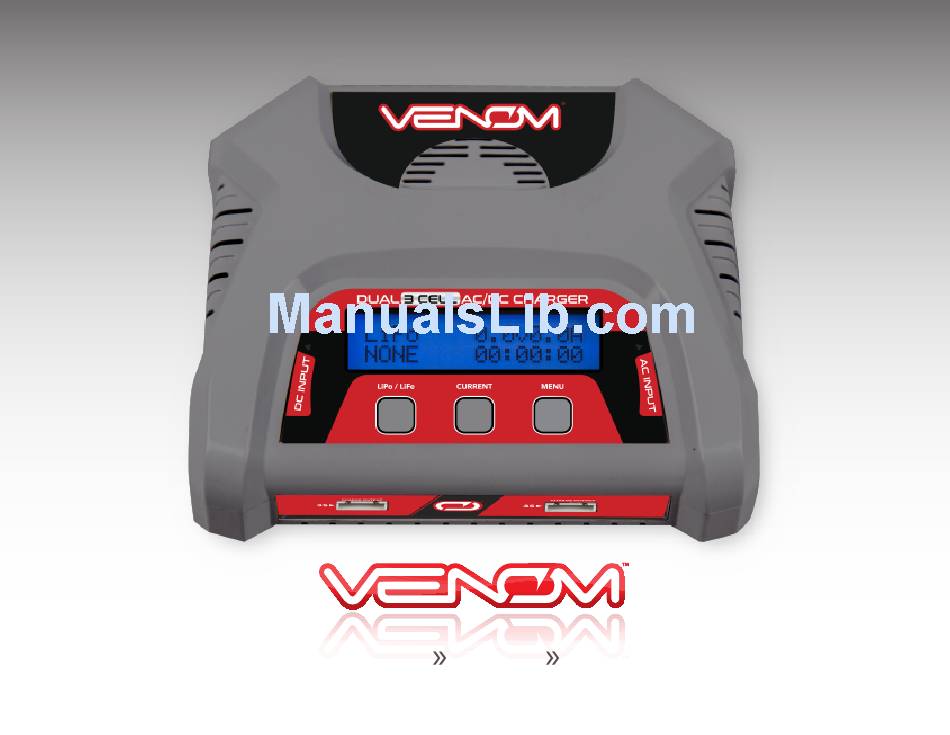

- Page 1 3 Cell LiPo/LiFe AC/DC balance Charger DUAL MANUAL...
- Page 2 Welcome, Thank you for purchasing the Venom Dual 3 Cell AC/DC LiPo Balance Charger. Please make sure you read and fully understand the entire manual before beginning the charging process. If you read the manual and still are unsure how to use this product, please contact our Customer Service Department for assistance.
-
Page 3: Table Of Contents
CONTENTS FEATURES ..................CHARGER OVERVIEW..............SPECIFICATIONS ................EXTERIOR DESCRIPTION .............. HOW TO USE YOUR NEW CHARGER .......... WARNINGS & ERROR MESSAGES ..........LiPo BATTERY SAFETY GUIDELINES .......... LiPo BATTERY SAFETY GUIDELINES (CONT.)......WARRANTY & SERVICE INFORMATION ........ -
Page 4: Features

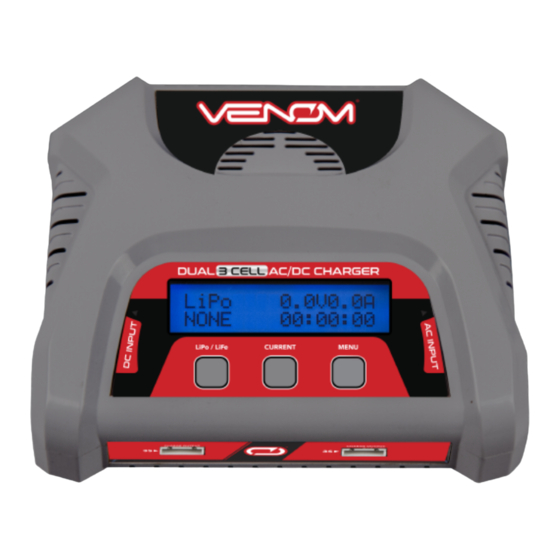

4. Charger can be used as a voltage checker by manually setting the charge current to “0”. CHARGER OVERVIEW The Venom Dual 3 Cell AC/DC LiPo Balance Charger is an easy to use charger designed to charge one or two* 3 cell LiPo and LiFe batteries using an AC or DC input. -
Page 5: Specifications
SPECIFICATIONS 1. Charger Power: 50W 2. Supports 3-cell JST-XH2.5 battery connector (standard balance plug) 3. Current rate range: 0-6.0A 4. Supports simultaneous charging of two 3S packs. 5. Supports AC or DC power: AC 100-240V, DC 10-18V EXTERIOR DESCRIPTION DC INPUT BUTTON 1 BATTERY SWITCH AC INPUT... -
Page 6: How To Use Your New Charger
How To Use Your Charger Interface 1 1. Use the DC input or AC input to power up the charger. LiPo 0.0V0.0A 2. Choose the correct battery type (LiPo / LiFe) by pressing NONE 00:00:00 Button 1. Please refer to your battery charging guidelines. 3. -
Page 7: Warnings & Error Messages
Charger Warning & Error Messages Input Voltage Error: LiPo 0.0V0.0A The charger input voltage must be between 10 and 18 00:00:00 PW Err volts to operate properly. If input voltage is lower or higher then you will get a “PW Err” power error. Charging Status Indication: LiPo3S 12.6V0.3A... -
Page 8: Lipo Battery Safety Guidelines
LiPo Battery Safety Guidelines 1. Always charge batteries in a fire proof container, in the open and away from flammable materials. Do not charge batteries on or near wood, cloth, carpet, in your model, or on or near any other flammable material. Keep a chemical fire extinguisher nearby in case of fire. -
Page 9: Lipo Battery Safety Guidelines Cont
LiPo Battery Safety Guidelines Cont. 9. For best results do not charge at over 1C current. C= battery pack mAh capacity ÷ 1000. Divide the battery mAh capacity by 1000 to determine the proper charge rate. Example: 1200mAh ÷ 1000 = 1.20 Amps Charge Rate for LiPo Battery Packs, example: a. -
Page 10: Warranty & Service Information
Warranty & Services We are so certain of the quality of our chargers that we offer a Venom Limited Lifetime ® Charger Replacement Plan. Venom will, at its discretion, repair or replace a defective ® charger free of charge within a period of 1 year from the original date of purchase. Year... - Page 12 Venom Customer Service 14028 N. Ohio Street For Customer and Warranty Services Rathdrum, Idaho 83858 USA please visit: www.venompower.com and click the support tab.
