Page 1: Battery Charger

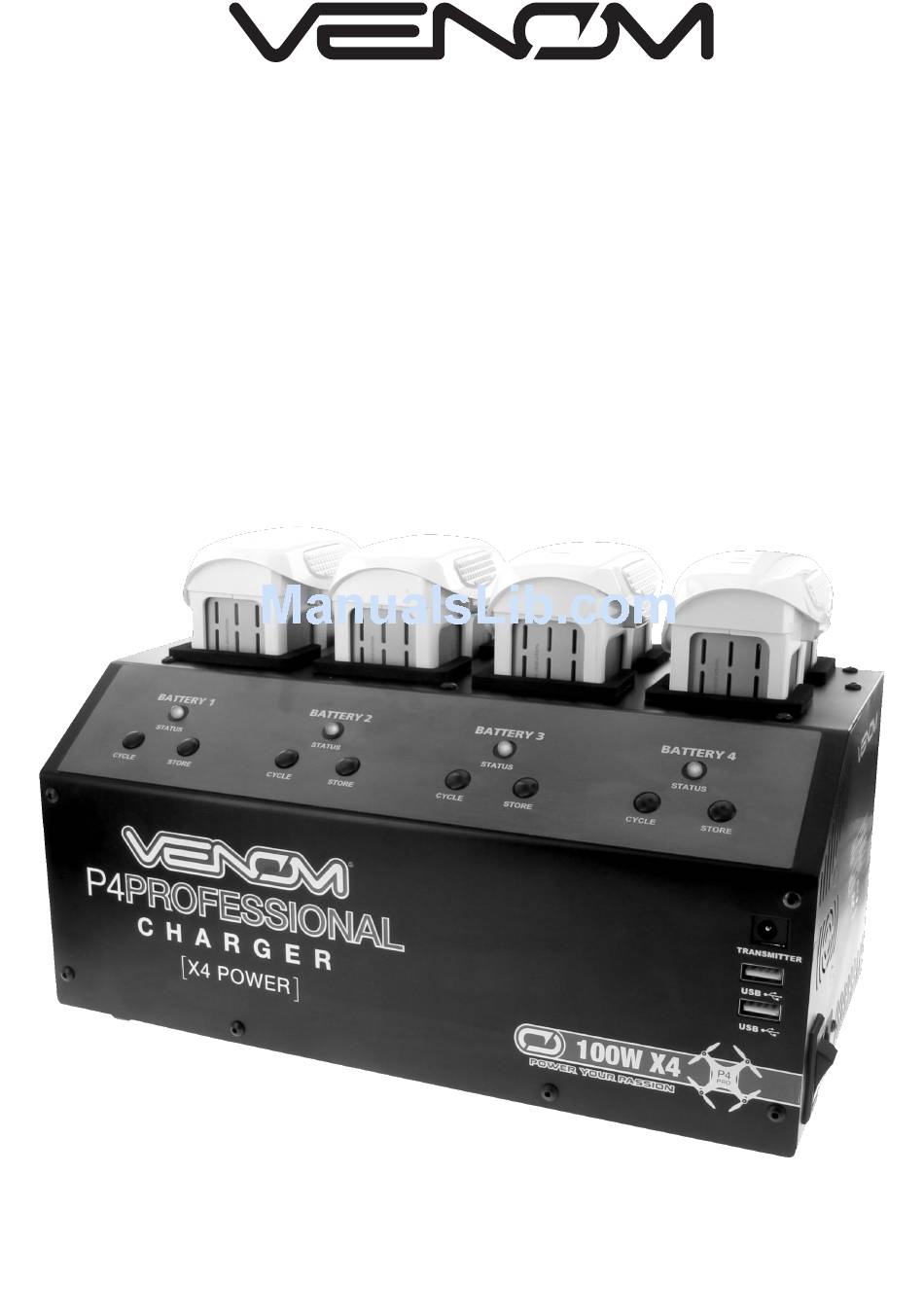

P4PROFESSIONAL P4PROFESSIONAL C H A R G E R 400W 4 PORT PHANTOM 4 ™ BATTERY CHARGER O P E R A T I N G M A N U A L venompower.com © Venom Group International 2016... -
Page 2: Warnings And Safety Notes
Thank you for purchasing the Venom P4 Professional Charger. This Venom P4 Professional battery charger is designed to charge, cycle, or storage charge up to four DJI Phantom 4™ batteries simultaneously. If you have read the entire manual and still are unclear regarding... - Page 3 P4PROFESSIONAL Exterior of the Unit Using Your Charger Notes on the Cycle and Storage Modes Charging Your Phantom 4 Transmitter Specifications Warranty and Service Notes venompower.com © Venom Group International 2016...
-
Page 4: Exterior Of The Unit
1. EXTERIOR OF THE UNIT FRONT Status Light Indicator (X4) Storage Battery Mode Button (X4) Transmitter Charge Port TRANSMITTER P4PROFESSIONAL Cycle Battery C H A R G E R 2.3A USB Ports Mode Button (X4) X4 POWER 100W X4 RIGHT AC input power: Input: 100~240 Volt Circuit power:... -
Page 5: Using Your Charger
3. When the LED STATUS light on the charger illuminates and turns RED, the battery is charging. 4. When the charge has completed, the LED light will turn GREEN and begin to flash. venompower.com © Venom Group International 2016... - Page 6 3. NOTES ON THE CYCLE AND STORAGE MODES This charger has a maximum discharge amperage of 0.65A per channel. For this reason it is recommended that the CYCLE or STORE modes only be used when the Phantom 4 battery has been discharged 50% or less. This is indicated when no more than two of the four LEDs lights on the Phantom 4 battery are illuminated.
- Page 7 The battery is discharging when the LED light on the charger illuminates ORANGE. When the RED LED light illuminates, the battery is charging. When the charge has completed, the LED light on the charger will turn GREEN and begin to flash. venompower.com © Venom Group International 2016...
- Page 8 4. CHARGING YOUR PHANTOM 4 TRANSMITTER Turn off the remote controller before charging. To charge the Phantom 4 transmitter, use the included transmitter charge lead and plug it into the power receptacle on the upper right corner on the front of the charger.
-
Page 9: Warranty And Service
17.5V out DC USB: 5.3V / 2.3A (X2) 6. WARRANTY AND SERVICE We are so certain of the quality of our chargers that we offer a Venom Limited Lifetime ® Charger Replacement Plan. Venom will, at its discretion, repair or replace a defective ®... -
Page 10: Notice Of Rights
Notice of Liability The information in this manual is distributed on an “As Is” basis, without warranty. While every precaution has been taken in the preparation of the manual, Venom does not have ® any liability to any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the information contained in this manual or by the products described in it. - Page 11 P4PROFESSIONAL Notes: venompower.com © Venom Group International 2016...
-
Page 12: Customer Service
VENOM GROUP INTERNATIONAL 14028 N. Ohio Street Rathdrum, Idaho 83858 USA CUSTOMER SERVICE North America: 800.705.0620 Outside North America: 208.762.0620 For Customer Service issues and the quickest warranty service please visit www.venompower.com and click the support tab /venomgroupintl /venomgroup /Venom_RC 0697 venompower.com...
