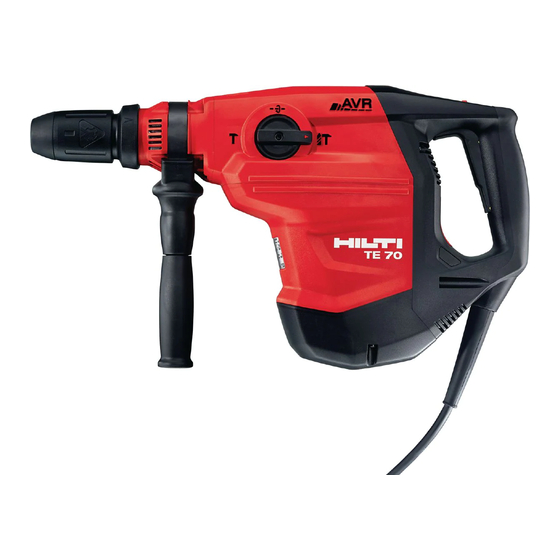

Hilti TE 70-AVR Operating Instructions Manual
Hide thumbs
Also See for TE 70-AVR:
- Original operating instructions (201 pages) ,
- Manual (192 pages) ,
- Original operating inctructions (68 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hilti TE 70-AVR
Summary of Contents for Hilti TE 70-AVR
- Page 1 TE 70-AVR TE 70-ATC/AVR TE 80-ATC/AVR English Printed: 02.02.2017 | Doc-Nr: PUB / 5150803 / 000 / 03...
- Page 2 Printed: 02.02.2017 | Doc-Nr: PUB / 5150803 / 000 / 03...
- Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
- Page 4 Alternating current 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
- Page 5 Personal safety ▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ▶...
- Page 6 ▶ Avoid touching rotating parts – risk of injury! ▶ Wear suitable protective glasses, a hard hat, ear defenders, protective gloves and light respiratory protection while using the power tool. ▶ Wear protective gloves also when changing the accessory tool. Touching the accessory tool presents a risk of injury (cuts or burns).
- Page 7 3 Description 3.1 Product overview English Printed: 02.02.2017 | Doc-Nr: PUB / 5150803 / 000 / 03...
- Page 8 Have the combihammer repaired by Hilti Service. 3.6 Items supplied Combihammer, side handle, operating instructions. You can find other system products approved for your product at your local Hilti Center or online at: www.hilti.com. 4 Technical data 4.1 Combihammer Note For details of the rated voltage, current, frequency and input power, please refer to the power tool’s...
-
Page 9: Operation
TE 70AVR TE 70-ATC/AVR TE 80-ATC/AVR Weight in accordance 8.3 kg 9.5 kg 9.7 kg with EPTA procedure 01 Single impact energy in 11.5 J 11.5 J 11.5 J accordance with EPTA procedure 05/2009 Ø hammer drill bits 12 mm …45 mm 12 mm …45 mm 12 mm …45 mm Ø... - Page 10 5.2 Fitting / removing the accessory tool Note The use of unsuitable grease may cause damage to the tool. Use only genuine Hilti grease. Always check the accessory tool for damage and uneven wear before each use; replace if necessary.
- Page 11 ▶ Set the function selector switch to the “Hammer drilling” position 5.4 Mixing Note Use the mixing paddle only with the quick-release chuck. ▶ Set the function selector switch to the "Hammer drilling" position and insert the mixing paddle into the quick-release chuck.
- Page 12 5.6 Drilling with hammering action (hammer drilling) ▶ Set the function selector switch to the “Hammer drilling” position 5.7 Chisel positioning CAUTION Risk of injury! Loss of control over the chisel direction. ▶ Do not operate the tool when the selector switch is set to “Chisel positioning”. Turn the function selector switch until it engages in the “Chiseling”...
- Page 13 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com English Printed: 02.02.2017 | Doc-Nr: PUB / 5150803 / 000 / 03...
-
Page 14: Troubleshooting
Check electric tools or appliances for damage after long periods of transport or storage. 8 Troubleshooting If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, please contact Hilti Service. 8.1 Troubleshooting Trouble or fault... - Page 15 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 16 English Printed: 02.02.2017 | Doc-Nr: PUB / 5150803 / 000 / 03...
- Page 17 Printed: 02.02.2017 | Doc-Nr: PUB / 5150803 / 000 / 03...
- Page 18 Hilti = registered trademark of Hilti Corp., Schaan 20161128 Printed: 02.02.2017 | Doc-Nr: PUB / 5150803 / 000 / 03...
