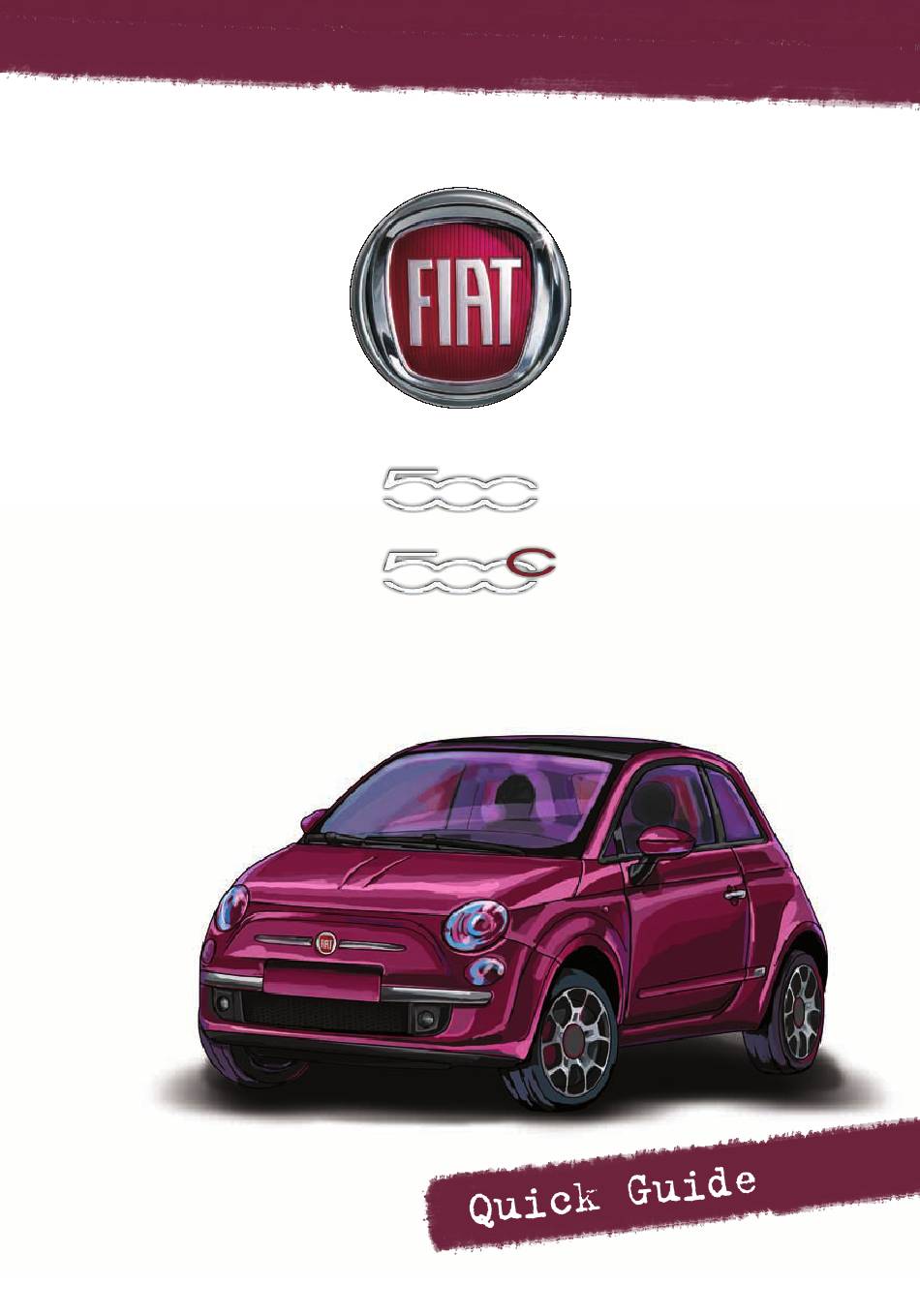

Fiat 500 2010 Quick Manual
  1. Manuals
  2. Brands
  3. Fiat Manuals
  4. Automobile
  5. 500 2010
  6. Quick manual

Fiat 500 2010 Quick Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 2010 and is the answer not in the manual?

Questions and answers

Related Manuals for Fiat 500 2010

Summary of Contents for Fiat 500 2010

  • Page 3: Table Of Contents

    Jump starting ....40 The FIAT Code system and the keys . . 11 Bump starting ....41 Seats .

  • Page 4: Welcome

    Thank you for choosing Fiat and congratulations on your choice of a Fiat We have written this handbook to help you get to know all your new Fiat features and use it in the best possible way. You should read it right through before taking to the road for the first time.
  • Page 5 In the accompanying Warranty Booklet you will also find the Services that Fiat offers to its customers: • the Warranty Certificate with terms and conditions for maintaining its validity • the range of additional services available to Fiat customers Enjoy reading. Happy motoring! This Quick Guide describes all versions of the Fiat .

  • Page 6: Dashboard

    DASHBOARD...

  • Page 8: Control Panel And Instruments

    CONTROL PANEL AND INSTRUMENTS WARNING LIGHTS AND MESSAGES ­ LOW BRAKE FLUID LEVEL (red) The warning light turns on when the level of the brake fluid in the reservoir falls below the minimum level due to a possible leak in the circuit. This warning light also switches on when the handbrake is engaged.
  • Page 9 ­ Water in diesel filter (amber) The warning light switches on when there is water in the diesel filter. ­ Car protection system fault – Fiat Code (amber) If, with the engine running, the warning lights flashes, it means that the car is not protected by the engine immobiliser device.
  • Page 10 ­ Brake pad wear (amber) The warning light on the dial switches on (together with a message on the display) if the front brake pads are worn. ­ Side lights and dipped headlights (green) Follow Me Home (green) The warning light switches on when side lights or dipped headlights are switched on.
  • Page 11 MULTIFUNCTION DISPLAY Possible presence of ice on the road Sport or Eco driving mode indication indication (for versions/markets where Milometer (display of distance provided) travelled in kilometres/miles) Digital engine coolant temperature Headlight alignment position (only gauge with dipped headlights on) Start&Stop function indication Digital fuel level gauge Date...
  • Page 12 TRIP COMPUTER • The “Trip computer” is used to display information on car operation when the key is turned to MAR. This function comprises two separate trips, namely “Trip A” and “Trip B”. • Both functions can be reset (start of a new journey). •...

  • Page 13: The Fiat Code System And The Keys

    It is automatically activated when the ignition key is removed. • Each time the car is started by turning the ignition key to MAR, the Fiat CODE system control unit sends an acknowledgement code to the engine management control unit to deactivate the immobiliser.

  • Page 14: Seats

    SEATS FRONT SEATS Lengthwise adjustment: raise lever A and push the seat forwards and backwards: your hands should rest on the rim of the steering wheel. Backrest angle adjustment: turn knob B. Height adjustment: use lever C to raise or lower the rear part of the cushion to achieve a better, more comfortable driving position.

  • Page 15: Steering Wheel

    STEERING WHEEL • The steering wheel angle adjustment lever is located on the steering column under the direction indicator lever. • Bring the lever downwards to unlock the steering column. • Keeping one hand firmly on the steering wheel, adjust the steering column to the most suitable position.

  • Page 16: Automatic Climate Control

    AUTOMATIC CLIMATE CONTROL AUTOMATIC OPERATION • Press the AUTO button. • Select the desired temperature by pressing the temperature control buttons. • The system automatically maintains the set temperature. NOTE: Automatic climate control manages the Start&Stop function to guarantee a suitably comfortable climate in the passenger compartment by deactivating this function when necessary.

  • Page 17: External Lights

    EXTERNAL LIGHTS DAYTIME RUNNING LIGHTS • With key in MAR position and ring nut turned to position O, the daytime running lights switch on automatically. DIPPED HEADLIGHTS/SIDE LIGHTS • With key in MAR position, turn the ring nut to . The warning light switches on on the instrument panel.

  • Page 18: Window Cleaning

    FOLLOW ME HOME This function allows the space surrounding the car to be lit up for a certain period of time. • With the ignition key in the STOP position or extracted, pull the lever towards the steering wheel and operate it within 2 minutes of the engine switching off.

  • Page 19: Roof

    ROOF FIXED GLASS ROOF • The wide glass roof comprises a transparent panel with manually operated sun blind. The blind can be used in the “fully closed” or “fully open” positions (there are no fixed intermediate positions). • To open the blind: grip the handle and press the catch A, then release the blind and bring it to the “fully open”...

  • Page 20: Soft Top

    Emergency manoeuvre If the switch does not work, the sun roof can be operated manually as follows: • remove the protective cap located on the inner lining at the rear of the sun blind; • take the Allen key provided from the tool box in the boot; •...
  • Page 21 Opening top from spoiler to fully open position • From the spoiler position, press the “one-touch” button; the top moves automatically to the fully open (vertical opening) position. • If one of the two buttons is pressed before the final position is reached, the top will stop and movement will be reversed, moving to the initial position (spoiler position).

  • Page 22: Electric Windows

    Emergency manoeuvre If the control buttons fail to operate, the soft top can be moved manually, proceeding as follows: • take the key provided and located in the boot in combination with the tool box or the Fix&Go Automatic kit. •...

  • Page 23: Bonnet

    Opening the tailgate with top fully open ( • Press the “one-touch” tailgate opening button once to automatically close the top to spoiler position. The tailgate can be opened in spoiler position. Tailgate emergency opening To open the tailgate from the passenger compartment if the car battery is run down or the electric tailgate lock is faulty, proceed as follows:...

  • Page 24: Dualdrive Electric Power Steering

    DUALDRIVE ELECTRIC POWER STEERING • With the key in MAR position, press the Dualdrive button to activate the CITY function. The CITY warning light switches on in the instrument panel. • With the CITY function on, the effort required at the steering wheel is lighter, thereby facilitating parking manoeuvres.

  • Page 25: Parking Sensors

    PARKING SENSORS • These detect and inform the driver, through an intermittent acoustic signal, about the presence of obstacles behind the car when REVERSE is engaged. As the obstacle behind the vehicle gets closer to the car, the acoustic signal becomes more frequent.

  • Page 26: Car Radio And Blue&Me

    MANUAL ACTIVATION AND DEACTIVATION • The Start&Stop system can be activated/ deactivated using the buttonA on the dashboard. When the system is deactivated the “Start&Stop OFF” warning light is visible on the dashboard. • In addition, on versions where provided, additional information concerning the deactivation or activation of the Start&Stop is given through a message on...
  • Page 27 • To store the current station, hold down a preset button (1–6) for two seconds. BLUE&ME™ • Fiat Blue&Me™ based on Microsoft Auto™ features hands-free, SMS message reader and Media Player functions. The Blue&Me™ system is completely integrated with voice commands, buttons on the steering wheel and multifunction display to facilitate operation without distracting the driver from the road or requiring them to take their hands off the steering wheel.
  • Page 28 Media Player • The Media Player allows the tracks stored on a USB device to be displayed on the screen for the car radio. The Media Player also allows the audio files stored on the USB device to be played. •...

  • Page 29: Seat Belts And Pretensioners

    SEAT BELTS AND PRETENSIONERS SEAT BELTS Using the seat belts • The belt should be worn keeping the torso straight and rested against the backrest. • To fasten the seat belts, hold the tongue A and insert it into the buckle B, until it clicks into position.
  • Page 30 Important general information for using the seat belts • Always fasten the seat belts before setting off. • Seat belts must also be worn by pregnant women: the risk of injury in the event of an accident is greatly reduced for them and the unborn child if they are wearing a seat belt.

  • Page 31: Carrying Children Safely

    22-36 kg of weight • Over 1.50 m in height, from the point of view of restraint systems, children are considered as adults and wear the seat belts normally. Lineaccessori Fiat offers child restraint systems for each weight group. • These devices are recommended, since they are specifically designed and tested for Fiat cars.
  • Page 32 Group 2 • Children from 15 to 25 kg may use the car seat belts directly. Group 3 • For children from 22 to 36 kg the size of the child’s chest means that a support to space the child’s back from the backrest is no longer required.
  • Page 33 SUITABILITY OF PASSENGER SEATS FOR THE USE OF CHILD SEATS • The Fiat 500 complies with the new European Directive 2000/3/EC regulating the arrangement possibilities for child seats on the various car seats according to the following table: Group Weight range...

  • Page 34: Child Seat

    ECE R44/03 “Universal Isofix”. • The Universal Isofix "Duo Plus" child seat is available from Lineaccessori Fiat. • For any further installation/usage details, refer to the “Instruction Manual” provided with the child seat.
  • Page 35 SUITABILITY OF PASSENGER SEATS FOR THE USE OF UNIVERSAL ISOFIX CHILD SEATS The table below shows the different installation possibilities for Universal Isofix child seats on the seats fitted with Isofix attachments, in accordance with European regulation ECE 16. Weight group Child seat Isofix size Rear side Isofix...
  • Page 36 SUITABILITY OF PASSENGER SEATS FOR THE USE OF UNIVERSAL ISOFIX CHILD SEATS The table below shows the different installation possibilities for Universal Isofix child seats on the seats fitted with Isofix attachments, in accordance with European regulation ECE 16. Weight group Child seat Isofix size Rear side Isofix...

  • Page 37: Airbag

    AIRBAG The car is equipped with front airbags for the driver and passenger, driver side knee bag and side bags - window bags. FRONT AIRBAGS • The front airbags (driver, passenger, driver knee bag) protect the occupants of the front seats in the event of moderate to high severity front impacts by positioning the cushion between the occupant and the steering wheel or the dashboard.

  • Page 38: Side Bags (Side Bag - Window Bag)

    FRONT PASSENGER SIDE AIRBAG (B) • This consists of an instantly inflating cushion contained in a special recess in the dashboard: this bag has a larger volume than that on the driver’s side. DRIVER SIDE KNEE BAG (for versions/markets, where provided) (C) •...
  • Page 39 The expiry date of the explosive charge and the clock spring are shown on a specific label on the edge of the door. Contact a Fiat Dealership to have them replaced when the expiry date approaches.

  • Page 40: Using The Manual Gearbox

    USING THE MANUAL GEARBOX • To engage the gears, press the clutch pedal fully and shift the gear lever into the required position. • Reverse can only be engaged when the car is completely stationary. With the engine running, wait for at least 2 seconds with the clutch pedal fully pressed before engaging reverse, to prevent damage to the gears and grating.
  • Page 41 STEERING WHEEL LEVERS (for versions/markets, where provided) • The gearbox can be managed sequentially using the steering wheel controls. • To use the steering wheel controls, the gear lever must be in the middle position between + and –. • Move the steering wheel lever towards + to engage a higher gear.

  • Page 42: Jump Starting

    • When the engine has been started, remove the leads reversing the order above. If after a few attempts the engine does not start, do not persist but contact a Fiat Dealership. IMPORTANT: do not directly connect the negative terminals of the two batteries: any sparks may ignite the explosive gas which could come out of the battery.

  • Page 43: Bump Starting

    BUMP STARTING • Never bump start the engine by pushing, towing or driving downhill. • This could cause a flow of fuel into the catalytic converter and damage it beyond repair. IMPORTANT: the brake servo and electric power steering (where provided) are not operational until the engine is started;...

  • Page 44: Replacing A Wheel

    REPLACING A WHEEL INSTRUCTIONS FOR RAISING WITH A JACK AND REPLACING A WHEEL To change a wheel proceed as follows: • Stop the car in a position that is not dangerous for oncoming traffic where you can change the wheel safely. The ground must be flat and sufficiently compact.
  • Page 45 • Warn anybody who is nearby that the car is about to be raised. They should stay clear and they should be warned not to touch the car until it is back on the ground. • Fit the handle to operate the jack device and raise the car until the wheel is a few centimetres above the ground.

  • Page 46: Quick Tyre Repair Kit Fix & Go

    QUICK TYRE REPAIR KIT FIX & GO FIX & GO KIT LOCATION • The quick tyre repair kit Fix & Go is located in the boot.
  • Page 47 PREPARING TO REPAIR A TYRE WITH FIX & GO • Stop the car in a position that is not dangerous for oncoming traffic where you can change the tyre safely. • Stop the engine and pull up the handbrake. • Engage first gear or reverse. The kit includes: •...

  • Page 48: Changing A Bulb

    CHANGING A BULB BULBS TYPE POWER Main beam 55 W Dipped beam 55 W Xenon gas discharge dipped beam 35 W Front side lights/daytime running lights WY21/5W 5/21 W Front direction indicators WY21W 21 W Front direction indicators (with xenon gas discharge PY24W 24 W bulbs)

  • Page 49: Replacing Fuses

    REPLACING FUSES DASHBOARD FUSES • To access the fuses you must remove the press-fitted cover A. • The 5 A fuse for door mirror defrosting is located in the diagnosis socket area. • The fuse box is located in the lower area next to the pedal unit.
  • Page 50 Dashboard fuses Fuse AMPS Description Right dipped headlight power supply Left dipped headlight and headlight alignment control unit power supply Front and rear roof lights, boot and puddle lights Diagnosis socket, car radio, climate control, EOBD Brake light switch, instrument panel node Central locking Windscreen/rear window washer pump Driver’s side electric windows...
  • Page 51 ENGINE COMPARTMENT FUSES • A second fuse box is located on the right side of the engine compartment, next to the battery; to access it press device A, release tabs B and remove cover C. • The number identifying the electrical component corresponding to each fuse is shown on the back of the cover.
  • Page 52 Engine compartment fuses Fuse AMPS Description Climate control fan Trailer Horns Main beam headlights Electric roof motor Heated rear window, mirror defrosters Fog lights Front power socket (with or without cigar lighter)

  • Page 53: Towing The Car

    • If the gearbox cannot be put in neutral, do not tow the vehicle and contact a Fiat Dealership. ATTACHING THE TOW HOOK • The tow hook, which is provided with the car, is housed in the tool box, under the boot mat.

  • Page 56: Engine Compartment

    ENGINE COMPARTMENT 0.9 TwinAir ENGINE 1.2 8V ENGINE...
  • Page 57 1.4 16V ENGINE 1.3 MULTIJET 75 HP ENGINE...
  • Page 58 1.3 MULTIJET 95 HP ENGINE ENGINE OIL • Check the oil level a few minutes (about 5) after the engine has stopped, with the car parked on level ground. • The oil level should be between the MIN and MAX marks on the dipstick. NOTE: on the 0.9 TwinAir engine the dipstick is part of the engine oil plug.
  • Page 59 WINDSCREEN/REAR WINDOW WASHER FLUID • Use a mixture of water and TUTELA PROFESSIONAL SC 35, in the following concentrations: • 30% TUTELA PROFESSIONAL SC 35 and 70% water in summer. • 50% TUTELA PROFESSIONAL SC 35 and 50% water in winter. BRAKE FLUID •...

  • Page 66: Environmental Information

    Warranty Booklet. You can also connect to the site www.fiat500.com to search for the nearest Fiat Dealership. IMPORTANT INFORMATION FOR PERSONAL SAFETY IGNITION • Never remove the key from the ignition while the vehicle is in motion.
  • Page 67 IMPORTANT INFORMATION FOR PERSONAL SAFETY (Continued) INTERIOR EQUIPMENT • The cigar lighter plug may reach extremely high temperatures. Handle it with caution and do not allow it to be used by children to avoid the risk of fire or burns. Always check that the cigar lighter plug has been released.
  • Page 68 (for versions/ markets, where available), stop the car immediately and contact your Fiat Service Center. Any loss of fluid will affect the brake system functionality, both conventional and ant-lock wheels.
  • Page 69 START & STOP SYSTEM • Please visit your Fiat Dealership if you wish to replace your battery. The replacement battery should be of the same type (HEAVY DUTY) and should have the same characteristics.
  • Page 70 •The pretensioner may be used only once. After it has been activated, please contact your Fiat Dealership to have it replaced. For the device expiration date, see the plate on the panel near the door. Please contact your Fiat Dealership as this date approaches to have the device replaced.
  • Page 71 IMPORTANT INFORMATION FOR PERSONAL SAFETY (Continued) CARRYING CHILDREN SAFELY - SERIOUS DANGER: when the passenger-side front airbag is activated, do not install a backward-facing car seat in the front seat. If the airbag is deployed in the event of an accident, the child carried in the car seat risks serious injury or death.
  • Page 72 In this case, the airbags or pretensioners may not be activated in the event of an accident or, in a more limited number of cases, may be activated when not necessary. Contact your Fiat Dealership immediately to have this system checked.
  • Page 73 HAND BRAKE • Your vehicle should be securely held after a few clicks of the brake lever. If this is not the case, please visit your Fiat Dealership to have the brake adjusted. USING THE MANUAL TRANSMISSION • To correctly change gear, the clutch pedal must be fully depressed.
  • Page 74 In this case, the airbags or pretensioners may not be activated in the event of an accident or, in a more limited number of cases, may be activated when not necessary. Contact your Fiat Dealership immediately to have this system checked.
  • Page 75 IMPORTANT INFORMATION FOR PERSONAL SAFETY (Continued) (29. Continued) •Replacing the type of wheels used (alloy rims rather than steel rims) involves replacing all mounting bolts with appropriately-sized bolts. •Indicate that your vehicle is stopped using currently applicable measures: hazard lights, reflective triangle etc. The vehicle's occupants should exit the vehicle, especially if it has been heavily loaded, and should wait in an area safe from traffic until the tire has been replaced.
  • Page 76 •If pressure has dropped to below 1.8 bar, do not continue to drive: the Fix & Go automatic quick tire repair kit cannot provide adequate traction, as the tire is too damaged. Always contact your Fiat Dealership for any such operations.
  • Page 77 IMPORTANT INFORMATION FOR PERSONAL SAFETY (Continued) RECHARGING THE BATTERY • The fluid contained in the battery is caustic and corrosive. Avoid contact with skin and eyes. The battery must be recharged in a well-ventilated area and away from open flames and objects that might create sparks, in order to avoid explosion or fire.

  • Page 78: Technical Specifications

    IMPORTANT INFORMATION FOR PERSONAL SAFETY (Continued) (35. Continued) •The symbol , on the brake fluid container indicates if a brake fluid is synthetic or mineral-based. Using mineral-based brake fluid may irreparably damage the rubber seals in the braking system. In addition, the fluid contained in the battery is caustic and corrosive.
  • Page 79 If operation is not subsequently restored, please contact your Fiat Dealership. SUNROOF • If a storage shelf has been transversely mounted in the vehicle, we recommend only using the sunroof in the spoiler position.
  • Page 80 For a faulty or damaged gearbox, please contact your Fiat Dealership as soon as possible to have your gearbox checked.
  • Page 81 PARAFLU fluid may not be mixed with any other type of fluid. If this occurs, do not start the engine and contact your Fiat Dealership immediately. •Avoid allowing brake fluid, which is extremely corrosive, to come into contact with painted areas of the body.
  • Page 82 KEYS • Flat batteries from remote-control keys are hazardous to the environment. Consequently, you must dispose of them in appropriate waste containers, as dictated by law, or you may leave them at your Fiat Dealership, where they will be properly disposed of.
  • Page 84 ENGLISH The data contained in this publication is intended merely as a guide. FIAT reserves the right to modify the models and versions described in this booklet at any time for technical and commercial reasons. If you have any further questions please consult your FIAT dealer..
