System Sensor 5451 Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
5451 Plug-in Rate-of-Rise
Thermal Detector with
Fixed Temperature Alarm
Specifications
Diameter:
Height:
Weight:
Installation Temperatures:
Operating Humidity Range:
Latching Alarm:
Sensitivity
Operating Voltage:
Standby Current:
Before Installing
This detector must be installed in compliance with the con-
trol panel installation manual and meet the requirements of
the authority having jurisdiction. In addition, the National
Fire Protection Association has published codes, standards,
and recommended practices for the installation and use of
detectors, NFPA 72.
Therefore, the installer must be familiar with these require-
ments, with local codes, and any special requirements of
the authority having jurisdiction.
NOTICE: This manual should be left with the owner/user
of this equipment.
IMPORTANT: This detector must be tested and maintained
regularly following NFPA 72 requirements. The detector
should be cleaned at least once a year.
D400-29-00
4.1 inches (104 mm)
2.1 inches (53 mm)
5 ounces (150 g)
32° to 100°F (0° to 38°C)
10% to 93% Relative Humidity
Reset by momentary power interruption
135°F (57°C) Fixed or 15°F/min rate-of-rise
15-35 VDC
100 µA
General Description

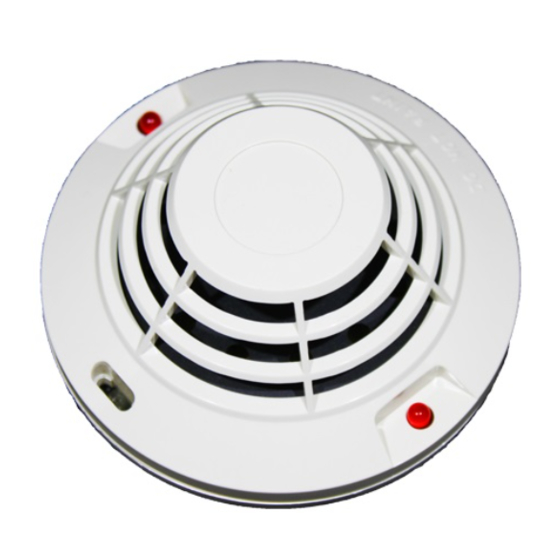

Model 5451 is a rate-of-rise with fixed temperature alarm
thermal detector utilizing a state-of-the-art dual thermistor
sensing circuit. These detectors are designed to provide
open area protection with 50-foot spacing capability, and
are to be used with compatible control panels only.
Two LEDs on each detector light to provide 360° visibility
of the detector indication. Remote LED annunciator capa-
bility is provided as standard, and the RA400Z remote LED
annunciator is available as an optional accessory.
Base Selection and Wiring Guide
Refer to the installation instructions for the plug-in detec-
tor bases for base selection and wiring instructions. System
Sensor has available a variety of detector bases for these
heat detectors, including 2-wire applications with and
without relays and/or current limiting resistors for use with
control panels that require one. This detector is only to be
used with 400 and 400B series bases.
Install the System Sensor plug-in base to be used with the
detector following the instructions in the base manual.
1 I56-580-04R
