Connections for a Standard-Defi nition TV and VCR

When using the DVR with an SDTV, you must make one of the following connections to view content. Some SDTVs
may not have all of these connections. In addition, you can make connections to a VCR to archive recordings to a
VCR tape. Refer to your TV and VCR user's guide, and the cabling diagrams in this guide for more information.
Note: The labeling on your DVR model may vary from the labels shown in the following table.

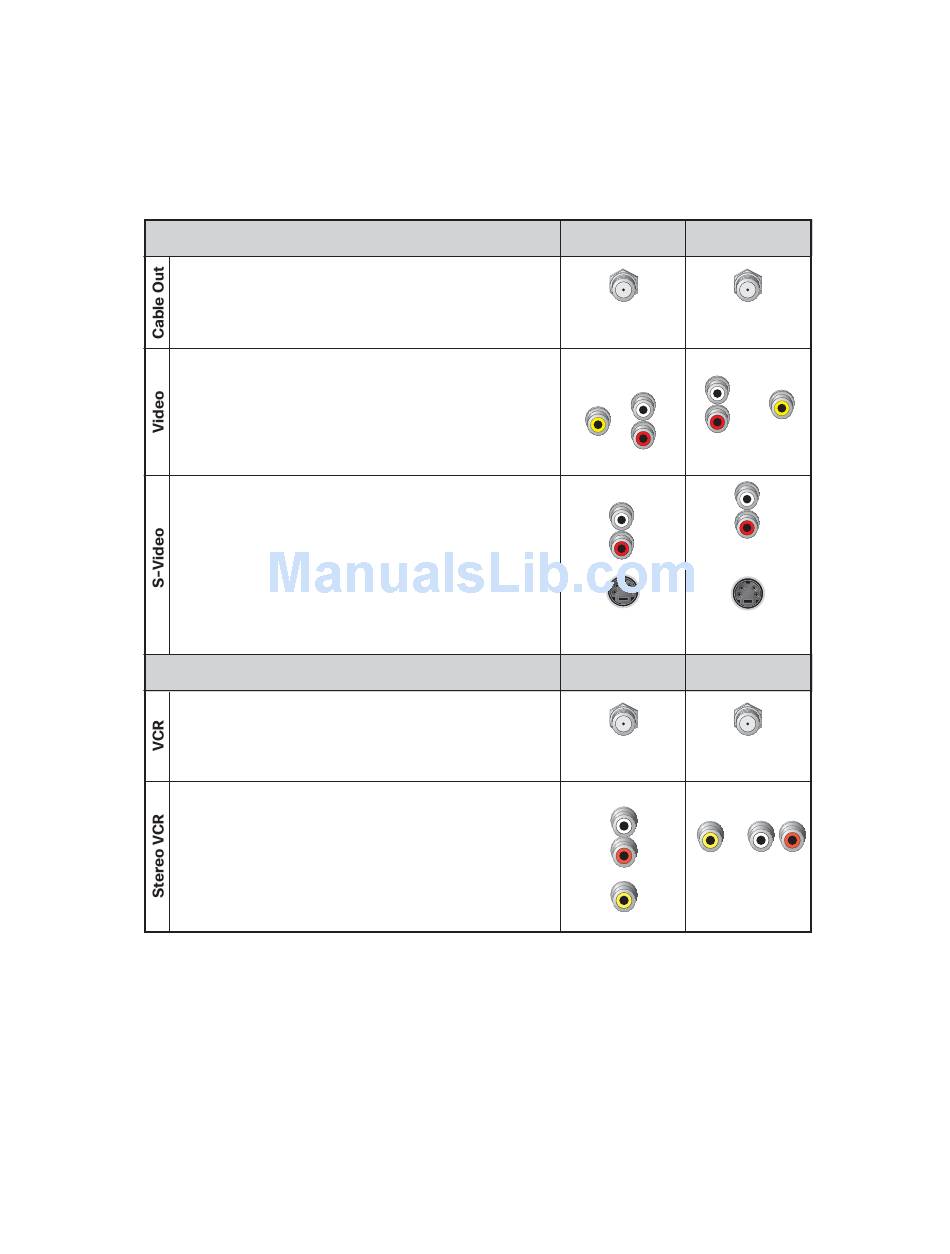

Required Connections to an SDTV (choose one)
The Cable Out connection provides both a video and
an audio connection to an SDTV. See page 8 for an
example.
The Video Out connection provides video to a
standard defi nition TV. The left and right audio outputs
provide stereo sound. See page 9 for an example.
The S-Video out connection provides optimal video
to a standard defi nition TV. The left and right audio
outputs provide stereo sound.
Optional Connection
The Cable Out connection provides both a video and
an audio connection to the VCR. See page 8 for an
example.
For VCRs that have Video and Left and Right audio
connectors, you can use the OUT 2 connectors
(Video, Left, and Right) on the DVR. See page 9 for
an example.
10
DVR
SDTV
Connections
Connections
CABLE
CABLE/
OUT
ANTENNA
Out 1
L
TV
L
R
R
AUDIO 1
VIDEO
IN
OUT 1
L
R
AUDIO 1
IN
S-VIDEO
S-VIDEO
OUT
IN
DVR
VCR
Connections
Connections
CABLE
CABLE/
OUT
ANTENNA
OUT 2
L
VIDEO
R
IN
VIDEO
VIDEO
IN
L
R
L
R
AUDIO
IN
