Read and Save These Instructions
All Hoods Must Be Installed By A Qualified Installer
INSTALLATION INSTRUCTIONS

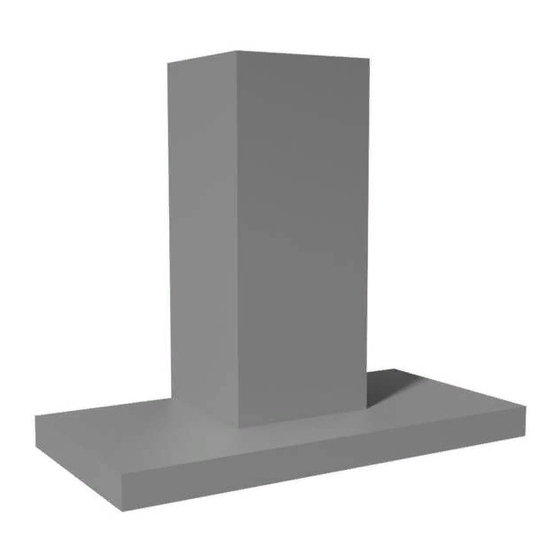

CWSH3 WALL MOUNT HOOD
Read All Instructions Thoroughly Before Beginning Installation
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be done by qualified person(s)
in accordance with all applicable codes and standards, including fire-
rated construction. Switch power off at service panel and lock the service
disconnecting means to prevent power from being switched on accidentally
during installation.
B. When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
C. Ducted fans must always be vented to the outdoors.
D. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back
drafting. Follow the heating equipment manufacturer's guideline and
safety standards such as those published by the National Fire Protection
Association (NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and local code authorities.
E. ASHRAE residential ventilation standard 62.2 limits exhaust fans (total) to
a maximum of 15 CFM per 100 square feet of occupiable space, unless a
back drafting test is performed or make-up air is provided. Consult a local
HVAC engineer for make-up air evaluation.
WARNING - TO REDUCE THE RISK OF FIRE, USE ONLY METAL
CWSH3 0516A
DUCTWORK
Page 1
U L
C
US
R
Advertisement
Table of Contents
Related Manuals for Vent-a-Hood CWSH3
Summary of Contents for Vent-a-Hood CWSH3
- Page 1 Read and Save These Instructions All Hoods Must Be Installed By A Qualified Installer INSTALLATION INSTRUCTIONS CWSH3 WALL MOUNT HOOD Read All Instructions Thoroughly Before Beginning Installation WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: A.
- Page 2 • A wall louver or roof jack is required for each duct run. • Every wall louver or roof jack must include a gravity damper to prevent back drafts. • Do not use screen wire or spring-loaded doors on wall louvers or roof jacks. • Do not terminate venting into an attic or chimney. Smooth Duct Smooth Gradual Turn Flexible Duct Sharp Angled Turns CWSH3 0516A Page 2...
- Page 3 Custom hoods may require additional specification consideration. 2) When installing a CWSH3 contemporary wall mount range hood, it is recommended that the bottom edge of the hood be located no more than 24" above the cooking surface for optimum performance.
- Page 4 Minimum Round Equivalent CFM • Model Volts Amps Sones SP@0.0" SP@0.1" SP@0.2" SP@0.3" Duct Size B100 Single 1550 6" (28 in. B200 Dual 1550 8" (50 in. • Because the Magic Lung blower uses centrifugal filtration rather than conventional baffle or mesh filters, the Magic Lung blower can handle cooking equipment with higher cubic feet per minute (CFM) requirements and can deliver equivalent CFM much more ® ® efficiently than other filtration systems. When comparing the Magic Lung with other blower units made by other manufacturers, use the “Equivalent CFM”. ® Ratings in accordance with the Standard Test Code by the Energy Systems Laboratory of the Texas Engineering Experiment Station. CWSH3 0516A Page 4...
- Page 5 15) Replace the duct cover front panel by aligning the snaps and pressing each snap into position. 19) Refer to the Owner Maintenance Guide Operating Instructions for proper hood operation. Test all blower and light functions to ensure they are operating properly. CWSH3 0516A Page 5...
- Page 6 3 ¼” x 10” VP507 6” x 8 ½” VP518 6” & 8” to 12” VP501 7” Round VP505 3 ¼” x 12” VP551 6” & 8” to 10” VP502 8” Round VP506 3 ¼” x 16” CWSH3 0516A Page 6...
