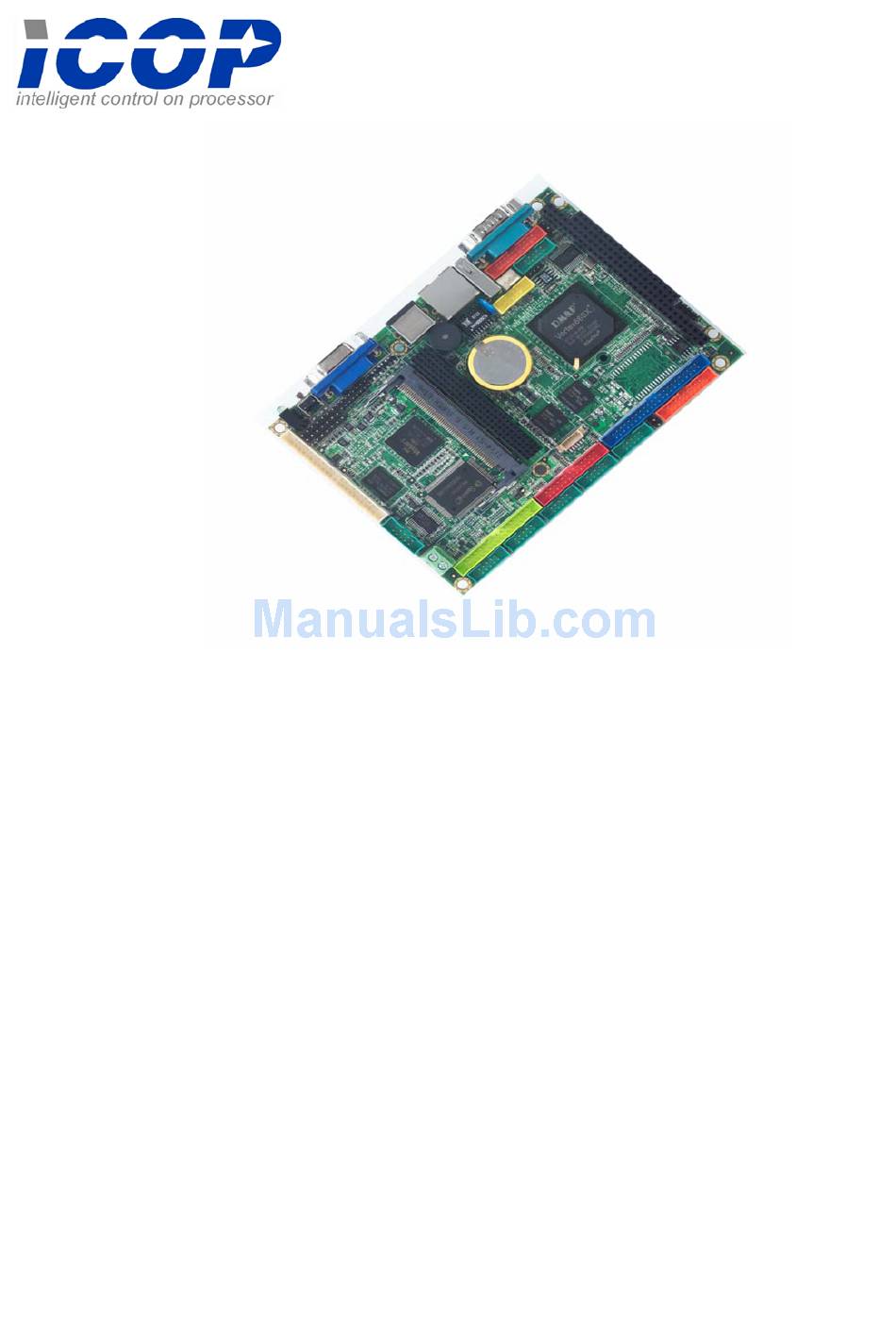

- Page 1 VSX-6127 DM&P Vortex86SX 300MHz 3.5” CPU Module with 8S/3USB/VGA/LVDS/LAN/GPIO/CF 128MB DDR2 Onboard User’s Manual (Revision 1.2A)
-
Page 2: Trademarks Acknowledgment
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. ©Copyright 2007 ICOP Technology Inc. -
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iii C h a p t e r 1 Introduction……………………………………………1 Packing List............1 Product Description .......... -
Page 4: Chapter 1 Introduction
Package Embedded Vortex86SX CPU All-in-One Board Manual & Drivers CD x 1 RS232 cable x 7 PRINTER cable x1 VSX-6127 IDE cable x 1 USB cable x 1 (USB port x 2 GPIO cable x 2 YKB for Keyboard & PS/2 Mouse x 1 Vortex86SX-6127 Vortex86SX™... -
Page 5: Product Description
3.5” controller. The VSX-6127 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 6: Specifications
1.3 Specifications Features VSX-6127 DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache Cache AMI BIOS BIOS PC/104 & PC/104+ Standard Compliant Bus Interface System Memory 128MB DDR2 onboard Software programmable from 30.5 us to 512 seconds x2... - Page 7 2.00 mm ∅ 44-pin box header for IDE x1 Connectors 2.00 mm ∅ 44-pin box header for LCD x 1 2.00 mm ∅ 34-pin box header for FDD x1 2.00 mm ∅ 26-pin box header for Printer x1 2.00 mm ∅ 20-pin box header for 16-bit GPIO x2 2.00 mm ∅...
-
Page 8: Board Dimension
Board Dimension Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module... -
Page 9: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module... -
Page 10: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module... - Page 11 Jumpers & LEDs Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module...
-
Page 12: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. 44-pin Box Header, 2.0∅ ,22x2 CF Card Master/Slave Select 2-pin Pin Header, 2.54∅, 2x1 USB 1 USB connector 4-pin USB 2 10-pin Box Header,2.0∅ , 5x2 10/100Base-T Ethernet LAN 8-pin RJ45 Connector JTAG... - Page 13 Display type Setup 3-pin Pin Header, 2.54∅ , 3x1 44-pin Box Header,2.0∅ ,22x2 Compact Flash 50-pin Type I/II CF Connector PWR_L POWER Active LED (Red) IDE_LE IDE Active LED (Green ) MTBF- MTBF-Out (Orange) LED-SMD BUZZER RESET SWITCH Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module...
-
Page 14: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0... - Page 15 J5: USB 2 Pin # Signal Name Pin # Signal Name LUSBD2- LUSBD3- LUSBD2+ LUSBD3+ GGND GGND J7: JTAG Pin # Signal Name Pin # Signal Name J8: RESET Pin # Signal Name Pin # Signal Name Reset J9: PS/2 Keyboard / Mouse Pin # Signal Name Pin # Signal Name KBDATA...
- Page 16 J10: COM 1 Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 J11: GPIO (Port 0 / 1) Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05...
- Page 17 J13: GPIO (Port 2 / Port 3) Pin # Signal Name Pin # Signal Name GP20 SPICS / GP30 GP21 SPICLK / GP31 GP22 SPID0 / GP32 GP23 SPIDI / GP33 GP24 GP34 GP25 GP35 GP26 GP36 GP27 GP37 Note: If you Enable 2M SPI flash Disk on the BIOS setting, you cannot use GP30~GP37 Pins.
- Page 18 J17: COM3 Pin # Signal Name Pin # Signal Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 J18: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT J19: COM4 Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4...
- Page 19 J20: FDD Pin # Signal Name Pin # Signal Name DENSEL INDEX\ MTRO\ DS1\ DS0\ MTR1\ DIR\ STEP\ TR0\ HDSEL\ DSKCHG\ J21: COM5 Pin # Signal Name Pin # Signal Name DCD5 RXD5 TXD5 DTR5 DSR5 RTS5 CTS5 Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module...
- Page 20 J22: COM7 Pin # Signal Name Pin # Signal Name DCD7 RXD7 TXD7 DTR7 DSR7 RTS7 CTS7 J23: COM6 Pin # Signal Name Pin # Signal Name DCD6 RXD6 TXD6 DTR6 DSR6 RTS6 CTS6 J24: COM8 Pin # Signal Name Pin # Signal Name DCD8 RXD8 TXD8...
- Page 21 J25: PC104 Connector – 64pin Pin # Signal Name Pin # Signal Name IOCHCHK * RESETDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12...
- Page 22 J26: PC104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16 * SBHE * IOCS16 * SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6...
- Page 23 J29: PC/104+ Pin # CBE-0 AD11 AD10 AD14 AD13 AD12 VCC3 CBE-1 AD15 VCC3 SERR- PERR- VCC3 STOP- VCC3 PLOCK- VCC3 TRDY- DEVSEL- FRAME- IRDY- VCC3 AD16 VCC3 CBE-2 AD18 VCC3 AD17 AD21 AD20 AD19 VCC3 AD23 AD22 VCC3 AD20 AD14 AD15 AD24...
- Page 24 J30: VGA Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT DDCDAT HSYNC VSYNC DDCCLK J31: LVDS Pin # Signal Name Pin # Signal Name VCC3 (3.3V) VCC3 (3.3V) RxIN0- RxIN0+ RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ Vortex86SX-6127...
- Page 25 J32~J38: Display type setup (CRT /LCD) Connector Pin # Signal Name GPIOA GPIOB GPIOC GPIOD GPIOE GPIOF (Please refer to Appendix D, for Display type setup) Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module...
- Page 26 J33: LCD (DVO) Connector Pin # Signal Name Pin # Signal Name VCC3 VCC3 LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module...
-
Page 27: System Mapping
System Mapping Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module... - Page 28 Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module...
- Page 29 Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module...
-
Page 30: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 31: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 32: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 33: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86SX processor also use external Display chip ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. It is capable in providing VGA display output upto 1600x1200. With DVO interface, developers could easily connect flat Panel to support TFT and LVDS output. -
Page 34: Appendix
Appendix TFT Flat Panel Data Output Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module... -
Page 35: Tft Flat Panel Support List
B.TFT Flat Panel Support List Size Brand Resolution Model No. 5.7” Sharp 320x240 LQ057Q3DC02 5.7” Optrex 320x240 55264GD057J-FW-ABN 5.7” Kyocera 320x240 TCG057QV1AC-G10 5.7” 320x240 PD057VU4 5.7” 320x240 PD057VU5 5.7” Data image 640x480 FG050710DSSWJG01 5.7” Ampire 640x480 AM-640480GTMQW-T00H 5.7” Sharp 640x480 LQ057V3DG01 5.7”... -
Page 36: Lvds Flat Panel Support List
C. LVDS Flat Panel Support Size Brand Resolution Model No. 3.5” 640x480 PD035VL1 6.5” 640x480 G065VN01 8.4” 800x600 G084SN03 10.4” 800x600 G104SN02 10.4” MITSUBISHI 800x600 AA104SG01 10.4” Sharp 800x600 LQ104S1LG61 12.1” 800x600 G121SN01 12.1” MITSUBISHI 800x600 AA121SL03 Vortex86SX-6127 Vortex86SX™ 3.5” CPU Module... -
Page 37: Flat Panel Hardware Setting
D. Flat Panel Hardware Setting: The Vortex86SX-6127 offers the Hardware setting for the various TFT LCD Flat Panels support and please make sure the jumper setting (J32~J38) before you connect the LCD. Display type setup Connector Note: "C" means close; "O" means open Vortex86SX-6127 Vortex86SX™... -
Page 38: Flat Panel Wiring And Lighting
E. Flat Panel Wiring and Lighting Hardware Before you connect the TFT LCD Flat Panel with Vortex86SX-6127, please make sure that the input Voltage of LCD is 3.3V or Not BIOS Please contact or e-mail our regional sales to get the special BIOS for the any TFT LCD Flat Panels. -
Page 39: Tcp/Ip Library For Dos Real Mode
F. TCP/IP library for DOS real mode DSock is a TCP/IP library for DOS real mode, which is used by RSIP. It provides simple C functions for programmer to write Internet applications. ICOP also provide Internet examples using DSock: BOOTP/DHCP, FTP server, SMTP client/server, HTTP server, TELNET server, Talk client/server, etc. -
Page 40: Bios Default Setting
G. BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 41: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
