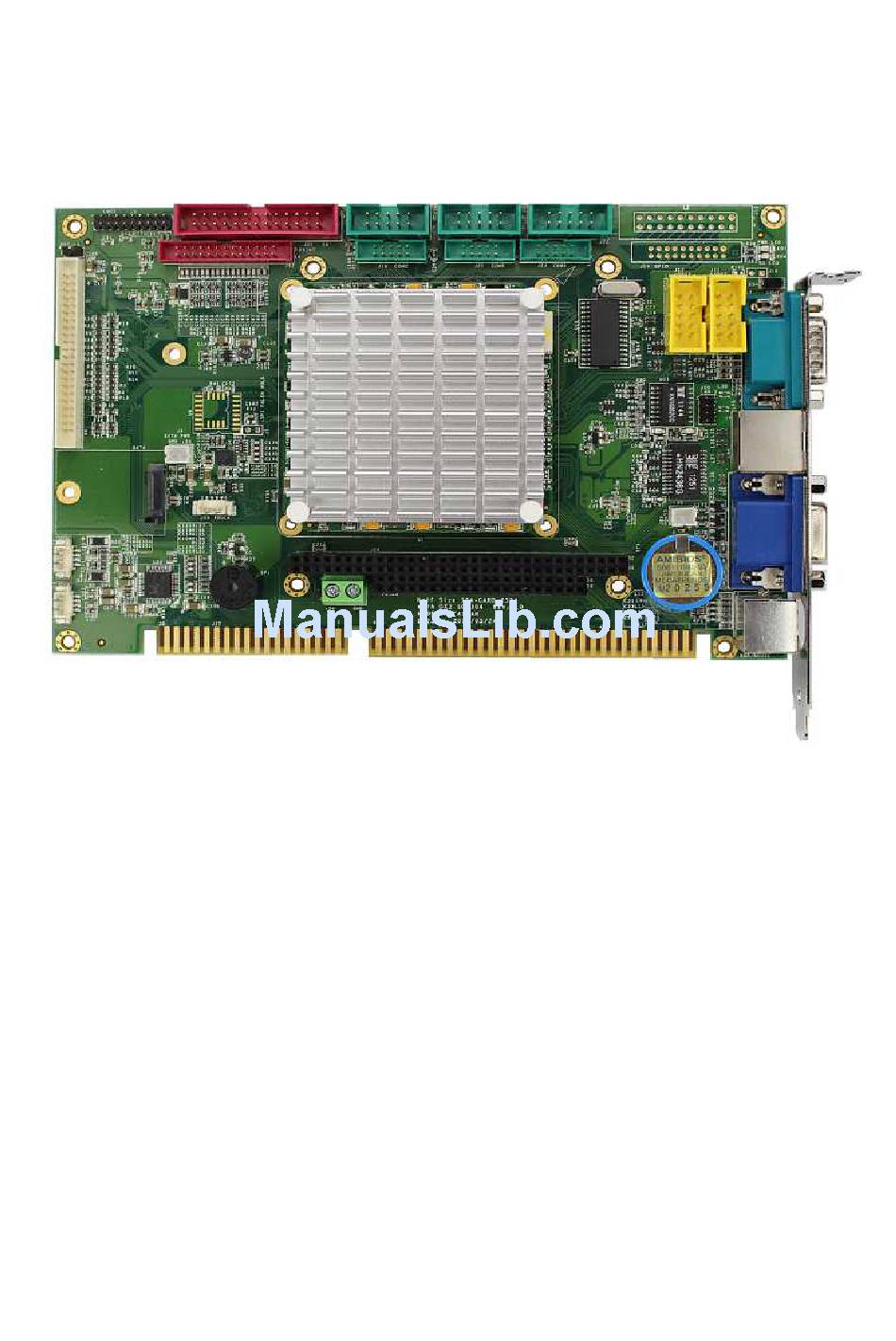

- Page 1 VDX2-6524 DM&P Vortex86DX2 800MHz Half-Size CPU Module with 4S/4USB/VGA/LCD/LVDS/AUDIO/2LAN/GPIO 512MB/1GB DDR2 Onboard User’s Manual (Revision 1.3A)
-
Page 2: Trademarks Acknowledgment
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2014 ICOP Technology Inc. -
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Ordering Information .......... - Page 4 This page is blank...
-
Page 5: Table O F C O N T E N T S
1.2 Ordering Information VDX2-6524-512 Vortex86DX2 CPU Module with 512MMB DDR2 VDX2-6524-1G Vortex86DX2 CPU Module with 1GB DDR2 VDX2-6524-CF-512 Vortex86DX2 CPU Module with 512MB DDR2 and CF Card slot VDX2-6524-CF-1G Vortex86DX2 CPU Module with 1GB DDR2 and CF Card slot Vortex86DX2-6524... -
Page 6: Product Description
The VDX2-6524 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 7: Specifications
Specifications Features VDX2-6524 DM&P SoC CPU Vortex86DX2- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache L2:256KB Cache Cache BIOS AMI BIOS Bus Interface PC/104 Standard Compliant System Memory 512MB/ 1 GB DDR2 Onboard Software programmable from 30.5 us to 512 seconds x2... - Page 8 Onboard 4MB SPI Flash Disk Flash Disk Support Compact Flash Type I/II (Optional) Onboard eMMC 512MB/4GB (Optional) 16 channels Power Requirement Single Voltage +5V @1A Dimension 184 X 122mm (7.24 x 4.80 inches) 180g Weight C ~ +60 Operating Temperature C ~ +85 C (Optional) Free DOS, MS-DOS, DOS, WIN CE6.0, WINCE7.0, Windows XP...
-
Page 9: Board Dimension
Board Dimension Vortex86DX2-6524 Vortex86DX2™ Half-Size CPU Module... -
Page 10: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline Parallel Port LVDS COM2 COM5 COM6 USB 3,4 GPIO Reset USB 1,2 COM1 Connector LAN2 SATA DOM power LAN1 SATA DOM MIC-IN LINE-OUT PS/2 KBD/Mouse T/S Controller Power Connector PC/104 (optional) Vortex86DX2-6524... - Page 11 Touchscreen is optional. No onboard SPI ROM and PS/2 mouse functions if Touchscreen function is selected. 3. GPIO will be preoccupied when eMMC is selected on model VDX2-6524 4. CF Card slot is only available on model of VDX2-6524-CF 5. eMMC, LPT and GPIO are not available on model VDX2-6524-CF Vortex86DX2-6524 Vortex86DX2™...
-
Page 12: Connectors Location
Connectors Location Connectors J29 J4 Vortex86DX2-6524 Vortex86DX2™ Half-Size CPU Module... -
Page 13: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. 44-pin Box Header, 2.0∅, 22x2 10-pin Pin Header, 2.0∅, 5x2 24-bit LVDS 20-pin Pin Header, 2.0∅, 10x2 SATA DOM 7-pin SATA 7P Connector, 7x1 Power Connector 2-pin Terminal Block, 5.0∅, 2x1 SATA DOM Power 2-pin Box Header, 2.0∅, 1x2... -
Page 14: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J1: LCD (DVO) Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) J2: VGA Pin # Signal Name Pin # Signal Name R OUT... - Page 15 J3: LVDS (24-bit support only) Pin # Signal Name Pin # Signal Name VCC3(+3.3V) VCC3(+3.3V) RxIN0+ RxIN0- RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ RxIN3- GxIN3+ J4: SATA DOM Pin # Signal Name Pin # Signal Name J5: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J6: SATA DOM POWER...
- Page 16 J9: LAN1 (RJ45) Pin # Signal Name Pin # Signal Name ATX+ ATX- ARX+ LED0 LED0+ ARX- LED1+ LED1 J10: LAN2 Pin # Signal Name Pin # Signal Name ATX+ ATX- ARX+ LED0 LED0+ ARX- LED1+ LED1 J11: USB 0&1 Pin # Signal Name Pin #...
- Page 17 GP65/SDA_D1 GP75 GP66/SDA_CD GP76 GP67/SDA_WP GP77 *GPIO will be occupied if onboard eMMC is selected *Not available on model VDX2-6524-CF J15: RESET Pin # Signal Name Pin # Signal Name RST_SW J17: COM1 RS232 / 485 D-SUB 9 pin (Optional: TTL / GPIO-P4)
- Page 18 J20: COM5 RS232 (Optional: TTL / GPIO-P0) Pin # Signal Name Pin # Signal Name DCD5 RXD5 TXD5 DTR5 DSR5 RTS5 CTS5 J22: COM6 RS232 (Optional: TTL / GPIO-P1) Pin # Signal Name Pin # Signal Name DCD6 RXD6 TXD6 DTR6 DSR6 RTS6...
- Page 19 J24A: PC104 Connector – 64pin Pin # Signal Name Pin # Signal Name IOCHCHK* RESETDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW* SA19 SMEMR* SA18 IOW* SA17 IOR* SA16 DACK3* SA15 DRQ3 SA14 DACK1* SA13 DRQ1 SA12 REFRESH* SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5...
- Page 20 J24B: PC104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16* SBHE* IOCS16* SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0* SA17 DRQ0 MEMR* DACK5* MEMW* DRQ5 DACK6* DRQ6 SD10 DACK7* SD11 DRQ7 SD12 SD13 MASTER*...
- Page 21 *No onboard SPI ROM if Touch Screen function is chosen J31: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT * Not available on model of VDX2-6524-CF Vortex86DX2-6524 Vortex86DX2™ Half-Size CPU Module...
-
Page 22: System Mapping
System Mapping Vortex86DX2-6524 Vortex86DX2™ Half-Size CPU Module... - Page 23 Vortex86DX2-6524 Vortex86DX2™ Half-Size CPU Module...
- Page 24 Vortex86DX2-6524 Vortex86DX2™ Half-Size CPU Module...
- Page 25 Vortex86DX2-6524 Vortex86DX2™ Half-Size CPU Module...
-
Page 26: Watchdog Timer
All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. 16 channels GPIO of VDX2-6524 are associated with GPIO port 6 and port 7. Here are registers information of GPIO Port 6 / 7 for your reference. -
Page 27: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 28: Chapter 3 Driver Installation
Chapter 3 Driver Installation The Vortex86DX2 processor integrated a 2D VGA chip within. It is capable in providing VGA display resolution up to 1280x1024 and also supports TFT/ LVDS flat panel resolution up to 1024x768 while share system memory of 16MB/ 32MB. The Vortex86DX2 processor also integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet. -
Page 29: Appendix
Appendix TFT Flat Panel Data Output Vortex86DX2-6524 Vortex86DX2™ Half-Size CPU Module... -
Page 30: Tft Flat Panel Support List
TFT Flat Panel Support List Size Brand Resolution Model No. 3.5” Planar 160x120 EL320.240.36-HB 5.7” Planar 320x240 EL160.120.39 5.7” TOSHIBA 320x240 LTA057A343F 5.7” Sharp 320x240 (QVGA/VGA) LQ057Q3DC02 5.7” Data Image 640x480 FG050710DSSWJG01/DG01 5.7” Ampire 640x480 AM-640480GTMQW-T00H 6.4” 640x480 PD064VT5 6.4” 640x480 LB064V02 6.5”... -
Page 31: Lvds Flat Panel Support List
LVDS Flat Panel Support List Onboard LVDS connector ONLY supports 24-bit LVDS Panel Please use ICOP–0096 to work with 18-bit LVDS Panel ICOP–0096 : 18-bit TFT to LVDS converter and Cable-LVDS-30 Approved LVDS Flat Panel List Size Brand Resolution Model No. 3.5”... -
Page 32: Flat Panel Wiring And Lighting
D. Flat Panel Wiring and Lighting Hardware Before you connect TFT LCD Flat Panel with VDX2-6525, please make sure if the input Voltage of LCD is + 3.3V or Not. BIOS Please contact or e-mail our regional sales to get special BIOS for any TFT LCD Flat Panels. -
Page 33: Tcp/Ip Library For Dos Real Mode
TCP/IP library for DOS real mode DSock is a TCP/IP library for DOS real mode, which is used by RSIP. It provides simple C functions for programmer to write Internet applications. ICOP also provide Internet examples using DSock: BOOTP/DHCP, FTP server, SMTP client/server, HTTP server, TELNET server, Talk client/server, etc. -
Page 34: Bios Default Setting
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 35: Warranty
Warranty This product is warranted to be in a good working condition for a period of one year from the date of purchase. Should this product fail to be in good working condition at any time during this time period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
