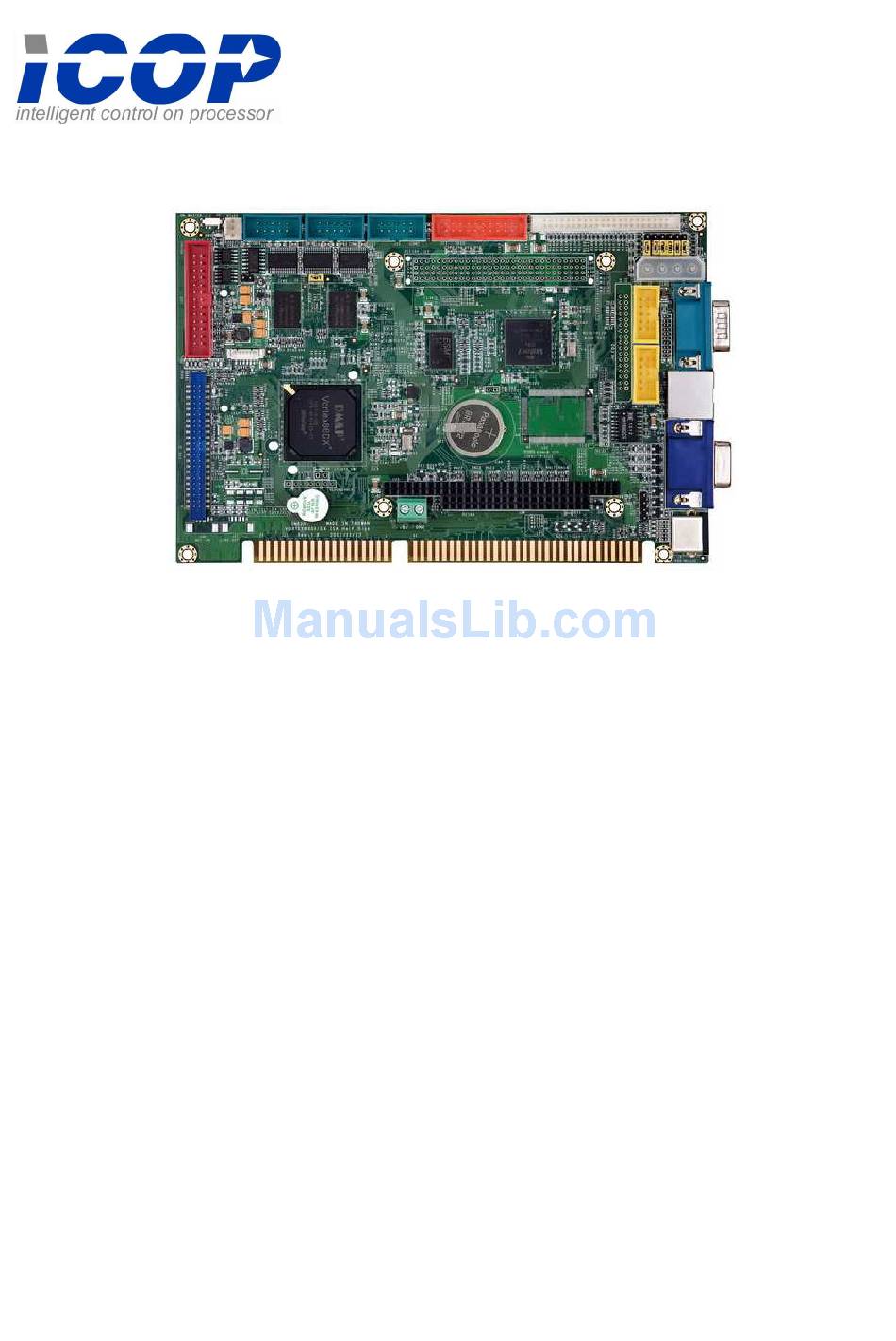

- Page 1 Full 16-bit ISA Bus VDX-6324RD DM&P Vortex86DX 800MHz Half-Size CPU Module with 4S/4USB/VGA/LCD/LAN/GPIO/PWMx16 256MB DDR2 Onboard User’s Manual (Revision 1.2A)
-
Page 2: Trademarks Acknowledgment
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2008 ICOP Technology Inc. -
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description .......... - Page 4 This page is blank...
-
Page 5: Packing List
Product Name Package Embedded Vortex86DX CPU All-in-One Board RS232 cable x 3 PRINT cable x1 VDX-6324RD IDE cable x 1 USB cable x 2 (USB port x 2 GPIO cable x 1 YKB for PS/2 Keyboard & Mouse x 1 Vortex86DX-6324RD Vortex86DX™... -
Page 6: Product Description
VDX-6324RD is suitable for broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human machine interface, Robotics, machinery control and more…application that required small footprint, low-power and low-cost hardware with open industry standard such as Half-Size. -
Page 7: Specifications
Specifications Features VDX-6324 DM&P SoC CPU Vortex86DX- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache, L2 Cache 128KB Cache AMI BIOS BIOS PC/104 Standard Compliant (Optional: PCI-104) Bus Interface 256 /512MB DDR2 onboard System Memory Software programmable from 30.5 us to 512 seconds x2 Watchdog Timer sets(W atchdog 1 fully compatible with M6117D) XGI Volari Z9s Chipset... - Page 8 2.54mm ∅ 26-pin box header for Print x1 Connectors 2.54mm ∅ 10-pin box header for RS-232 x3 2.54mm ∅ 10-pin box header for USB x2 2.54mm ∅ 20-pin box header for 16-bit GPIO x1 2.54mm ∅ 3-pin header for RS-485 x1 2.54mm ∅...
-
Page 9: Board Dimension
Board Dimension Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module... -
Page 10: Chapter 2 Installation
C h a p t e r 2 C h a p t e r 2 C h a p t e r 2 C h a p t e r 2 Installation Board Outline COM2 RS-485 RS-232/422/485 Display Type COM4 COM3 GPIO... -
Page 11: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module... - Page 12 Jumpers & LEDs Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module...
-
Page 13: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. 44-pin Box Header, 2.0∅ , 22x2 USB1 10-pin Box Header, 2.54∅ , 5x2 USB2 10-pin Box Header, 2.54∅ , 5x2 JTAG 6-pin Wafer, 1.25∅ , 6x1 Reset 2-pin Pin Header, 2,54∅,1x2 Redundancy (Optional) 7-pin... - Page 14 J41 Console Redirection (Optional) 2-pin Pin Header, 2,54∅,1x2 PWR-L Power Active LED (Red) LED-SMD IDE- IDE Active LED (Green ) LED-SMD MTBF- MTBF-Out (Orange) LED-SMD CF1 Compact Flash 50-pin Type I/II CF Connector SP1 BUZZER Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module...
-
Page 15: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0... - Page 16 J3: USB 2 Pin # Signal Name Pin # Signal Name LUSBD2- LUSBD3- LUSBD2+ LUSBD3+ GGND GGND J4: JTAG Pin # Signal Name Pin # Signal Name J5: RESET Pin # Signal Name Pin # Signal Name Reset J6: Redundancy (Optional) Pin # Signal Name Pin # Signal Name...
- Page 17 J8: PS/2 KBD / Mouse Pin # Signal Name Pin # Signal Name KBCLK MSCLK KBDAT MSDAT J9: COM 1 (Optional: TTL/ GPIO-P4 / PWMx8) Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 J10: COM2 RS232 / RS422 / RS485 (Optional: TTL) Pin # Signal Name...
- Page 18 J11: GPIO (Port 0 / Port 1/PWMx16) Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13 GP04 GP14 GP05 GP15 GP06 GP16 GP07 GP17 J12: RS485 (Auto direction) Pin # Signal Name RS485＋ RS485－...
- Page 19 J18: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J19: COM3 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 J20: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT-...
- Page 20 J22: PC104 Connector – 64pin Pin # Signal Name Pin # Signal Name IOCHCHK * RESETDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12...
- Page 21 J24: PC104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16 * SBHE * IOCS16 * SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6...
- Page 22 J27: PC/104 + (Optional) VI/O setting: +5V only If you need to use VI/O as +3.3V, please use VDX-6324-FD-Plus Pin # AD00 VI/O(+5V) AD02 AD01 AD05 AD04 AD03 C/BE0# AD07 AD06 AD09 AD08 AD11 VI/O(+5V) AD10 AD14 AD13 AD12 +3.3V C/BE1# AD15 +3.3V...
- Page 23 J28: VGA (D-Sub connector) Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT DDCDAT HSYNC VSYNC DDCCLK J29: LCD Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) Vortex86DX-6324RD Vortex86DX™...
- Page 24 J30~J35: Display type setup (CRT /LCD) Connector Pin # Signal Name GPIOA GPIOB GPIOC GPIOD GPIOE GPIOF (Please refer to Appendix D, for Display type setup) J36: LAN Pin # Signal Name Pin # Signal Name Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module...
- Page 25 J37: LINE OUT (Optional) Pin # Signal Name LOUTR LOUTL J38: MIC-IN (Optional) Pin # Signal Name MICVREF MIC-IN J39: JTAG Disable (Default setting Pin 1 & Pin 2 short) Pin # Signal Name Pin # Signal Name JTAG Disable J41: Console Redirection (Optional: Pin 1 &...
-
Page 26: System Mapping
System Mapping Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module... - Page 27 Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module...
- Page 28 Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module...
-
Page 29: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and the new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 30: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 31: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 32: Pwm
PWM (Pulse-width modulation) Pulse-width modulation (PWM) of a signal or power source involves the modulation of its duty cycle, to either convey information over a communications channel or control the amount of power sent to a load. The popular applications of pulse width modulation are in speed control of electric motors, volume control of Class D audio amplifiers or brightness control of light sources and many other power electronics applications. -
Page 33: Ide To Sd
IDE to SD (Micro-SD) Vortex86DX SoC also built-in simulation circuit to adapt SD to IDE in order to allow your system to recognize Micro-SD card as C: or D: Driver SD-1917: 44 pins IDE to SD Adapter is an ideal solution for industrial PC or embedded system and 44 pins IDE to SD Adapter can be easily installed on all VDX-63xx CPU boards. -
Page 34: Chapter 3 Driver Installation
The controller supports: Half / Full-Duplex Ethernet function to double channel bandwidth, auto media detection. Operating system support The VDX-6324RD ISA CPU board supports Embedded software: Free DOS, DOS 6.22, PCDOS 7.1, DR-DOS,x-DOS,OS/2,Windows CE 6.0, Windows 98, Windows XP Professional, Windows Embedded standard (XPE) and Windows 2000 (SP4). -
Page 35: Appendix
Appendix TFT Flat Panel Data Output Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module... -
Page 36: Tft Flat Panel Support List
TFT Flat Panel Support List Size Brand Resolution Model No. 5.7” Data image 320x240 FG050701DSSWBG01 5.7” Optrex 320x240 55264GD057J-FW-ABN 5.7” TOSHIBA 320x240 LTA057A343F 5.7” Sharp 320x240 (QVGA / VGA) LQ057Q3DC02 5.7” Kyocera 320x240 (QVGA / VGA) TCG057QV1AC-G10 5.7” 320x240 (QVGA / VGA) PD057VU4 /U5 5.7”... - Page 37 Vortex86DX-6324RD Vortex86DX™ Half-Size CPU Module...
- Page 38 Size Brand Resolution Model No. 8” 800x600 (TFT 24bits) A080SN01 V0 8.4” Sharp 800x600 LQ084S3DG01 10.4” 640x480 PD104VT1/VT2 10.4” 640x480 NL6448AC33-18 10.4” 640x480 NL6448AC33-29 10.4” 640x480 NL6448BC33-59 10.4” Sharp 640x480 LQ104V1DG51/DG61 10.4” Sharp 640x480 LQ10d368 11” Sharp 800x480 LQ110Y3DG01 12.1” 800x600 NL8060BC31-01 Vortex86DX-6324RD...
-
Page 39: Lvds Flat Panel Support List
LVDS Flat Panel Support List If you would like to use LVDS Flat Panel with Vortex86SX / Vortex86DX series, please contact our regional sales to get ICOP-0096 information or visit ICOP website: http://www.icop.com.tw/pddetail.aspx?id=65&pid=4 ICOP–0096 : 18-bit TFT to LVDS converter and Cable-LVDS-30: LVDS Cable 30cm Approved LVDS Flat Panel List Size Brand... -
Page 40: Flat Panel Hardware Setting
D. Flat Panel Hardware Setting: The VDX-6324RD offers the Hardware setting for the various TFT LCD Flat Panels support and please make sure the jumper setting (J30~J35) before you connect the LCD. Display type setup Connector Note: "C" means close; "X" means open Vortex86DX-6324RD Vortex86DX™... -
Page 41: Flat Panel Wiring And Lighting
E. Flat Panel Wiring and Lighting Hardware Before you connect the TFT LCD Flat Panel with VDX-6324RD, please make sure that the input Voltage of LCD is +3.3V. BIOS Please contact or e-mail our regional sales to get the special BIOS for any TFT LCD Flat Panels. -
Page 42: Tcp/Ip Library For Dos Real Mode
TCP/IP library for DOS real mode DSock is a TCP/IP library for DOS real mode, which is used by RSIP. It provides simple C functions for programmer to write Internet applications. ICOP also provide Internet examples using DSock: BOOTP/DHCP, FTP server, SMTP client/server, HTTP server, TELNET server, Talk client/server, etc. -
Page 43: Bios Default Setting
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 44: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
