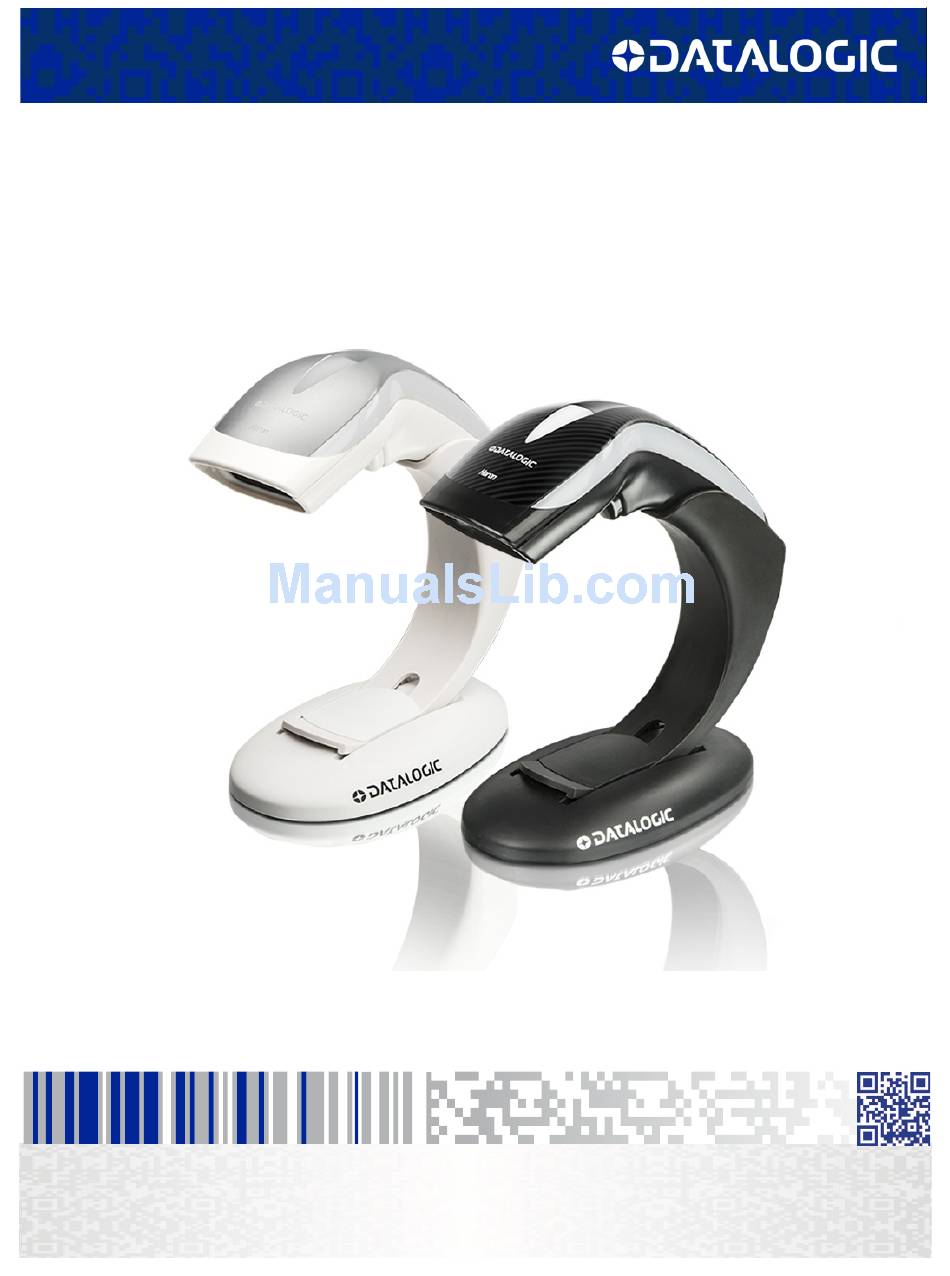

Heron™ HD3430
2D Area Imager
Product Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heron HD3430 and is the answer not in the manual?

Questions and answers

Summary of Contents for Datalogic Heron HD3430

  • Page 1 Heron™ HD3430 2D Area Imager Product Reference Guide...
  • Page 2 Datalogic S.p.A. or its subsidiaries or affili- ates ("Datalogic"). Owners of Datalogic products are hereby granted a non-exclusive, revo- cable license to reproduce and transmit this documentation for the purchaser's own internal business purposes.
  • Page 3: Table Of Contents

    Setting Up the Scanner ..............................5 Connect Host Interface ............................6 Stand Installation ..............................8 Using as a Hands-Free Stand ..........................9 Using the Heron HD3430 Imager ..........................11 Interface Selection ................................13 Configuring the Interface ............................13 Customizing Configuration Settings ..........................16 Using the Programming Bar Codes ........................16 Interface Settings ..............................
  • Page 4 Setup on PC to use ALT Universal ........................40 Setting Country Mode ............................41 Setting Encoding Type ............................55 Setting ALT output type ............................62 Caps Lock State ................................63 Numlock ................................... 63 Keyboard Numeric Keypad ............................64 Keyboard Send Control Characters ..........................65 Wedge Quiet Interval ..............................
  • Page 5 Introduction ................................... 113 Standard Factory Settings for Symbologies ......................113 Disable All Symbologies ............................... 114 Coupon Control ................................114 UPC-A ..................................... 115 UPC-A Enable/Disable ............................115 UPC-A Check Character Transmission ....................... 115 Expand UPC-A to EAN-13 ........................... 116 UPC-A Number System Character Transmission ..................... 116 UPC-E .....................................
  • Page 6 Interleaved 2 of 5 CIP HR Enable/Disable ......................156 Datalogic 2 of 5 ................................157 Datalogic 2 of 5 Enable/Disable ......................... 157 Datalogic 2 of 5 Check Character Calculation ....................157 Datalogic 2 of 5 Check Character Transmission ....................158 Datalogic 2 of 5 Length Control .......................... 158 Datalogic 2 of 5 Set Length 1 ..........................
  • Page 7 IATA ....................................182 IATA Enable/Disable ............................182 IATA Check Character Transmission ........................182 ISBT 128 ..................................183 ISBT 128 Concatenation ............................183 ISBT 128 Concatenation Mode ........................... 183 ISBT 128 Dynamic Concatenation Timeout ....................... 184 ISBT 128 Force Concatenation ..........................185 ISBT 128 Advanced Concatenation Options ......................
  • Page 8 Micro QR Code ................................225 Micro QR Code Enable/Disable .......................... 225 Micro QR Code Length Control ........................... 225 UCC Composite ................................228 UCC Composite Enable / Disable ........................228 UCC Optional Composite Timer .......................... 229 Postal Code Selection ..............................230 Postnet BB Control ..............................
  • Page 9: Introduction

    A successful read is signaled by an audible tone or a jingle (previously uploaded), plus a good-read green spot. The side and upper illuminators become green (unless another color has been configured with Datalogic Alad- din™ configurator). Once the reader is correctly inserted into the stand, it is immediately ready to automatically read any code present in its reading area without pressing the trigger.
  • Page 10: About This Manual

    Programming can alternatively be performed using the Datalogic Aladdin™ Configuration application, which is available from the Datalogic website listed on the back cover of this manual. This multi-platform utility program allows device configuration using a PC. It communicates to the device using a serial or USB cable and can also create configuration bar codes to print.
  • Page 11: Manual Conventions

    Telephone Technical Support If you do not have internet or email access, you may contact Datalogic technical support at (541) 349-8283 or check the back cover of your manual for more contact information.
  • Page 12 Introduction NOTES Heron™ HD3430...
  • Page 13: Setup

    Chapter 2 Setup Unpacking Check carefully to ensure the scanner and any cables or accessories ordered are present and undamaged. If any damage occurred during shipment, contact Technical Support on page 3. KEEP THE PACKAGING. Should the unit ever require service, it should be returned in its original shipping container.
  • Page 14: Connect Host Interface

    Setup Connect Host Interface The scanner kit you ordered to match your interface should provide a compati- ble cable for your installation. If this is not so, contact Technical Support. The scanner can communicate using the following interfaces: RS-232 Serial Connection Turn off power to the terminal/PC and connect the scanner to the terminal/PC serial port via the RS-232 cable as shown in Figure 3.
  • Page 15 Setting Up the Scanner Figure 3. Connection to the Host Keyboard Wedge RS-232 Specific cables are required for connection to different hosts. The connec- tions illustrated in Figure 3 are examples only. Actual connectors may vary from those illustrated, but the steps to connect the scanner remain the NOTE same.
  • Page 16: Stand Installation

    Setup Stand Installation The stand can be affixed to a flat Screws surface such as a desk or countertop. If needed, it can also be easily removed. To install the stand: 1. Remove the protective film from the rubber feet and adhere them to the corresponding recessed areas on the bottom surface of the stand.
  • Page 17: Using As A Hands-Free Stand

    Using as a Hands-Free Stand The Heron HD3430 Stand can be used as a hands-free stand. Once the reader is correctly inserted into the stand, it is immediately ready to automatically read any code present in its reading area without pressing the trigger.
  • Page 18 Setup Adjusting the Stand Position The stand can easily be adjusted to change the inclination of the reader while in the stand. To adjust the stand: 1. With fingers, loosen the screw on the bottom of the stand by turning it counterclockwise.
  • Page 19: Using The Heron Hd3430 Imager

    Using the Heron HD3430 Imager Using the Heron HD3430 Imager The Heron™ HD34XX normally functions by capturing and decoding codes. The aiming system is activated on trigger pull and indicates the center of the field of view which should be positioned over the bar code:...
  • Page 20 Setup A beam illuminates the label. The projected pattern of the aiming system will be smaller when the reader is closer to the bar code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit.
  • Page 21: Interface Selection

    Interface Selection Interface Selection Upon completing the physical connection between the scanner and its host, proceed directly to "Configuring the Interface" on page 13 for information and programming for the interface type the scanner is connected to (for example: RS-232, Keyboard Wedge, USB, etc.) and scan the appropriate bar code in that section to select your system’s correct interface type.
  • Page 22 USB Com to simulate RS-232 standard interface Select USB-COM-STD USB-OEM FEATURES $P,HA45,P  Set USB-OEM Interface USB-OEM Features (can be used for OPOS/UPOS/JavaPOS) starting on page 71 Select USB-OEM a. Download the correct USB Com driver from www.datalogic.com Heron™ HD3430...
  • Page 23 Interface Selection KEYBOARD FEATURES $P,HA29,P  AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Standard Key Encoding Select KBD-AT $P,HA11,P  Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK $P,HA26,P ...
  • Page 24: Customizing Configuration Settings

    Datalogic Aladdin™ is a multi-platform utility program providing a quick and user-friendly configuration method via the RS-232/USB-COM interface. The Aladdin utility is available on the Datalogic website. Aladdin allows you to pro- gram the scanner by selecting configuration commands through a user-friendly graphical interface running on a PC.
  • Page 25: Interface Settings

    Customizing Configuration Settings Interface Settings The scanner is typically factory-configured with a set of default features stan- dard to the interface type you ordered. See "Interface Selection" on page 13. Global Interface Features, starting on page 21 provides settings configurable by all interface types.
  • Page 26 Setup Resetting the Product Configuration to Defaults If you aren't sure what programming options are in your scanner, or you've changed some options and want to restore the Custom Default Configuration that may have been saved in the scanner, scan the Restore Custom Default Config- uration bar code below.
  • Page 27: Configuration Using Bar Codes

    Chapter 3 Configuration Using Bar Codes This and following sections provide programming bar codes to configure your scanner by changing the default settings. For details about additional methods of programming, see "Customizing Configuration Settings" on page You must first enable your scanner to read bar codes in order to use this section.
  • Page 28 Enter/Exit Programming Mode To program features: 1. Scan the ENTER/EXIT PROGRAMMING bar code, available at the top of each programming page, when applicable. 2. Scan the bar code to set the desired programming feature. You may need to cover unused bar codes on the page, and possibly the facing page, to ensure that the scanner reads only the bar code you intend to scan.
  • Page 29: Global Interface Features

    Enter/Exit Programming Mode Global Interface Features The following interface features are configurable by all interface types. To set features specific to your interface, turn to that section of this manual. — O OMMANDS GNORE on page 21 USB S USPEND on page 22 Host Commands —...
  • Page 30: Usb Suspend Mode

    Enter/Exit Programming Mode USB Suspend Mode This setting enables/disables the ability of the USB interface to enter suspend mode.  $CUSSE00 DEFAULT USB Suspend Mode = Disable $CUSSE01  USB Suspend Mode = Enable Heron™ HD3430...
  • Page 31: Only Interface

    RS-232 ONLY Interface Enter/Exit Programming Mode RS-232 ONLY Interface Use the programming bar codes in this chapter if modifications to the standard RS-232 interface settings are necessary to meet your system’s requirements. Additional settings which apply to both the RS-232 and USB interfaces are available in Chapter 5, RS-232/USB-COM Interfaces.
  • Page 32: Data Bits

    Enter/Exit Programming Mode Data Bits Baud Rate (continued) $CR2BA04  Baud Rate = 19,200 $CR2BA05  Baud Rate = 38,400 $CR2BA06  Baud Rate = 57,600 $CR2BA07  Baud Rate = 115,200 Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data.
  • Page 33: Stop Bits

    RS-232 ONLY Interface Enter/Exit Programming Mode Stop Bits The stop bit(s) at the end of each transmitted character marks the end of trans- mission of one character and prepares the receiving device for the next charac- ter in the serial data stream. The number of stop bits selected (one or two) depends on the number the receiving terminal is programmed to accommo- date.
  • Page 34 Enter/Exit Programming Mode Parity $CR2PA01  Parity = Even $CR2PA02  Parity = Odd Heron™ HD3430...
  • Page 35: Handshaking Control

    RS-232 ONLY Interface Enter/Exit Programming Mode Handshaking Control The data interface consists of an RS-232 port designed to operate either with or without the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Handshaking Control includes the following options: •...
  • Page 36 RS-232 ONLY Interface NOTES Heron™ HD3430...
  • Page 37: Rs-232/Usb-Com Interfaces

    RS-232/USB-COM Interfaces Enter/Exit Programming Mode RS-232/USB-COM Interfaces The programming bar codes in this chapter allow modifications to the standard RS-232 and USB-Com interfaces. on page 29 TANDARD ACTORY ETTINGS on page 30 NTERCHARACTER ELAY on page 31 ASCII BEL on page 31 OT ON on page 32 ACK NAK O...
  • Page 38 Enter/Exit Programming Mode Intercharacter Delay Intercharacter Delay This parameter specifies the intercharacter delay between the end of one char- acter and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
  • Page 39: Beep On Not On File

    RS-232/USB-COM Interfaces Enter/Exit Programming Mode Beep On ASCII BEL When this parameter is enabled, the scanner issues a beep when a <BEL> char- acter is detected on the RS-232 serial line. <BEL> is issued to gain a user's attention to an illegal entry or other important event. $CR2BB00 ...
  • Page 40: Ack Nak Options

    Enter/Exit Programming Mode ACK NAK Options ACK NAK Options This enables/disables the ability of the scanner to support the RS-232 ACK/ NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
  • Page 41: Ack Character

    RS-232/USB-COM Interfaces Enter/Exit Programming Mode ACK Character This setting specifies an ASCII character or hex value to be used as the ACK character. ASCII characters or any hex value from 0 to 0xFF can be selected. See "ACK Character" on page 236 for more detailed programming instructions. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- acters.
  • Page 42: Ack Nak Timeout Value

    Enter/Exit Programming Mode ACK NAK Options ACK NAK Timeout Value This option specifies the amount of time the scanner waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
  • Page 43: Ack Nak Retry Count

    RS-232/USB-COM Interfaces Enter/Exit Programming Mode ACK NAK Retry Count This feature specifies the number of times the scanner retries a label transmis- sion due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries.
  • Page 44: Ack Nak Error Handling

    Enter/Exit Programming Mode ACK NAK Options ACK NAK Error Handling This feature specifies the method the scanner uses to handle receive errors detected while waiting for an ACK character from the host. Options are: • Ignore errors detected • Process error as valid ACK character •...
  • Page 45: Indicate Transmission Failure

    RS-232/USB-COM Interfaces Enter/Exit Programming Mode Indicate Transmission Failure This option enables/disables the scanner’s ability to sound an error beep to indicate a transmission failure while in ACK/NAK mode $CR2TF00  Indicate Transmission Failure = Disable Indication $CR2TF01  DEFAULT Indicate Transmission Failure = Enable Indication Disable Character Specifies the value of the RS-232 host command used to disable the scanner.
  • Page 46: Enable Character

    Enter/Exit Programming Mode Enable Character Enable Character Specifies the value of the RS-232 host command used to enable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. See "Enable Character" on page 241 for more detailed programming instructions Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- acters.
  • Page 47: Keyboard Interface

    Keyboard Interface Use the programming bar codes in this chapter to select options for USB Key- board and Wedge Interfaces. Reference Appendix B, for a listing of standard factory settings. Information about control character emulation which applies to keyboard interfaces is listed in Appendix E, Scancode Tables.
  • Page 48: Country Mode

    Enter/Exit Programming Mode Country Mode Country Mode This feature specifies the country/language supported by the keyboard. The Country Mode setting is ignored if the interface uses alternate key encod- ing. Setup on PC to use ALT Universal 1. Open Registry Edit 2.
  • Page 49: Setting Country Mode

    Keyboard Interface Enter/Exit Programming Mode Setting Country Mode $CKBCO00  DEFAULT United States $CKBCO01  French International (Belgian French) $CKBCO02  United Kingdom $CKBCO11  Danish $CKBCO0E  French (France) $CKBCO03  German $CKBCO04  Italian Product Reference Guide...
  • Page 50 Enter/Exit Programming Mode Country Mode Setting Country Mode (continued) $CKBCO0F  Norwegian $CKBCO09  Portuguese Portugal $CKBCO0A  Spanish $CKBCO0B  Swedish $CKBCO13  Swiss French $CKBCO14  Japanese ASCII  $CKBCO13 Hungarian Heron™ HD3430...
  • Page 51 Keyboard Interface Enter/Exit Programming Mode Setting Country Mode (continued) $CKBCO0F  Czech $CKBCO09  SlovaK $CKBCO0A  Romanian $CKBCO0B  Croatian $CKBCO13  Polish_214 $CKBCO14  Canadian French Win7  $CKBCO13 Lithuanian Product Reference Guide...
  • Page 52 Enter/Exit Programming Mode Country Mode Setting Country Mode (continued) $CKBCO0F  Vietnamese $CKBCO09  Russian $CKBCO0A  Arabic 101 $CKBCO0B  Chinese ASCII $CKBCO13  Thai-Kedmanee $CKBCO14  Albanian  $CKBCO13 Arabic 102 Heron™ HD3430...
  • Page 53 Keyboard Interface Enter/Exit Programming Mode Setting Country Mode (continued) $CKBCO0F  Arabic 102 AZERTY $CKBCO09  Azeri Cyrillic $CKBCO0A  Azeri Latin $CKBCO0B  Belarusian $CKBCO13  Bosnian Cyrillic $CKBCO14  Bosnian Latin  $CKBCO13 Bulgarian Cyrillic Product Reference Guide...
  • Page 54 Enter/Exit Programming Mode Country Mode Setting Country Mode (continued) $CKBCO0F  Bulgarian Latin $CKBCO09  Canadian French (Legacy) $CKBCO0A  Canadian Multilingual $CKBCO0B  Chinese (Simplified)  $CKBCO13 Chinese (Traditional) $CKBCO14  Czech Programmers $CKBCO13  Czech QWERTY Heron™ HD3430...
  • Page 55 Keyboard Interface Enter/Exit Programming Mode Setting Country Mode (continued) $CKBCO0F  Dutch Netherland $CKBCO09  Estonian $CKBCO0A  Faeroese $CKBCO0B  Finnish $CKBCO13  French (Canada) 2000/XP $CKBCO14  French (Canada) 95/98  $CKBCO13 Galician Product Reference Guide...
  • Page 56 Enter/Exit Programming Mode Country Mode Setting Country Mode (continued) $CKBCO0F  Greek $CKBCO09  Greek Latin $CKBCO0A  Greek Polytonic $CKBCO0B  Greek220 $CKBCO13  Greek220 Latin $CKBCO14  Greek319  $CKBCO13 Greek319 Latin Heron™ HD3430...
  • Page 57 Keyboard Interface Enter/Exit Programming Mode Setting Country Mode (continued) $CKBCO0F  Hebrew Israel $CKBCO09  Hungarian_101KEY $CKBCO0A  Icelandic $CKBCO0B  Irish $CKBCO13  Italian_142 $CKBCO14  Japanese (Shift-JIS)  $CKBCO13 Kazakh Product Reference Guide...
  • Page 58 Enter/Exit Programming Mode Country Mode Setting Country Mode (continued) $CKBCO0F  Korean (Hangul) $CKBCO09  Korean ASCII $CKBCO0A  Kyrgyz Cyrillic $CKBCO0B  Latin America $CKBCO13  Latvian $CKBCO14  Latvian QWERTY  $CKBCO13 Lithuanian_IBM Heron™ HD3430...
  • Page 59 Keyboard Interface Enter/Exit Programming Mode Setting Country Mode (continued) $CKBCO0F  Macedonian -FYROM $CKBCO09  Maltese_47KEY $CKBCO0A  Mongolian-Cyrillic $CKBCO0B  Polish Programmer  $CKBCO13 Portuguese Brazil  $CKBCO14 Portuguese Brazilian ABNT  $CKBCO13 Portuguese Brazilian ABNT2 Product Reference Guide...
  • Page 60 Enter/Exit Programming Mode Country Mode Setting Country Mode (continued) $CKBCO0F  Romanian Legacy $CKBCO09  Romanian Programmer $CKBCO0A  Romanian Standard $CKBCO0B  Russian Typewriter $CKBCO13  Serbian Cyrillic $CKBCO14  Serbian Latin  $CKBCO13 Slovak QWERTY Heron™ HD3430...
  • Page 61 Keyboard Interface Enter/Exit Programming Mode Setting Country Mode (continued) $CKBCO0F  Slovenian $CKBCO09  Spanish Variation $CKBCO0A  Swiss German $CKBCO0B  Tatar $CKBCO13  Turkish F $CKBCO14  Turkish Q  $CKBCO13 Ukrainian Product Reference Guide...
  • Page 62 Enter/Exit Programming Mode Country Mode Setting Country Mode (continued) $CKBCO0F  US Dvorak $CKBCO09  US Dvorak Left Hand $CKBCO0A  US Dvorak Right Hand $CKBCO0B  US English (Mac) $CKBCO13  US English (North American) $CKBCO14  US International ...
  • Page 63: Setting Encoding Type

    Keyboard Interface Enter/Exit Programming Mode Setting Encoding Type $CKBCO00  DEFAULT Don’t use encoding $CKBCO01  UTF_8 $CKBCO02  Windows 874 $CKBCO11  Windows 932 $CKBCO0E  Windows 936 $CKBCO03  Windows 949 $CKBCO04  Windows 950 Product Reference Guide...
  • Page 64 Enter/Exit Programming Mode Country Mode Setting Encoding Type (continued) $CKBCO03  Windows 1250 $CKBCO09  Windows 1251 $CKBCO0A  Windows 1252  $CKBCO0B Windows 1253  $CKBCO13 Windows 1254 $CKBCO14  Windows 1255 $CKBCO13  Windows 1256 Heron™ HD3430...
  • Page 65 Keyboard Interface Enter/Exit Programming Mode Setting Encoding Type (continued) $CKBCO0F  Windows 1257 $CKBCO09  Windows 1258 $CKBCO0A  Windows 20866 $CKBCO0B  ISO 8859-1 $CKBCO13  ISO 8859-2 $CKBCO14  ISO 8859-3  $CKBCO13 ISO 8859-4 Product Reference Guide...
  • Page 66 Enter/Exit Programming Mode Country Mode Setting Encoding Type (continued) $CKBCO0F  ISO 8859-5  $CKBCO09 ISO 8859-6 $CKBCO0A  ISO 8859-7 $CKBCO0B  ISO 8859-8 $CKBCO13  ISO 8859-9  $CKBCO14 ISO 8859-10 $CKBCO13  ISO 8859-11 Heron™ HD3430...
  • Page 67 Keyboard Interface Enter/Exit Programming Mode Setting Encoding Type (continued) $CKBCO0F  ISO 8859-13 $CKBCO09  ISO 8859-14 $CKBCO0A  ISO 8859-15 $CKBCO0B  ISO 8859-16 $CKBCO13  MS-DOS 437 $CKBCO14  MS-DOS 737  $CKBCO13 MS-DOS 775 Product Reference Guide...
  • Page 68 Enter/Exit Programming Mode Country Mode Setting Encoding Type (continued) $CKBCO0F  MS-DOS 850 $CKBCO09  MS-DOS 852 $CKBCO0A  MS-DOS 855 $CKBCO0B  MS-DOS 857 $CKBCO13  MS-DOS 860 $CKBCO14  MS-DOS 861  $CKBCO13 MS-DOS 862 Heron™ HD3430...
  • Page 69 Keyboard Interface Enter/Exit Programming Mode Setting Encoding Type (continued) $CKBCO0F  MS-DOS 863 $CKBCO09  MS-DOS 865 $CKBCO0A  MS-DOS 866 $CKBCO0B  MS-DOS 869 $CKBCO13  Mac CP10000 Product Reference Guide...
  • Page 70: Setting Alt Output Type

    Enter/Exit Programming Mode Country Mode Setting ALT output type This option specifies the encode type of ALT Mode when the scanner sends Output Keyboard Data in Alt Mode. (Be aware that the scanner may switch auto- matically between ALT mode & Normal Keyboard Scancode, to correctly display some characters that are not present in the current Keyboard Country).
  • Page 71: Caps Lock State

    Keyboard Interface Enter/Exit Programming Mode Caps Lock State This option specifies the format in which the scanner sends character data. This applies to Keyboard Wedge interfaces. This does not apply when an alternate key encoding keyboard is selected. This does not apply to USB Keyboard. $CKBCL00 ...
  • Page 72: Keyboard Numeric Keypad

    Enter/Exit Programming Mode Keyboard Numeric Keypad Keyboard Numeric Keypad This feature specifies if numeric characters will be sent using the standard keys or the numeric keypad. $CKBKP00  DEFAULT Keyboard Numeric Keypad = Standard Keys $CKBKP01  Keyboard Numeric Keypad = Numeric Keypad Heron™...
  • Page 73: Keyboard Send Control Characters

    Keyboard Interface Enter/Exit Programming Mode Keyboard Send Control Characters This feature is used by the Keyboard Wedge and USB Keyboard interfaces. It specifies how the scanner transmits ASCII control characters to the host. Refer- ence Appendix E, Scancode Tables for more information about control charac- ters.
  • Page 74: Wedge Quiet Interval

    Enter/Exit Programming Mode Wedge Quiet Interval Wedge Quiet Interval This option specifies the amount of time to look for keyboard activity before the scanner breaks the keyboard connection in order to transmit data to host. The selectable range for this feature is from 0 to 990ms in 10ms increments. "Wedge Quiet Interval"...
  • Page 75: Intercharacter Delay

    Keyboard Interface Enter/Exit Programming Mode Intercharacter Delay This parameter specifies the intercharacter delay between the end of one char- acter and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
  • Page 76: Intercode Delay

    Enter/Exit Programming Mode Intercode Delay Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. See "Intercode Delay" on page 244 for more detailed programming instructions. $CKBID To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from the...
  • Page 77: Usb Keyboard Speed

    USB Keyboard Speed USB Keyboard Speed This option specifies the USB poll rate for a USB Keyboard. This feature applies ONLY to the USB Keyboard interface. NOTE  $CKBSP01 DEFAULT USB Keyboard Speed = 1ms  $CKBSP02 USB Keyboard Speed = 2ms $CKBSP03 ...
  • Page 78 Keyboard Interface Heron™ HD3430...
  • Page 79: Usb-Oem Interface

    USB-OEM Interface on page 71 NTRODUCTION on page 71 TANDARD ACTORY ETTINGS on page 72 USB-OEM D EVICE SAGE on page 72 USB-OEM I NTERFACE PTIONS Introduction Feature settings for USB interfaces differ depending upon which host type the scanner will be connected with. Use the feature settings in this chapter to spe- cifically configure for the USB-OEM interface.
  • Page 80: Usb-Oem Device Usage

    Enter/Exit Programming Mode USB-OEM Device Usage USB-OEM Device Usage The USB-OEM protocol allows for the scanner to be identified as one of two dif- ferent types of bar code scanners. Depending on what other scanners you may already have connected to a USB-OEM POS, you may need to change this setting to enable all devices to communicate.
  • Page 81: Data Format

    Data Format on page 74 LOBAL REFIX UFFIX on page 75 AIM ID LOBAL on page 75 GS1-128 AIM ID starting on page 76 ABEL Label ID: Pre-loaded Sets on page 76 • Label ID: Set Individually Per Symbology on •...
  • Page 82: Global Prefix/Suffix

    Enter/Exit Programming Mode Global Prefix/Suffix Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data). See "Global Prefix/Suffix" on page 246 for more detailed programming instructions.
  • Page 83: Global Aim Id

    Data Format Enter/Exit Programming Mode Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. NOTE AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. See "Global AIM ID"...
  • Page 84: Label Id

    Enter/Exit Programming Mode Label ID Label ID A Label ID is a customizable code of up to three ASCII characters (each can be one of hex 0x01-0xFF), used to identify a bar code (symbology) type. It can be appended previous to or following the transmitted bar code data depending upon how this option is enabled.
  • Page 85: Label Id: Set Individually Per Symbology

    Data Format Enter/Exit Programming Mode Label ID: Set Individually Per Symbology This feature configures a Label ID individually for a single symbology. This setting requires the scanning of bar codes from multiple sections. See "Label ID: Set Individually Per Symbology" on page 250 for more detailed programming instructions.
  • Page 86: Label Id Symbology Selection

    Enter/Exit Programming Mode Label ID Label ID Symbology Selection This option selects the symbology for which a Label ID is to be configured. See "Label ID: Set Individually Per Symbology" on page 250 for full instructions. $CABID Set UPC-A Label ID Character(s) $CA2ID Set UPC-A/P2 Label ID Character(s) $CA5ID...
  • Page 87 Data Format Enter/Exit Programming Mode Label ID Symbology Selection (continued) $C3BID Set EAN 13 Label ID Character(s) $C32ID Set EAN 13/P2 Label ID Character(s) $C35ID Set EAN 13/P5 Label ID Character(s) $C8BID Set EAN 8 Label ID Character(s) $C82ID Set EAN 8/P2 Label ID Character(s) $C85ID Set EAN 8/P5 Label ID Character(s) Product Reference Guide...
  • Page 88 Enter/Exit Programming Mode Label ID Label ID Symbology Selection (continued) $C4BID Set GS1 DataBar Omnidirectional Label ID Character(s) $CXBID Set GS1 DataBar Expanded Label ID Character(s) $CLBID Set GS1 DataBar Limited Label ID Character(s) $CC3ID Set Code 39 Label ID Character(s) $CP3ID Set Code 32 Label ID Character(s) $CCCID...
  • Page 89 Set Interleaved 2 of 5 Label ID Character(s) $CHRID Set Interleaved 2 of 5 CIP HR Label ID Character(s) $CD2ID Set Datalogic 2 of 5 CIP HR Label ID Character(s) $CCBID Set Codabar Label ID Character(s) $CACID Set ABC Codabar Label ID Character(s)
  • Page 90 Enter/Exit Programming Mode Label ID Label ID Symbology Selection (continued) $CC1ID Set Code 11 Label ID Character(s) $CS2ID Set Standard 2 of 5 Label ID Character(s) $CU2ID Set Industrial 2 of 5 Label ID Character(s) $CINID Set ISSN Label ID Character(s) $CIAID Set IATA Label ID Character(s) $CI8ID...
  • Page 91 Data Format Enter/Exit Programming Mode Label ID Symbology Selection (continued) $CF2ID Set Follett 2 of 5 Label ID Character(s) $CISID Set ISBN Label ID Character(s) $CI8ID Set Concatenated ISBT Label ID Character(s) Product Reference Guide...
  • Page 92: Case Conversion

    Enter/Exit Programming Mode Case Conversion Case Conversion This feature allows conversion of the case of all alphabetic characters to upper or lower case. Case conversion affects ONLY scanned bar code data, and does not affect Label ID, Prefix, Suffix, or other appended data. NOTE $CLFCA00...
  • Page 93: Reading Parameters

    Reading Parameters NABLE ISABLE NDICATOR on page 86 OUBLE IMEOUT page 102 on page 88 on page 102 LED C PEAKER NDICATORS OLOR on page 88 on page 104 LED C OWER LERT CANNER OLOR on page 90 on page 106 RGB G UDIO INGLE...
  • Page 94: Double Read Timeout

    Enter/Exit Programming Mode Double Read Timeout Double Read Timeout To prevent a double read of the same label, the Double Read Timeout sets the minimum time allowed between reads of labels of the same symbology and data. If the unit reads a label and sees the same label again within the Double Read Timeout, the second read of the label will be ignored.
  • Page 95 Reading Parameters Enter/Exit Programming Mode Double Read Timeout (continued) $CSNDR32  Double Read Timeout = 0.5 Second $CSNDR3C  DEFAULT Double Read Timeout = 0.6 Second $CSNDR46  Double Read Timeout = 0.7 Second $CSNDR50  Double Read Timeout = 0.8 Second $CSNDR5A ...
  • Page 96: Led And Speaker Indicators

    To upload a jingle in Aladdin: 1. Install Datalogic Aladdin™ (v 1.8.0.0.0 or later) on your computer. 2. Connect the scanner you want to program to the computer. 3. Use Device Autodetection to allow Aladdin to search for your reader, or click on Offline Configuration to select the file for your device.
  • Page 97 Reading Parameters Enter/Exit Programming Mode You will be prompted to specify a sound file to upload. The supported format of audio files is WAV uncompressed PCM. Best quality is obtained using stereo audio files with 16 bit encoding. Up to 15 jingles can be uploaded and programmed. Product Reference Guide...
  • Page 98: Audio Jingle Enable

    See below for parameters to define which preloaded Jingle to sound upon power-up or good read events. Additional items such as enter stand mode, exit stand mode, and error beep can also be programmed using Datalogic Aladdin.  $CAUEN00...
  • Page 99: Select Audio Jingle For Power-Up Event

    NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic Aladdin™ configuration utility, use this setting to specify which of the Jingles (1-15) or the built-in sound will be used to indicate scanner power-up. The built-in (default) sound for power-up is Dialtone.wav...
  • Page 100: Select Audio Jingle For Good Read Event

    "Audio Jingle Enable" on page 90 must be selected for this configuration item to take effect. NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic ™ Aladdin configuration utility, use this setting to designate which of the Jingles (1-15) will be sounded when the scanner performs a good read.
  • Page 101: Select Audio Jingle For Enter Stand Mode

    "Audio Jingle Enable" on page 90 must be selected for this configuration item to take effect. NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic ™ Aladdin configuration utility, use this setting to designate which of the Jingles (1-15) will be sounded when the scanner enters Stand Mode.
  • Page 102: Select Audio Jingle For Exit Stand Mode

    "Audio Jingle Enable" on page 90 must be selected for this configuration item to take effect. NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic ™ Aladdin configuration utility, use this setting to designate which of the Jingles (1-15) will be sounded when the scanner exits Stand Mode.
  • Page 103: Select Audio Jingle For Transmit Error Sound

    "Audio Jingle Enable" on page 90 must be selected for this configuration item to take effect. NOTE After uploading up to fifteen (15) Jingles to the scanner using the Datalogic ™ Aladdin configuration utility, use this setting to designate which of the Jingles (1-15) will be sounded when the scanner performs a good read.
  • Page 104: Good Read: When To Indicate

    Enter/Exit Programming Mode Audio Jingles Good Read: When to Indicate This feature specifies when the scanner will provide indication (beep or Jingle and/or LED) upon successfully reading a bar code. Choices are: • Good Read = Indicate after decode • Good Read = Indicate after transmit •...
  • Page 105: Good Read Beep Type

    Reading Parameters Enter/Exit Programming Mode Good Read Beep Type Specifies whether the good read beep has a mono or bitonal beep sound. $CBPTY00  DEFAULT Good Read Beep Type = Mono $CBPTY01  Good Read Beep Type = Bitonal Good Read Beep Frequency Adjusts the good read beep to sound at a selectable low, medium or high fre- quency, selectable from the list below.
  • Page 106: Good Read Speaker Volume

    Enter/Exit Programming Mode Audio Jingles Good Read Speaker Volume Selects the speaker volume (loudness) upon a good read Jingle or beep. There are three selectable volume levels. $CBPVO00  Good Read Speaker Volume = Speaker Off $CBPVO01  Good Read Speaker Volume = Low $CBPVO02 ...
  • Page 107: Good Read Beep Length

    Reading Parameters Enter/Exit Programming Mode Good Read Beep Length Specifies the duration of a good read beep. $CBPLE06  Good Read Beep Length = 60 msec $CBPLE08  DEFAULT Good Read Beep Length = 80 msec $CBPLE0A  Good Read Beep Length = 100 msec $CBPLE0C ...
  • Page 108 Enter/Exit Programming Mode Audio Jingles Good Read Beep Length (continued) $CBPLE12  Good Read Beep Length = 180 msec $CBPLE14  Good Read Beep Length = 200 msec Heron™ HD3430...
  • Page 109: Rgb Led Settings

    Idle mode. To set the RGB LEDs to a desired color and brightness: 1. Install Datalogic Aladdin™ (v 1.12.0.0.0 or later) on your computer. 2. Connect the scanner you want to program to the computer. 3. Select Device Autodetection > Search on Connection and follow instruc- tions to set up communication with the scanner.
  • Page 110: Enable/Disable Good Read Indicator

    Enter/Exit Programming Mode RGB LED Settings Enable/Disable Good Read Indicator Enable/Disable the good read indicator. $CRGBE00  Good Read Indicator = Disable $CRGBE01  DEFAULT Good Read Indicator = Enable Good Read LED Color Specifies the color of the RGB Good Read LED . $CRBCL00 ...
  • Page 111: Enable/Disable Body Illumination

    Reading Parameters Enter/Exit Programming Mode Enable/Disable Body Illumination Enable/Disable the Body Illumination when Scanner is in Idle mode. $CRGBE00  Body Illumination = Disable $CRGBE01  DEFAULT Good Read Indicator = Enable Product Reference Guide...
  • Page 112: Scanner Idle Led Color

    Enter/Exit Programming Mode RGB LED Settings Scanner Idle LED Color Specifies the color of the Idle LED . $CRBCL00  DEFAULT Color = Solid Blue $CRBCL01  Color = Solid Yellow $CRBCL02  Color = Solid Red $CRBCL01  Color = Solid Purple $CRBCL02 ...
  • Page 113: Rgb Good Read Raising Time

    Reading Parameters Enter/Exit Programming Mode RGB Good Read Raising Time Specifies the time it will take for the RGB good read to change the status from an Off state to Brightness state. "RGB Good Read Raising/Falling Time" on page 253 for more detailed program- ming instructions.
  • Page 114: Rgb Good Read Falling Time

    Enter/Exit Programming Mode RGB LED Settings RGB Good Read Falling Time Specifies the time for the RGB good read to change the status from the Bright- ness state to the Off state. "RGB Good Read Raising/Falling Time" on page 253 for more detailed program- ming instructions.
  • Page 115: Rgb Good Read Holding Time

    Reading Parameters Enter/Exit Programming Mode RGB Good Read Holding Time Specifies how long the RGB good read will stay in Brightness state. See "RGB Good Read Holding Time" on page 254 for more information. $CRBHT To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits from Appendix D, Keypad the Alphanumeric characters in...
  • Page 116: Rgb Auto Delay

    Enter/Exit Programming Mode RGB LED Settings RGB Auto Delay Specifies the delay time for running the RGB auto mode after the scanner has gone into an idle state (no label reading, label programming or communication with Host). The value 0x00 means Auto Mode is disabled. See "RGB Auto Delay Time"...
  • Page 117: Scanning Features

    Reading Parameters Enter/Exit Programming Mode Scanning Features Scan Mode "Scan Mode" on page 256 for more detailed programming instructions. $CSNRM00  DEFAULT Scan Mode = Trigger Single $CSNRM01  Scan Mode = Trigger Hold Multiple $CSNRM02  Scan Mode = Trigger Pulse Multiple $CSNRM03 ...
  • Page 118: Scanning Active Time

    Enter/Exit Programming Mode Scanning Features Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second increments.
  • Page 119: Flash On Time

    Reading Parameters Enter/Exit Programming Mode Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. See "Flash On Time" on page 258 for more detailed pro- gramming instructions.
  • Page 120: Stand Mode Sensitivity

    Reading Parameters 06 = Flash is OFF for 600ms DEFAULT Stand Mode Sensitivity Sets the sensitivity level for stand mode wakeup. Choices are low, medium and high. $CSMSE00  Stand Mode Sensitivity = Low  $CSMSE01 DEFAULT Stand Mode Sensitivity = Medium $CSMSE02 ...
  • Page 121: Pick Mode

    Scanning Features Pick Mode Specifies the ability of the reader to decode labels only when they are close to the center of the aiming pattern. This allows the reader to accurately target labels when they are placed close together, such as on a pick sheet. This feature is not compatible with Multiple Labels Reading in a Volume.
  • Page 122 Reading Parameters NOTES Heron™ HD3430...
  • Page 123: 1D Symbologies

    UPC-E on page 117 Interleaved 2 of 5 CIP HR on page 156 EAN 13 on page 120 Datalogic 2 of 5 on page 157 EAN 13 on page 120 (JAN 13) Codabar on page 161 EAN 8 on page 123 (JAN 8)
  • Page 124: Disable All Symbologies

    Enter/Exit Programming Mode Disable All Symbologies Disable All Symbologies Scan this label to disable all symbologies.  Disable all symbologies Coupon Control This feature is used to control the method of processing coupon labels. Options are: • Allow all — allow all coupon bar codes to be decoded •...
  • Page 125: Upc-A

    1D Symbologies Enter/Exit Programming Mode UPC-A The following options apply to the UPC-A symbology. UPC-A Enable/Disable When disabled, the scanner will not read UPC-A bar codes. $CABEN00  UPC-A = Disable $CABEN01  DEFAULT UPC-A = Enable UPC-A Check Character Transmission Enable this option to transmit the check character along with UPC-A bar code data.
  • Page 126: Expand Upc-A To Ean-13

    Enter/Exit Programming Mode UPC-A Expand UPC-A to EAN-13 Expands UPC-A data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CAB3B00  DEFAULT UPC-A to EAN-13 = Don’t Expand $CAB3B01 ...
  • Page 127: Upc-E

    1D Symbologies Enter/Exit Programming Mode UPC-E The following options apply to the UPC-E symbology. UPC-E Enable/Disable When disabled, the scanner will not read UPC-E bar codes. $CEBEN00  UPC-E = Disable $CEBEN01  DEFAULT UPC-E = Enable UPC-E Check Character Transmission Enable this option to transmit the check character along with UPC-E bar code data.
  • Page 128: Expand Upc-E To Ean-13

    Enter/Exit Programming Mode UPC-E Expand UPC-E to EAN-13 Expands UPC-E data to the EAN-13 data format. Selecting this feature also changes the symbology ID to match those required for EAN-13. $CEB3B00  DEFAULT UPC-E to EAN-13 = Don’t Expand  $CEB3B01 UPC-E to EAN-13 = Expand Expand UPC-E to UPC-A...
  • Page 129: Upc-E Number System Character Transmission

    1D Symbologies Enter/Exit Programming Mode UPC-E Number System Character Transmission This feature enables/disables transmission of the UPC-E system number char- acter. $CEBNS00  UPC-E Number System Character = Do not transmit  $CEBNS01 DEFAULT UPC-E Number System Character = Transmit Product Reference Guide...
  • Page 130: Ean 13

    Enter/Exit Programming Mode EAN 13 EAN 13 The following options apply to the EAN 13 (Jan 13) symbology. EAN 13 Enable/Disable When disabled, the scanner will not read EAN 13/JAN 13 bar codes. $C3BEN00  EAN 13 = Disable  $C3BEN01 DEFAULT EAN 13 = Enable...
  • Page 131: Ean-13 Flag 1 Character

    1D Symbologies Enter/Exit Programming Mode EAN-13 Flag 1 Character Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the first character of the label. $C3BF100  EAN-13 Flag 1 Char= Don’t transmit  $C3BF101 DEFAULT EAN-13 Flag 1 Char= Transmit EAN-13 ISBN Conversion This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978 to ISBN labels.
  • Page 132: Issn Enable/Disable

    Enter/Exit Programming Mode EAN 13 ISSN Enable/Disable Enables/disables conversion of EAN/JAN13 Bookland labels starting with 977 to ISSN labels. $C3BIN00  DEFAULT ISSN = Disable  $C3BIN01 ISSN = Enable Heron™ HD3430...
  • Page 133: Ean 8

    1D Symbologies Enter/Exit Programming Mode EAN 8 The following options apply to the EAN 8 (Jan 8) symbology. EAN 8 Enable/Disable When disabled, the scanner will not read EAN 8/JAN 8 bar codes. $C8BEN00  EAN 8 = Disable $C8BEN01 ...
  • Page 134: Expand Ean 8 To Ean 13

    Enter/Exit Programming Mode EAN 8 Expand EAN 8 to EAN 13 Enable this option to expand EAN 8/JAN 8 labels to EAN 13/JAN 13. $C8B3B00  DEFAULT Expand EAN 8 to EAN 13 = Disable $C8B3B01  Expand EAN 8 to EAN 13 = Enable Heron™...
  • Page 135: Upc/Ean Global Settings

    1D Symbologies Enter/Exit Programming Mode UPC/EAN Global Settings This section provides configuration settings for UPC-A, UPC-E, EAN 13 and EAN 8 symbologies, and affects all of these unless otherwise marked for each fea- ture description. UPC/EAN Price Weight Check This feature enables/disables calculation and verification of price/weight check digits.
  • Page 136: Add-Ons

    Enter/Exit Programming Mode Add-Ons Add-Ons The following features apply to optional add-ons. Contact Customer Support for advanced programming of optional and conditional add-ons. NOTE Optional Add-ons The scanner can be enabled to optionally read the following add-ons (supple- mentals): • •...
  • Page 137: Optional Add-On Timer

    1D Symbologies Enter/Exit Programming Mode Optional Add-On Timer This option sets the time the scanner will look for an add-on when an add-on fragment has been seen and optional add-ons are enabled. $CADOT01  Optional Add-on Timer = 10ms  $CADOT02 Optional Add-on Timer = 20ms $CADOT03...
  • Page 138: Gs1 Databar ™ Omnidirectional

    ™ Enter/Exit Programming Mode GS1 DataBar Omnidirectional ™ GS1 DataBar Omnidirectional The following options apply to the GS1 DataBar Omnidirectional (formerly RSS- 14) symbology. GS1 DataBar Omnidirectional Enable/Disable When disabled, the scanner will not read GS1 DataBar Omnidirectional bar codes. $C4BEN00 ...
  • Page 139: Gs1 Databar™ Expanded

    1D Symbologies Enter/Exit Programming Mode GS1 DataBar™ Expanded The following options apply to the GS1 DataBar Expanded (formerly RSS Expanded) symbology. GS1 DataBar Expanded Enable/Disable When disabled, the scanner will not read GS1 DataBar Expanded bar codes. $CXBEN00  DEFAULT GS1 DataBar Expanded = Disable $CXBEN01 ...
  • Page 140: Gs1 Databar Expanded Length Control

    Enter/Exit Programming Mode GS1 DataBar™ Expanded GS1 DataBar Expanded Length Control This feature specifies either variable length decoding or fixed length decoding for the GS1 DataBar Expanded symbology. For variable-length decoding, a minimum length may be set. Variable Length: For fixed-length decoding, two different lengths may be set. Fixed Length: $CXBLC00 ...
  • Page 141: Gs1 Databar Expanded Set Length 2

    1D Symbologies Enter/Exit Programming Mode GS1 DataBar Expanded Set Length 2 This feature specifies one of the bar code lengths for GS1 DataBar Expanded Length Control on page 130. Length 2 is the maximum label length if in Vari- able Length on page 130 Mode, or the second fixed length if in Fixed Length on page 130...
  • Page 142: Gs1 Databar™ Limited

    Enter/Exit Programming Mode GS1 DataBar™ Limited GS1 DataBar™ Limited The following options apply to the GS1 DataBar Limited (formerly RSS Limited) symbology. GS1 DataBar Limited Enable/Disable When disabled, the scanner will not read GS1 DataBar Limited bar codes. $CLBEN00  DEFAULT GS1 DataBar Limited = Disable $CLBEN01...
  • Page 143: Code 39

    1D Symbologies Enter/Exit Programming Mode Code 39 The following options apply to the Code 39 symbology. Code 39 Enable/Disable When disabled, the scanner will not read Code 39 bar codes. $CC3EN00  Code 39 = Disable $CC3EN01  DEFAULT Code 39 = Enable Product Reference Guide...
  • Page 144: Code 39 Check Character Calculation

    Enter/Exit Programming Mode Code 39 Code 39 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional Code 39 check character. When disabled, any check character in the label is treated as a data character $CC3CC00 ...
  • Page 145: Code 39 Check Character Transmission

    1D Symbologies Enter/Exit Programming Mode Code 39 Check Character Transmission Enable this option to transmit the check character along with Code 39 bar code data. $CC3CT00  Code 39 Check Character Transmission = Don’t Send $CC3CT01  DEFAULT Code 39 Check Character Transmission = Send Code 39 Start/Stop Character Transmission Enable this option to enable/disable transmission of Code 39 start and stop characters...
  • Page 146: Code 39 Full Ascii

    Enter/Exit Programming Mode Code 39 Code 39 Full ASCII In Code 39 decoding, this enables/disables the translation of Code 39 charac- ters to Code 39 full-ASCII characters. $CC3FA00  DEFAULT Code 39 Full ASCII = Disable $CC3FA01  Code 39 Full ASCII = Enable Heron™...
  • Page 147: Code 39 Quiet Zones

    1D Symbologies Enter/Exit Programming Mode Code 39 Quiet Zones This feature specifies the number of quiet zones for Code 39 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label. $CC3LO01 ...
  • Page 148: Code 39 Length Control

    Enter/Exit Programming Mode Code 39 Code 39 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 39 symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: ...
  • Page 149: Code 39 Set Length 1

    1D Symbologies Enter/Exit Programming Mode Code 39 Set Length 1 This feature specifies one of the bar code lengths for Code 39 Length Control on page 138. Length 1 is the minimum label length if in Variable Length on page 138 Mode, or the first fixed length if in Fixed Length on page 138 Mode.
  • Page 150: Code 39 Set Length 2

    Enter/Exit Programming Mode Code 39 Code 39 Set Length 2 This feature specifies one of the bar code lengths for Code 39 Length Control on page 138. Length 2 is the maximum label length if in Variable Length on page 138 Mode, or the second fixed length if in Fixed Length on page 138 Mode.
  • Page 151: Code 32 (Italian Pharmaceutical)

    1D Symbologies Enter/Exit Programming Mode Code 32 (Italian Pharmaceutical) The following options apply to the Code 32 symbology. Code 32 Enable/Disable When disabled, the scanner will not read Code 32 bar codes. $CP3EN00  DEFAULT Code 32 = Disable $CP3EN01 ...
  • Page 152: Code 32 Start/Stop Character Transmission

    Enter/Exit Programming Mode Code 39 CIP (French Pharmaceutical) Code 32 Start/Stop Character Transmission This option enables/disable transmission of Code 32 start and stop characters $CP3SS00  DEFAULT Code 32 Start/Stop Character Transmission = Don’t Trans- $CP3SS01  Code 32 Start/Stop Character Transmission = Transmit Code 39 CIP (French Pharmaceutical) The following options apply to the Code 39 CIP symbology.
  • Page 153: Code 128

    1D Symbologies Enter/Exit Programming Mode Code 128 The following options apply to the Code 128 symbology. Code 128 Enable/Disable When disabled, the scanner will not read Code 128 bar codes. $CC8EN00  Code 128 = Disable $CC8EN01  DEFAULT Code 128 = Enable Expand Code 128 to Code 39 This feature enables/disables expansion of Code 128 labels to Code 39 labels.
  • Page 154: Code 128 Check Character Transmission

    Enter/Exit Programming Mode Code 128 Code 128 Check Character Transmission Enable this option to transmit the check character along with Code 128 bar code data. $CC8CT00  DEFAULT Code 128 Check Character Transmission = Don’t Send $CC8CT01  Code 128 Check Character Transmission = Send Code 128 Function Character Transmission Enables/disables transmission of Code128 function characters 1, 2, 3, and 4.
  • Page 155: Code 128 Quiet Zones

    1D Symbologies Enter/Exit Programming Mode Code 128 Quiet Zones This feature specifies the number of quiet zones for Code 128 labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label. $CC8LO00 ...
  • Page 156: Code 128 Length Control

    Enter/Exit Programming Mode Code 128 Code 128 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 128 symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: ...
  • Page 157: Code 128 Set Length 1

    1D Symbologies Enter/Exit Programming Mode Code 128 Set Length 1 This feature specifies one of the bar code lengths for Code 128 Length Control on page 146. Length 1 is the minimum label length if in Variable Length on page 146 Mode, or the first fixed length if in Fixed Length on page 146 Mode.
  • Page 158: Code 128 Set Length 2

    Enter/Exit Programming Mode Code 128 Code 128 Set Length 2 This feature specifies one of the bar code lengths for Code 128 Length Control on page 146. Length 2 is the maximum label length if in Variable Length on page 146 Mode, or the second fixed length if in Fixed Length on page 146 Mode.
  • Page 159: Gs1-128

    1D Symbologies Enter/Exit Programming Mode GS1-128 The following options apply to the GS1-128 symbology. (Also known as USS- 128, GTIN-128, UCC-128.) GS1-128 Enable This option enables/disables the ability of the scanner to translate GS1-128 labels to the GS1-128 data format. Options are: •...
  • Page 160: Interleaved 2 Of 5 (I 2 Of 5)

    Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5) Interleaved 2 of 5 (I 2 of 5) The following options apply to the I 2 of 5 symbology. When reading this symbology, the settings for I 2 of 5 Length Control AND I 2 of 5 Check Character Calculation MUST be enabled to increase decoding safety.
  • Page 161: I 2 Of 5 Check Character Calculation

    1D Symbologies Enter/Exit Programming Mode I 2 of 5 Check Character Calculation This option enables/disables calculation and verification of an optional I 2 of 5 check character. $CI2CC00  DEFAULT I 2 of 5 Check Char Calc = Disable  $CI2CC01 I 2 of 5 Check Char Calc = Check Standard (Modulo 10)
  • Page 162: I 2 Of 5 Check Character Transmission

    Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Check Character Transmission Enable this option to transmit the check character along with I 2 of 5 bar code data. This feature is valid only when I 2 of 5 Check Character Calculation is enabled. NOTE $CI2CT00 ...
  • Page 163: I 2 Of 5 Length Control

    1D Symbologies Enter/Exit Programming Mode I 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the I 2 of 5 symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set.
  • Page 164: I 2 Of 5 Set Length 1

    Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5) I 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for I 2 of 5 Length Control on page 153. Length 1 is the minimum label length if in Variable Length on page Mode, or the first fixed length if in Fixed Length on page 158...
  • Page 165: I 2 Of 5 Set Length 2

    1D Symbologies Enter/Exit Programming Mode I 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for I 2 of 5 Length Control on page 153. Length 2 is the maximum label length if in Variable Length on page Mode, or the second fixed length if in Fixed Length on page 158...
  • Page 166: Interleaved 2 Of 5 Cip Hr

    Enter/Exit Programming Mode Interleaved 2 of 5 CIP HR Interleaved 2 of 5 CIP HR The following options apply to the Interleaved 2 of 5 CIP HR symbology. Interleaved 2 of 5 CIP HR Enable/Disable Enables/Disables ability of scanner to decode Interleaved 2 of 5 CIP HR labels. $CCHEN00 ...
  • Page 167: Datalogic 2 Of 5

    Enter/Exit Programming Mode Datalogic 2 of 5 The following options apply to the Datalogic 2 of 5 symbology. Datalogic 2 of 5 Enable/Disable When disabled, the scanner will not read Datalogic 2 of 5 bar codes. $CD2EN00  DEFAULT Datalogic 2 of 5 = Disable $CD2EN01 ...
  • Page 168: Datalogic 2 Of 5 Check Character Transmission

    Enter/Exit Programming Mode Datalogic 2 of 5 Datalogic 2 of 5 Check Character Transmission This option enables/disables transmission of an optional Datalogic 2 of 5 char- acter. $CD2CT00  Datalogic 2 of 5 Check Character Transmission = Don’t Send $CD2CT01 ...
  • Page 169: Datalogic 2 Of 5 Set Length 1

    End by scanning the ENTER/EXIT bar code again. Select Datalogic 2 of 5 Length 1 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
  • Page 170: Datalogic 2 Of 5 Set Length 2

    End by scanning the ENTER/EXIT bar code again. Select Datalogic 2 of 5 Length 2 Setting Make a mistake? Scan the CANCEL bar code to abort and not save the entry string. You can then start again at the beginning.
  • Page 171: Codabar

    1D Symbologies Enter/Exit Programming Mode Codabar The following options apply to the Codabar symbology. Codabar Enable/Disable When disabled, the scanner will not read Codabar bar codes. $CCBEN00  DEFAULT Codabar = Disable $CCBEN01  Codabar = Enable Codabar Check Character Calculation Enable this option to enables/disables calculation and verification of an optional Codabar check character.
  • Page 172: Codabar Check Character Transmission

    Enter/Exit Programming Mode Codabar Codabar Check Character Transmission Enable this option to transmit the check character along with Codabar bar code data. This feature is valid only when Codabar Check Character Calculation is enabled. NOTE $CCBCT00  Codabar Check Character Transmission = Don’t Send $CCBCT01 ...
  • Page 173: Codabar Start/Stop Character Set

    1D Symbologies Enter/Exit Programming Mode Codabar Start/Stop Character Set This option specifies the format of transmitted Codabar start/stop characters $CCBSC00  Codabar Check Character Set = ABCD/TN*E $CCBSC01  Codabar Check Character Set = ABCD/ABCD $CCBSC02  Codabar Check Character Set = abcd/tn*e $CCBSC03 ...
  • Page 174: Codabar Quiet Zones

    Enter/Exit Programming Mode Codabar Codabar Quiet Zones This feature specifies the number of quiet zones for Codabar labels. Quiet zones are blank areas at the ends of a bar code and are typically 10 times the width of the narrowest bar or space in the label. $CCBLO01 ...
  • Page 175: Codabar Length Control

    1D Symbologies Enter/Exit Programming Mode Codabar Length Control This feature specifies either variable length decoding or fixed length decoding for the Codabar symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: ...
  • Page 176: Codabar Set Length 1

    Enter/Exit Programming Mode Codabar Codabar Set Length 1 This feature specifies one of the bar code lengths for Codabar Length Control on page 165. Length 1 is the minimum label length if in Variable Length on page 165 Mode, or the first fixed length if in Fixed Length on page 165 Mode.
  • Page 177: Codabar Set Length 2

    1D Symbologies Enter/Exit Programming Mode Codabar Set Length 2 This feature specifies one of the bar code lengths for Codabar Length Control on page 165. Length 2 is the maximum label length if in Variable Length on page 165 Mode, or the second fixed length if in Fixed Length on page 165 Mode.
  • Page 178: Abc Codabar

    Enter/Exit Programming Mode ABC Codabar ABC Codabar The following options apply to the ABC Codabar symbology. ABC Codabar Enable/Disable Enables/Disables ability of scanner to decode ABC Codabar labels. $CCBAB00  DEFAULT ABC Codabar = Disable $CCBAB01  ABC Codabar = Enable ABC Codabar Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
  • Page 179: Abc Codabar Dynamic Concatenation Timeout

    1D Symbologies Enter/Exit Programming Mode ABC Codabar Dynamic Concatenation Timeout This parameter specifies the timeout in 10-millisecond ticks used by the ABC Codabar Dynamic Concatenation Mode. The timeout can be set within a range of 05 to 255 in 10ms increments. A setting of zero specifies no delay. $CCBDT To configure this feature, scan the ENTER/EXIT bar code above, then the bar code at left followed by digits...
  • Page 180: Code 11

    Enter/Exit Programming Mode Code 11 Code 11 The following options apply to the Code 11 symbology. Code 11 Enable/Disable When disabled, the scanner will not read Code 11 bar codes. $CC1EN00  DEFAULT Code 11 = Disable  $CC1EN01 Code 11 = Enable Heron™...
  • Page 181: Code 11 Check Character Calculation

    1D Symbologies Enter/Exit Programming Mode Code 11 Check Character Calculation This option enables/disables calculation and verification of optional Code 11 check character. $CC1CC00  Code 11 Check Character Calculation = Disable  $CC1CC01 Code 11 Check Character Calculation = Check C $CC1CC02 ...
  • Page 182: Code 11 Length Control

    Enter/Exit Programming Mode Code 11 Code 11 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 11 symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CC1LC00 ...
  • Page 183: Code 11 Set Length 2

    1D Symbologies Enter/Exit Programming Mode 04 = Length 1 is 4 Characters DEFAULT Code 11 Set Length 2 This feature specifies one of the bar code lengths for Code 11 Length Control on page 172. Length 2 is the maximum label length if in Variable Length on page 172 Mode, or the second fixed length if in...
  • Page 184: Standard 2 Of 5

    Enter/Exit Programming Mode Standard 2 of 5 Standard 2 of 5 The following options apply to the Standard 2 of 5 symbology. Standard 2 of 5 Enable/Disable When disabled, the scanner will not read Standard 2 of 5 bar codes. $CS2EN00 ...
  • Page 185: Standard 2 Of 5 Check Character Transmission

    1D Symbologies Enter/Exit Programming Mode Standard 2 of 5 Check Character Transmission This feature enables/disables transmission of an optional Standard 2 of 5 check character. $CS2CT00  Standard 2 of 5 Check Character Transmission = Don’t Send $CS2CT01  DEFAULT Standard 2 of 5 Check Character Transmission = Send Standard 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding...
  • Page 186: Standard 2 Of 5 Set Length 1

    Enter/Exit Programming Mode Standard 2 of 5 Standard 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control on page 175. Length 1 is the minimum label length if in Variable Length on page 175 Mode, or the first fixed length if in...
  • Page 187: Standard 2 Of 5 Set Length 2

    1D Symbologies Enter/Exit Programming Mode Standard 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for Standard 2 of 5 Length Control on page 175. Length 2 is the maximum label length if in Variable Length on page 175 Mode, or the second fixed length if in...
  • Page 188: Industrial 2 Of 5

    Enter/Exit Programming Mode Industrial 2 of 5 Industrial 2 of 5 The following options apply to the Industrial 2 of 5 symbology. Industrial 2 of 5 Enable/Disable Enables/Disables ability of scanner to decode Industrial 2 of 5 labels. $CU2EN00  DEFAULT Industrial 2 of 5 = Disable $CU2EN01...
  • Page 189: Industrial 2 Of 5 Check Character Transmission

    1D Symbologies Enter/Exit Programming Mode Industrial 2 of 5 Check Character Transmission Enables/disables transmission of an Industrial 2 of 5 check character. $CU2CT00  Industrial 2 of 5 Check Character Transmission = Disable $CU2CT01  DEFAULT Industrial 2 of 5 Check Character Transmission = Enable Industrial 2 of 5 Length Control This feature specifies either variable length decoding or fixed length decoding for the Industrial 2 of 5 symbology.
  • Page 190: Industrial 2 Of 5 Set Length 1

    Enter/Exit Programming Mode Industrial 2 of 5 Industrial 2 of 5 Set Length 1 This feature specifies one of the bar code lengths for Industrial 2 of 5 Length Control on page 179. Length 1 is the minimum label length if in Variable Length on page 138 Mode, or the first fixed length if in...
  • Page 191: Industrial 2 Of 5 Set Length 2

    1D Symbologies Enter/Exit Programming Mode Industrial 2 of 5 Set Length 2 This feature specifies one of the bar code lengths for Industrial 2 of 5 Length Control on page 179. Length 2 is the maximum label length if in Variable Length on page 138 Mode, or the second fixed length if in...
  • Page 192: Iata

    Enter/Exit Programming Mode IATA IATA The following options apply to the IATA symbology. IATA Enable/Disable Enables/Disables the ability of the scanner to decode IATA labels. $CIAEN00  DEFAULT IATA = Disable $CIAEN01  IATA = Enable IATA Check Character Transmission Enables/Disables calculation and verification of an optional Industrial 2 of 5 check character.
  • Page 193: Isbt 128 Concatenation

    1D Symbologies Enter/Exit Programming Mode ISBT 128 The following options apply to the ISBT 128 symbology. ISBT 128 Concatenation Enables/disables ISBT128 concatenation of 2 labels. $CI8CE00  DEFAULT ISBN 128 Concatenation = Disable $CI8CE01  ISBN 128 Concatenation = Enable ISBT 128 Concatenation Mode Specifies the concatenation mode between Static and Dynamic.
  • Page 194: Isbt 128 Dynamic Concatenation Timeout

    Enter/Exit Programming Mode ISBT 128 ISBT 128 Dynamic Concatenation Timeout Specifies the timeout used by the ISBT 128 Dynamic Concatenation Mode. $CI8DT05  ISBT 128 Dynamic Concatenation Timeout = 50 msec $CI8DT0A  ISBT 128 Dynamic Concatenation Timeout = 100 msec $CI8DT14 ...
  • Page 195: Isbt 128 Force Concatenation

    ISBT 128 Force Concatenation = Disable $CI8FC01  ISBT 128 Force Concatenation = Enable ISBT 128 Advanced Concatenation Options Use the Datalogic Aladdin configuration application or Contact Customer Support to set up pairs of label types for concatenation. NOTE Product Reference Guide...
  • Page 196: Msi

    Enter/Exit Programming Mode The following options apply to the MSI symbology. MSI Enable/Disable Enables/Disables ability of scanner to decode MSI labels. $CMSEN00  DEFAULT MSI = Disable  $CMSEN01 MSI = Enable MSI Check Character Calculation Enables/Disables calculation and verification of an optional MSI check charac- ter.
  • Page 197: Msi Check Character Transmission

    1D Symbologies Enter/Exit Programming Mode MSI Check Character Transmission Enables/disables transmission of an MSI check character. $CMSCT00  MSI Check Character Transmission = Disable  $CMSCT01 DEFAULT MSI Check Character Transmission = Enable MSI Length Control This feature specifies either variable length decoding or fixed length decoding for the MSI symbology.
  • Page 198: Msi Set Length 1

    Enter/Exit Programming Mode MSI Set Length 1 This feature specifies one of the bar code lengths for MSI Length Control on page 187. Length 1 is the minimum label length if in Variable Length on page Mode, or the first fixed length if in Fixed Length on page 187 Mode.
  • Page 199: Msi Set Length 2

    1D Symbologies Enter/Exit Programming Mode MSI Set Length 2 This feature specifies one of the bar code lengths for MSI Length Control on page 187. Length 2 is the maximum label length if in Variable Length on page Mode, or the second fixed length if in Fixed Length on page 187 Mode.
  • Page 200: Code 93

    Enter/Exit Programming Mode Code 93 Code 93 The following options apply to the Code 93 symbology. Code 93 Enable/Disable Enables/Disables ability of scanner to decode Code 93 labels. $CC9EN00  DEFAULT Code 93 = Disable $CC9EN01  Code 93 = Enable Heron™...
  • Page 201: Code 93 Check Character Calculation

    1D Symbologies Enter/Exit Programming Mode Code 93 Check Character Calculation Enables/disables calculation and verification of an optional Code 93 check character. $CC9CC00  Code 93 Check Character Calculation = Disable  $CC9CC01 Code 93 Check Character Calculation = Enable Check C $CC9CC02 ...
  • Page 202: Code 93 Length Control

    Enter/Exit Programming Mode Code 93 Code 93 Length Control This feature specifies either variable length decoding or fixed length decoding for the Code 93 symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: ...
  • Page 203: Code 93 Set Length 1

    1D Symbologies Enter/Exit Programming Mode Code 93 Set Length 1 This feature specifies one of the bar code lengths for Code 93 Length Control on page 192. Length 1 is the minimum label length if in Variable Length on page 192 Mode, or the first fixed length if in Fixed Length on page 192 Mode.
  • Page 204: Code 93 Set Length 2

    Enter/Exit Programming Mode Code 93 Code 93 Set Length 2 This feature specifies one of the bar code lengths for Code 93 Length Control on page 192. Length 2 is the maximum label length if in Variable Length on page 192 Mode, or the second fixed length if in Fixed Length on page 192 Mode.
  • Page 205: Code 93 Quiet Zones

    1D Symbologies Enter/Exit Programming Mode Code 93 Quiet Zones Enables/disables fixed length stitching for Code 93. This feature is available only on the TD1130 model. NOTE $CC9LO00  Code 93 Quiet Zones = No Quiet Zones $CC9LO01  Code 93 Quiet Zones = Quiet Zone on one side ...
  • Page 206: Follett 2 Of 5

    Enter/Exit Programming Mode Follett 2 of 5 Follett 2 of 5 The following options apply to the Follett 2 of 5 symbology. Follett 2 of 5 Enable/Disable Enables/Disables ability of scanner to decode Follett 2 of 5 labels. $CF2EN00  DEFAULT Follett 2 of 5 = Disable ...
  • Page 207: Bc412 Check Character Calculation

    1D Symbologies Enter/Exit Programming Mode BC412 Check Character Calculation Enable this option to enable/disable calculation and verification of an optional BC412 check character. When disabled, any check character in the label is treated as a data character $CBCCC00  DEFAULT BC412 Check Character Calculation = Don’t Calculate $CBCCC01 ...
  • Page 208: Bc412 Set Length 1

    Enter/Exit Programming Mode BC412 BC412 Set Length 1 This feature specifies one of the bar code lengths for BC412 Length Control on page 197. Length 1 is the minimum label length if in Variable Length on page Mode, or the first fixed length if in Fixed Length on page 197 Mode.
  • Page 209: Bc412 Set Length 2

    1D Symbologies Enter/Exit Programming Mode BC412 Set Length 2 This feature specifies one of the bar code lengths for BC412 Length Control on page 197. Length 2 is the maximum label length if in Variable Length on page Mode, or the second fixed length if in Fixed Length on page 197 Mode.
  • Page 210 Enter/Exit Programming Mode BC412 NOTES Heron™ HD3430...
  • Page 211: 2D Symbologies

    2D Symbologies 2D Global Features • 2D Maximum Decoding Time on page 202 • 2D Normal/Inverse Symbol Control on page 203 • 2D Structured Append on page 203 The reader supports the following 2D symbologies (bar code types). Symbol- ogy-dependent options for each symbology are included in this chapter. See "1D Symbologies"...
  • Page 212: Maximum Decoding Time

    Enter/Exit Programming Mode 2D Global Features 2D Maximum Decoding Time This feature specifies the maximum amount of time the software will spend attempting to decode a 2D label. The selectable range is 10 milliseconds to 2.55 milliseconds. $CDETM0A(CR) 2D Maximum Decoding Time = 100 msec $CDETM32(CR) 2D Maximum Decoding Time = 200 msec $CDETM23(CR)
  • Page 213: Structured Append

    2D Symbologies Enter/Exit Programming Mode 2D Structured Append Enables/disables ability of reader to append multiple 2D Codes labels in a structured format. The structured append property is globally applied to the following symbologies, if these are enabled: • Data Matrix •...
  • Page 214: Symbology Selection

    Enter/Exit Programming Mode Aztec Code Symbology Selection Aztec Code Aztec Code Enable / Disable Enables/disables the ability of the reader to decode Aztec Code labels. $CAZEN00(CR) DEFAULT Aztec Code = Disable $CAZEN01(CR) Aztec Code = Enable Aztec Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
  • Page 215 Symbology Selection Enter/Exit Programming Mode Aztec Code Set Length 1 Specifies one of the bar code lengths for Aztec Code Length Control on page 204. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Characters can be set from 0001 to 3,832 characters in increments of 0001 (pad with zeroes).
  • Page 216 Enter/Exit Programming Mode Aztec Code Aztec Code Set Length 2 This feature specifies one of the bar code lengths for Aztec Code Length Con- trol on page 204. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 3,832 characters in increments of 0001 (pad with zeroes).
  • Page 217: China Sensible Code

    Symbology Selection Enter/Exit Programming Mode China Sensible Code China Sensible Code Enable / Disable Enables/disables the ability of the reader to decode China Sensible Code labels. $CCSEN00(CR) DEFAULT China Sensible Code = Disable $CCSEN01(CR) China Sensible Code = Enable China Sensible Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
  • Page 218 Enter/Exit Programming Mode China Sensible Code China Sensible Code Set Length 1 Specifies one of the bar code lengths for China Sensible Code Length Control on page 207. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 219 Symbology Selection Enter/Exit Programming Mode China Sensible Code Set Length 2 This feature specifies one of the bar code lengths for China Sensible Code Length Control on page 207. Length 2 is the maximum label length if in Vari- able Length Mode, or the second fixed length if in Fixed Length Mode. Charac- ters can be set from 0001 to 7,827 characters in increments of 0001 (pad with zeroes).
  • Page 220: Data Matrix

    Enter/Exit Programming Mode Data Matrix Data Matrix Data Matrix Enable / Disable Enables/disables ability of reader to decode Data Matrix labels. $CDMEN00(CR) Data Matrix = Disable $CDMEN01(CR) DEFAULT Data Matrix = Enable Data Matrix Square/Rectangular Style Specifies the options available when reading Data Matrix with different form factors.
  • Page 221: Data Matrix Length Control

    Symbology Selection Enter/Exit Programming Mode Data Matrix Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CDMLC00(CR) DEFAULT...
  • Page 222 Enter/Exit Programming Mode Data Matrix Data Matrix Set Length 2 This feature specifies one of the bar code lengths for Data Matrix Length Con- trol on page 211. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 3,116 characters in increments of 0001 (pad with zeroes).
  • Page 223: Maxicode

    Symbology Selection Enter/Exit Programming Mode Maxicode Maxicode Enable / Disable Enables/disables ability of reader to decode Maxicode labels . $CMXEN00(CR) DEFAULT Maxicode = Disable $CMXEN01(CR) Maxicode = Enable Maxicode Primary Message Transmission Enables/disables the transmission of only the Primary Message when the Secondary Message is not readable.
  • Page 224: Maxicode Length Control

    Enter/Exit Programming Mode Maxicode Maxicode Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CMXLC00(CR) DEFAULT...
  • Page 225 Symbology Selection Enter/Exit Programming Mode Maxicode Set Length 2 This feature specifies one of the bar code lengths for Maxicode Length Control on page 214. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 0145 characters in increments of 0001 (pad with zeroes).
  • Page 226: Pdf417

    Enter/Exit Programming Mode PDF417 PDF417 PDF417 Enable / Disable Enables/disables the ability of the reader to decode PDF417 labels. $CP4EN00(CR) PDF417 = Disable $CP4EN01(CR) DEFAULT PDF417 = Enable PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
  • Page 227 Symbology Selection Enter/Exit Programming Mode PDF417 Set Length 1 Specifies one of the bar code lengths for PDF417 Length Control on page 216. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode. Length includes the bar code’s data char- acters only.
  • Page 228 Enter/Exit Programming Mode PDF417 PDF417 Set Length 2 This feature specifies one of the bar code lengths for PDF417 Length Control on page 216. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Length includes the bar code’s check, data, and full-ASCII shift characters.
  • Page 229: Micro Pdf417

    Symbology Selection Enter/Exit Programming Mode Micro PDF417 Micro PDF417 Enable / Disable Enables/disables the ability of the reader to decode Micro PDF417 labels $CMIEN00(CR) DEFAULT Micro PDF417 = Disable $CMIEN01(CR) Micro PDF417 = Enable Micro PDF417 Code 128 GS1-128 Emulation Specifies which AIM ID to use for MicroPDF labels when doing Code 128 or GS1- 128 emulation.
  • Page 230: Micro Pdf417 Length Control

    Enter/Exit Programming Mode Micro PDF417 Micro PDF417 Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: $CMILC00(CR) DEFAULT...
  • Page 231 Symbology Selection Enter/Exit Programming Mode Micro PDF417 Set Length 2 This feature specifies one of the bar code lengths for Micro PDF417 Length Control on page 220. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length includes the bar code’s data characters only.
  • Page 232: Qr Code

    Enter/Exit Programming Mode QR Code QR Code QR Code Enable / Disable Enables/disables the ability of the reader to decode QR Code labels $CQREN00(CR) QR Code = Disable $CQREN01(CR) DEFAULT QR Code = Enable QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
  • Page 233 Symbology Selection Enter/Exit Programming Mode QR Code Set Length 1 Specifies one of the bar code lengths for QR Code Length Control on page 222. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 234 Enter/Exit Programming Mode QR Code QR Code Set Length 2 This feature specifies one of the bar code lengths for QR Code Length Control on page 222. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 7,089 characters in increments of 0001 (pad with zeroes).
  • Page 235: Micro Qr Code

    Symbology Selection Enter/Exit Programming Mode Micro QR Code Micro QR Code Enable/Disable Enables/disables the ability of the reader to decode Micro QR Code labels MQEN00 DEFAULT Micro QR Code = Disable MQEN01 Micro QR Code = Enable Micro QR Code Length Control This feature specifies either variable length decoding or fixed length decoding for this symbology.
  • Page 236 Enter/Exit Programming Mode Micro QR Code Micro QR Code Set Length 1 Specifies one of the bar code lengths for Micro QR Code Length Control on page 225. Length 1 is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed Length Mode.
  • Page 237 Symbology Selection Enter/Exit Programming Mode Micro QR Code Set Length 2 This feature specifies one of the bar code lengths for Micro QR Code Length Control on page 225. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Characters can be set from 0001 to 0035 characters in increments of 0001 (pad with zeroes).
  • Page 238: Ucc Composite

    Enter/Exit Programming Mode UCC Composite UCC Composite UCC Composite Enable / Disable Enables/disables the ability of the reader to decode the stacked part of a UCC Composite label. This feature is not effective when Global AIM IDs are enabled (see " Global AIM ID" on page 55 ).
  • Page 239: Ucc Optional Composite Timer

    Symbology Selection Enter/Exit Programming Mode UCC Optional Composite Timer Specifies the amount of time the system will wait for the stacked part of a UCC Composite label before transmitting the linear label without an add-on. $CCMOT00(CR) DEFAULT UCC Optional Composite Timer = Timer Disabled $CCMOT01(CR) UCC Optional Composite Timer = 100msec $CCMOT02(CR)
  • Page 240: Postal Code Selection

    Enter/Exit Programming Mode Postal Code Selection Postal Code Selection Enables/disables the ability of the scanner to decode labels of a specific postal symbology. • Disable All Postal Codes • Australia Post • Postnet • Japan Post • Planet • • Royal Mail •...
  • Page 241: Postnet Bb Control

    Symbology Selection Enter/Exit Programming Mode Postal Code Selection (continued) $CPOEN06(CR) Postal Code Selection = Enable Japan Post $CPOEN07(CR) Postal Code Selection = Enable IMB $CPOEN08(CR) Postal Code Selection = Enable Sweden Post $CPOEN09(CR) Postal Code Selection = Enable Portugal Post Postnet BB Control Controls the ability of the scanner to decode B and B' fields of Postnet labels.
  • Page 242 Symbology Selection NOTES Heron™ HD3430...
  • Page 243: References

    Chapter 4 References This section contains explanations and examples of selected bar code features. "Configuration Using Bar Codes" starting on page 19 for the actual bar code labels used to configure the scanner. on page 234 RS-232 P ARAMETERS RS-232 Only on page 234 •...
  • Page 244: Parameters

    References RS-232 Parameters RS-232 Only Baud Rate Baud rate is the number of bits of data transmitted per second. Set the scan- ner's baud rate to match the baud rate setting of the host device. With an improper baud rate setting, data may not reach the host correctly. Data Bits This parameter allows the reader to interface with devices requiring a 7-bit or 8-bit ASCII protocol for sending and receiving data.
  • Page 245: Rs-232/Usb Com Parameters

    RS-232 Parameters RS-232/USB COM Parameters Intercharacter Delay This parameter specifies the intercharacter delay between the end of one char- acter and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
  • Page 246 References ACK NAK Options This enables/disables the ability of the scanner to support the RS-232 ACK/ NAK protocol. When configured, the scanner and/or host sends an “ACK” when it receives data properly, and sends “NAK” when the data is in error. Options are: •...
  • Page 247 RS-232 Parameters NAK Character This setting specifies an ASCII character or hex value to be used as the NAK character. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host commands conflicts with normal operation of these char- acters.
  • Page 248 References ACK NAK Timeout Value This option specifies the amount of time the scanner waits for an ACK character from the host following label transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A selection of 0 disables the timeout.
  • Page 249 RS-232 Parameters ACK NAK Retry Count This feature specifies the number of times the scanner retries a label transmis- sion due to a retry condition. The selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies unlimited retries.
  • Page 250 References Disable Character Specifies the value of the RS-232 host command used to disable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
  • Page 251 RS-232 Parameters Enable Character Specifies the value of the RS-232 host command used to enable the scanner. ASCII characters or any hex value from 0 to 0xFF can be selected. Setting to previously defined characters such as XON, XOFF, or host com- mands conflicts with normal operation of these characters.
  • Page 252: Keyboard Interface

    References Keyboard Interface Wedge Quiet Interval Specifies the amount of time the scanner looks for keyboard activity before it breaks the keyboard connection in order to transmit data to host. The range is from 0 to 990ms in 10ms increments. This feature applies ONLY to the Keyboard Wedge interface.
  • Page 253: Intercharacter Delay

    Keyboard Interface Intercharacter Delay This parameter specifies the intercharacter delay between the end of one char- acter and the beginning of the next. The delay can be set within a range of zero (0) to 990 milliseconds in 10ms increments. A setting of zero specifies no delay.
  • Page 254: Intercode Delay

    References Intercode Delay Specifies the delay between labels transmitted to the host for this interface. The selectable range for this feature is from 0 to 99 seconds. Follow these instructions to set this feature: 1. Determine the desired setting. 2. Pad the number with leading zeroes to yield two digits. For example: 0 = 00, 5 = 05, 20 = 20, etc 3.
  • Page 255: Data Format

    ID code will be transmitted before the scanned bar code data. 00 - 20 Characters (ASCII) Additional advanced editing is available. See the Advanced formatting features in the Datalogic Aladdin configuration software, or contact Technical Support (see page 3 ) for more information. NOTE Please Keep In Mind...
  • Page 256: Global Prefix/Suffix

    References Global Prefix/Suffix Up to 20 ASCII characters may be added as a prefix (in a position before the bar code data) and/or as a suffix (in a position following the bar code data) as indi- cated. Figure 5. Prefix and Suffix Positions OR...
  • Page 257: Global Aim Id

    Data Format Global AIM ID This feature enables/disables addition of AIM IDs for all symbology types. NOTE AIM label identifiers (as opposed to custom characters you select yourself as with label identifiers) can be included with scanned bar code data. AIM label identifiers consist of three characters as follows: •...
  • Page 258: Label Id

    230000 540000 CODE32 410000 580000 CODE39 2A0000 560000 CODE4 340000 340000 CODE5 6A0000 6A0000 CODE93 & 260000 550000 DATALOGIC 2OF5 730000 730000 EAN13 460000 420000 EAN13 P2 460000 4C0000 EAN13 P5 460000 4D0000 EAN8 464600 410000 EAN8 P2 464600 4A0000...
  • Page 259 Data Format Symbology USA Label ID set EU Label ID set GS1 DATABAR OMNIDIRECTIONAL 523400 750000 GS1-128 000000 6B0000 I2OF5 690000 4E0000 IATA 494100 & 260000 Industrial 2 of 5 570000 570000 Interleaved 2 of 5 CIP HR 650000 650000 ISBN 490000 400000...
  • Page 260 References Label ID: Set Individually Per Symbology To configure a Label ID individually for a single symbology: 1. Scan the ENTER/EXIT bar code. 2. Select Label ID position as either BEFORE (Enable as Prefix) or AFTER (Enable as suffix) by scanning the appropriate bar code in the section "Label ID Control"...
  • Page 261 Data Format Label ID: Set Individually Per Symbology — continued Table 13 . Label ID Examples STEP ACTION EXAMPLES Scan the ENTER/EXIT bar (Scanner enters Programming Mode) code Determine placement of the Label ID characters BEFORE or AFTER with regard to Enable as Prefix Enable as Suffix Enable as Prefix Enable as Suffix scanned data using "Label...
  • Page 262: Character Conversion

    References Character Conversion Character conversion is an eight byte configuration item. The eight bytes are 4 character pairs represented in hexadecimal ASCII values. The first character in the pair is the character that will be converted. The second character in the pair is the character to convert to.
  • Page 263: Reading Parameters

    Reading Parameters Reading Parameters RGB LED Features RGB Good Read Raising/Falling Time This parameter specifies the time it will take for the RGB good read to change the status from an Off state to Brightness state, or back. The delay can be set within a range of zero (0) to 160000 milliseconds (16 sec- onds) in 100ms increments.
  • Page 264 References RGB Good Read Holding Time This parameter specifies the time it will take for the RGB good read to change the status from an Off state to Brightness state. The delay can be set within a range of zero (0) to 255 milliseconds (25.5 sec- onds) in 100ms increments.
  • Page 265 Reading Parameters RGB Auto Delay Time Specifies the delay time for running the RGB auto mode after the scanner has gone into an idle state (no label reading, label programming or communication with Host). The delay can be set within a range of zero (0) to 255 milliseconds (5 seconds) in 500ms increments.
  • Page 266: Scanning Features

    References Scanning Features Scan Mode Selects the scan operating mode for the reader. Selections are: When the trigger is pulled, scanning is activated until one of the Trigger Single: following occurs: • Scanning Active Time has elapsed • a label has been read •...
  • Page 267: Scanning Active Time

    Scanning Features Scanning Active Time This setting specifies the amount of time that the reader stays in scan ON state once the state is entered. The range for this setting is from 1 to 255 seconds in 1-second increments. Follow these instructions to set this feature: 1.
  • Page 268: Flash On Time

    References Flash On Time This feature specifies the ON time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
  • Page 269: Flash Off Time

    Scanning Features Flash Off Time This feature specifies the OFF time for the indicator LED while in Flash Mode. The selectable range is 100 to 9,900 milliseconds (0.1 to 9.9 seconds), in 100 millisecond increments. Follow these instructions to set this feature. 1.
  • Page 270: Symbologies

    References Symbologies Set Length Length Control allows you to select either variable length decoding or fixed length decoding for the specified symbology. For variable length decoding, a minimum and maximum length Variable Length: may be set. For fixed length decoding, two different lengths may be set. Fixed Length: Set Length 1 This feature specifies one of the bar code lengths for a given symbology.
  • Page 271 Symbologies This completes the procedure. See the table below for examples of how to set this feature. Table 20. Length 1 Setting Examples STEP ACTION EXAMPLES Desired Setting 01 Character 07 Characters 52 Characters 74 Characters Scan ENTER/EXIT PROGRAMMING MODE Scan SELECT LENGTH 1SETTING for the desired symbology Scan Two Characters From ‘0’...
  • Page 272: Set Length

    References Set Length 2 This feature specifies one of the bar code lengths for a given symbology. Length 2 is the maximum label length if in Variable Length Mode, or the second fixed length if in Fixed Length Mode. Reference the 1D Symbologies on page 113 section to view the selectable range (number of characters) for the symbology being set.
  • Page 273: Technical Specifications

    Appendix A Technical Specifications The table below contains Physical and Performance Characteristics, User Envi- ronment and Regulatory information. provides Standard Cable Pinouts. Table 24 Table 22. Technical Specifications Item Description Electrical Features Power Supply 5 Vdc  5% RS-232 interface Max operating current @ 5V: <500 mA Typical operating (changing colors) current ...
  • Page 274 (Typical) DataMatrix: 15 mil, 20 mm - 250 mm (0.8" - 9.8") Max. Resolution Code 39, 3 mil, at 105 mm (4.1") PCS (Datalogic Test Chart) minimum 15% Environmental Features 0 C to + 50 C (+32° to +122 °F) Working Temperature -20 C to + 70 C (-4°...
  • Page 275 Item Description 2D / Stacked Codes The Heron HD34XX scanner is capable of decoding the following symbologies using multiple frames (i.e. Multi-Frame Decoding): Datamatrix; Inverse Datamatrix; Datamatrix is configurable for the following parameters:; Normal or Inverted; Square or Rectangular Style; Data length (1 - 3600 characters); Maxicode; QR Codes (QR, Micro QR and Multiple QR Codes);...
  • Page 276: Led And Beeper Indications

    Technical Specifications LED and Beeper Indications The imager’s beeper sounds and its illumination flashes or changes color to indicate various functions or errors on the reader. A “Green Spot” also lights to indicate a good read. The tables below list these indications. Table 23.
  • Page 277: Programming Mode

    LED and Beeper Indications Programming Mode The following indications ONLY occur when the scanner is in Programming Mode. INDICATION DESCRIPTION SPEAKER Label Program- A valid programming label has Scanner sounds four low fre- ming Mode LED blinks continuously been scanned. quency beeps.
  • Page 278: Troubleshooting

    Technical Specifications Troubleshooting Problem Possible Cause Possible Solutions Check system power. Ensure power No power to the imager. Nothing happens when the scan  supply is connected. button is pulled. Interface or power cables are Ensure all cable connections are secure. loose.
  • Page 279: Standard Cable Pinouts

    Standard Cable Pinouts Standard Cable Pinouts Figure 8 and provide standard pinout information for the scanner’s Table 24 cable. Figure 8. Standard Cable Pinouts Interface Cable Port Pin 10 Pin 1 Cable To Host Cable Strain Relief Cable Clip (Latch) The signal descriptions in apply to the connector on the scanner and Table 24...
  • Page 280: Stand Dimensions

    Technical Specifications Stand Dimensions Heron™ HD3430...
  • Page 281: Stand Base Plate Template

    Stand Base Plate Template Stand Base Plate Template SCREW HERE SCREW HERE Product Reference Guide...
  • Page 282 Technical Specifications NOTES Heron™ HD3430...
  • Page 283: Standard Defaults

    Appendix B Standard Defaults The most common configuration settings are listed in the “Default” column of the table below. Page references are also provided for feature descriptions and programming bar codes for each parameter. A column has also been provided for recording of your preferred default settings for these same configurable features.
  • Page 284 Standard Defaults Page Parameter Default Your Setting Number Enable Character ‘E’ KEYBOARD WEDGE Country Mode U.S. Keyboard Keyboard Send Control Characters Wedge Quiet Interval 100 ms Intercode Delay No Delay Caps Lock State Caps Lock OFF Numlock NumLock Key Unchanged USB Keyboard Speed 1 ms Keyboard Numeric Keypad...
  • Page 285 Page Parameter Default Your Setting Number Good Read Speaker Volume High RGB LED Settings 300 ms SCANNING FEATURES Scan Mode Trigger Single Stand Mode Sensitivity Medium Scanning Active Time 5 Seconds Flash On Time 10 = Flash is ON for 1 Sec- Flash On Time 06 = Flash is OFF for Flash Off Time...
  • Page 286 Standard Defaults Page Parameter Default Your Setting Number EAN 13 (Jan 13) EAN 13 Enable/Disable Enable EAN 13 Check Character Transmission Send EAN-13 Flag 1 Character Transmit EAN-13 ISBN Conversion Disable ISSN ISSN Enable/Disable Disable EAN 8 EAN 8 Enable/Disable Enable EAN 8 Check Character Transmission Send...
  • Page 287 Page Parameter Default Your Setting Number Code 32 Check Character Transmission Don’t Send Code 32 Start/Stop Character Trans- Don’t Transmit mission Code 39 CIP (French Pharmaceutical Code) Code 39 CIP Enable/Disable Disable Special Codes Code 128 Code 128 Enable/Disable Enable Expand Code 128 to Code 39 Don’t Expand Code 128 Check Character Transmis-...
  • Page 288 Standard Defaults Page Parameter Default Your Setting Number I 2 of 5 Set Length 1 I 2 of 5 Set Length 2 Interleaved 2 of 5 CIP HR Interleaved 2 of 5 CIP HR Enable/Dis- Disable able Follett 2 of 5 Follett 2 of 5 Enable/Disable Disable Standard 2 of 5...
  • Page 289 Page Parameter Default Your Setting Number Codabar Codabar Enable/Disable Disable Codabar Check Character Calculation Don’t Calculate Codabar Check Character Transmission Send Codabar Start/Stop Character Trans- Transmit mission Codabar Start/Stop Character Set abcd/abcd Codabar Start/Stop Character Match Don’t Require Match Small Quiet Zones on two Codabar Quiet Zones sides Codabar Length Control...
  • Page 290 Standard Defaults Page Parameter Default Your Setting Number GS1 DataBar™ Expanded GS1 DataBar Expanded Enable/Disable Disable GS1 DataBar Expanded GS1-128 Emu- Disable lation 2D component not required GS1 DataBar Expanded Length Control Variable GS1 DataBar Expanded Set Length 1 GS1 DataBar Expanded Set Length 2 GS1 DataBar™...
  • Page 291: Default Exceptions

    Code Standard 2/5 Label ID Character(s) Codabar Label ID Character(s) Code 128 Label ID Character(s) GS1-128 Label ID Character(s) Datalogic 2 of 5 Label ID Character(s) ISBT 128 Label ID Character(s) UPCE P2 Label ID Character(s) UPCE/P5 Label ID Character(s)
  • Page 292 Standard Defaults Default Parameter Exception EAN8/P2 Label ID Character(s) EAN8/P5 Label ID Character(s) EAN8/GS1-128 Label ID Character(s) EAN13/P2 Label ID Character(s) EAN13/P5 Label ID Character(s) EAN13/GS1-128 Label ID Character(s) GS1 DataBar 14 (Omnidirectional) Label ID Character(s) GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s) Character Conversion CR to `...
  • Page 293 Default Exceptions Default Parameter Exception UPCA/GS1-128 Label ID Character(s) UPCE P2 Label ID Character(s) UPCE/P5 Label ID Character(s) EAN8/P2 Label ID Character(s) EAN8/P5 Label ID Character(s) EAN8/GS1-128 Label ID Character(s) EAN13/P2 Label ID Character(s) EAN13/P5 Label ID Character(s) EAN13/GS1-128 Label ID Character(s) GS1 DataBar 14 (Omnidirectional) Label ID Character(s) GS1 DataBar Expanded Label ID Character(s) GS1 DataBar Limited Label ID Character(s)
  • Page 294 Standard Defaults NOTES Heron™ HD3430...
  • Page 295: Sample Bar Codes

    Appendix C Sample Bar Codes The sample bar codes in this appendix are typical representations for their symbology types. 1D Bar Codes UPC-A EAN-13 978033029095 Code 39 Code 128 Code 128 Interleaved 2 of 5 Product Reference Guide...
  • Page 296 Sample Bar Codes Sample Bar Codes (continued) Code 32 Codabar 13579 Code 93 Code 11 123456789 Heron™ HD3430...
  • Page 297 GS1 DataBar™ (RSS) GS1 DataBar ™ GS1 DataBar™ variants must be enabled to read the bar codes below (see " Omnidirectional" on page 128 GS1 DataBar™ Expanded Stacked 10293847560192837465019283746029478450366523 GS1 DataBar™ Expanded 1234890hjio9900mnb GS1 DataBar™ Limited 08672345650916 GS1 DataBar™-14 GS1 DataBar™ Omnidirectional Truncated 55432198673467 GS1 DataBar™...
  • Page 298 Sample Bar Codes 2D Bar Codes Aztec Datamatrix China Sensible Code MaxiCode Test Message PDF 417 Micro PDF 417 ABCabc BV17453 QR Code Micro QR Code 123456 35900G9 UCC Composite Heron™ HD3430...
  • Page 299: Keypad

    Appendix D Keypad Use the bar codes in this appendix to enter numbers as you would select digits/characters from a keypad. Product Reference Guide...
  • Page 300 Keypad Heron™ HD3430...
  • Page 301: Scancode Tables

    Appendix E Scancode Tables Control Character Emulation Control character emulation selects from different scancode tables as listed in this appendix. Each of the control character sets below are detailed by interface type in the tables. These apply to Wedge and USB Keyboard platforms.
  • Page 302: Interface Type Pc At Ps/2 Or Usb-Keyboard

    Interface Type PC AT PS/2 or USB-Keyboard Table 27. Scancode Set When Control Character is 00 or 01 NULL C(S)+A C(S)+B C(S)+C C(S)+D C(S)+E C(S)+F C(S)+G C(S)+J C(S)+K C(S)+L Enter C(S)+N C(S)+O C(S)+P C(S)+Q C(S)+R C(S)+S C(S)+T C(S)+U C(S)+V C(S)+W C(S)+X C(S)+Y C(S)+Z...
  • Page 303 Interface Type PC AT PS/2 or USB-Keyboard (continued) Table 28. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home ...
  • Page 304: Interface Type Pc At Ps/2 Alt Mode Or Usb-Keyboard Alt Mode

    Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode Table 29. Scancode Set When Control Character is 00 or 01 Alt+000 Alt+001 Alt+002 Alt+003 Alt+004 Alt+005 Alt+006 Alt+007 Alt+010 Alt+011 Alt+012 Alt+014 Alt+015 Enter Alt+016 Alt+017 Alt+018 Alt+019 Alt+020 Alt+021 Alt+022...
  • Page 305 Interface Type PC AT PS/2 Alt Mode or USB-Keyboard Alt Mode (continued) Table 30. Scancode Set When Control Character is 02 Enter Ar↓ Ar↑ Al↓ Al ↑ Cl ↓ Cl ↑ Cr ↓ Cr ↑  S+ Tab Enter Pg Up Keypd Pg Dwn Home...
  • Page 306: Microsoft Windows Codepage 1252

    Scancode Tables Microsoft Windows Codepage 1252 Windows-1252 is a character encoding of the Latin alphabet, used by default in the legacy components of Microsoft Windows in English and some other Western languages.
  • Page 307: Index

    Index Symbols 219, 222, Expand bar codes Good Read, Beeper RS-232 Pitch baud rate Volume RS-232 parameters Good Read, Beeper – parity Good Read, Beeper Pitch – barcodes Good Read, Beeper Volume – cancel numeric barcodes RS-232 parameters parity Handheld Scanner Beeper Pitch, Good Read Volume, Good Read...
  • Page 308 Prefix/Suffix Product Specifications Programming Barcodes Read, Beeper – Good Read, Beeper Pitch – Good Read, Beeper Volume – Good Request to Send RS-232 interface selection sample barcodes code 128 code 39 interleaved 2 of 5 Scancode Tables select digits/characters Serial Output Standard Cable Pinouts Suffix Symbologies...
  • Page 309 ASCII Chart ASCII ASCII ASCII ASCII Char. Char. Char. Char. ‘ “ & ’ < >...
  • Page 310 ©2015-2016 Datalogic S.p.A. and/or its affiliates All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic USA, Inc. 959 Terry Street Eugene, OR 97402 U.S.A.

Table of Contents
