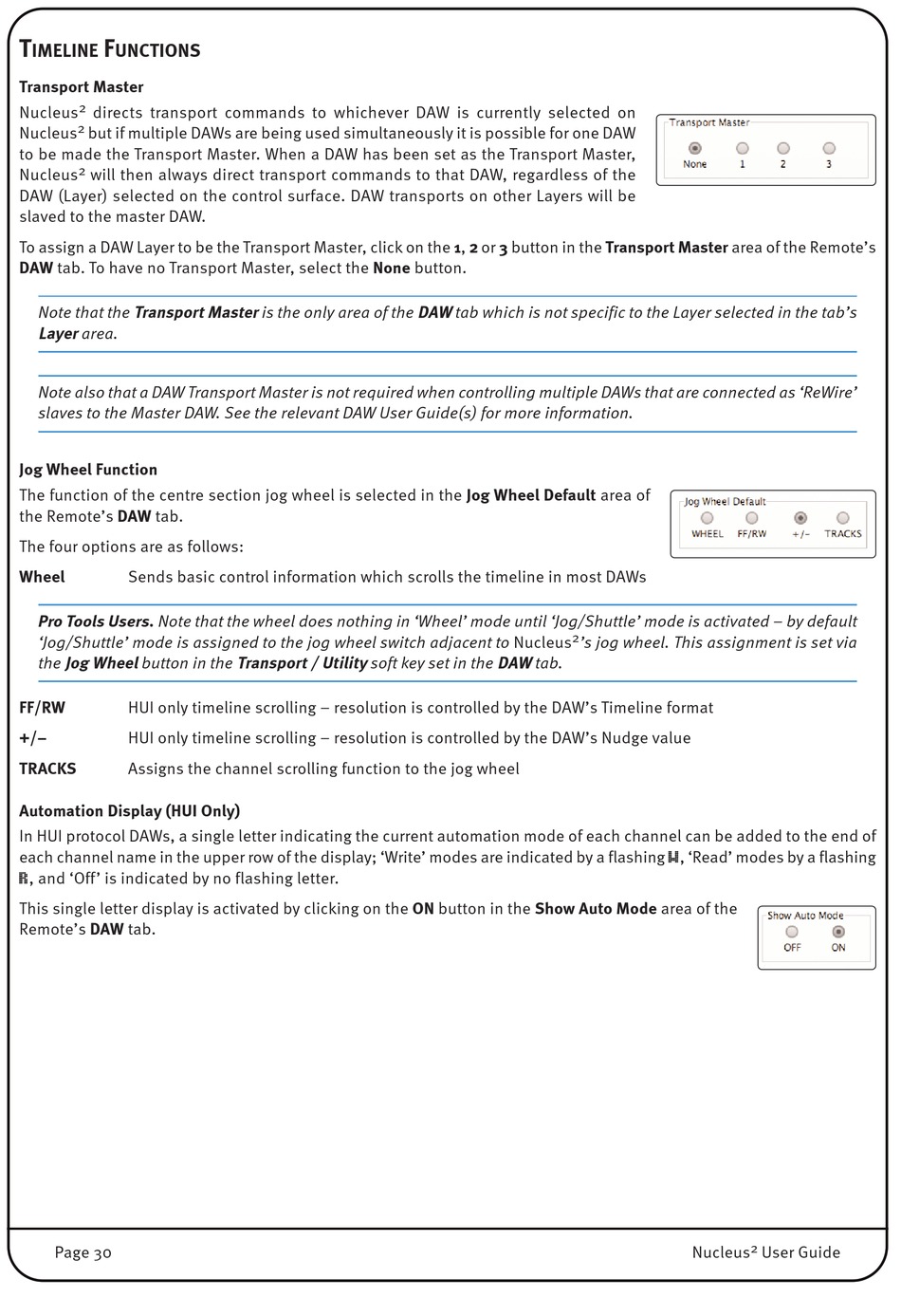

Transport Master - Solid State Logic Nucleus2 User Manual

T F
IMeLINe UNCTIONS

Transport Master

2
Nucleus directs transport commands to whichever DAW is currently selected on
2
Nucleus but if multiple DAWs are being used simultaneously it is possible for one DAW
to be made the Transport Master. When a DAW has been set as the Transport Master,
2
Nucleus will then always direct transport commands to that DAW, regardless of the
DAW (Layer) selected on the control surface. DAW transports on other Layers will be
slaved to the master DAW.
To assign a DAW Layer to be the Transport Master, click on the 1, 2 or 3 button in the Transport Master area of the Remote's
DAW tab. To have no Transport Master, select the None button.
Note that the Transport Master is the only area of the DAW tab which is not specific to the Layer selected in the tab's
Layer area.
Note also that a DAW Transport Master is not required when controlling multiple DAWs that are connected as 'ReWire'
slaves to the Master DAW. See the relevant DAW User Guide(s) for more information.
Jog Wheel Function
The function of the centre section jog wheel is selected in the Jog Wheel Default area of
the Remote's DAW tab.
The four options are as follows:
Wheel Sends basic control information which scrolls the timeline in most DAWs
Pro Tools Users. Note that the wheel does nothing in 'Wheel' mode until 'Jog/Shuttle' mode is activated – by default
'Jog/Shuttle' mode is assigned to the jog wheel switch adjacent to Nucleus
the Jog Wheel button in the Transport / Utility soft key set in the DAW tab.
FF/RW HUI only timeline scrolling – resolution is controlled by the DAW's Timeline format
+/– HUI only timeline scrolling – resolution is controlled by the DAW's Nudge value
TRACkS Assigns the channel scrolling function to the jog wheel
Automation Display (HUI Only)
In HUI protocol DAWs, a single letter indicating the current automation mode of each channel can be added to the end of
each channel name in the upper row of the display; 'Write' modes are indicated by a flashing W, 'Read' modes by a flashing
, and 'Off' is indicated by no flashing letter.
This single letter display is activated by clicking on the ON button in the Show Auto Mode area of the
Remote's DAW tab.
Page 30
2
's jog wheel. This assignment is set via
Nucleus
2
User Guide
