Weber 3200 Owner's Manual
Hide thumbs Also See for 3200:
Table of Contents

Advertisement

Thank you for purchasing
a Weber
 grill. Take a few
®
minutes and protect it by
registering your product
online at www.weber.com.
845CO-0017
0845

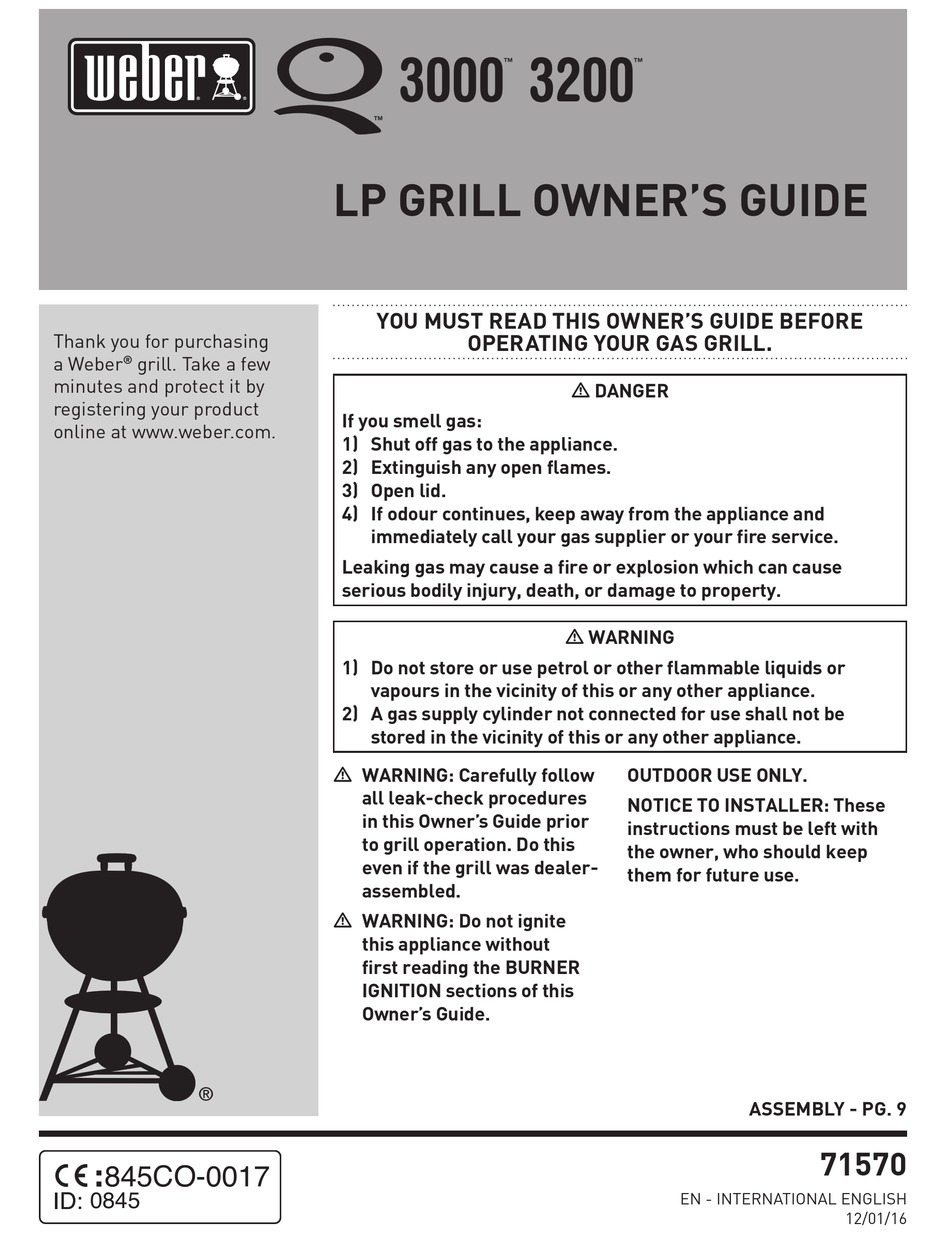

LP GRILL OWNER'S GUIDE
YOU MUST READ THIS OWNER'S GUIDE BEFORE
OPERATING YOUR GAS GRILL.
If you smell gas:
1) Shut off gas to the appliance.
2) Extinguish any open flames.
3) Open lid.
4) If odour continues, keep away from the appliance and
immediately call your gas supplier or your fire service.
Leaking gas may cause a fire or explosion which can cause
serious bodily injury, death, or damage to property.
1) Do not store or use petrol or other flammable liquids or
vapours in the vicinity of this or any other appliance.
2) A gas supply cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
m WARNING: Carefully follow
all leak-check procedures
in this Owner's Guide prior
to grill operation. Do this
even if the grill was dealer-
assembled.
m WARNING: Do not ignite
this appliance without
first reading the BURNER
IGNITION sections of this
Owner's Guide.
m DANGER
m WARNING
OUTDOOR USE ONLY.
NOTICE TO INSTALLER: These
instructions must be left with
the owner, who should keep
them for future use.
EN - INTERNATIONAL ENGLISH
ASSEMBLY - PG. 9
71570
12/01/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Weber 3200

  • Page 1 DANGER registering your product If you smell gas: online at www.weber.com. 1) Shut off gas to the appliance. 2) Extinguish any open flames. 3) Open lid. 4) If odour continues, keep away from the appliance and immediately call your gas supplier or your fire service.
  • Page 2: Warnings

    ® for gas leaks and burner obstructions before use. See instructions in this Owner’s Guide for correct procedures. m Do not operate your Weber gas grill if ® there are any leaking gas connections. m Do not use a flame to check for gas leaks.
  • Page 3: Table Of Contents

    The grills illustrated in this Owner’s Guide may vary GRILL LIGHT OPERATION (Q  3200) ......43 ®...
  • Page 4: Weber Q 3000 Exploded View

    WEBER 3000 EXPLODED VIEW ® ™ Q3000_EURO_LP_070115 WWW.WEBER.COM...
  • Page 5 WEBER 3000 EXPLODED VIEW ® ™ Left Fold-Down Table Thermometer Assembly Handle Spacer Handle Cooking Grate Outside Burner Tube Inside Burner Tube Wire Brace Igniter Electrode Assembly Push Button Igniter Cookbox/Cradle Assembly Large Burner Control Knob Small Burner Control Knob...
  • Page 6: Weber Q 3200 Exploded View

    WEBER 3200 EXPLODED VIEW ® ™ Q3200_EURO_LP_070115 WWW.WEBER.COM...
  • Page 7 WEBER 3200 EXPLODED VIEW ® ™ Left Fold-Down Table Thermometer Assembly Grill Light Assembly Handle Spacer Handle Cooking Grate Outside Burner Tube Inside Burner Tube Wire Brace Igniter Electrode Assembly Electronic Igniter Button/ Electronic Igniter Module Cookbox/Cradle Assembly Large Burner Control Knob...
  • Page 8: Parts List

    ........1 ........2 ........2 ........2 ........1 ......2 ..2 ......1 ..1 ......4 ......... 1 ......1 ......4 ........ 1 ......2 ......1 ........1 ........1 ..........1 .....1 ....1 ........2 .........1 ........1 ........2 ...1 ........1 ......1 ......1 WWW.WEBER.COM...
  • Page 9: Assembly

    ASSEMBLY TOOLS NEEDED: WWW.WEBER.COM...
  • Page 10 ASSEMBLY WWW.WEBER.COM...
  • Page 11 ASSEMBLY m Place wheel frame on the right. WWW.WEBER.COM...
  • Page 12 ASSEMBLY WWW.WEBER.COM...
  • Page 13 ASSEMBLY WWW.WEBER.COM...
  • Page 14 ASSEMBLY WWW.WEBER.COM...
  • Page 15 ASSEMBLY WWW.WEBER.COM...
  • Page 16 ASSEMBLY WWW.WEBER.COM...
  • Page 17 ASSEMBLY A) Uncoil the hose and regulator of the Weber 3000/3200. ® ™ B) Remove leg screw then secure hose and retention clip (1) to cart leg. m WARNING: The hose must be secured to the cart leg by the hose retention clip. Failure to do so could...
  • Page 18 ASSEMBLY WWW.WEBER.COM...
  • Page 19 ASSEMBLY WWW.WEBER.COM...
  • Page 20 ASSEMBLY m Do not overtighten screws. WWW.WEBER.COM...
  • Page 21 If the lid is left open or closed for more than 30 minutes, the grill light will deactivate. To turn the light back on, press the AWAKE button (1). NOTE: The light does not turn OFF by pressing the AWAKE button. WWW.WEBER.COM...
  • Page 22 ASSEMBLY WWW.WEBER.COM...
  • Page 23: Storage Features

    STORAGE FEATURES WWW.WEBER.COM...
  • Page 24: Important Information About Lp Gas & Gas Connections

    • If you do not disconnect the cylinder from the Weber ® and pressure when it is not • Any modification of the appliance may be dangerous.
  • Page 25: Lpg Cylinder Installation

    Several possible cylinder models approved for installation on cart are illustrated, with dimensions included. 8 kg WWW.WEBER.COM...
  • Page 26: Installation On Cart

    A) Place the LPG cylinder on the ground, behind the grill (3). B) Turn the cylinder so the opening of the valve is facing the right side or back of grill. C) Connect the regulator to the cylinder. Refer to “CONNECTING THE REGULATOR TO THE LPG CYLINDER.” WWW.WEBER.COM...
  • Page 27: Connecting The Regulator

    For replacement hose, regulator, and valve assemblies, contact the Customer Service Representative in your area using the contact information on our web site. Log on to www.weber.com. WWW.WEBER.COM...
  • Page 28: Preparing To Use Your Grill

    NOTE: All factory-made connections have been thoroughly checked for gas leaks and the burners have been flame- tested. As a safety precaution, however, you should check all fittings for leaks before using your Weber gas grill. Shipping ® and handling may loosen or damage a gas fitting.
  • Page 29 Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. D) When leak checking is complete, turn gas supply off at the source and rinse connections with water. NOTE: Since some leak test solutions, including soap and water, may be slightly corrosive, all connections should be rinsed with water after checking for leaks.
  • Page 30: Disconnecting The Regulator

    REFILLING THE LPG CYLINDER We recommend that you refill the LPG cylinder before it is completely empty. To refill, take LPG cylinder to a “Gas Propane” dealer. RECONNECTING THE LPG CYLINDER Refer to “CONNECTING THE REGULATOR TO THE LPG CYLINDER.” WWW.WEBER.COM...
  • Page 31: Safety Checks Before Using Your Grill

    It’s a good idea to get in the funnels grease away from food and into a removable habit of performing a few catch pan. For your convenience, you can also line the removable catch pan with a Weber disposable drip pan, ™ safety checks before grilling.
  • Page 32: Burner Ignition & Usage

    (4) (Q 3000). ® E2) Push and hold in the electronic igniter button (5) 3200). You will hear the igniter clicking. ® F) Check that the burner is lit by looking through the cooking grates. You should see a flame.
  • Page 33 ( ) position (5). The inside burner will then be ignited by the outside burner. TO EXTINGUISH BURNER Push each burner control knob in and turn it clockwise to the off ( ) position. Turn gas supply off at the source. WWW.WEBER.COM...
  • Page 34: Barbecuing Tips & Helpful Hints

    For more barbecuing tips and recipes, visit move food to another area of attain the correct cooking www.weber.com. the cooking grate. Any flames temperatures. will quickly subside. After • Sear meats and cook with the...
  • Page 35 12 to 15 minutes direct medium heat Onion 8 to 12 minutes direct medium heat ½ inch slices Potato whole 45 to 60 minutes indirect low heat 14 to 16 minutes direct medium heat ½ inch slices **Sold separately. WWW.WEBER.COM...
  • Page 36: Cooking Methods

    For example, to sear steaks, set both burners to HI, then to complete Chicken pieces, sausage cooking, set both burners to LOW. For great barbecuing inspiration, visit www.weber.com/recipes. SEARING Steak and items that require searing Start by searing thick steaks over direct high heat...
  • Page 37: Troubleshooting

    Be sure that wires are correctly inserted into terminals on igniter electrode assembly. Check that the wires are connected to terminals on the push button igniter (Q 3000) or the electronic igniter module (Q 3200). Refer to ® ® “MAINTAINING THE PUSH BUTTON IGNITION SYSTEM (Q 3000)”...
  • Page 38: Annual Maintenance

    NOTE: If a spider/insect screen becomes damaged or cannot be cleaned, please contact the Customer Service Representative in your area using the contact information on our web site. Log onto www.weber.com. BURNER TUBE PORTS Over time, from repeated use of the grill, the burner tube ports will become dirty.
  • Page 39: Burner Tube Cleaning Or Replacement

    C) Repeat this procedure for the inside burner tube (3). m CAUTION: Care must be taken when removing or reinstalling burner tubes. Do not force or bend the gas lines that connect the control valves to the burner tubes (4). WWW.WEBER.COM...
  • Page 40 CAUTION: The burner tube openings (12) must be positioned properly over the valve orifices (13). m WARNING: You should check for gas leaks every time you disconnect and reconnect a gas fitting. Refer to “CHECKING FOR GAS LEAKS.” D) Replace cookbox components. WWW.WEBER.COM...
  • Page 41: Routine Maintenance

    Cookbox To obtain replacement disposable drip pans and cooking Wash inside of cookbox with warm, soapy water; then grates, contact the local retailer in your area or log onto rinse with water. www.weber.com. If you need further assistance, contact your Customer Service Representative. WWW.WEBER.COM...
  • Page 42: Ignition System Operations

    в электронной системе зажигания работает, прислушиваясь к щелчку и наблюдая искры у горелки. Если система электронного зажигания все же не зажигает горелку, обратитесь к местному представителю отдела обслуживания покупателей. Контактная информация находится на нашем веб- сайте. Посетите сайт www.weber.com. WWW.WEBER.COM...
  • Page 43: Grill Light Operation (Q ® 3200)

    ROUTINE MAINTENANCE GRILL LIGHT OPERATION (Q  3200 ™ ™ Press the AWAKE button to activate the grill light. The light has a ‘tilt sensor’ that will turn on the light if the grill lid is opened and turn off the light when the grill lid is closed.
  • Page 44 This product has been safety-tested and is only certified for use in a specific country. Refer to country designation located on outside of box. These parts may be gas-carrying or gas-burning components. Please contact Weber-Stephen Products LLC Customer Service Department for genuine Weber-Stephen Products LLC replacement part(s) information.
