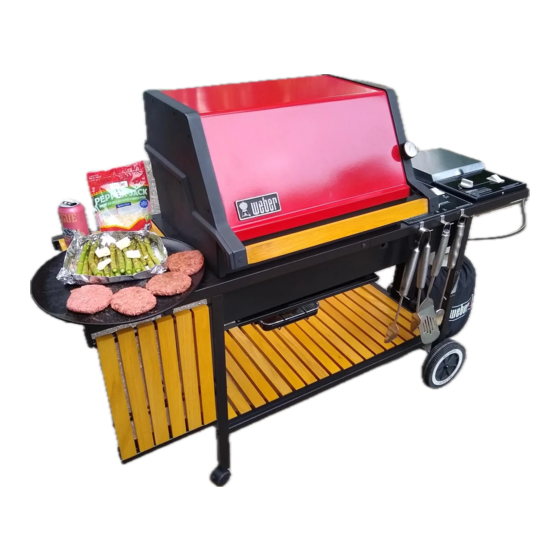

Serial Number Please use this number in registering your warranty and any correspondence with the factory. 3000 Series FOR YOUR SAFETY 1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Improper assembly may be dangerous. Please carefully follow the assembly instructions in this manual. After a period of storage, and/or nonuse, the Weber Gas Barbecue should be checked for gas leaks and burner obstructions before using. See instructions in this manual for correct procedures.
Weber-Stephen Products Co. (Weber) hereby warrants to the ORIGINAL PURCHASER of this Weber Gas Barbecue that it will be free of defects in material and workmanship from the date of purchase as follows: Aluminum Castings, 10 years, Cooking Grates and Flavorizer Bars, 3 years,...
U.S. trademarks; Per ma-Mount, Gas Catcher, FlameCheck, Steam-N-Chips, Spider Stopper, and Warm-Up are U.S. trademarks of Weber-Stephen Products Co., 200 East Daniels Road, Palatine, IL 60067-6266. U.S.A. Genesis Gas Barbecues are covered under the following patent nos.: U.S.A. #4,677,964;...
Troubleshooting ... 35-36 Parts Listing ... 39 IMPORTANT NEW FEATURES: Your Weber Gas Barbecue is equipped with a new and improved LP tank connection, that has additional safety features. They are: 1. The connection of the barbecue to the LP tank can be made without the use of tools.
The Weber Gas Barbecue is portable so you can easily change its location in your yard or on your patio. Portability means you can take your Weber Gas Barbecue with you if you move. Liquid Propane (LP) gas supply is easy to use and gives you more cooking control than charcoal fuel.
If a part is missing, do not go back to the store. Call the Weber Customer Service Center toll free 1-800-446-1071 to receive immediate assistance. Have your owner’s manual and serial number of the barbecue available for reference.
Page 8
Control panel Front panel Left frame Wheel frame Two frame connectors Tank panel assembly Five long Flavorizer Bars Eight short Flavorizer Bars Two wheels Two aluminum drip pans Catch pan Axle Right frame Caster frame Two casters Two cooking grates Warming rack Warm-Up Basket Thermometer...
Page 9
Fuel scale assembly Catch pan holder Manifold bracket Side burner assembly Burner grate Side burner knob Two side burner locks Note: The locks are taped to the inside of the side burner lid Check contents of hardware packs Three burner control knobs Three tool holders Five tubing plugs (two are spares)
Page 10
Place one end of the axle on the block of wood (or other protected surface). Tap on one hubcap. Put one wheel on the axle, WEBER side toward the hubcap. Slide the axle through the frame. Add the other wheel, WEBER side out. Tap on the hubcap. Figure 1.
Page 11
Step 4 Continue frame assembly You will need: frame assembly, wheel frame assembly, front panel, caster frame, four 1/4-20 x 1/2 inch bolts, four nylon washers and a 7/16 inch wrench. Place the caster frame onto the tabs of the left frame with the dimple to the inside.
Page 12
Figure 8. Add keps nut. Tighten by holding the bolt with pliers while you tighten the nut with the 7/16 inch wrench. Your Weber Gas Barbecue burner assembly has been factory assembled, pressure and flame tested. As a safety precaution we recommend you check the burner alignment: a) Do the valves fit into the ends of the burners? Figure 9 (a).
Page 13
Step 9 Install tank panel assembly You will need: tank panel assembly, 1/4-20 x 1 1/4 inch bolt, 1/4-20 hex nut, nylon washer and a 7/16 inch wrench. Insert the tank panel tabs into the slots in the frame brace. Slide up until the notch at the bottom of the tank panel fits over the cross brace.
Page 14
Step 11 Install igniter Note - The igniter wires are already attached to the Gas Catcher Ignition Chamber and the igniter. This was done to factory test the ignition system. The igniter lock nut is on the igniter. Insert the top of the igniter up through the large part of the keyhole in the frame brace.
Page 15
Step 13 Install side burner You will need: side burner assembly, burner grate, and manifold bracket. WARNING: Make sure gas supply is OFF. Slide the side burner assembly into the open end of the right frame. Route the side burner hose around the tank panel so it will not interfere with scale indicator rod.
Page 16
If the tank manufacturer has not resolved the issue to your satisfaction, then call Weber-Stephen Products Co., Customer Service Center. To fill, take the LP tank to an RV center or look gas- propane in the phone book for other sources of LP gas.
Page 17
Step 17 Connect LP tank WARNING: Make sure that the LP tank valve is closed. Close by turning clockwise. Hook the LP tank onto the fuel scale. Loosen the tank lock wing nut. Swing the tank lock down. Tighten the wing nut. Figure 17.
Page 18
Note - All factory made connections have been thoroughly checked for gas leaks. The burners have been flame tested. As a safety precaution you should recheck all fittings for leaks before using your Weber Genesis Gas Barbecue. Shipping and handling may have loosened or damaged a gas fitting.
Page 19
Step 19 Install Flavorizer Bars and Cooking Grates You will need: five long Flavorizer Bars, eight short Flavorizer Bars and two cooking grates. Set the long Flavorizer Bars side to side in the lower position, then set the short Flavorizer Bars front to back in the upper position in the cooking box.
Page 20
Step 21 Install the lid You will need: lid, two hinge pins and two hair pin cotters. Set the lid in place from the rear of the barbecue. Close and align the hinge at the rear. Insert hinge pins from the outside through the hinge.
Page 21
Step 23 Secure side burner Stand to the right side of the barbecue. Slightly pull back both side burner locks. Slide the side burner toward the control panel. The locks will snap into the slots in the front and back of the side burner. Figure 29. CAUTION: Make sure both locks have snapped into place.
Page 22
Insert one end of the hinge rod into the hole in the frame. Figure 31 (a). Insert the other end into the hole in the swing table end bracket. Figure 31 (b). Hold the end bracket at an angle so the lower tab is inside the frame tube.
Page 23
Basket, warming rack, thermometer, three tubing plugs and a hammer. Insert one end of the Weber Warm-Up Basket into the hole in the right end of the lid and the other end into the slot in the left end of the lid. Figure 34 (a).
If the hose is found to be damaged in any way, do not use the barbecue. Replace using only Weber authorized replacement manifold assembly. Order from Weber- Stephen Products Co., Customer Service Center or authorized dealer.
Manual Lighting DANGER Failure to open lid while igniting the barbecue, or not waiting 5 minutes to allow the gas to clear if the barbecue does not light, may result in an explosive flame- up which can cause serious bodily injury or death.
Page 26
Lighting the side burner The side burner has a separate ignition system from the main cooking box. DANGER Failure to open lid while igniting the side burner, or not waiting 5 minutes to allow gas to clear if the side burner does not light, may result in an explosive flame-up which can cause serious bodily injury or death.
You can adjust the FRONT, CENTER and BACK burners as desired. The control settings High (H), Medium (M), Low (L), or Off (O) are described in your Weber cookbook. The cookbook uses these notations to describe the settings of the FRONT, CENTER, and BACK burners. For example, to sear steaks you would use (HHH) (all burners at high).
Refilling the LP tank We recommend that you refill before the scale indicator reaches "E". Note - If you run out of fuel, check the indicator setting and/or adjust the fuel scale indicator setting with the scale setting wing nut, while the tank is empty so you do not run out again.
Page 29
If bubbles form or if a bubble grows there is a leak. If leak does not stop, turn off the gas and contact Weber-Stephen Customer Service. Do not use the barbecue. g) When leak checks are complete, turn gas supply OFF and rinse connections with water.
Liquid Propane (LP) Tank(s) The LP tank and connections supplied with your Weber Gas Barbecue have been designed and tested to meet government, American Gas Association and Underwriters Laboratories requirements. Replacement LP tanks supplied by Weber satisfy the requirements.
When leak checks are complete, turn gas supply OFF at the source and rinse connections with water. Figure 10 Inspection and Cleaning of the Weber Spider Stopper Guards To inspect the Spider Stopper Guards, remove the control panel and look to see if they have dust or dirt on their outside surfaces.
General Maintenance Weber Spider Stopper Guards Your Weber Gas Barbecue, as well as any outdoor gas appliance, is a target for spiders and other insects. They can nest in the venturi section of the burner tubes. This blocks the normal gas flow, and can cause the gas to flow back out of the air shutter.
Page 33
d) Unlatch the Spider Stopper Guards and remove. Figure 16. Figure 16 e) Remove the manifold bracket and unscrew the two thumb screws that hold the manifold to the cooking box. Pull the manifold and valve assembly out of the burners and carefully set it down.
Page 34
Check fit around burner Figure 21 CAUTION: If the Spider Stopper Guards do not fit tightly, contact Weber-Stephen Customer Service. WARNING: After reinstalling the gas lines, they should be leak checked with a soap and water solution before using the barbecue. (See Step "Check for gas leaks".)
(Resembles paint peeling.) Fuel scale shows that there is gas in the LP tank, but tank is empty. If problems cannot be corrected by using these methods, please contact Weber-Stephen Customer Service. Check Inspect Weber Spider Stopper Guards for possible obstructions.
Page 36
Figure 25. Spark should be a white/blue color, not yellow. Figure 23 Check Is gas supply off? Is fuel hose bent or kinked? Inspect the Weber Spider Stopper Guard for possible obstructions. (Blockage of holes.) Does burner light with a match? Igniter wire Igniter...
While we give much attention to our products, unfortunately an occasional error may occur. If a part is missing, do not go back to the store. Call the Weber Customer Service Center toll free 1-800-446-1071 to receive immediate assistance. Have your owner’s manual and serial number of the barbecue available for reference.
Page 40
INAL HANKS Thank you for choosing a Weber Barbecue. Our family here at Weber has worked hard to produce the highest quality products for your satisfaction. While we give much attention to our products, an occasional error may occur. Our knowledgeable Customer Service staff is prepared to help you with any problems with parts or assembly.
