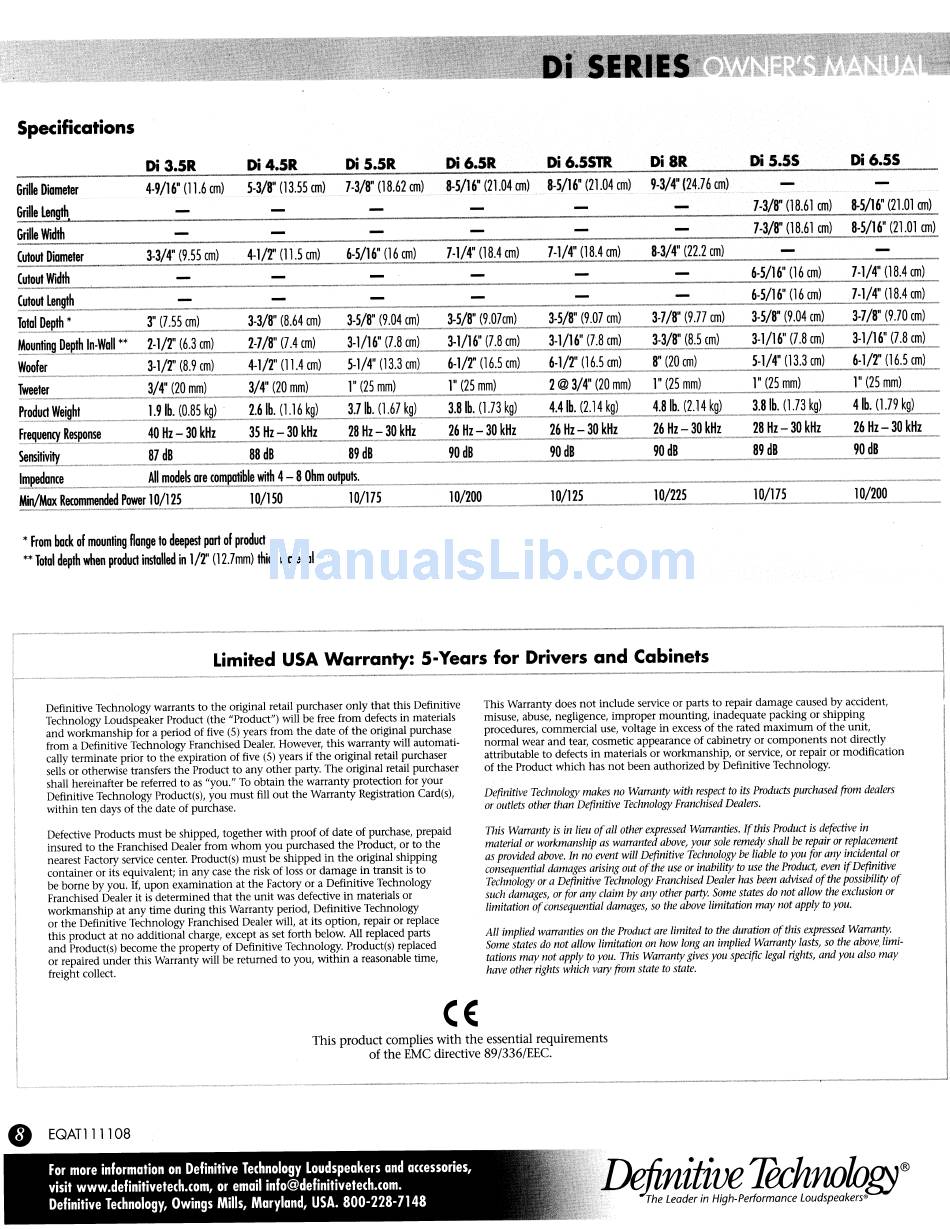

Specifications
Di
3.5R
Di
4.5R
Di
5.5R
Di
6.5R
Di
6.5STR
Di
8R
Di
5.55 Di 6.55
Grille Diameter
4-9/16" (11.6 em) 5-3/8" (13.55 em) 7-3/8" (18.62 em) 8-5/16" (21.04 em) 8-5/16" (21.04 em) 9-3/4" (24.76 em)
Grille Length,
7-3/8" (18.61 em) 8-5/16" (21.01 em)
Grille WK!th 7-3/8" (18.61 em) 8·5/16" (21.01 em)
(utout Diameter 3-3/4" (9.55 em) 4·1/T (11.5 em) 6-5/16" (16 em)
7-1/4" (18.4 em) 7-1/4" (18.4 em)
8-3/4" (22.2 em)
(ulout Width
6-5/16" (16 em) 7-1/4" (18.4 em)
(utout length 6-5/16" (16 em) 7-1/4" (18.4 em)
Tolol Depth "
3" (7.55 em) 3-3/8" (8.64 em) 3-5/8" (9.04 em) 3·5/0" (9.07em) 3-5/0" (9.07 em) 3-7/8" (9.77 em) 3-5/8" (9.04 em) 3-7/8" (9.70 em)
Mounting Depth In-Wall""
2-1/T (6.3 em) 2·7/0" (7.4 em) 3-1/16" (7.8 em) 3-1/16" (7.8 em) 3-1/16" (7.8 em) 3-3/8" (8.5 em) 3-1/16" (7.8 em) 3-1/16" (7.8 em)
Woofer
3-1/2" (8.9 em) 4-1/2" (11.4em) 5-1/4" (13.3 em) 6-1/T (16.5 em) 6-1/2" (16.5 em)
8" (20 em)
5-1/4" (13.3 em) 6-1/2" (16.5 em)
Tweeler
3/4" (20mm) 3/4" (20 mm) 1"(25 mm) 1" (25 mm) 2@3/4" (20 mm) 1" (25 mm) 1" (25 mm) 1" (25 mm)
Product Weighl 1.9lb. (0.85 kg) 2.6 lb. (1.16 kg) 3.7 lb. (1.67 kg) 3.0 lb. (1.73 kg) 4.4 lb. (2.14 kg) 4.8 lb. (2.14kg)
3.8 lb. (1.73 kg) 4lb. (1.79 kg)
Frequency Response 40 Hz - 30 kHz
35 Hz-3D kHz 28 Hz - 30 kHz 26 Hz - 30 kHz 26 Hz - 30 kHz 26 Hz-3D kHz 28 Hz - 30 kHz 26 Hz - 30 kHz
Sensitivity 87 dB 88 dB 89 dB 90 dB 90 dB
90 dB 89 dB 90 dB
Impedance All
mode~ are compatible with 4- 8Ohm outputs.
MinIMax
Recommended Power I0/125 10/150 10/175 10/200 10/125 10/225 10/175 10/200
" From bock of rnounfing flange
10 deepest
port of product
"" Tolol depth when product installed in 1/2" (12.7mm) thick material
Limited USA Warranty: 5·Years for Drivers and Cabinets
This Warranty does not include service or parts to repair damage caused by accident,
misuse, abuse, negligence, improper mounting, inadequate packing or shipping
procedures, commercial use, voltage in excess of the rated maximum of the unit,
normal wear and tear, cosmetic appearance of cabinetry or components not directly
attributable to defects in materials or workmanship, or service, or repair or modification
of the Product which has not been authorized by Definitive Technology.
Definitive Technology makes no Warranty with respect to its Products purchased from dealers
or outlets other than Definitive Technology Franchised Dealers.
Definitive Technology warrants to the original retail purchaser only that this Definitive
Technology Loudspeaker Product (the "Product") will be free from defects in materials
and workmanship for a period of five (5) years from the date of the original purchase
from a Definitive Technology Franchised Dealer. However, this warranty will automati-
cally terminate prior to the expiration of five (5) years if the original retail purchaser
sells or otherwise transfers the Product to any other party. The original retail purchaser
shall hereinafter be referred to as "you." To obtain the warranty protection for your
Definitive Technology Product(s), you must fill out the Warranty Registration Card(s),
within ten days of the date of purchase.
I
i
I
r - - - - - - · - - - -
i
I
I
Defective Products must be shipped, together with proof of date of purchase, prepaid
insured to the Franchised Dealer from whom you purchased the Product, or to the
nearest Factory service center. Product(s) must be shipped in the original shipping
container or its equivalent; in any case the risk of loss or damage in transit is to
be borne by you. If, upon examination at the Factory or a Definitive Technology
Franchised Dealer it is determined that the unit was defective in materials or
workmanship at any time during this Warranty period, Definitive Technology
or the Definitive Technology Franchised Dealer will, at its option, repair or replace
this product at no additional charge, except as set forth below. All replaced parts
and Product(s) become the property of Definitive Technology. Product(s) replaced
or repaired under this Warranty will be returned to you, within a reasonable time,
freight collect.
This Warranty is in lieu ofall other expressed Warranties. If this Product is defective in
material or workmanship as warranted above, your sale remedy shall be repair or replacement
as provided above. In no event will Definitive Technology be liable to you for any incidental or
consequential damages arising out ofthe lISe or inability to use the Product, even ifDefinitive
Technology or a Definitive Technology Franchised Dealer has been advised ofthe possibility of
such damages, or for any claim by any other party. Some states do not allow the exclllSion or
limitation ofconsequential damages, so the above limitation may not apply to you.
All implied warranties on the Product are limited to the duration ofthis expressed Warranty.
Some states do not allow limitation on how long an implied Warranty lasts, so the above.limi-
tations may not apply to you. This Warranty gives you specific legal rights, and you also may
have other rights which vary from state to state.
CE:
This product complies with the essential requirements
of the EMC directive 89/336/EEC.
