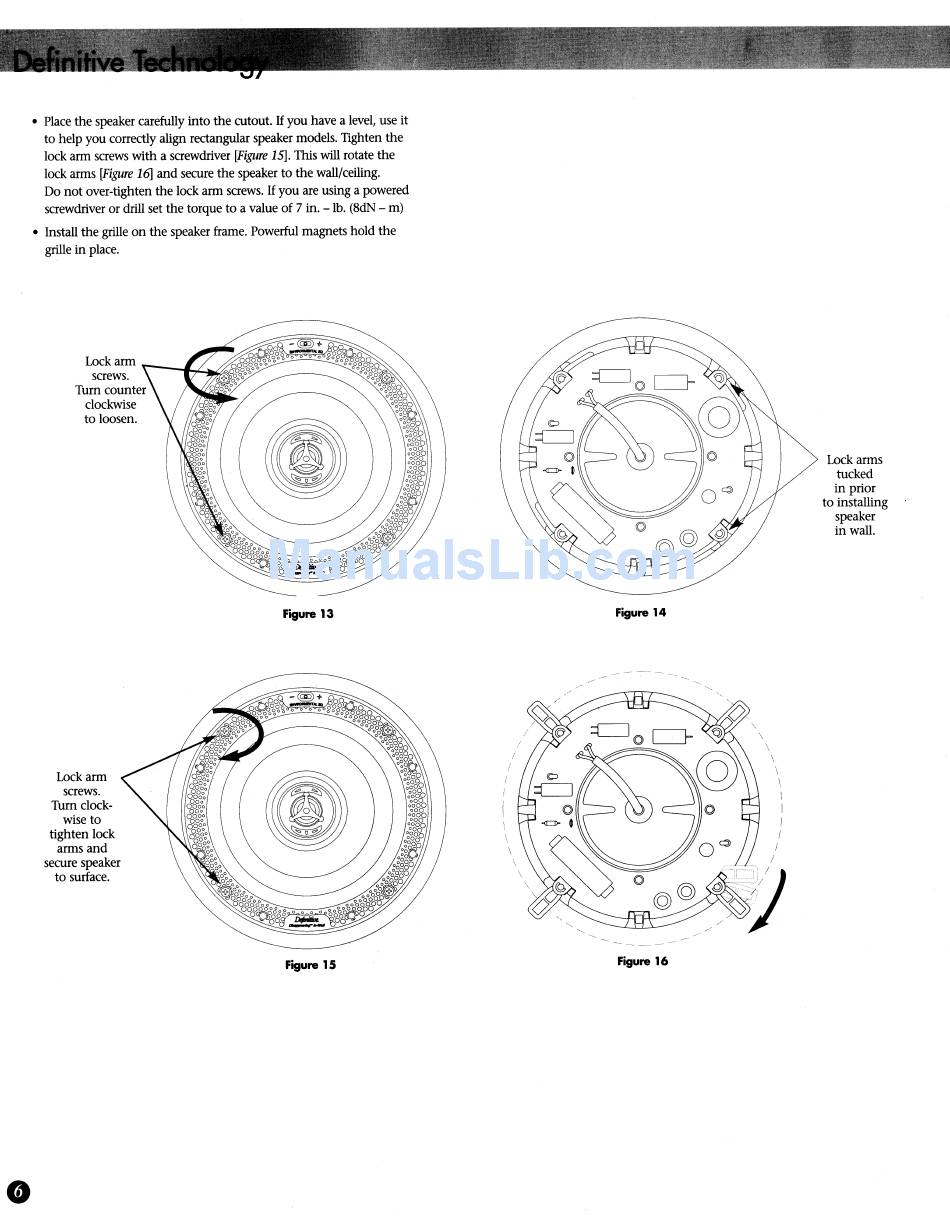

• Place the speaker carefully into the cutout. If you have a level, use
it
to help you correctly align rectangular speaker models. Tighten the
lock arm screws with a screwdriver [Figure 15). TIJ.is will rotate the
lock arms [Figure 16] and secure the speaker to the wall/ceiling.
Do not over-tighten the lock arm screws. If you are using a powered
screwdriver or drill set the torque to a value of 7 in. - lb. (8dN - m)
• Install the grille on the speaker frame. Powerful magnets hold the
grille in place.
Lock arm
screws.
Tum counter
clockwise
to loosen.
Figure 13
Figure 14
Lock arms
tucked
in prior
to installing
speaker
in wall.
Lock arm
screws.
Tum clock-
wise to
tighten lock
arms and
secure speaker
to surface.
Figure 15
-----
Figure 16
