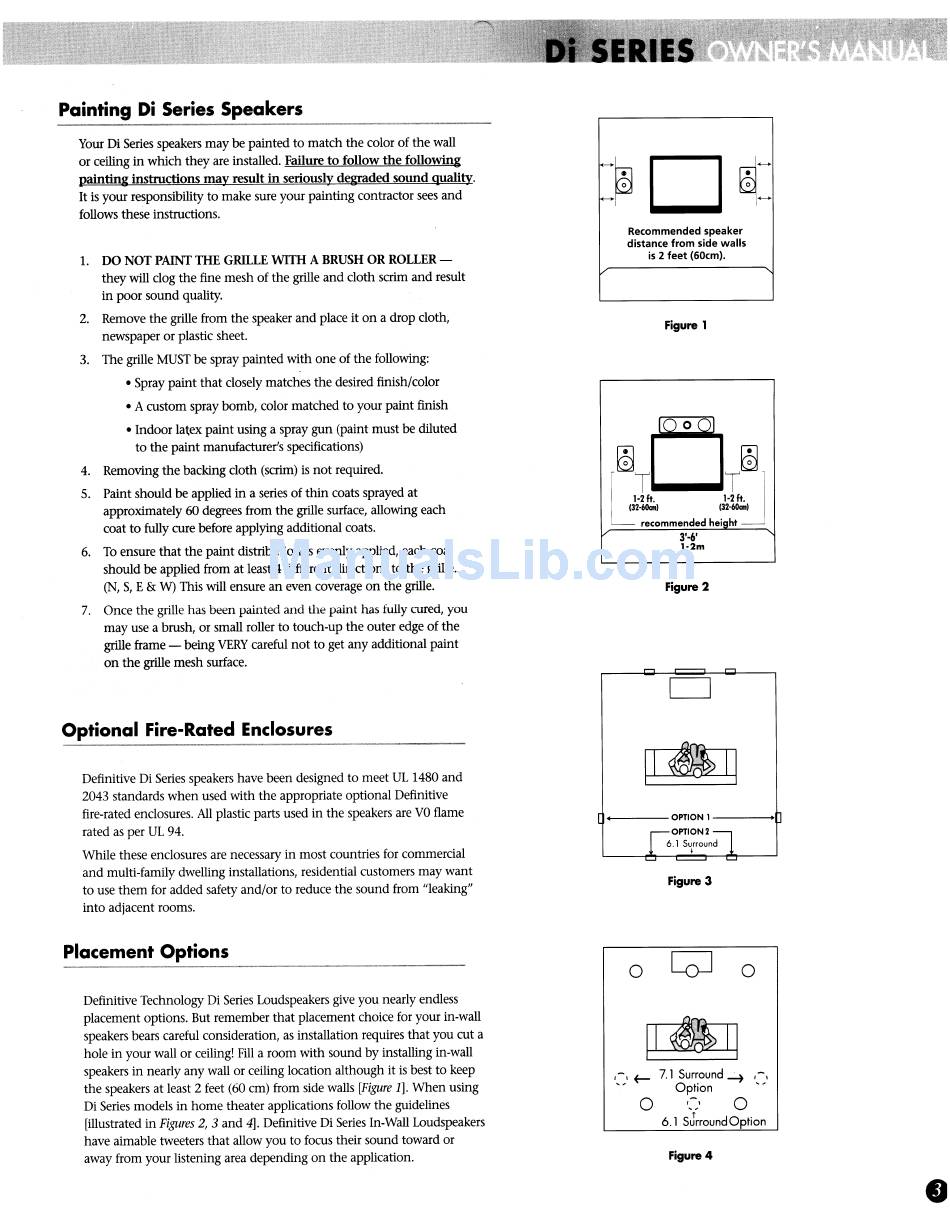

Painting Di Series Speakers
Your Di Series speakers may be painted to match the color of the wall
or ceiling in which they are installed. Failure to follow the following
painting instructions may result
in
seriously degraded sound quality.
It is your responsibility to make sure your painting contractor sees and
follows these instructions.
1. DO NOT PAINr THE GRILLE WITH A BRUSH OR ROllER -
they will dog the fine mesh of the grille and doth scrim and result
in poor sound quality.
2. Remove the grille from the speaker and place it on a drop doth,
newspaper or plastic sheet.
3. The grille MUST be spray painted with one of the following:
• Spray paint that closely matches the desired finish/color
• A custom spray bomb, color matched to your paint finish
• Indoor latex paint using a spray gun (paint must be diluted
to the paint manufacturer's specifications)
4. Removing the backing doth (scrim) is not required.
S. Paint should be applied in a series of thin coats sprayed at
approximately 60 degrees from the grille surface, allowing each
coat to fully cure before applying additional coats.
6. To ensure that the paint distribution is evenly applied, each coat
should be applied from at least 4 different directions to the grille.
(N,
S, E &
W)
This will ensure an even coverage on the grille.
7.
Once the grille has been painted and the paint has fully cured, you
may use a brush, or small roller to touch-up the outer edge of the
grille frame - being VERY careful not to get any additional paint
on the grille mesh surface.
Optional Fire-Rated Enclosures
Definitive
Di
Series speakers have been designed to meet UL 1480 and
2043 standards when used with the appropriate optional Definitive
fire-rated enclosures. All plastic parts used in the speakers are VO flame
rated as per UL 94.
While these enclosures are necessary in most countries for commerdal
and multi-family dwelling installations, residential customers may want
to use them for added safety and/or to reduce the sound from "leaking"
into adjacent rooms.
Recommended speaker
distance from side walls
is 2 feet (60cm).
Figure 1
rn
U
rn
C
r.
lrJ
(32-6000>
(32_1
recommended height
3'-6'
I-2m
Figure 2
Figure 3
Placement Options
o
o
Definitive Technology Di Series Loudspeakers give you nearly endless
placement options. But remember that placement choice for your in-wall
speakers bears careful consideration, as installation requires that you cut a
hole in your wall or ceiling! Fill a room with sound by installing in-wall
speakers in nearly any wall or ceiling location although it is best to keep
the speakers at least 2 feet (60 em) from side walls [Figure
1].
When using
Di
Series models in home theater applications follow the guidelines
[illustrated in Figures 2,3 and 4]. Definitive Di Series In-Wall Loudspeakers
have aimable tweeters that allow you to focus their sound toward or
away from your listening area depending on the application.
,-. +--
7. 1 Surround
-4 ' ,
"
Option
o
'::'
0
6.1 SJrroundOption
Figure 4
