I

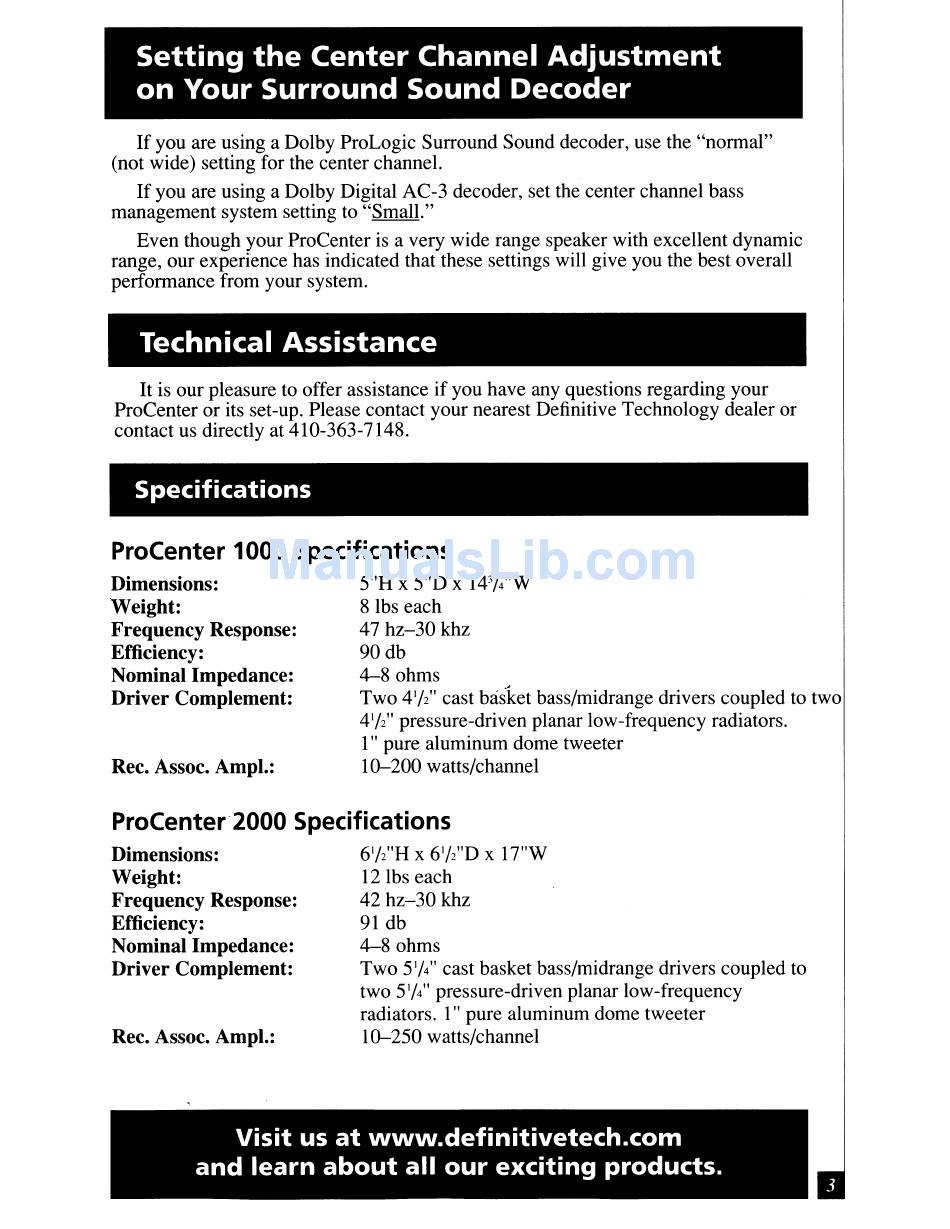

Setting the Center Channel Adjustment
on Your Surround Sound Decoder
If you are using a Dolby ProLogic Surround Sound decoder, use the "nonnal"
(not wide) setting for the center channel.
If you are using a Dolby Digital AC-3 decoder, set the center channel bass
management system setting to "Small."
Even though your ProCenter is a very wide range speaker with excellent dynamic
range, our experience has indicated that these settings will give you the best overall
perfonnance from your system.
Technical Assistance
It is our pleasure to offer assistance if you have any questions regarding your
ProCenter or its set-up. Please contact your nearest Definitive Technology dealer or
contact us directly at 410-363-7148.
Specifications
ProCenter 1000 Specifications
Dimensions:
5"H x 5"D x 14 3 /4"W
Weight:
8 lbs each
Frequency Response:
47 hz-30 khz
Efficiency: 90
db
Nominal Impedance:
4-8 ohms
Driver Complement:
Two 4'/2" cast basket bass/midrange drivers coupled to two
4 1 /2" pressure-driven planar low-frequency radiators.
1" pure aluminum dome tweeter
Rec. Assoc. Ampl.:
10--200 watts/channel
ProCenter 2000 Specifications
Dimensions:
6
1
/2"H x 6
1
/2"D x 17"W
Weight:
12 lbs each
Frequency Response:
42 hz-30 khz
Efficiency: 91
db
Nominal Impedance:
4-8 ohms
Driver Complement:
Two 5
1 /4"
cast basket bass/midrange drivers coupled to
two 5
1 /4"
pressure-driven planar low-frequency
radiators. 1" pure aluminum dome tweeter
Rec. Assoc. Ampl.:
10--250 watts/channel
Visit us at www.definitivetech.com
and learn about all our exciting products.
