Page 1: User Guide

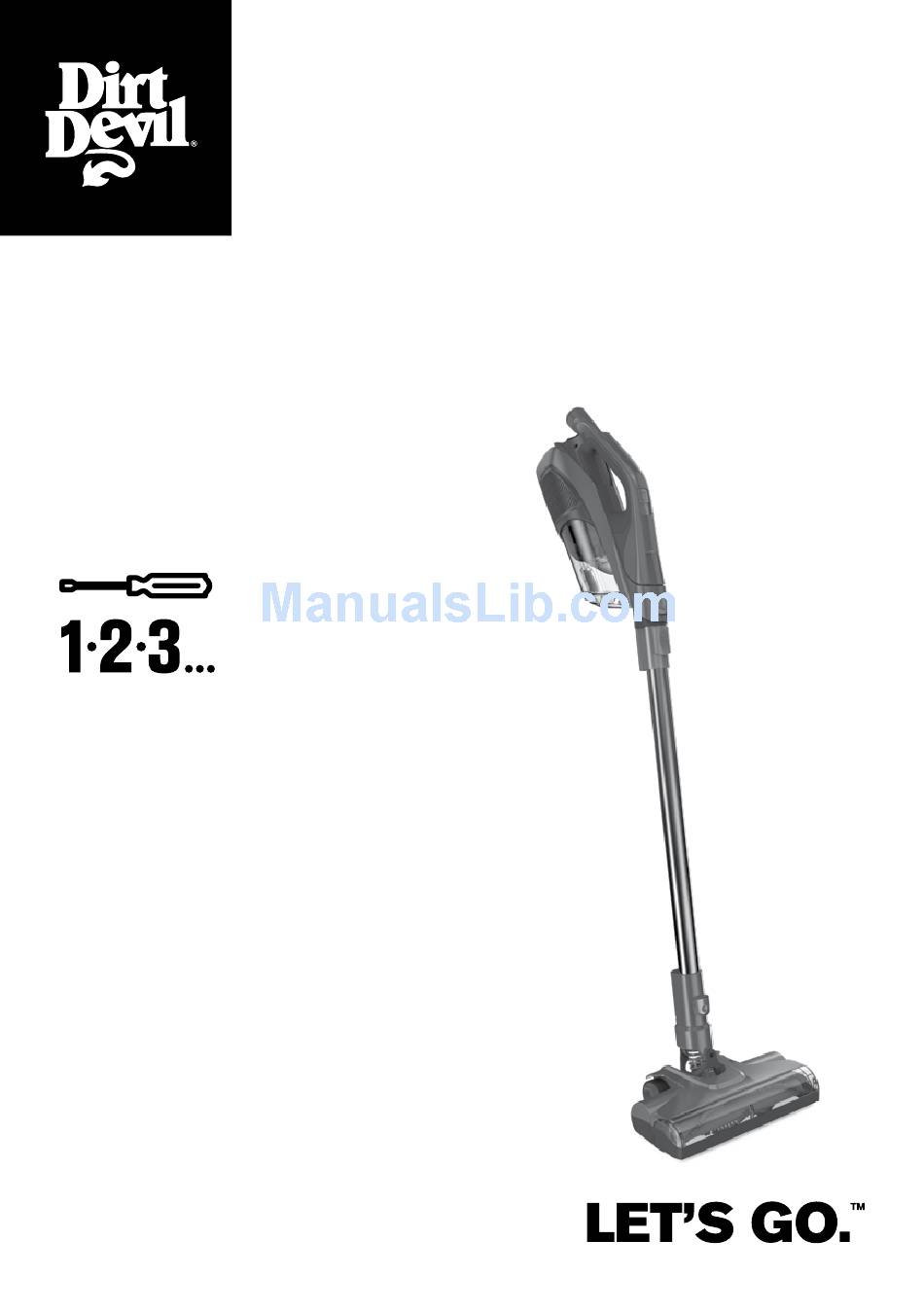

REACH ° ™ Cyclonic Vacuum USER GUIDE DDU03-E01... -
Page 2: Basic Safety Precautions
• Keep fingers, hair and loose supervision. clothing away from moving parts and openings whilst using the • Only Dirt Devil recommended vacuum cleaner. tools should be used with the vacuum cleaner, use of non- • This vacuum cleaner can be used... - Page 3 WARNING DON'TS CONTINUED... • Don’t attempt to remove blockages • Don’t use the vacuum cleaner with with sharp objects as this may incorrect voltage as this may result cause damage to the vacuum in damage or injury to the user. cleaner, remove blockages only as The correct voltage is listed on the instructed in this guide.
-
Page 4: Product Registration
Guarantee Registration Be sure to register your product online at www.DirtDevil.co.uk Hint: Attach your sales receipt to this User Guide. Verification of date of purchase may be required for warranty service of your Dirt Devil product. ® For quick reference, please record your product information below. - Page 5 TABLE OF CONTENTS Quick Start Assembly How to Tools Troubleshooting Limited Guarantee...
- Page 6 Push the reach wand Slide the crevice tool Push the handheld down onto the powered into the crevice tool down onto the reach head until it clicks holder inside the wand until it clicks into place. handheld handle. into place.
-
Page 7: Need Help
Push the handle forward to lock the The upright stick vacuum cleaner is reach wand and powered head into not free standing, in between uses the upright position. lie flat on the floor. YOUR 360º REACH ™ CYCLONIC VACUUM NEED HELP? IS READY TO CLEAN! Go to www.DirtDevil.co.uk or contact our Customer Service... - Page 8 USE AS A HANDHELD VACUUM CLEANER 1. Press the handheld release clip. 2. The reach wand and powered Pull and separate the handheld head are not free standing. Place from the reach wand. safely and securely to one side. 3. Pull and slide the crevice tool out 4.
-
Page 9: Floor Cleaning
CAUTION This vacuum cleaner has a constantly rotating brushbar when carpet mode (II) has been selected . When turned on never leave the vacuum cleaner in one spot for an extended period of time as this may damage the floor surface. The power head brush should be ON (II) for carpets and OFF (I) for hard floors. - Page 10 CAUTION Unplug and switch off the vacuum cleaner before performing maintenance or troubleshooting checks. EMPTY AND CLEAN THE DIRT CONTAINER… 1. Press the handheld release clip. 2. Place the reach wand and Pull and separate the handheld powered head safely and securely from the reach wand/crevice/ to one side, lie flat on the floor.
- Page 11 CAUTION For best cleaning results, filters should be tapped over a bin every 4-6 uses to remove dirt and debris and washed every 3 to 6 months. CLEAN THE PRE-MOTOR FILTERS 1. Press the dirt container release 2. Twist clockwise and pull filter button, pull the dirt container frame out.
- Page 12 CLEAN THE POST MOTOR FILTER 1. Press the post-motor filter 2. Rinse with water from both sides cover release button and let dry for 24 hours or until and rotate out. completely dry. 3. Put the dry filter back and click into place.
- Page 13 CLEAN THE SHROUD AND SEPARATOR 1. Press the Dirt Cup release button. 2. Twist clockwise and pull the Filter Frame out. Top view of Pre-Motor filter 3. Pull out the separator and shroud, 4. Line up the shroud and dirt wipe it clean.
- Page 14 CAUTION This vacuum cleaner is not free standing and should be disassembled before storing. REMOVE BLOCKAGES REMOVE BLOCKAGES FROM POWERED HEAD FROM REACH WAND 1. Using scissors remove any 1. To test for a blockage in the reach threads or hair from around the wand, look through the wand to brushbar and clear any dirt or check if it is clear.
- Page 15 STORE YOUR UPRIGHT STICK VACUUM CLEANER 1. Press the handheld release clip. 2. Press the powered head release Pull and separate the handheld clip and pull to remove the from the reach wand. powered head. 3. Slide the crevice tool into the 4.
- Page 16 CAUTION To avoid injury, particularly to face and head, keep hair, loose clothing, fingers, and all parts of the body away from revolving brush. 1. Press the powered head 2. Pull and slide the crevice tool release clip and pull to remove out of the crevice tool holder.
- Page 17 CAUTION Not to be used for grooming a pet. WARNING To reduce the risk of personal injury - Unplug before cleaning or servicing. 5. The reach wand can be used for hard to reach places. 7. Use your upholstery tool to clean large textile areas such as stairs and sofas.
- Page 18 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Why does my The plug may not be fully pushed Check the fuse in the plug if this vacuum cleaner into the electrical socket. needs replacing, always replace have no power? with a British 13amp fuse. The motor thermostat may If this has happened, unplug the have tripped.
-
Page 19: Limited Guarantee
LIMITED GUARANTEE It’s quick and easy to register for your free 1 year guarantee online at www.DirtDevil.co.uk. Please retain your original receipt for proof of purchase. Please make a note of the serial number and model number of the product before calling. 7 19... - Page 20 Dirt Devil. 2 Colmore Square, 38 Colmore Circus, Queensway, Birmingham, B4 6BN. EEC Statement of Compliance: Manufacturer/EEC importer: Vax Ltd trading as Dirt Devil, hereby on our own responsibility, declare that the DDU03-E01 series is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive.
