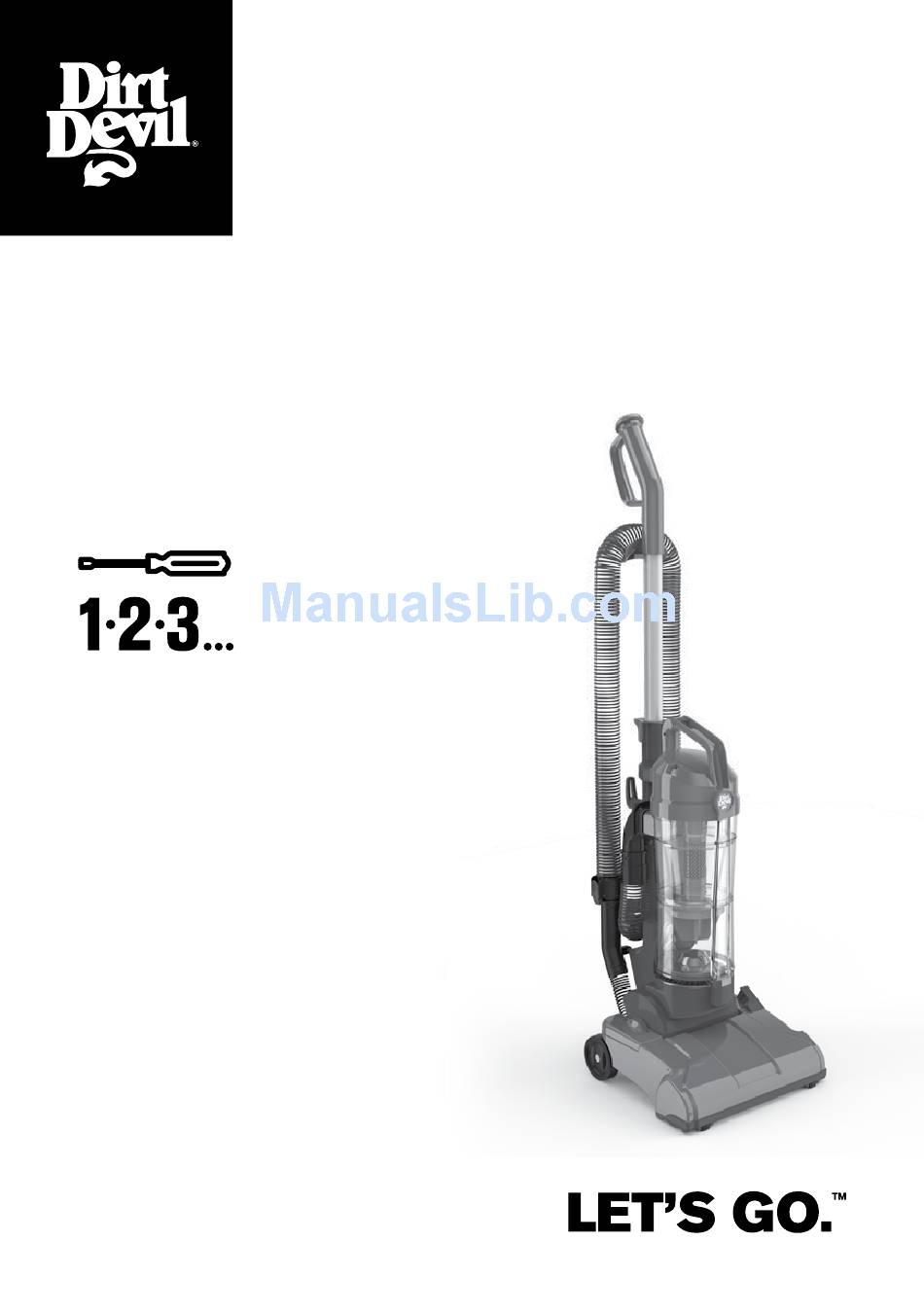

Page 1: User Guide
POWERLITE SERIES Cyclonic Vacuum USER GUIDE DDU01-E01-P01... - Page 2 • Only Dirt Devil recommended using the vacuum cleaner. tools should be used with the • This vacuum cleaner can be vacuum cleaner, use of...
- Page 3 WARNING DON'TS CONTINUED... or use in an area where • Don’t vacuum up hard or sharp there may be harmful fluids objects such as glass, nails, (chlorine, bleach, and ammonia screws or coins etc. drain cleaner). • Don’t use the vacuum cleaner •...
- Page 4 Inside, you’ll find everything you want to know from tools to how to. So what are you waiting for? LET’S GO. ™ Thank you for choosing a Dirt Devil product. Please enter the complete model and serial number in the spaces provided. MODEL...
- Page 5 TABLE OF CONTENTS Safety information Contents Machine overview Quick start Hard floor cleaning Using your machine Maintenance Troubleshooting Other information Limited guarantee...
-
Page 6: Vacuum Description
VACUUM DESCRIPTION 1. Handle 10. Hose Holder 2. Stretch Hose 11. Quick Release Cord Hook 3. Dusting Brush 12. Power Cord 4. Dirt Bin Release Button 13. Wheels 5. Shroud and Separator 14. On/Off Pedal 6. Dirt Bin 15. Brushbar Control Button 7. - Page 7 WHAT'S IN THE BOX Remove all parts from carton and A. Handle identify each item shown. Make B. Crevice Tool sure all parts are located before (Attached to handle) disposing of packaging. C. Main Body D. Dirt Bin E. Dusting Brush F.
-
Page 8: Attach Handle
ATTACH HANDLE 1. Insert handle into 2. Position hose over 3. To remove handle, body of cleaner. Push hose holder (A) and into remove hose and press down until handle locks hose tube (B). handle/wand release into place. button (C) to remove. IMPORTANT: Hose must be connected as shown for all operations. -
Page 9: Carpet Cleaning
CAUTION Not to be used for grooming a pet. HANDLE FLOOR/ SUCTION CARRY RELEASE CARPET ONLY MODE HANDLE CLEANING Pull back handle Move the handle For optimal Use the carry to tilt back. Press and adjust it to the cleaning handle to move on the front of desired position... -
Page 10: Attach Wand And Tools
SELECT PROPER TOOL (Tools may vary per model) A. Dusting brush may be used for carved furniture, table tops, books, lamps, lighting fixtures, venetian blinds, baseboards, shutters, and registers. B. Crevice tool (permanently fixed to the bottom of the handle/wand) may be used in tight spaces, corners and along edges in such places as dresser drawers, upholstered furniture, stairs... - Page 11 STAIR CLEANING Use the hose or crevice tool for stair cleaning. With handle in upright position, clean from bottom to top. CAUTION Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the vacuum from falling, always place cleaner at bottom of stairs or on floor. Do not place vacuum on stairs or furniture, as it may result in injury or damage.
- Page 12 Always turn off the brushbar. Apply the Hard Floor Adapter for optimum results on hard floors. IMPORTANT: To ensure the Hard Floor Adaptor is correctly fitted, the wheels should be towards the back of the floor tool when attached to vacuum cleaner. 1.
- Page 13 CAUTION To reduce the risk of personal injury - Unplug before cleaning or servicing. Do not operate vacuum without either the dirt bin or filters in place. Very fine materials, such as face powder or cornstarch, may seal the filter and cause a reduction in performance. When using the vacuum for this type of dust, empty the bin and clean the filters often.
- Page 14 HOW TO EMPTY THE DIRT BIN 1. To remove dirt bin press 2. Hold dirt bin over rubbish bin and release button. press quick release dirt bin button to empty. Make sure bin bottom centre opening is clear of debris. Click bin back into place after emptying.
- Page 15 HOW TO CLEAN THE PRE-MOTOR FILTER REMOVE DIRT BIN 1. Twist dirt in 2. Remove filter 3. Separate 4. Hold filter cartridge over rubbish bin and tap lid anticlockwise cartridge from foam filter from off dirt and debris. The and lift up dirt bin.
- Page 16 HOW TO CLEAN THE SHROUD AND SEPARATOR 1. Hold dirt bin by carry handle and 2. Twist umbrella tube anti-clockwise press release button (A) to empty and pull out of dirt bin. Hold over bin dirt bin. and shake free of dirt and debris. To replace shroud and separator, insert back into dirt bin, align slots and twist clockwise until tube locks in place.
- Page 17 HOW TO REPLACE THE BELT AND BRUSHBAR CONTINUED... 4. Slide belt onto 5. Place new belt in 6. With new belt in place, motorshaft. area of brushbar pull and slide brushbar without bristles. into nozzle making sure that the brushbar end caps are in the correct orientation.
- Page 18 If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the checklist below. CAUTION To reduce the risk of personal injury - Unplug before cleaning or servicing. PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Cleaner won't run.
-
Page 19: Technical Specification
Any queries or concerns about using your Dirt Devil, simply visit; www.DirtDevil.co.uk or call the Dirt Devil Careline on 0330 026 2626. Calls are charged at the UK local rate. Please make a note of the serial number and model number of the vacuum cleaner before calling. - Page 20 2 Colmore Square, 38 Colmore Circus, Queensway, Birmingham, B4 6BN. EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited trading as Dirt Devil, hereby on our own responsibility, declare that the DDU01-E01-P01 series is manufactured in compliance with the following Directives: Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
