Page 1
AU: 1300 361 505 / NZ: 0800 800 900 2 in 1 Stick Vac LET’S GO. What’s your Dirt Devil’s model number? What’s your serial number? (Located on the base of the machine) Note these down in case you need them in future. Please keep instructions for further use.

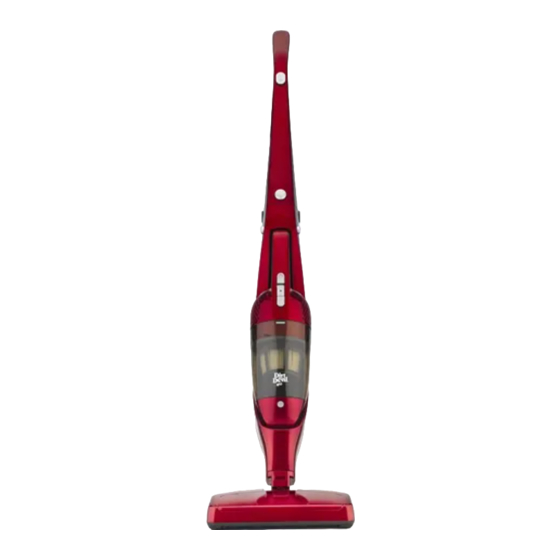

MACHINE OVERVIEW Handle On/off button for stick vac Release button for handle Hand vac release button Hand vac on/off button Power light indication Dust cup release button Dust cup Stick-vac body Floor brush Charging & Storage base AC power adapter dirtdevil.com.au...
6. Use only as described in this manual. Use only Dirt Devil recommended attachments. WARNING: Do not use the vacuum cleaner if it has been dropped, Do not recharge non-rechargable batteries.
OPERATION Vacuum Assembly and Charging NOTE: Actual colour of unit may vary to the one shown in this user guide. NOTE: Before assembling, please be sure that all parts and accessories are included by reviewing the ‘Machine Overview’ page. Extend the handle into an upwards Place the handheld vacuum onto Slide the stick vac onto the charger position –...
Page 6
The handheld vacuum has a stick vac body. built-in crevice tool for convenient cleaning in hard to reach places and car interiors. Dirt Devil Service Line: AU: 1300 361 505 NZ: 0800 800 900...
Page 7
OPERATION Storage Once vacuuming tasks are complete, return the handheld unit to the main body and place back into the charging base. The handle can be folded down for easy storage by pressing the release latch at the front of the cleaner. Begin the charging process as described on page 4.
When replacing the dust cup’s front cover – angle it to the back first before the top to help for alignment. You will hear a click when it is in place. Dust Cup Button Dust cup front release button Dust Tank Filter Assembly Crevice Nozzle Dirt Devil Service Line: AU: 1300 361 505 NZ: 0800 800 900...
MAINTENANCE Cleaning the filter 1. Filter can be rinsed when it becomes visibly solid/soiled. We recommend to do this often to avoid the filter from clogging or damaging the vacuum cleaner. 2. Always operate the cleaner with filter installed. 3. Do not use a washing machine for rinsing filter, do not use a tumble dryer or any other device for drying it. 4.
Page 10
The filter may be clogged: Refer to the Maintenance section. What do I do if an accessory/the Please call our Dirt Devil Service Line to purchase new spares or order a replacement: unit becomes damaged or broken? AU: 1300 361 505 / NZ: 0800 800 900 or visit www.dirtdevil.com.au WE’RE HERE TO HELP...
8.30am to 5.00pm If you have queries or concerns about using your Dirt Devil, call the Dirt Devil Service Line. Calls are charged at the standard local rate. Please make a note of the serial number and model number of the vacuum cleaner before calling.
Page 12
Distributed by Techtronic Industries Australia Pty. Ltd. Level 1, 660 Doncaster Road, Doncaster, Australia 3108. www.dirtdevil.com.au Service Line: AU: 1300 361 505 / NZ: 0800 800 900 LET’S GO.
