ASg 658
To be handed to your workshop

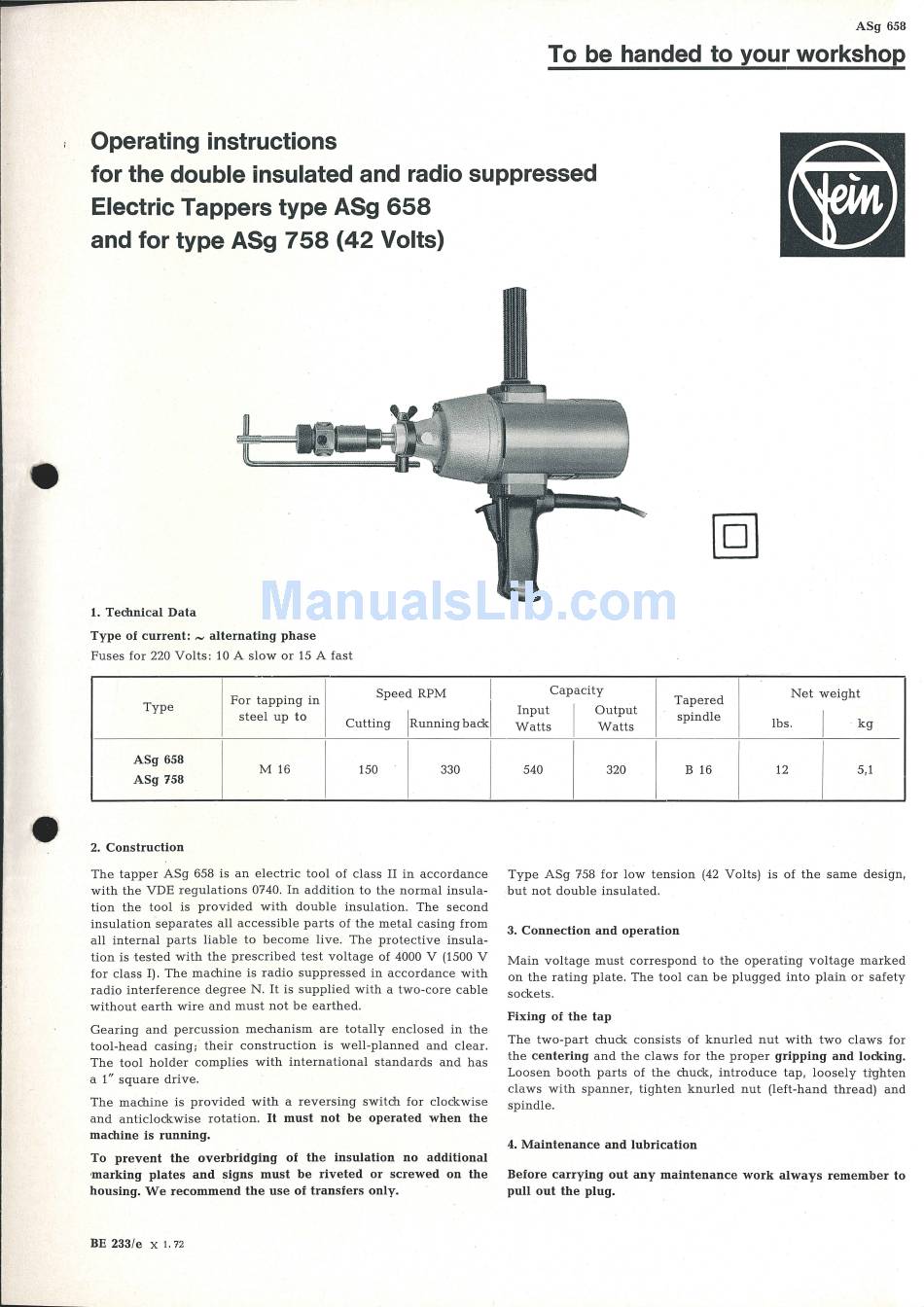

Operating instructions
for the double insulated and radio suppressed
Electric Tappers type ASg 658
and for type ASg 758 {42 Volts)
1.
Technical Data
Type of current: - alternating phase
Fuses
for 220
Volts: 10 A
slow or
15 A fast
I
Type
For tapping in
Speed RPM
[Running
backl
steel up to
Cutting
ASg 658
ASg 758
2. Construction
M 16
150
330
The tapper
ASg 658
is an
electric
tool of class II
in accordance
with the VDE
regulations 0740. In
addition
to the
normal insula-
tion
the tool
is
provided with
double
insulation. The second
insulation separates all
accessible
parts ofthe metal casing
from
all internal parts liable to become
live.
The protective
insula-
tion is tested
with
the prescribed test voltage of 4000
V (1500 V
for class I). The machine is radio suppressed in accordance with
radio
interference
degree N.
It
is
supplied with a
two-core
cable
without
earth
wire and
must not be earthed.
Gearing and percussion
m echanism
are totally
enclosed
in the
tool-head
casing;
their
construction
is
well-planned and clear.
The tool holder complies with
international
standards and has
a
1"
square
drive.
The machine is provided with a reversing switch for
clockwise
and anticlockwise rotation.
It
must not be operated when the
machine is running.
To prevent the overbridging of the insulation no
additional
•
marking plates
and
signs must be riveted or screwed on the
housing.
We recommend
the use of transfers only.
BE 233/e
x
1.
12
Capacity
Tapered
Net
weight
Input
Output
Watts
Watts
spindle
lbs.
kg
540
320
B 16
12
5,1
Type
ASg
758 for low
tension
(42 Volts) is
of
the
same
design,
but
not
double
insulated.
3.
Connection and operation
Main voltage
must correspond to the operating
voltage
marked
on the rating plate. The
tool
can
be plugged
into plain or
safety
sockets.
Fixing
of
the tap
The
two-part chuck consists of knurled nut with two claws for
the centering and the claws for the
p
roper
gripping and locking.
Loosen booth
parts
of
the
chuck, introduce tap,
loosely Uyhten
claws
with spanner, tighten knurled
nut
(left-hand
thread) and
spindle.
4. Maintenance and lubrication
Before carrying out any maintenance work always remember to
pull out the plug.
