HA-101 – User's Instructions

GENERAL INTRODUCTION

HA-101 is a reliable car alarm system, which provides 2 designs to prevent the car
thieving. The first design is to use the loud siren. When any illegal intrusion happens,
the siren will sound loudly to warn the intruder. The second design is to use an
immobilisation system to disable the engine start. With the peripheral devices, the
system can provide the following main protection:
a. Ignition trigger: illegally turn IGNITION ON, the alarm will be triggered
b. Boot trigger: illegally open the boot, the alarm will be triggered.
c. Door trigger: illegally open the door, the alarm will be triggered.
d. AUX trigger: it can be used on any other additional sensor. For example:
bonnet trigger. Illegally open the bonnet, the alarm will be triggered.
e. UL trigger: abnormally moving inside the car, the alarm will be triggered.

SETTING AND UNSETTING

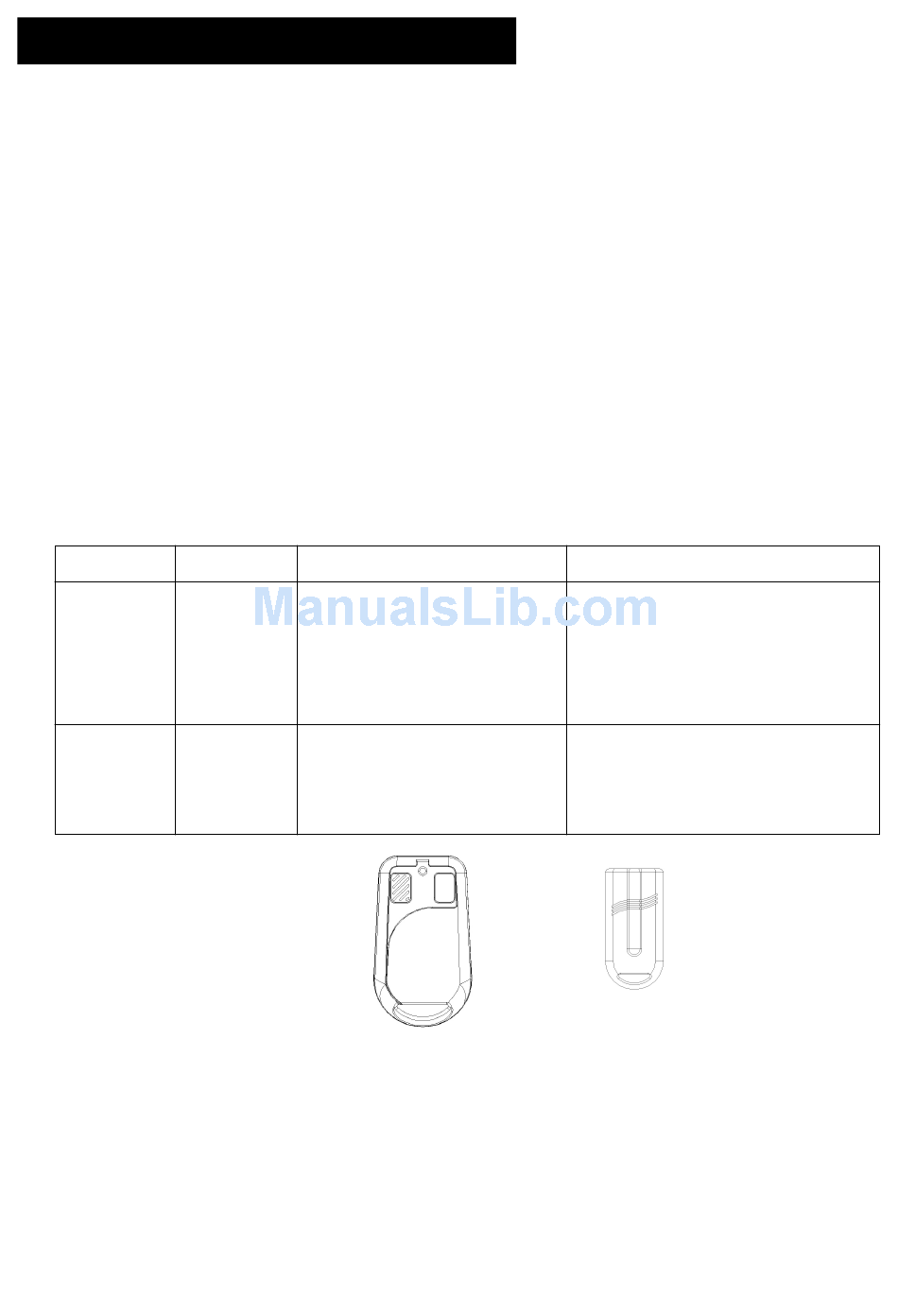

1. REMOTE CONTROL FUNCTIONS

Refer to the following table for the functions introduction.
Button Step
1 Press
one
time
2 Press
one time
Press
one time

2. ARM

a. Press button 1
b. Siren will chirp once (soft chirp),
c. Hazard light will flash once
d. Central lock will lock the door at the same time (1 second or 40 seconds)
e. The system will disable engine starter *immobilisation) at the same time.
f. 5 Seconds after, bonnet/boot, IGNITION will be arming.
g. After 60 seconds, door, UL sensor, additional sensor will be arming.
h. If the door is not closed, 5 seconds later, the siren will chirp 3 times.
i. 60 Seconds after, LED willl flash slowly.
j. If press button 1 within 5 seconds, the system will bypass UL sensor and
external sensor.
Functions
a. Arm/disarm and
lock/unlock doors
b. Disable UL sensor
c. Disable immobilisation
a. Panic
b. Close windows
Remote
1 2
Control
HA-12T
Conditions
a. Ignition off
b. When 5 sec after arming
c. When immobilisation &
IGNITION ON
d. Ignition locking & unlocking
a. Armed
b. Armed
Touch
Key
HA-210T
