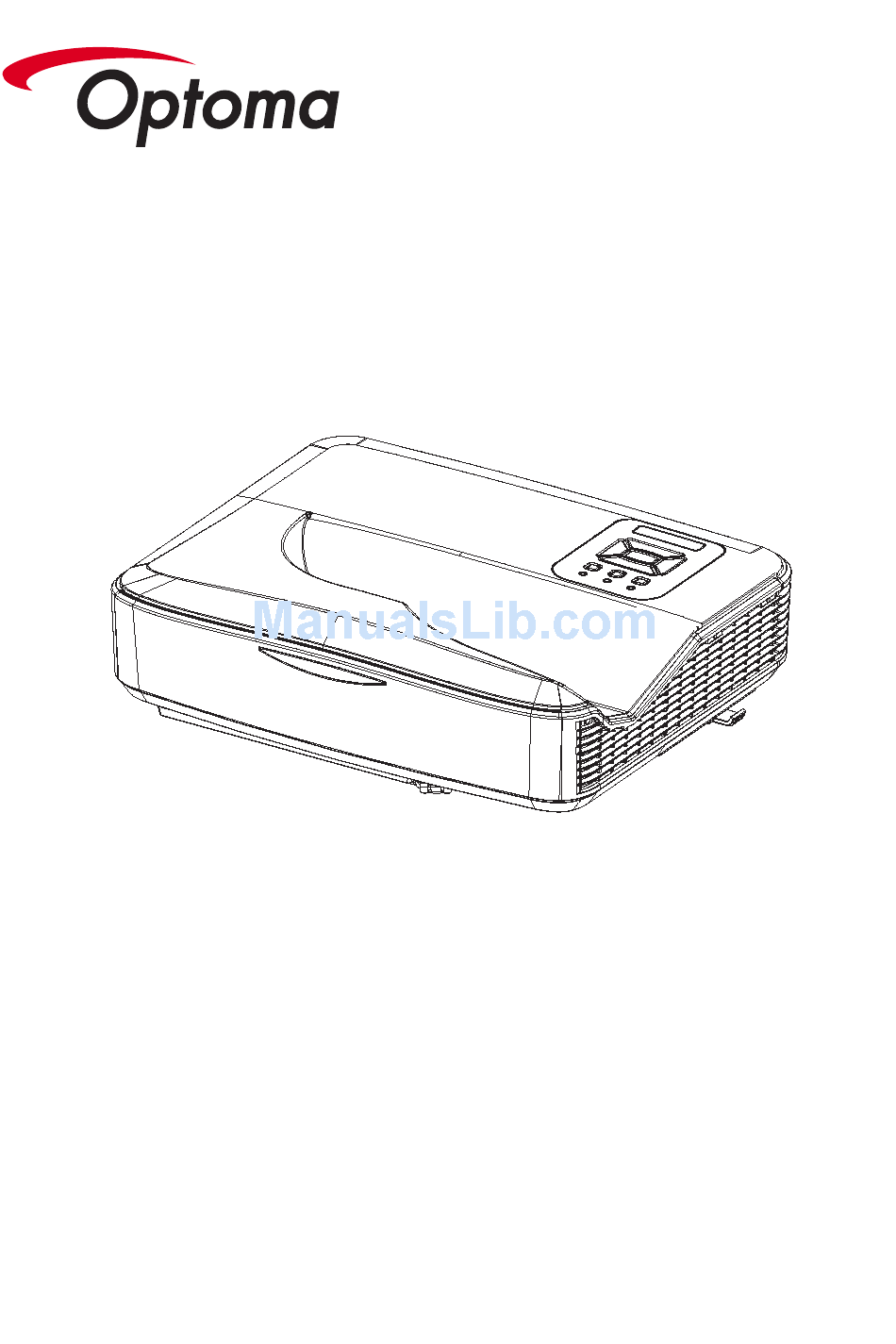

- Page 1 LCT100 Laser Ultra Short-Throw Projector User’s Manual...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ......2 Usage Notice ........3 Safety Information .......3 Precautions .........4 Introduction ........7 Packaging Overview ......7 Product overview ........8 Main Unit ..........8 Control Panel ........9 Input/Output Connections ....10 Remote Control ........11 Installation ........12 Connect to the projector ....12 Connect to computer/notebook .. -
Page 3: Usage Notice
Usage Notice Safety Information The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Precautions
Usage Notice Precautions Please follow all warnings, precautions and main- tenance as recommended in this user’s guide. ▀■ Warning - Do not look into the projector’s lens when the LED is on. The bright light may hurt your eyes. ▀■ Warning - To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture. - Page 5 Usage Notice Turn off and unplug the power plug from the AC outlet before cleaning the product. Use a soft dry cloth with mild detergent to clean the display housing. Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
- Page 6 Usage Notice Even those without a personal or family history of epilepsy or stroke may have an undiagnosed condition that can cause photosensitive epileptic seizures. Pregnant women, the elderly, sufferers of serious medical conditions, those who are sleep deprived or under the influence of alcohol should avoid utilizing the unit’s 3D functionality.
-
Page 7: Introduction
Introduction Packaging Overview Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact the nearest customer service center. Projector Power Cord HDMI Due to different applications in each country, some ... -
Page 8: Product Overview
Introduction Product overview Main Unit The interface is subject to model’s specifi- cations. Control Panel Loudspeaker Focus Ring Power Socket Ventilation (inlet) Interface Infrared Receiver Lens Ventilation (outlet) English... -
Page 9: Control Panel
Introduction Control Panel Enter INPUT LAMP TEMP STANDBY(R) ON (B) Power LED Confirm Temperature LED Lamp LED Home Page Input Four-direction Keys Power/Standby Button Infrared Receiver English... -
Page 10: Input/Output Connections
Introduction Input/Output Connections USB 2.0 (optional) RJ45 (optional) Video in HDMI 1 Input Connector HDMI 2 Input Connector HDMI 3 / MHL (optional) USB 3.0 (optional) Power Socket Audio Input Connector (3.5 mm Mini Jack) Audio Output Connector (3.5 mm Mini Jack) Service Connector 1 Service Connector 2 Digital Audio Output... -
Page 11: Remote Control
Introduction Remote Control Power Right Down Menu 3D mode Mute Signal Source Left Back MEMC mode Volume + Volume - English... -
Page 12: Installation
Installation Connect to the projector Connect to computer/notebook Connect to cable router/ network switch Connect to wireless network Due to the differ- ence in applica- tions for each country, some Audio Output regions may have different accesso- ries. (*) Options 1............Wifi Dongle/USB flash disc (optional) 2.................... -
Page 13: Connect To Video Sources
Installation Connect to Video Sources DVD Player, STB (Set-top Box), HDTV Receiver Audio Input Due to the difference in applications for each country, some regions may have different accessories. Audio Output (*) Options 1....................Audio Cable 2................. Composite Video Cable 3.................... -
Page 14: Powering On/Off The Projector
Installation Powering On/Off the Projector Powering On the Projector 1. Securely connect the power cord and signal cable. When connected, the POWER/STANDBY LED will turn Orange. 2. Turn on the projector by pressing “ ” button either on the projector or on the remote. At this moment, the POWER/ STANDBY LED will now turn Blue. -
Page 15: Powering Off The Projector
Installation Powering off the projector 1. Turn off the power of the projector by pressing the “ ” button on remote control or on control panel, the cooling system will start to operate and meanwhile the device will shut down. 2. -
Page 16: Adjusting The Projected Image
Installation Adjusting the Projected Image Adjusting the Projector’s Height The projector is equipped with elevator feet for adjusting the image height. 1. Find the adjustable foot that you want to apply to fix the height of the projector. 2. Rotate the adjustable ring clockwise to raise the projector or counterclockwise to lower it. -
Page 17: Adjusting The Focus Of The Projector
Installation Adjusting the focus of the projector To focus on the image, slide the focus ring to the left or to the right until the image is clear. The focusing range of projector is 1.443 ~ 1.887 feet (0.437 ~ 0.572 meters). -
Page 18: Adjust The Best Picture Of Projected Image (Diagonal)
Installation Adjust the best picture of projected image (diagonal) The focusing range of projector is 87 ~ 102 inches. Image Diagonal Dimension Offset Distance from Image to Rear Cover LO – Distance from Image to Rear Cover Offset (table top) – Distance from Image bottom to projector bottom. Image Offset (de- Offset (+ 3%... -
Page 19: User Controls
User Controls Control Panel & Remote Control Control Panel Enter INPUT LAMP TEMP STANDBY(R) ON (B) Using the Control Panel Refer to “Powering On/Off the Projector” on Page Power 14-15 Enter Press “Enter” to c onfirm your item selection. Input Press “Input”... -
Page 20: Remote Control
User Controls Remote Control Using the Remote Control Power Powering On/Off the Projector Signal Select signal based on the signal source Source Confirm the selected items Back Back to Channel Enable screen display (OSD) menu by Menu pressing “Menu”. Press “ Back ” to exit OSD MEMC mode MEMC mode selection 3D mode... -
Page 21: Osd Menu Operation
User Controls OSD Menu Operation 1. Connect the power cord, and press “ power” key to start, you will see the start- up screen as below: 2. To enter the OSD menu, press “ Menu” button on the remote control. 3. - Page 22 User Controls B. Audio Setting Settings like "Horn switch" and "SPDIF output" are available. English...
- Page 23 User Controls C. 3D Setting Settings like "3D automatic detection", "3D format conversion" and "Left and right exchange" are available. D. System Setting Settings like "Vertical keystone correction", "Menu display time", "Ceiling installation", "High altitude mode" and "Language change" are available. "Light Source Hours"...
-
Page 24: Appendices
Appendices Install and Clean Filter Net If you use the projector in a dusty environment, we recommend that you clean dust filter once or clean it more frequently every 500-hour operation. Dust filter should be applied in a dusty environment. If the filter net is ... -
Page 25: Regulation & Safety Notices
Appendices Regulation & Safety Notices This appendix lists the general notices of your projector. FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. -
Page 26: Operation Conditions
Appendices Operation conditions This device complies with CCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Notice: Canadian users This Class B digital apparatus complies with Canadian ICES- 003. - Page 27 Appendices Safety notice WARNING - This projector is a Class 2 laser device that conforms with IEC 60825-1:2007 and CFR 1040.10 and 1040.11. - Class 2 laser product, Do Not Stare Into Beam. - This projector has built-in Class 4 laser module. Disassembly or modification is very dangerous and should never be attempted.
-
Page 28: Trademarks
Appendices Trademarks • DLP is trademark or registered trademark of Texas Instruments. • IBM is a trademark or registered trademark of International Business Machines Corporation. • Macintosh, Mac OS X, iMac, and PowerBook are trademarks of Apple Inc., registered in the U.S. and other countries. •...
