Diagnostic DM-400 IHB Instruction Manual

Automatic upper-arm blood pressure and pulse monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

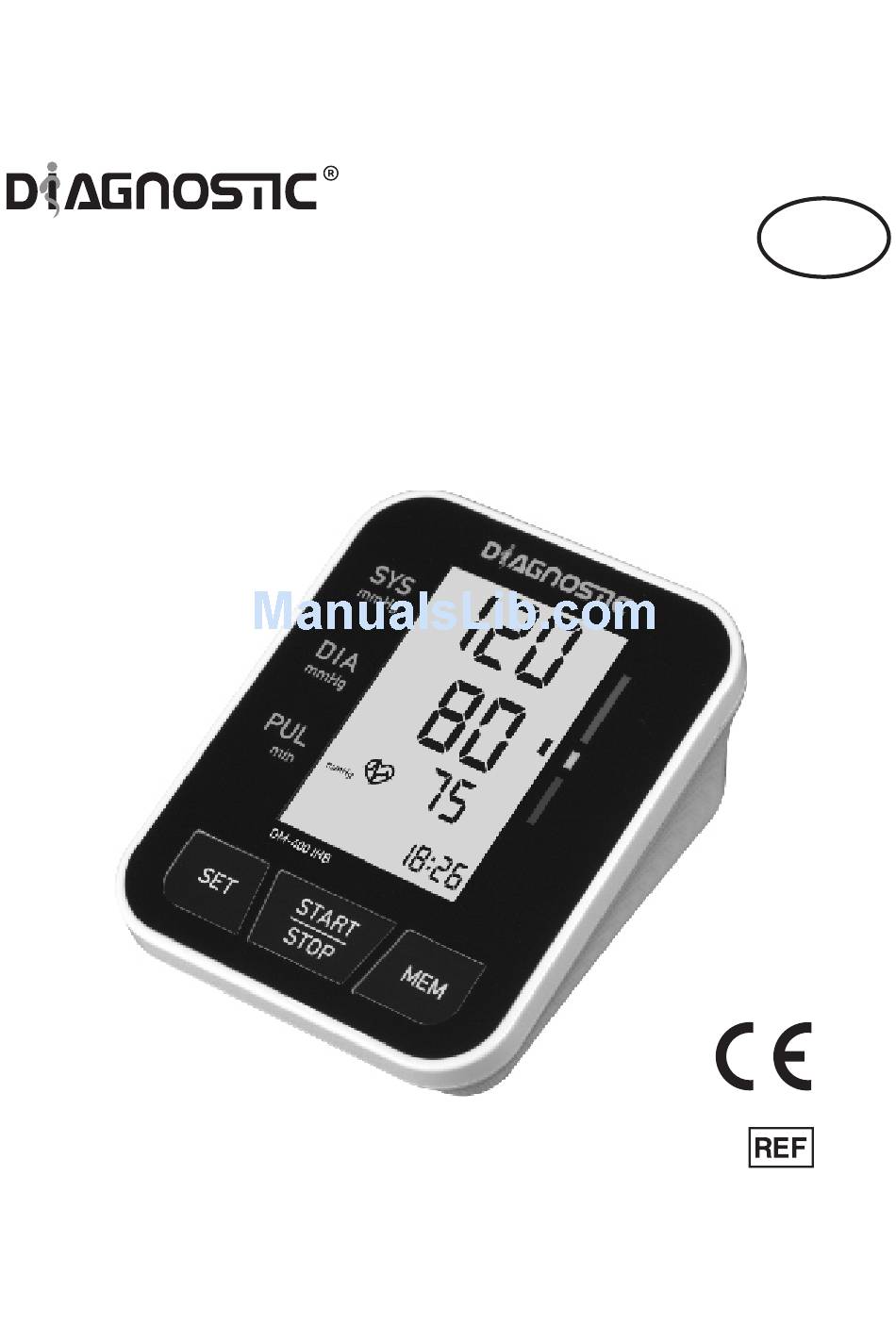

INSTRUCTION MANUAL
EN
DM-400 IHB
AUTOMATIC UPPER-ARM BLOOD PRESSURE AND
PULSE MONITOR
0197
5126

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DM-400 IHB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Diagnostic DM-400 IHB

Summary of Contents for Diagnostic DM-400 IHB

  • Page 1 INSTRUCTION MANUAL DM-400 IHB AUTOMATIC UPPER-ARM BLOOD PRESSURE AND PULSE MONITOR 0197 5126...

  • Page 2: Table Of Contents

    Thank you for buying the blood pressure and pulse monitor DM-400 IHB. The model can be used with irregular pulse. If the device detects irregular pulse, the symbol   the display. In such a case, it is advisable to consult your physician.

  • Page 3: Safety Information

    1. SAFETY INFORMATION 1.1 WARNINGS Self-diagnosis and treatment on the basis of obtained results may pose  risk to the health. You should follow the advice of a doctor. If the machine does not stop inflating the cuff, remove it or disconnect ...

  • Page 4: Contraindications

    Blood pressure measurements taken using the DM-400 IHB pressure  monitor are equivalent to measurements taken by trained personnel using ausculatory method (in accordance with the American National Standard for manual, electronic and automatic sphygmomanometers).. The device should be kept out of reach of infants, small children and ...

  • Page 5: Operation And Maintenance

    1.3 OPERATION AND MAINTENANCE Protect the device from high temperatures, humidity, dust and direct  sunlight. The cover should be cleaned using a soft cloth, moistened with 75%  solution of disinfecting alcohol. Do not soak or clean the cuff with water. ...

  • Page 6: Device Applications

    2. DEVICE APPLICATIONS The DM-400 IHB blood pressure monitor is designed for self-measurement of blood pressure and pulse rate in adults at home and by healthcare professionals in a hospital environment. PRESSURE MONITOR DESIGN LCD display power air tube adapter...

  • Page 7: Before Taking Readings

    100~240 V, 50/60Hz; output: 6V, min. 400mA We recommend using only the power adapter supplied  by the manufacturer, model Diagnostic ZID 6-1 (100~240 V, 50/60Hz, 6 V, 1000 mA (1 A)) If the device is defective, unplug the power supply or the power ...

  • Page 8: Power Adapter (Optional)

    Do not touch the power adapter with a wet hand.  Do not tangle the wires during usage.  The power adapter is added to the set optionally  (charged additionally) power 3.3 SETTINGS supply 3.3 Settings connector WITH THE DEVICE POWERED OFF: 1.

  • Page 9: Taking A Reading

    4. TAKING MEASUREMENT 4.1 IMPORTANT NOTES Do not eat, drink alcohol, smoke, take a shower or exercise at least 30  minutes prior to measuring blood pressure. Do not take any medication that may increase it Try not to take readings when you are upset or worried, because blood ...

  • Page 10: Body Posture During Measurement

    Do not fold the cuff or the air tube  To disconnect the cuff, remove the air tube plug from the device.  Measurement can be started only after wrapping the cuff  properly. The cuff must be replaced if there is a leak or when the cuff is ...
  • Page 11 8. If a problem occurs during the measurement, the screen displays the "Err" (error) message. 9. At the end of the measurement, if irregular pulse is detected, the symbol   will appear on the screen together with the measurement result.. Fig.

  • Page 12: Memory

    4.5 MEMORY Internal memory stores up to 2x60 measurement results. 1) Recalling results from memory a) To access memory, press the MEM button. b) The device displays the average result of 3 most recent measurements. c) After pressing the MEM button, the user can view data from the newest to the oldest.

  • Page 13: What Is Morning Surge In Blood Pressure

    A person can in fact be peaceful, relaxed and at the same time suffer from hypertension. Let's look at the facts regarding blood pressure, so that we gain a better understanding on how the body works and why it is prudent to start taking care of yourself right now, regardless of what the results of our blood pressure are.

  • Page 14: Error Messages

    It has been shown that the morning surge in blood pressure correlates to early phases and the development of atherosclerosis. Patients who properly control blood pressure may continue to experience a morning surge in blood pressure and it is so in 50% of the cases. Patients with hypertension have about 78% greater risk of stroke, compared to 48% in other patients with hypertension, who do not experience the morning blood pressure surge.

  • Page 15: Troubleshooting

    7. PROBLEM SOLVING In the event of irregularities during operation, please refer to the following: PROBLEM HOW TO REPAIR After replacing batteries and 1. Check battery polarity turning on the device, 2. If you still cannot turn on the device, reinstall or nothing displays replace the batteries.

  • Page 16: Specification

    8. SPECIFICATION Description Automatic upper arm blood Diagnostic DM-400 IHB Model pressure monitor Display Digital display LCD Measurement Oscillometric method princip Measurement Pressure: 0~280 mmHg Accuracy Pressure: ±3mmHg (±0.4 kPa) range Pulse: 40~180 bpm Pulse: ±5% Memory 2x60 measurement results...

  • Page 17: Standards

    9. STANDARDS GUIDELINES AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC EMISSIONS The devices are intended for use in the electromagnetic environment as described below. The customer or the user of the device should assure that the device is used in such an environment. Fulfillment Guidelines regarding electromagnetic environment Emission test...
  • Page 18 Guidelines and manufacturer's declaration regarding electromagnetic immunity With respect to the EQUIPMENT or SYSTEMS, which do not serve as LIFE SUPPORTING SYSTEMS GUIDELINES AND MANUFACTURER'S DECLARATION REGARDING ELECTROMAGNETIC IMMUNITY The device is intended for use in the electromagnetic environment specified below. The customer or the user of the DEVICE should assure that it is used in such an environment.
  • Page 19 Recommended spacing between portable and mobile radio communication equipment and a DEVICE in relation to devices that do not serve as LIFE SUPPORTING SYSTEMS Recommended spacing between portable and mobile radio communication equipment and the [DEVICE The [DEVICE or SYSTEM] is intended for use in the electromagnetic environment in which the interference caused by the emission of radio waves is controlled.

  • Page 20: Explanation Of Symbols

    10. EXPLANATION OF SYMBOLS START/STOP Pause and turn on The product complies with the requirements of the European Union 0197 Rev. Systolic pressure in mmHg Date of the last revision Diastolic pressure in mmHg Manufacturer Pulse rate Manufacturing date Note on installing battery Serial number Direct current Read the user manual...
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 NOTES...
  • Page 24 DATE OF SALE ............WARRANTY TERMS Diagnosis S.A. grants a warranty: 24 months for DIAGNOSTIC blood pressure monitors and cuffs (excluding  pump assembly) Hardware defects revealed during the warranty period will be rectified free of charge within 21 days.
